Product Details Introduction
Performance Characteristics：

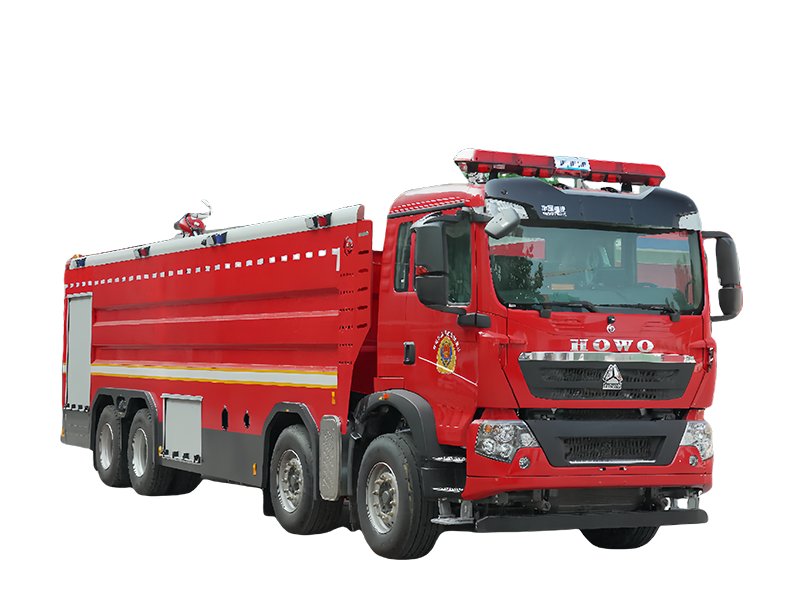

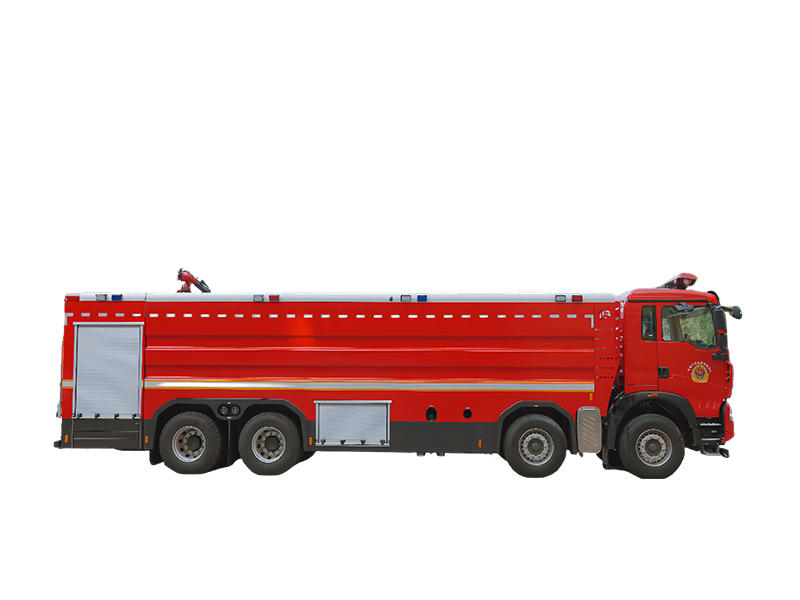

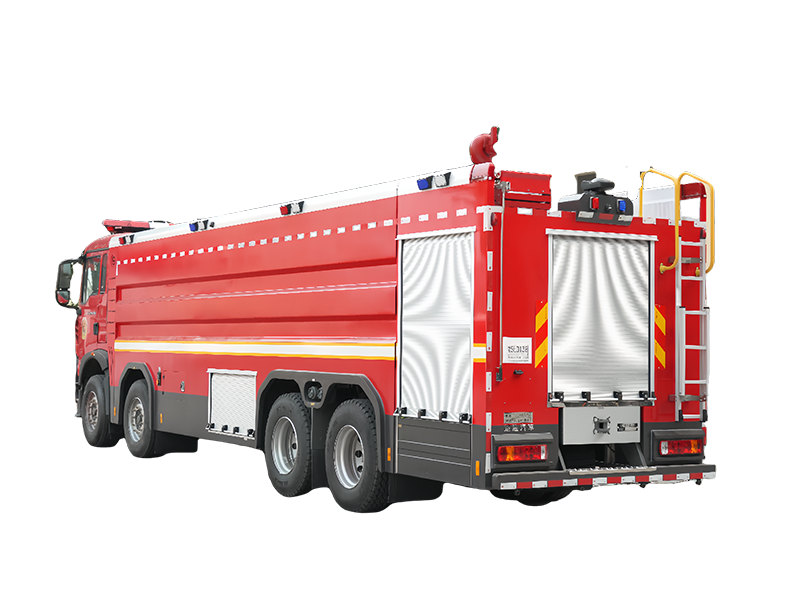

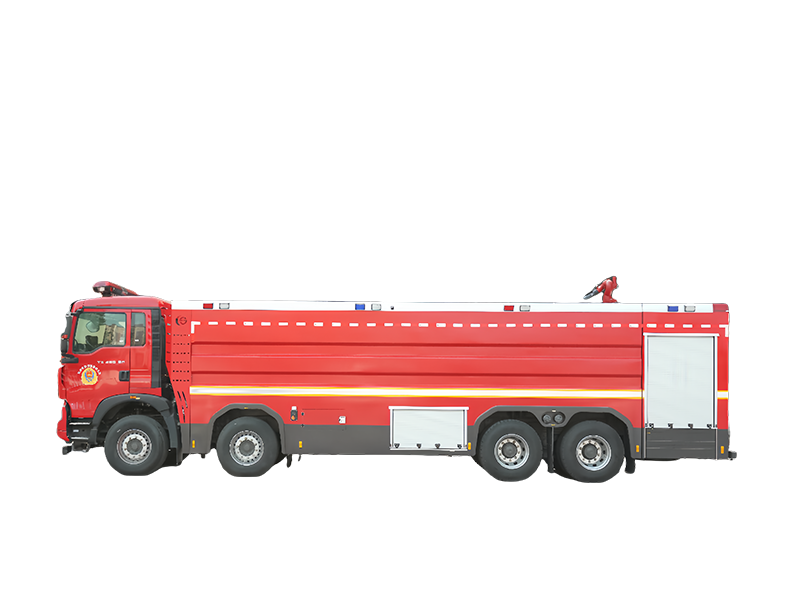

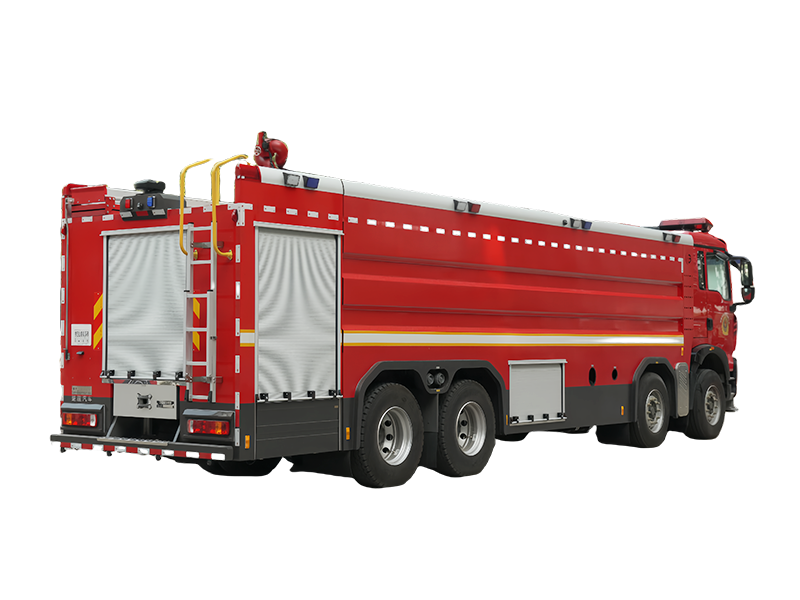

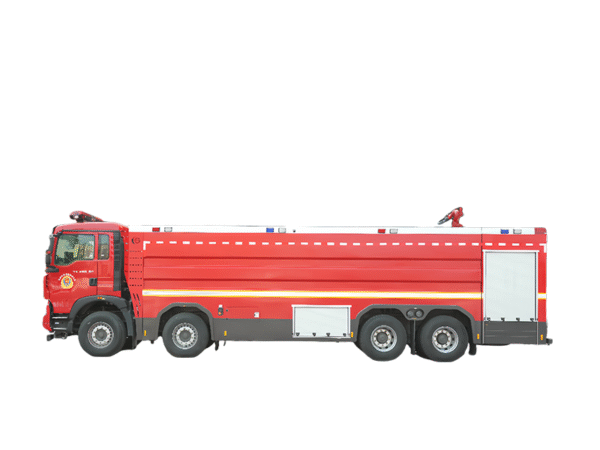

The 5430GXFSG/PM240/Z6 Water Tank/Foam Fire Truck is modified based on the ZZ5447TXFV466MF18X4 fire truck chassis produced by Sinotruk Group. The vehicle features a rational layout, with separate structures for the equipment compartment, tank, and pump room, presenting a novel and harmonious appearance. It is equipped with a CB10/100 low-pressure fire pump produced by Shanghai Rongshen and a PL8/80 fire monitor on the roof. The design is compact, ensuring convenient operation and maintenance. With a large capacity for fire extinguishing agents and high-speed performance, this vehicle is an essential primary firefighting unit for petrochemical enterprises, oil terminals, oil field depots, airports, as well as professional and industrial fire brigades in large and medium-sized cities.
Parameters configuration：
| Serial Number | Name | Parameters: 5430GXFSG240/Z6 Water Tank Fire Truck | Parameters: CSC5430GXFPM240/Z6 Foam Fire Truck |
| 1 | Dimensions (mm) | 11900×2540×3680 | 11900×2540×3680 |
| 2 | Chassis Model | HOWO | HOWO |
| 3 | Wheelbase (mm) | 1950+4600+1400 | 1950+4600+1400 |
| 4 | Engine Model | Sinotruk | Sinotruk |
| 5 | Engine Power/Horsepower | 341KW/460 HP | 341KW/460 HP |
| 6 | Crew (including driver) (persons) | Original double-row cab 2+4 | Original double-row cab 2+4 |
| 7 | Fire Extinguishing Agent Capacity (kg) | Water ≥24400 | Water ≥21400, Foam ≥3000 |
| 8 | Fire Pump Flow Rate | Normal pressure pump 100L/s@1.0MPa | Normal pressure pump 100L/s@1.0MPa |
| 9 | Fire Monitor Flow Rate, Range | 80L/s@1.0MPa Water ≥85m | 80L/s@0.8MPa Water ≥75m, Foam ≥70m |
Product Details Display
