Description
Product Details Introduction
Performance Characteristics：

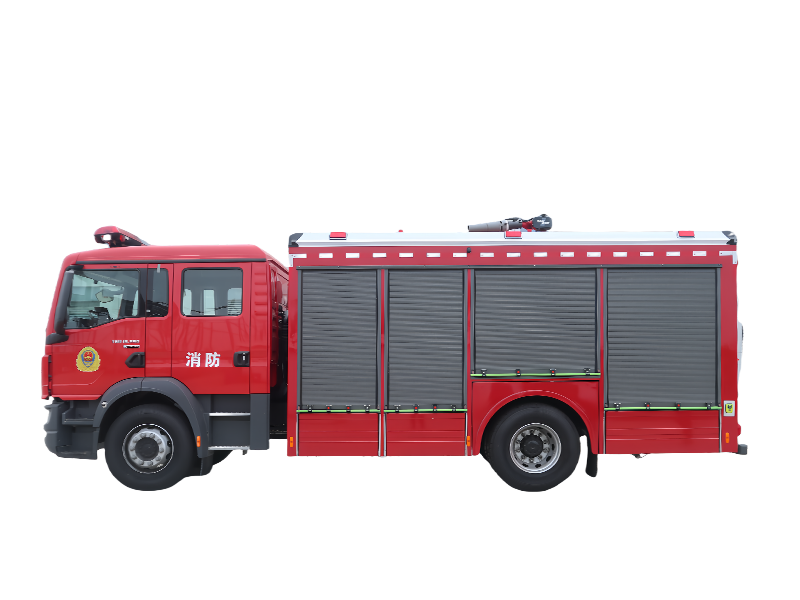

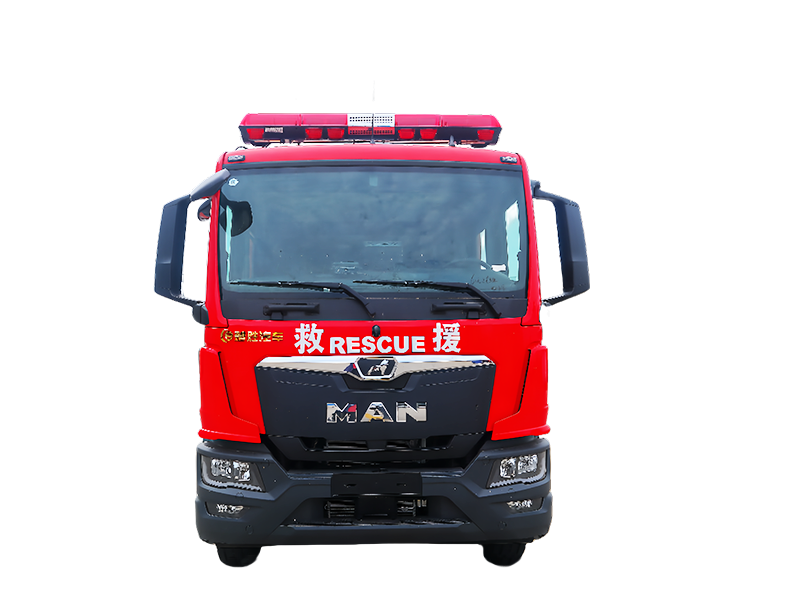

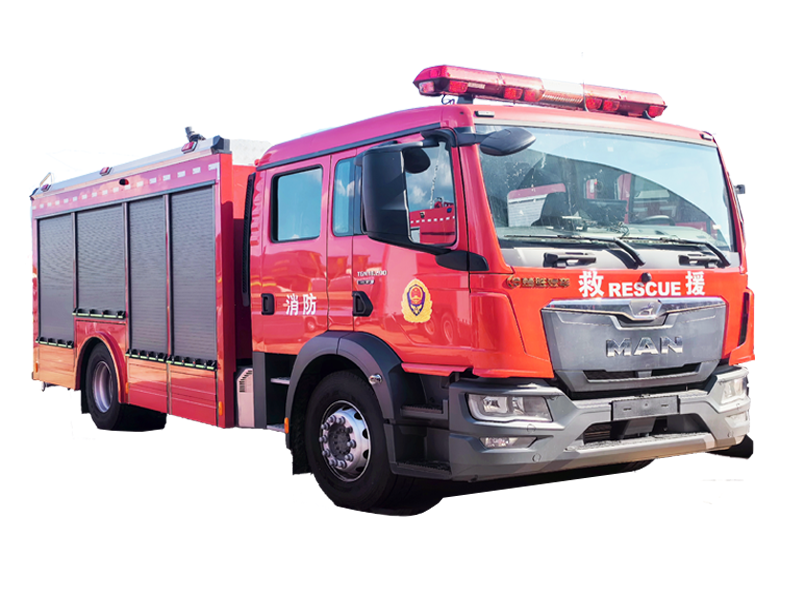

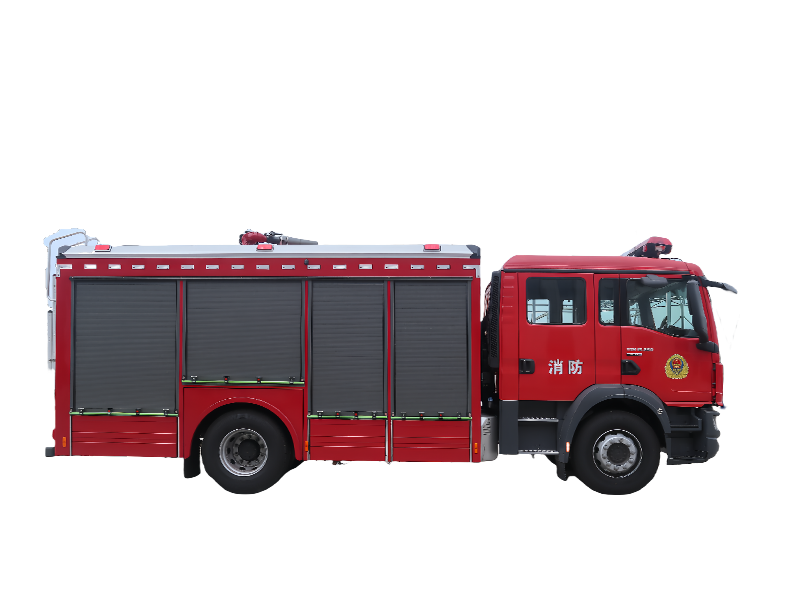

SC5170GXFSGJPM70 Water Tank/Foam Fire Truck is built on a specially designed chassis from Qingling, compliant with the National V emission standard, and equipped with an engine power of 177 kW. It is fitted with a CB10/60 low-pressure vehicle fire pump produced by Shanghai Xiongzhen Fire Equipment Co., Ltd. On the roof, it features a PL8/48 fire monitor manufactured by Chengdu West Fire Machinery Co., Ltd. This fire truck is reliable in performance, practical in functionality, and user-friendly in operation. The vehicle\’s control system adopts an electrical control system, with an operation control panel installed in the pump room. The buttons and switches are ergonomically designed for convenient and intuitive operation.
Parameter Configuration ：
| No. | Name | Parameters: 5170GXFPM70 Foam Fire Truck |
| 1 | Overall Dimensions (mm) | 8140x2550x3470 |
| 2 | Chassis Model | Qingling QL1180EQFRY 4X2 |
| 3 | Wheelbase (mm) | 4500 |
| 4 | Engine Model | Isuzu |
| 5 | Engine Power/Horsepower | 177kw / 240 HP |
| 6 | Crew (including driver) (persons) | Original double row 2+3 persons |
| 7 | Fire Extinguishing Agent Capacity (kg) | Water ≥4650, Foam ≥1950 |
| 8 | Fire Pump Flow Rate | Normal pressure pump 60L/s @ 1.0MPa |
| 9 | Fire Monitor Flow Rate, Range | 48L/s @ 0.8MPa, Water ≥70m, Foam ≥60m |
