Description
Product Details Introduction
Performance Characteristics：
5160GXFSG/PM70/E6 Water Tank/Foam Fire Truck is a firefighting vehicle modified from the EQ1185DJ9CDF 4X2 cargo truck chassis produced by Dongfeng Motor Corporation. It is equipped with a CB10/40 normal-pressure vehicle fire pump manufactured by Shanghai Rongshen Fire Equipment Co., Ltd. On the roof, it features a PL8/32 fire monitor produced by Chengdu West Fire Machinery Co., Ltd. This fire truck is reliable in performance, practical in functionality, and user-friendly in operation. It is an ideal firefighting equipment for special service fire brigades in large and medium-sized cities, as well as for large and medium-sized petrochemical enterprises, military facilities, airports, and port terminals.
Parameter Configuration
| No. | Name | Parameters: 5160CXFPMT0/EG Foam Fire Truck |
| 1 | Overall Dimensions (mm) | 8230x2510x3470 |
| 2 | Chassis Model | Duolika D9E0118EDJ9CDF4X2 |
| 3 | Wheelbase (mm) | 4700 |
| 4 | Engine Model | Cummins B6.20S6B230 |
| 5 | Engine Power / Horsepower | 69kw / 230 HP |
| 6 | Crew (including driver) (persons) | Original double row 3+3 persons |
| 7 | Fire Extinguishing Agent Capacity (kg) | Water >5000, Foam >1700 |
| 8 | Fire Pump Flow Rate | Normal pressure pump 32L/s @ 1.0MPa |
| 9 | Fire Monitor Flow Rate, Range | 32L/s @ 0.65MPa, Water >55m, Foam >50m |

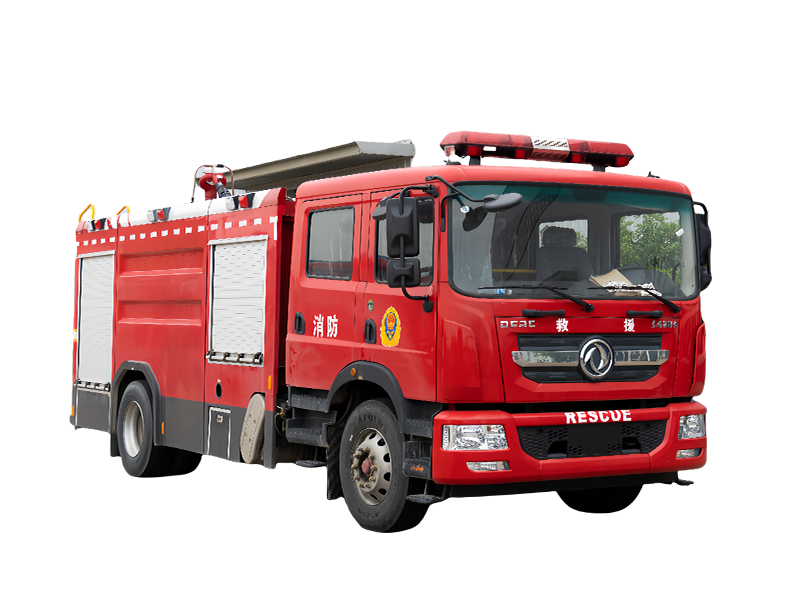

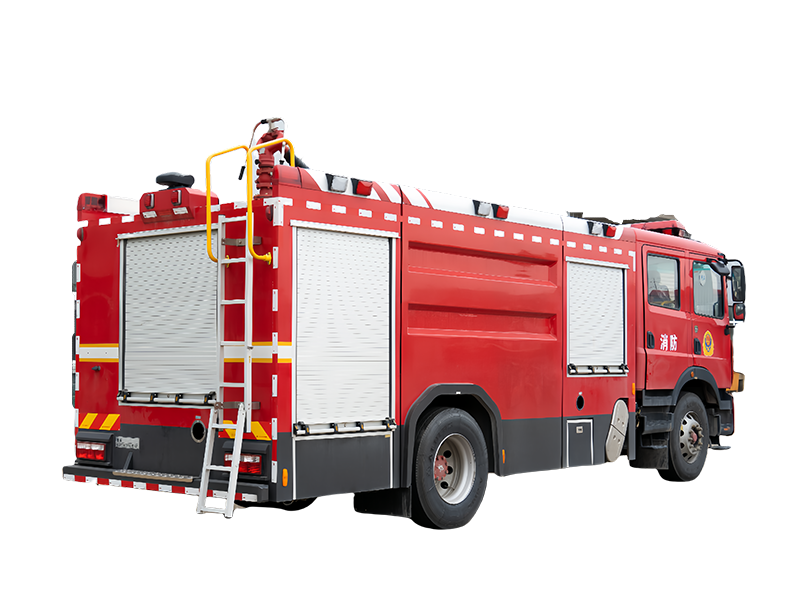

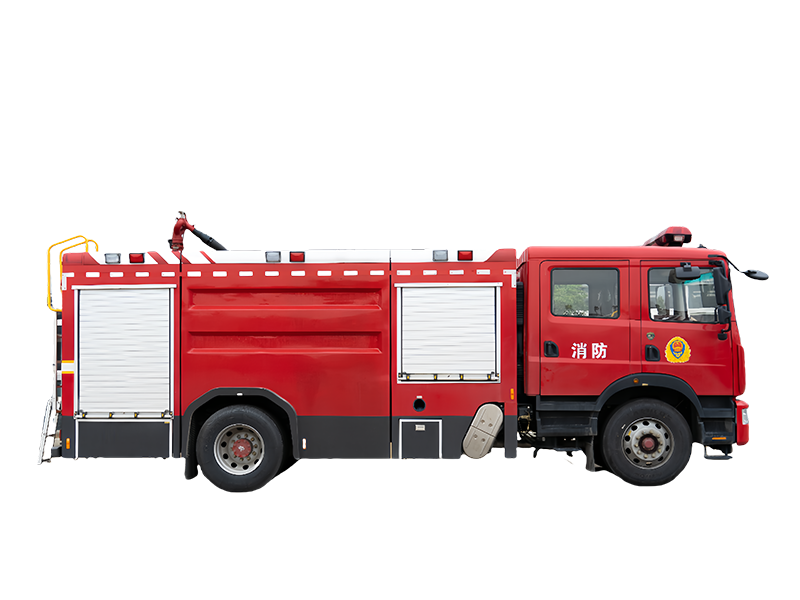

Product Details Display
