Description
Product Details Introduction
Performance Characteristics：

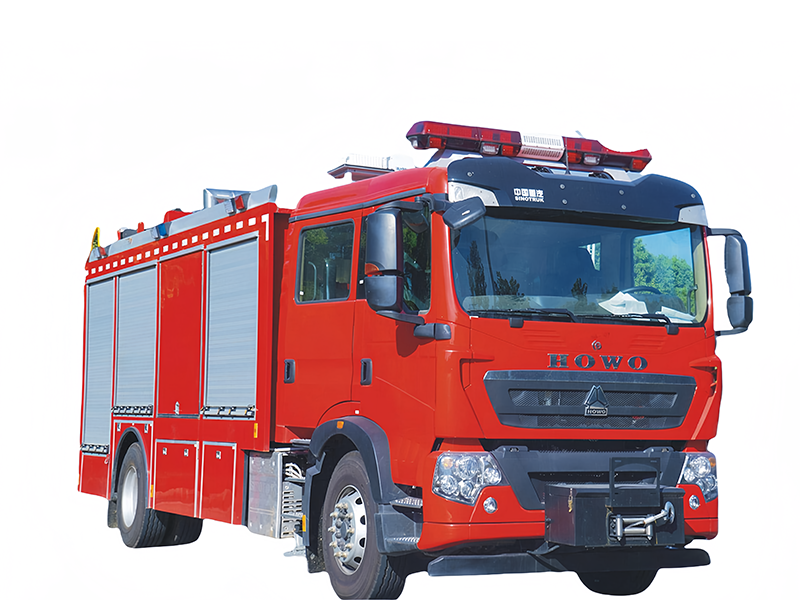

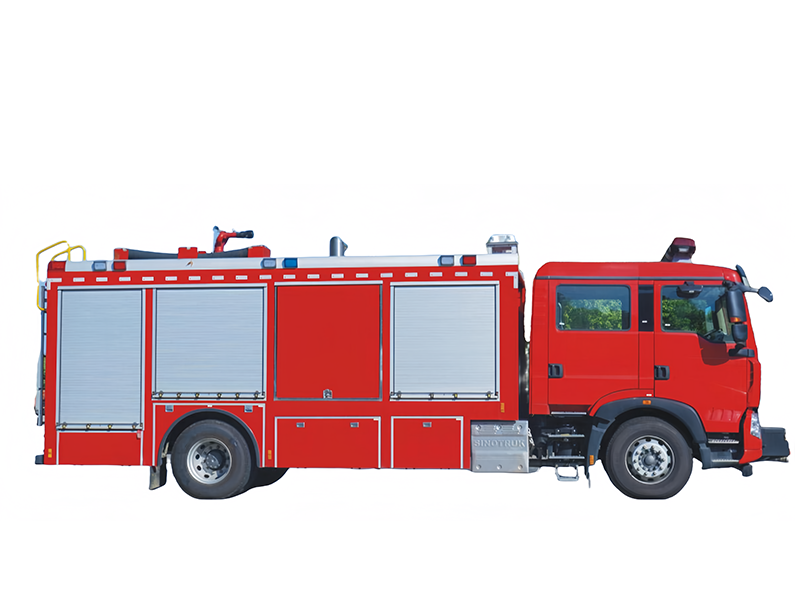

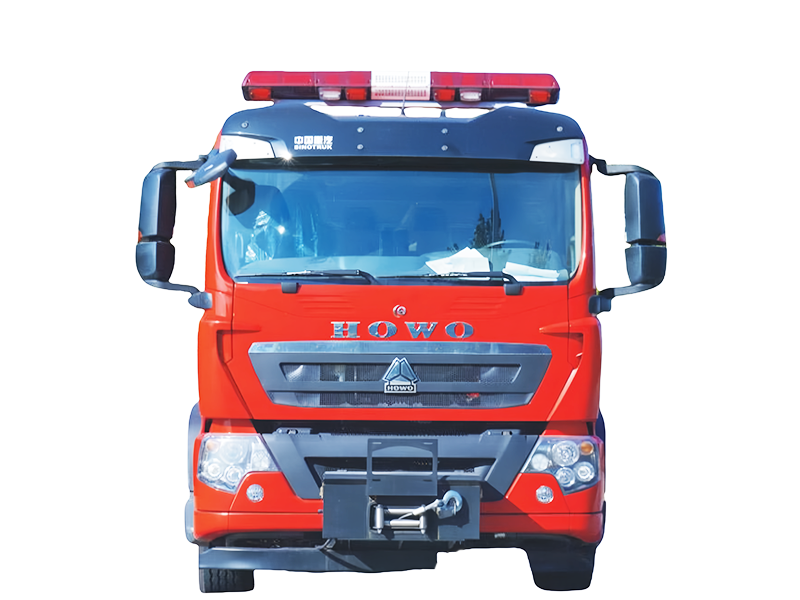

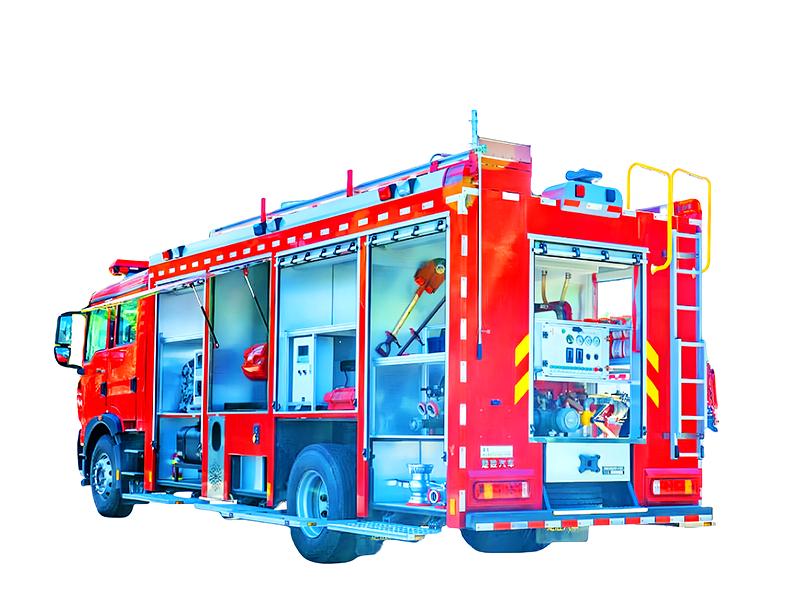

The HJ40 chemical rescue fire truck is based on the ZZ5207TXFV471GF5 type II vehicle chassis from China National Heavy Duty Truck Group. It features an original dual-cabin cab that can accommodate 2+4 personnel. The chassis is powered by an MC07H.35-60 engine with a high power output of 257kW. The equipment box is equipped with high-quality aluminum roll-up doors. The vehicle has a water tank with a capacity of 3250L and a decontamination tank with a capacity of 750L, both made of high-quality 304 stainless steel (0Cr18Ni9).
The truck is equipped with a Shanghai Rongshen CB20.10/20.40RS vehicle-mounted fire pump, which has a rated flow rate of 40L/s at 1.0Mpa and 20L/s at 2.0Mpa. It also features a Chengdu West PL8/40W fire monitor with a rated flow rate of 40L/s. Additional equipment includes an American Champion N16800XF electric winch, a Bochan YZH64.83CFA 4×1500W lifting illumination light, and a Honda 6kw vehicle-mounted generator.
This vehicle is capable of both chemical rescue decontamination and firefighting operations, and it is characterized by strong comprehensive performance and convenient centralized control.
Parameter Configuration ：
| No. | Name | Parameters: 5190TXFHJ40/Z6 Chemical Rescue Fire Truck |
| 1 | Dimensions (mm) | 9890x2520x3760 |
| 2 | Chassis Model | Howo |
| 3 | Wheelbase (mm) | 5600 |
| 4 | Engine Model | Heavy Duty |
| 5 | Engine Power/Horsepower | 257Kw 350HP |
| 6 | Occupants (Including Driver) (Persons) | Original Double Cab 2+4 People |
| 7 | Fire Pump Flow Rate | Medium-Low Pressure Fire Pump 40L/s@1.0MPa 20L/s@2.0MPa |
| 8 | Fire Gun Flow Rate, Range | 40L/s@0.8MPa Water ≥65m |
| 9 | Boiler, Water Tank Capacity (kg) | Water ≥3250kg Boiler ≥880kg |
| 10 | Maximum Traction Force (kg) | ≥7560 |
| 11 | Lifting Lighting System | 4X1000W |
| 12 | Rated Voltage, Power | 220V/380V 10KW |
