Product Details Introduction

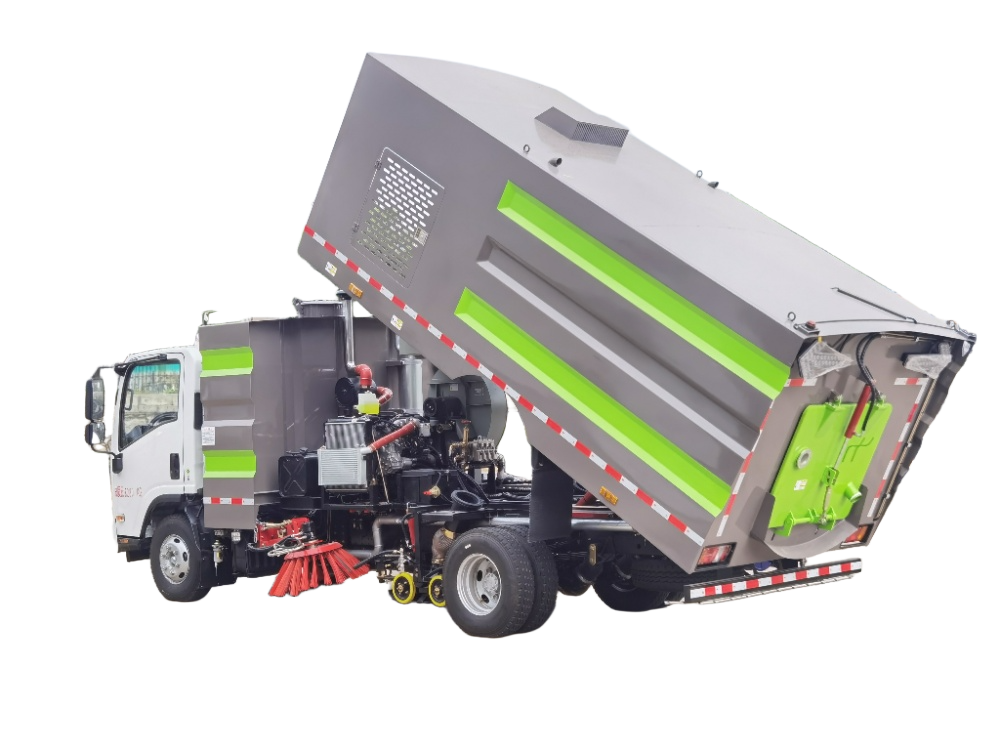

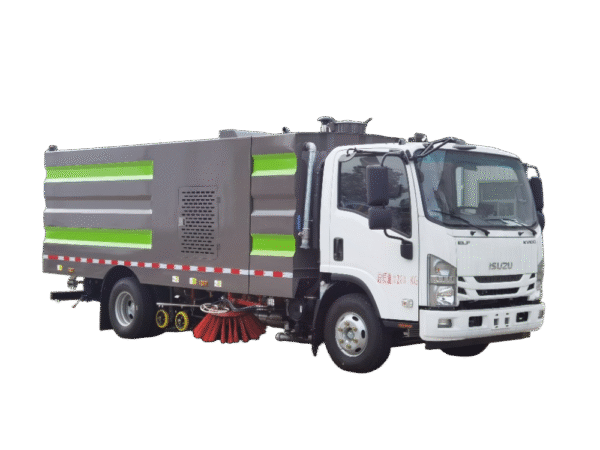

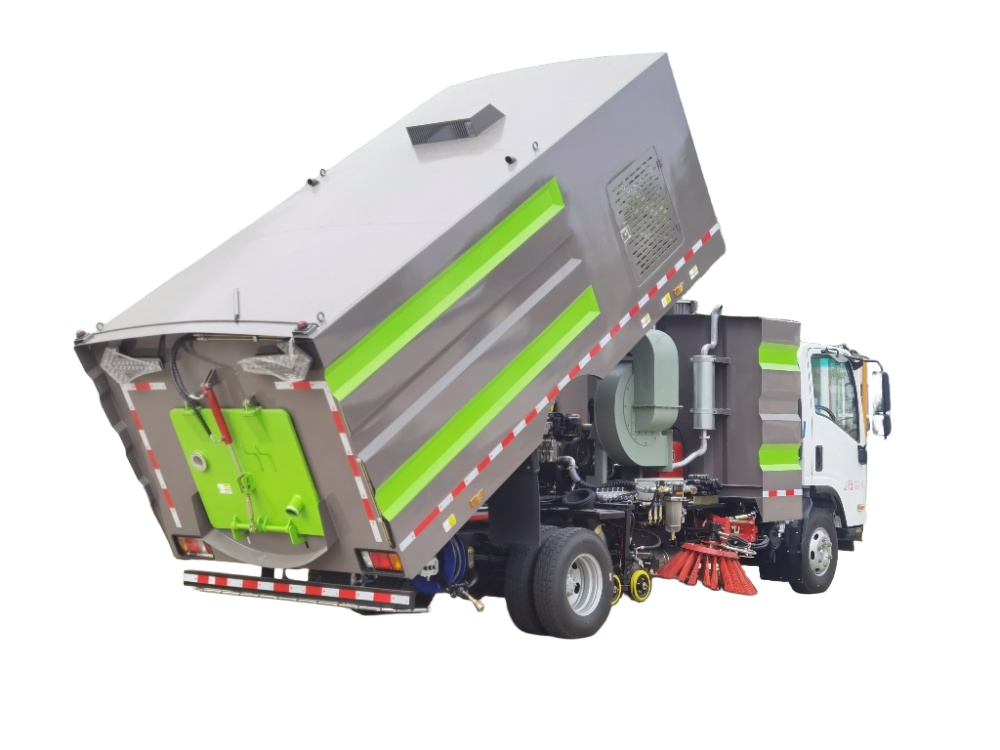

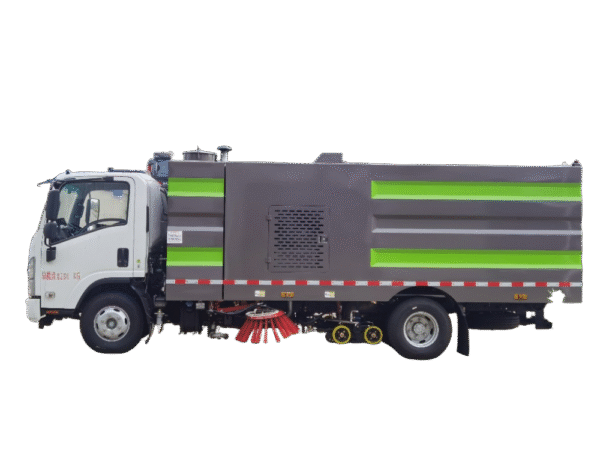

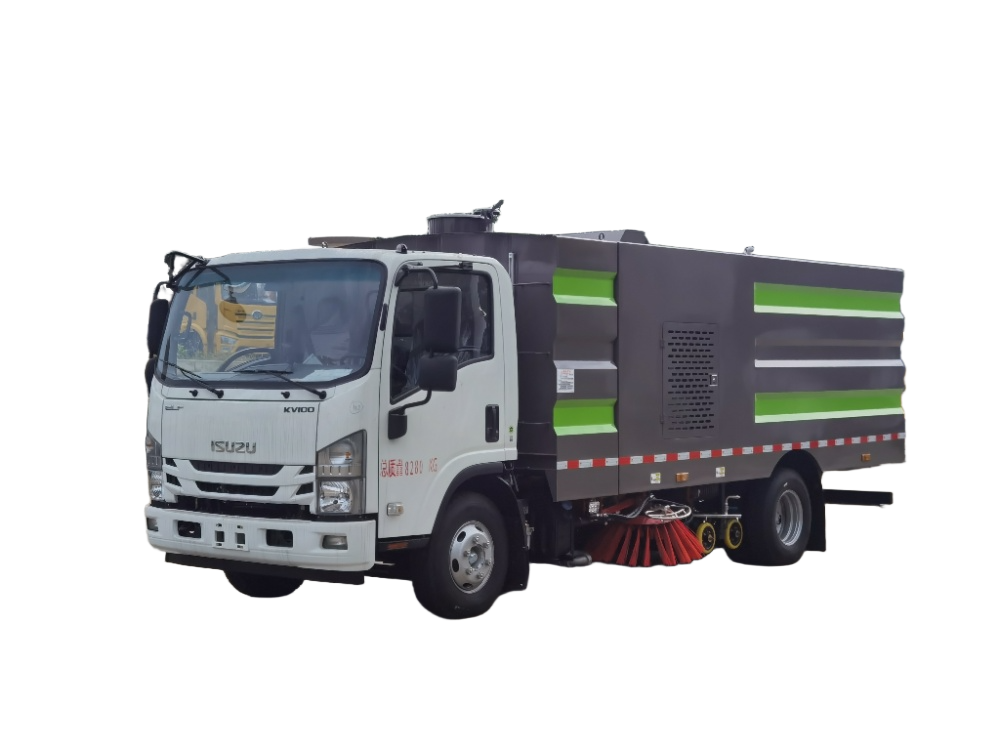

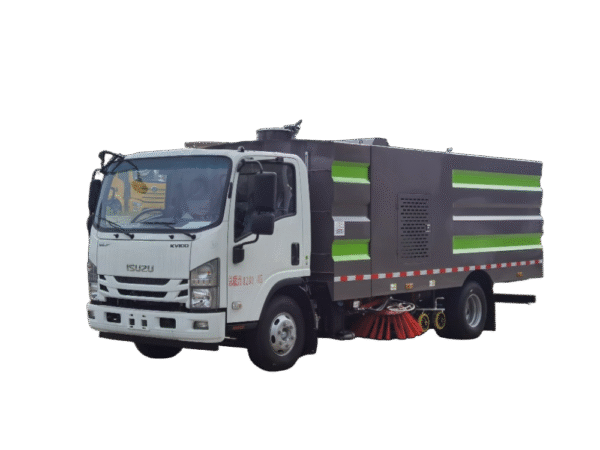

State 600 zu KV100 6 square wash car

1. scope of application:

1) Cleaning and cleaning of urban roads, roads and curbs, such as highways, squares, airports, docks, tunnels, Bridges and isolation walls.

2) Cleaning and cleaning of the construction site, the factory area and other trunk roads.



Qingling Isuzu country six, road sweeper, wash sweep car
Chassis model	QL1080BUKACY
Chassis manufacturer	Qingling Automobile Co., LTD
pilothouse	Original Isuzu single row, can take 2 people
Box volume	2 cubic clear water box, 4 square dust box
Box material	All stainless steel material, water tank garbage bin split design
navar	PLC intelligent system, o-hydraulic integrated control
Cleaning institutions	1. Standard 2 sweep brush, left and right 1 2. Strong suction cup on the tail
engine	4KH1CN6LB (National 6 standard 120hp)
Tyre model	7.50R16LT 14PR
Number of tires	6 + 1 (42) drive
outline dimension	7050×2200×2700mm 7,050,2,200,2,700 mm
wheel base	3,8 and 15 mm 3815 mm



Isuzu sweeping car, washing car performance characteristics

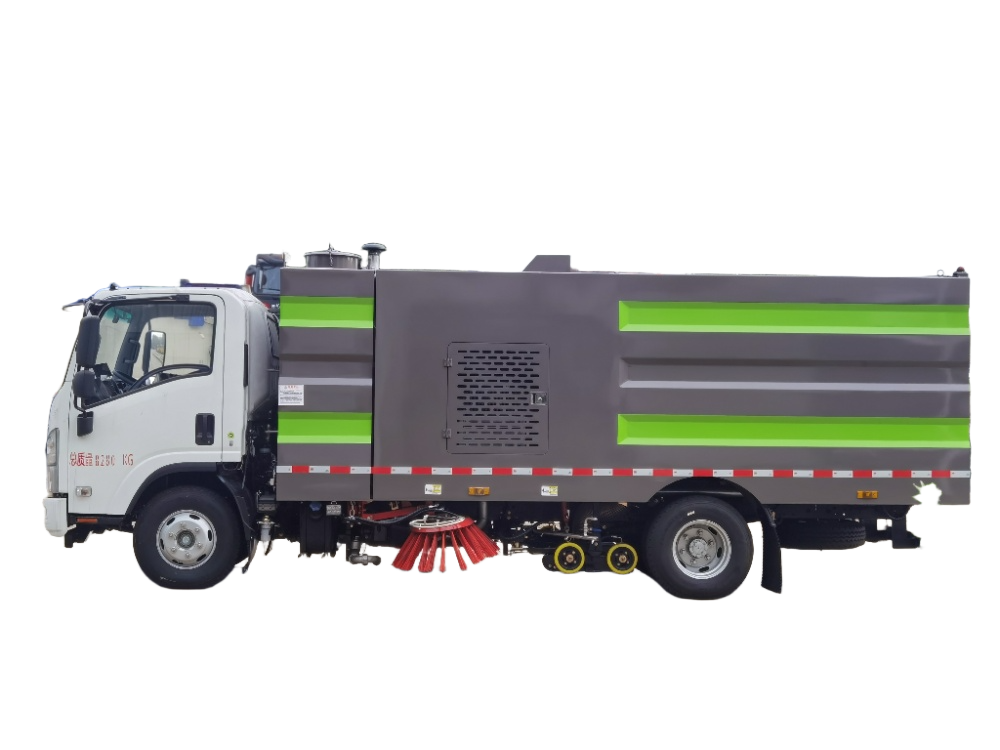

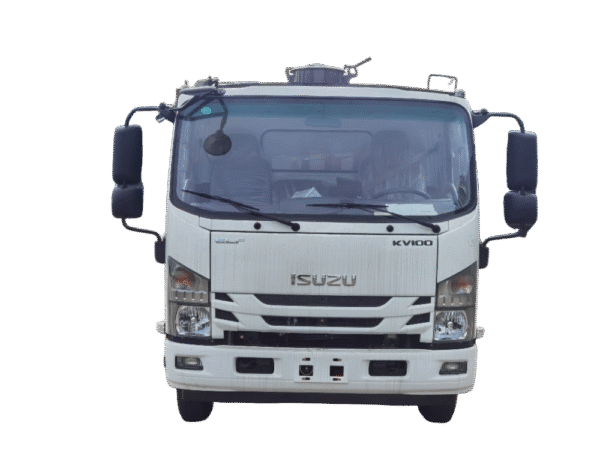

pilothouse	Flat head all-metal enclosed cab, single row cab, panoramic curved type windshield. Select a new front cover, front bumper, front combination lamps, car doors and Windows, front surrounding lower mask.
The strength of the box is high	The box body is made of all stainless steel material, square box body, water tank dustbin split design, not easy to deformation, longer life.
Good economy	The computer control system automatically controls the throttle when the special equipment is working
Work efficiently	PLC electronic control system, cleaning with water spray dust suppression, effectively avoid secondary dust pollution; rear strong suction cup, to ensure more thorough cleaning
Intelligent selection	Optional installed GPS, front and rear reversing image, clean water hand washing box, etc.



2. operational principle:

1) Wash and sweep: the secondary engine drive the hydraulic oil pump, high pressure water pump and fan work. Hydraulic oil pump drive left and right sweep plate telescopic, lifting, rotation, left and right brush on the sweep of the suction cup front, at the same time, high pressure water pump from the water box of clean water pressure by high pressure pipe control valve respectively to the suction rod and left and right water rod, the fan high pressure nozzle spray fan water curtain of a total width not less than 3.5m U shaped water knife will flush the ground attachments. The suction cup uses the negative pressure generated by the fan to store the garbage through the air duct for storage.

2) roadside and roadside stone facade washing: in the process of washing and cleaning, open the sidewalk and facade wall above the road surface and the roadside cleaning the ball valve on the bent pipe, the high pressure water through the water pipe, the high pressure water curtain formed can complete the roadside and roadside stone facade washing.

3) Rear spray: there is a spray rod under the rear bin of the cleaning car, and the spray rod is installed with multiple spray nozzle. Start the auxiliary engine and high pressure water pump, turn on the rear spray switch, start the chassis car forward, you can carry out spray dust, spray to reduce dryness operation.

4) Low pressure flushing: For the road surface with clean environment, the low pressure flushing function can be started. The sprinkler pump is driven by the chassis power take-off to realize the low pressure flushing function of the sprinkler truck.



3. product function:

1) With the functions of washing, cleaning, high-pressure flushing, low-pressure flushing, roadside flushing, front flushing, back spray, self-cleaning, etc.

2) According to the working environment, there are four main operation modes: \”full wash\”, \”right wash\”, \”full sweep\” and \”right sweep\” to choose from. The speed of the sweeping disk can be adjusted steplessly according to the actual road surface conditions.



4. Competitive advantages of similar products:

Compared with similar products, the company\’s washing car has the following unique technical features:

1. High configuration:

① Chassis: using Qingling Isuzu chassis Co., LTD. National six class II chassis, equipped with ABS, air brake, etc. Compared to the market ordinary light truck series chassis (such as Dongfeng Dolica chassis), the cab with heating and cooling air conditioning and large screen multimedia color display; high driving comfort. High vehicle configuration, stable quality, and sound after-sales service system.

② Top: Jiangling Country three JX493ZG3 sub-engine, Luoyang North Glass (Taiwan joint venture) high-efficiency original fan, Xiamen Nanchao automatic centrifugal clutch are the preferred brands in the domestic sanitation vehicle industry. Imported silicone sealing materials, Yuci hydraulic system, Isaiya gas components, Japan Seiko and SkF imported bearings are the best configuration of domestic vacuum vehicles.

③ Electronic control system: the vehicle adopts CAN bus control system, with two sets of operating systems in the interior and tail of the cab, one-button operation, voice alarm system, right and rear two monitoring systems, auxiliary engine, water pump, oil pump in high temperature or water shortage. Compared with the PLC control system in the current market, high technical level, high safety and reliability, simple operation, easy to use.

2, water box, dustbin processing technology and material: using full laser cutting 304 stainless steel material and argon fluorine welding welding forming process, technology level compared with the market most of the half laser cutting process and carbon dioxide gas protection welding process, with high precision, high welding strength, beautiful and firm.

3. Structure and coating: the national patented box structure and coating scheme. The box combines structural mechanics and aesthetic concept to ensure the structural strength of the vehicle and the aesthetic needs of the users; the vehicle spraying process is standard by passenger buses, the paint is PPG brand imported from the United States, with strong process, high surface finish and reliability, more than 5 years. The line pattern and text mark of the whole vehicle are designed by 3D process, with obvious layers and strong three-dimensional sense.

4, simple structure, less vulnerable parts: simple structure, less vulnerable parts, more than 90% of the parts on the vehicle are assembled, all small parts have versatility and interchangeability, easy disassembly, easy to replace, low maintenance cost, high replacement efficiency.

5, the suction of the internal wear resistance block adopts a unique slot design: compared with the ordinary suction cup can be increased by 30%.

6. Inside the box: the filter area of the fan suction outlet is twice the filter area of the ordinary washing car.



5. Product advantages:

1) High-performance and environmental protection:

Efficient washing car using high pressure water and tilt sweep will garbage to the front of the suction cup, under the negative pressure of the fan, air in the closed circuit garbage inhaled storage in the dustbin, the whole process is the physical principle, will not produce chemical waste or garbage leakage secondary pollution to the environment, at the same time, after the spray dust effectively reduce the dust concentration in the air, solve the problem of dust pollution.

Wash the cleanliness is high, the function of the complete model to solve different road environment, a operation cleaning efficiency above 98%, before the function, cleaning, road cleaning, spray function, low pressure flushing function and suction cup + left side spray rod structure, pavement, groove, bend, curb of the dust, garbage can be clean, to ensure that the environment is clean and tidy.

2) High configuration:

① The chassis adopts the second class chassis of Jiangxi Jiangling Chassis Co., LTD. JX1083TK26, the emission standard reaches the national standard, equipped with ABS, air brake, etc., with heating and cooling air conditioning and large screen multimedia color display in the cab; high driving comfort. High vehicle configuration, stable quality, and sound after-sales service system.

② Jiangling Guosan JX493ZG3 sub-engine, Luoyang North Glass (Zhongtai joint venture) efficient original fan and Xiamen NanChao automatic multi-stage clutch are the preferred brands of domestic sanitation vehicle industry; imported high pressure water pump and brand sprinkler pump, gas element, Yuci hydraulic system, imported silicone sealing material, Japan Seiko and SF bearing are the best configuration.

③ dustbin, water tank are using full laser cutting single layer folding reinforcement 304 stainless steel material, argon fluorine welding a welding forming process, high processing accuracy, reliable quality, neat and beautiful.

④ CAN bus electric control system (including a key operating system, cab and tail two sets of operating system, work voice broadcasting system and alarm system, the cab installation right, two monitoring system), facilitate the driver in the process of the vehicle real-time observation surrounding situation and operation status, and adjust the operation mode, the vehicle with sewage tank full alarm function and water low automatic alarm and stop operation function and other protection functions, high security.

3) Complete functions and reasonable design:

① It has various functions such as road cleaning, road cleaning, roadside and roadside stone facade washing, low pressure washing and spray dust removal. It can be used as road sweeper, washing car, roadside cleaning car, road washing car and spray dust car.

② According to the situation of the working environment, you can choose the working state of the left and right vertical sweep, there are \”full wash sweep\”, \”right wash sweep\”, \”full sweep\”, \”right sweep\” four main operation modes.

③ The control system is a one-key operation control panel, which is easy to operate. At the same time, two right and rear monitoring systems are installed in the cab, which facilitate the driver to observe the surrounding situation and operation status of the vehicle in real time in the process of the vehicle moving, and adjust the operation mode with high safety.

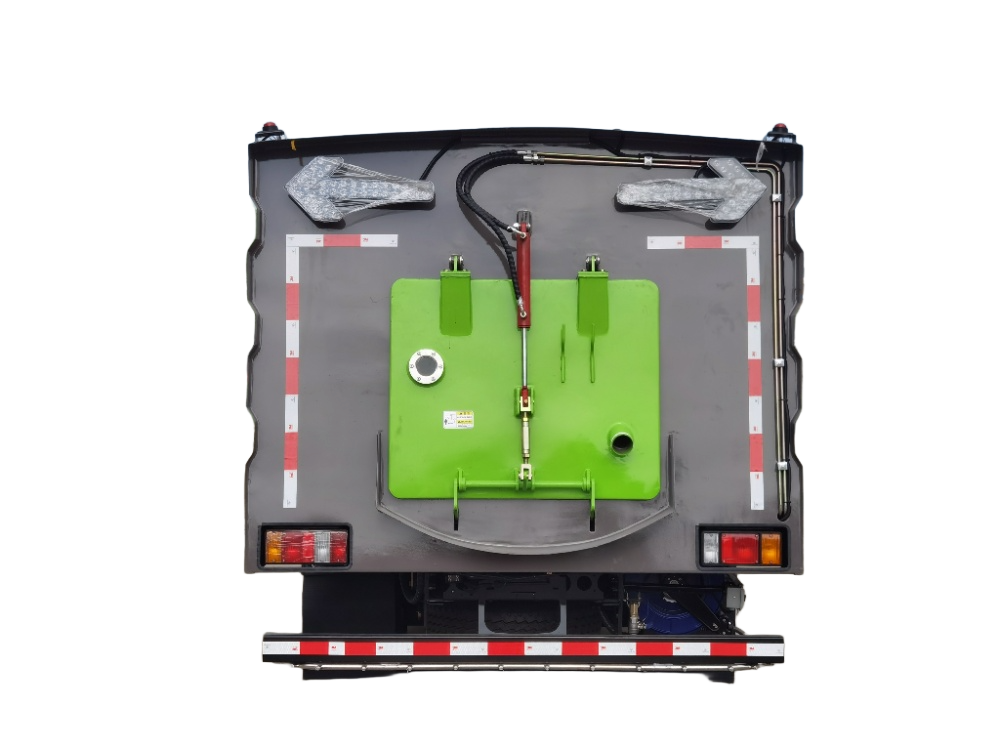

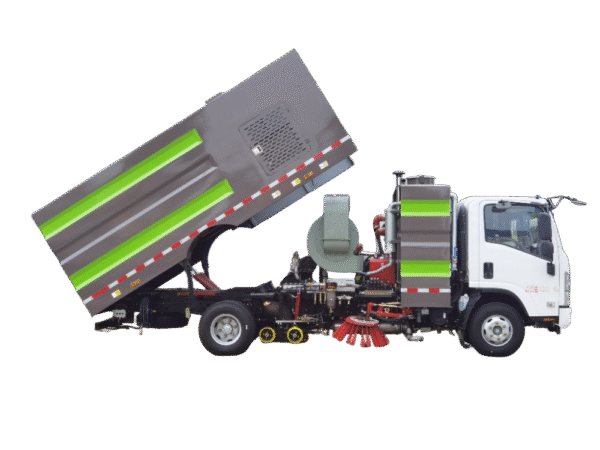

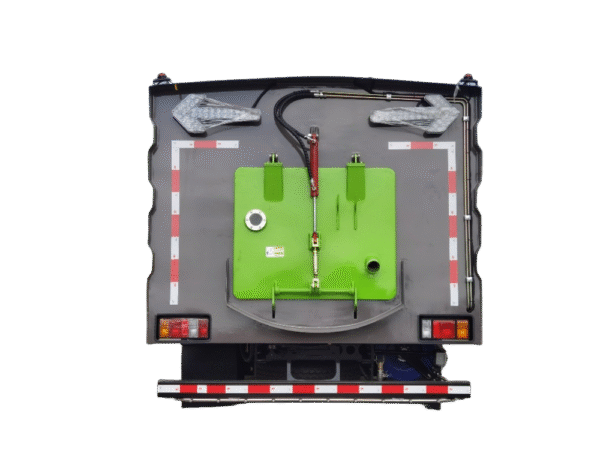

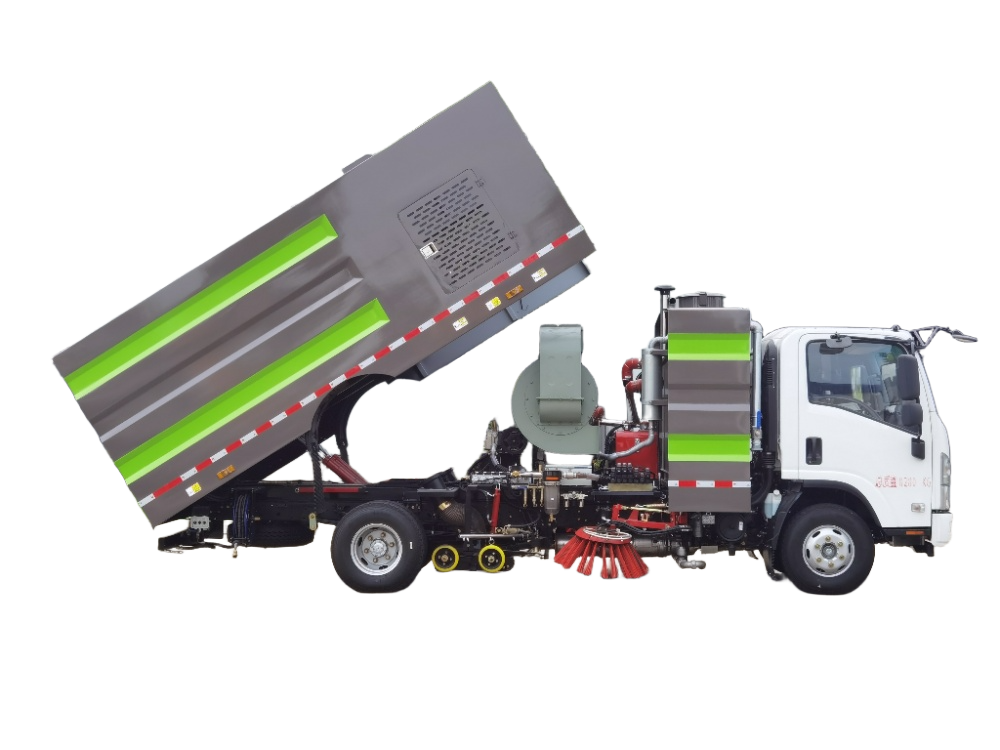

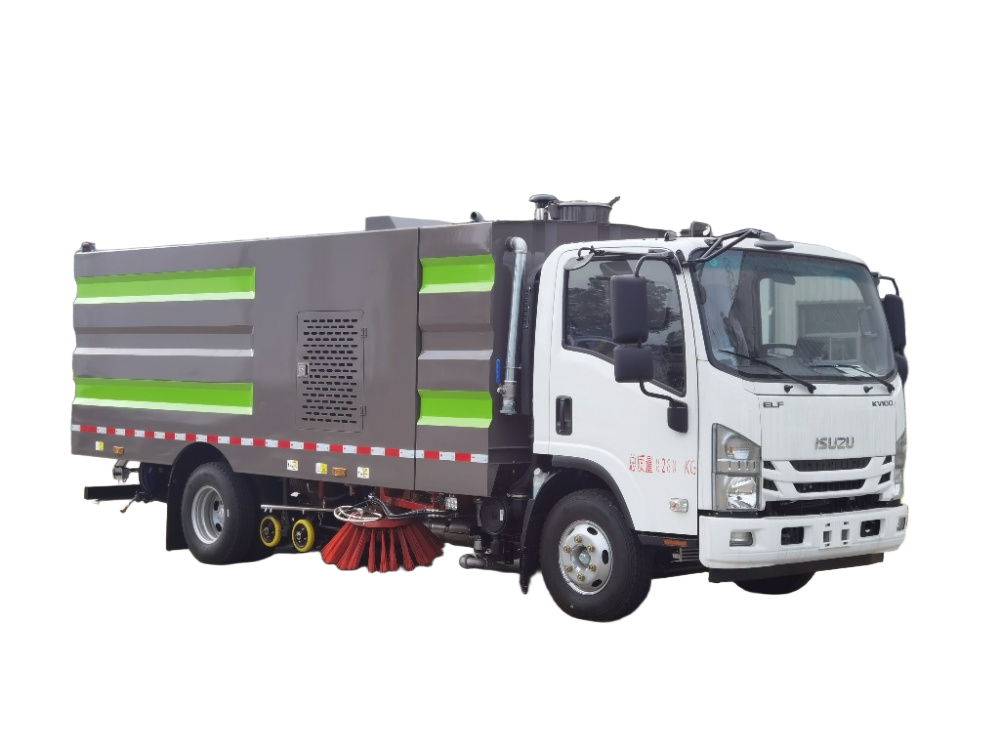

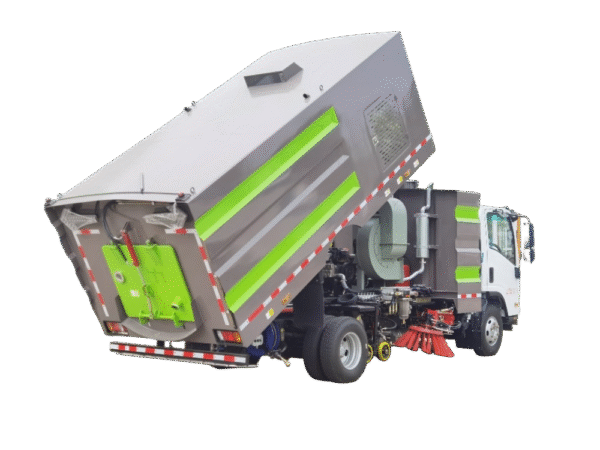

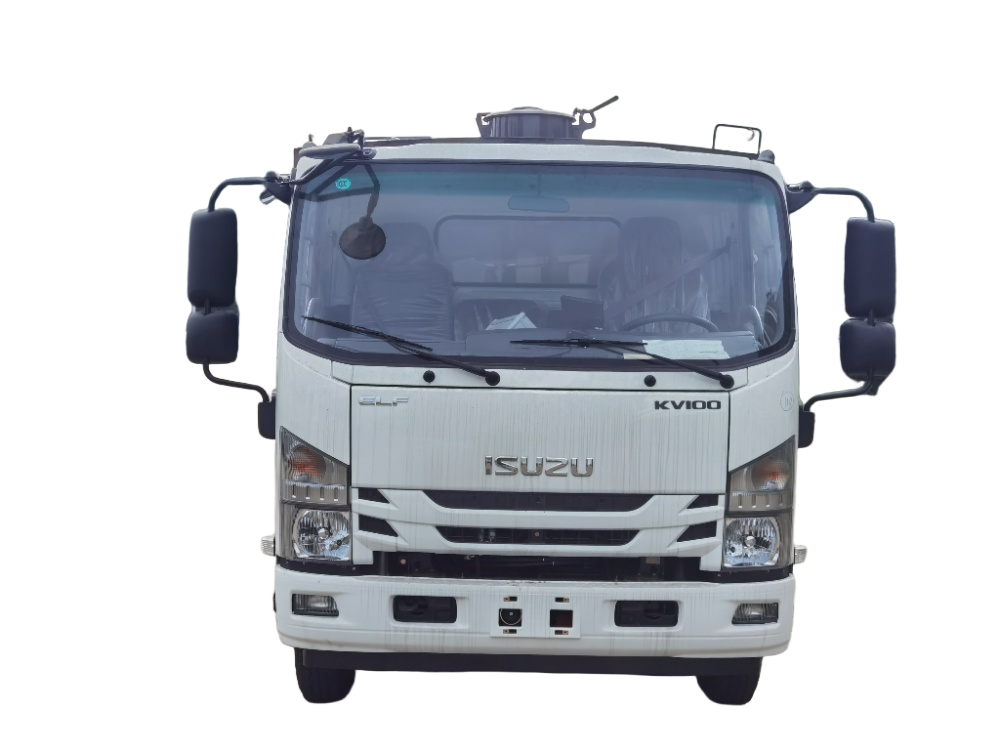

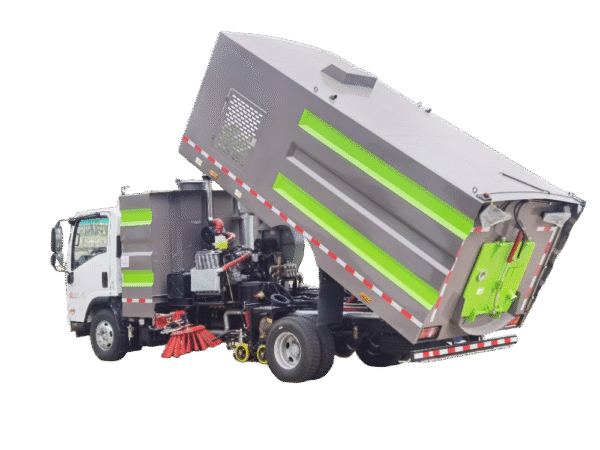

⑤ Add self-cleaning device in the garbage can to facilitate cleaning the garbage stuck on the inner wall of the garbage can when it is overturned.

⑥ The vehicle is equipped with a 15-meter automatic winding coil and a long and short high-pressure water gun, which is convenient for customers to wash the car, avoid garbage and dust accumulation, affecting the service life of the vehicle.

4) Wide range of operations:

① From dozens of microns dust to 50-60mm of stones, bricks, leaves, water bottles and other sundries, a operation can be removed.

② When the left and right spray rods are placed at the same time, the cleaning width is not less than 3m, and the cleaning width is not less than 2.8m.

5) Low energy consumption:

Left and right brush can independently control the operation, according to the road conditions, can choose \”full wash sweep\”, \”right sweep\”, \”full sweep\”, \”right sweep\” four main operation mode, to avoid unnecessary energy waste.

6) Large capacity of water tank and garbage bin:

The volume of the water tank can reach 5.3m³, and the total volume of the garbage can can reach 3.8m3, which can be suitable for long time operation. Under the full load of the water tank, the operation time should not be less than 40 minutes.

7) Simple structure and less vulnerable parts:

The structure is simple, with few vulnerable parts. More than 90% of the components on the whole vehicle are assembled in an assembly mode. Each small part has versatility and interchangeability, easy to disassemble, easy to replace, low maintenance cost and high replacement efficiency
