Product Details Introduction

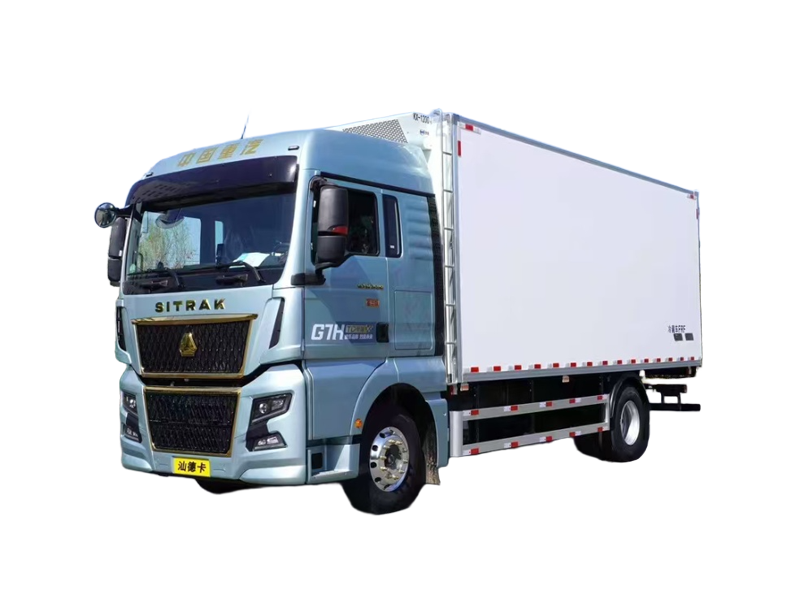

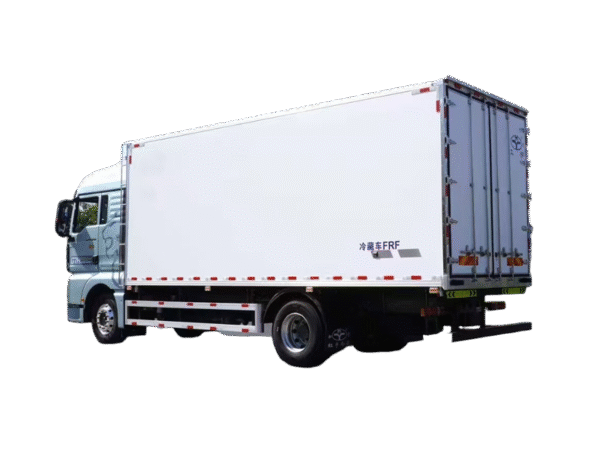

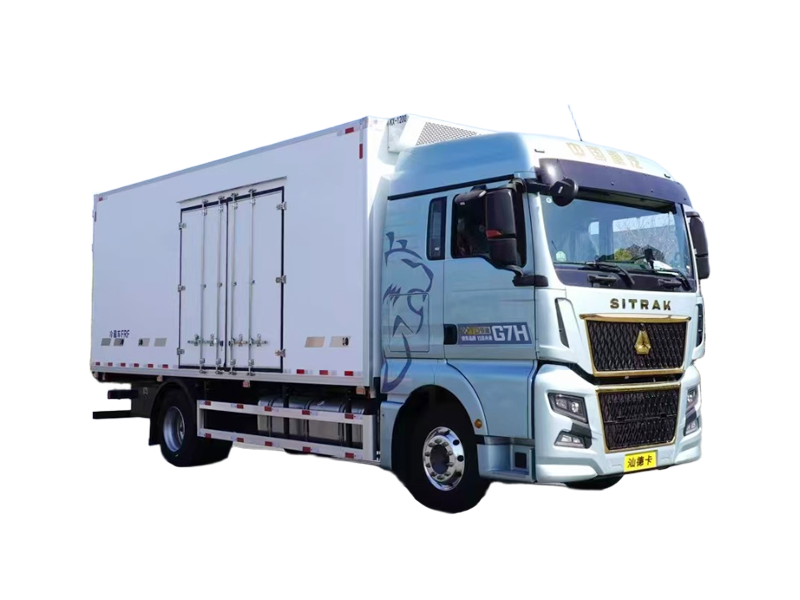

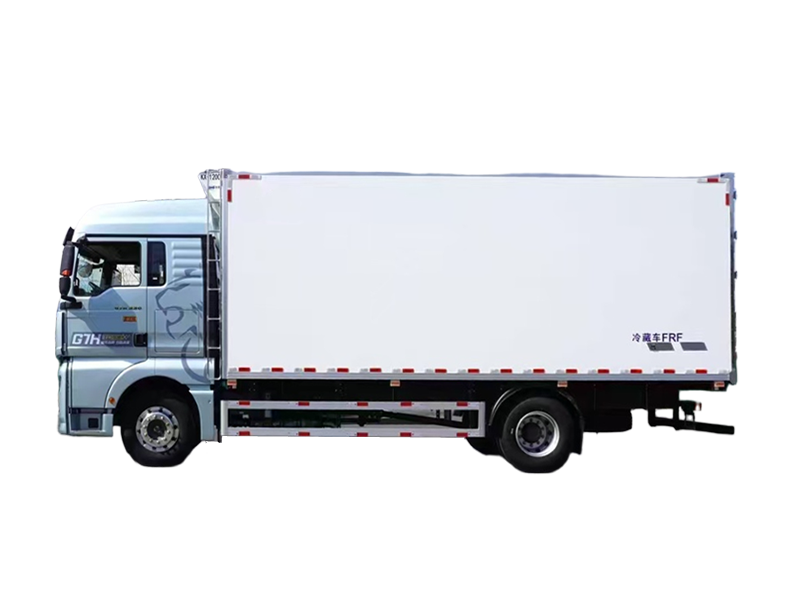

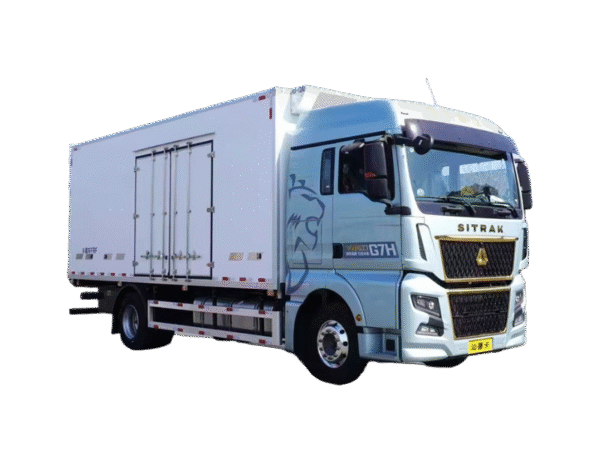

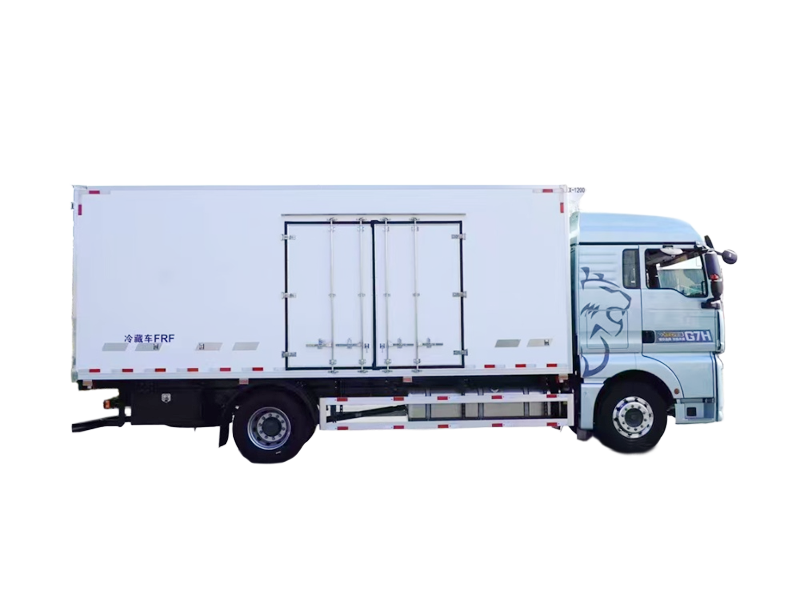

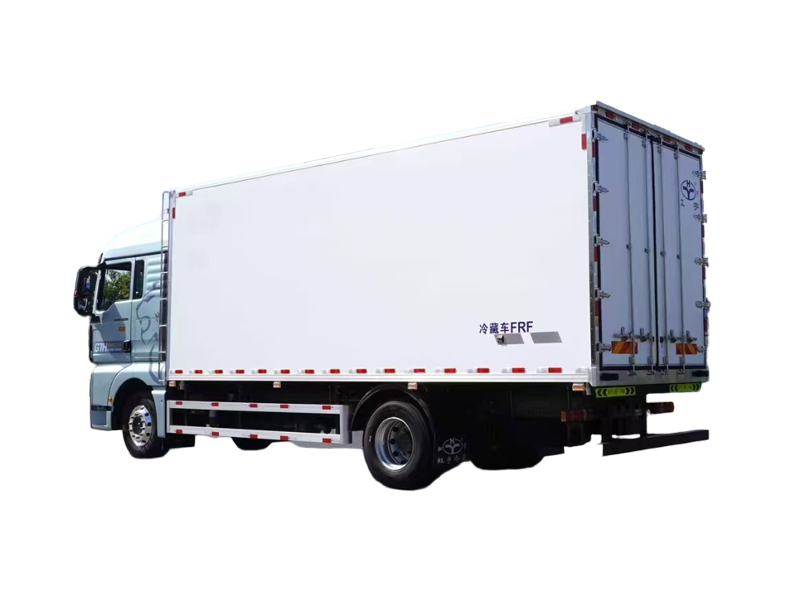

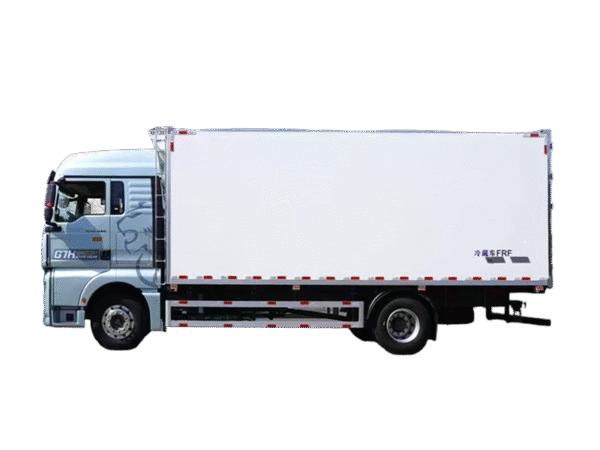

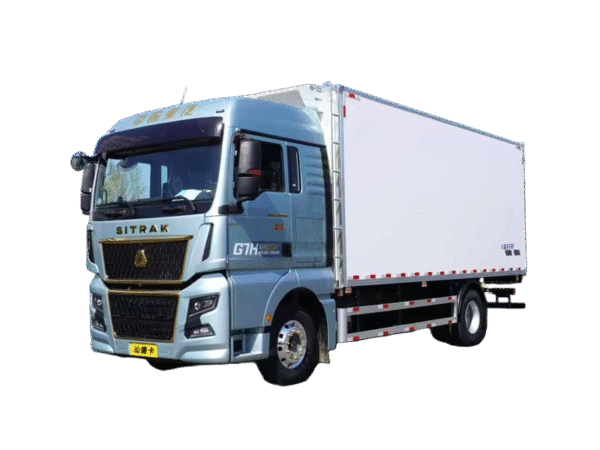

Sinotruk Shandeka G7H Refrigerated Truck
Model: [To be specified]

Key Specifications

Overall Dimensions: 9350 × 2600 × 3980 mm

Cargo Dimensions: 6800 × 2450 × 2500 mm

Engine Power: 240 kW / 330 HP

Displacement: 7360 ml

Wheelbase: 5200 mm

---

Chassis Configuration

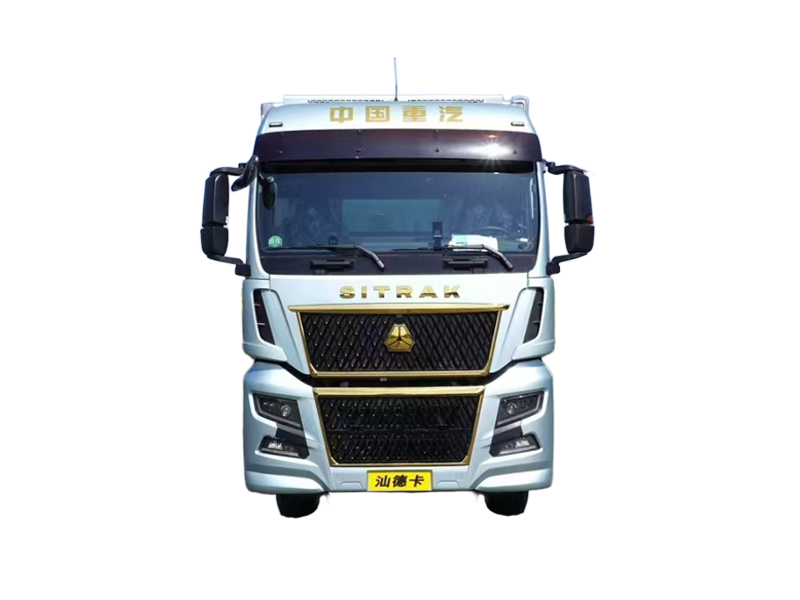

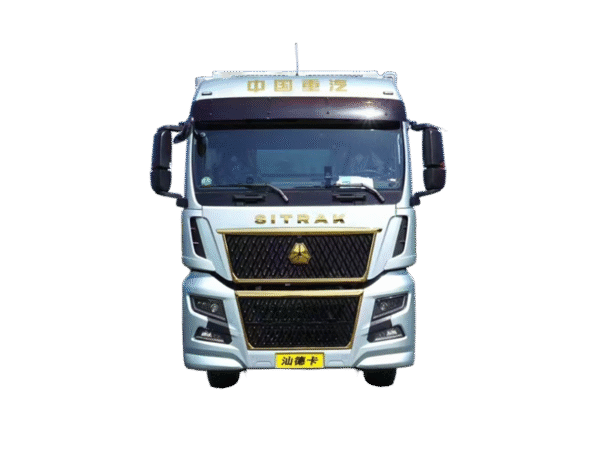

Cab: Shandeka G7H High-roof Sleeper Cab (Base Model)

Engine: MAN MC07H.33-61 (330 HP)

Transmission: Automatic (Column Shifter)

Key Features:

One-button start

Air-suspension seat with ventilation/heating/lumbar support (Driver)

Automatic gearbox

Axles & Suspension:

Front Axle: 1094Q self-adjusting drum brake

Rear Axle: MCJ09BGQ self-adjusting drum brake

Axle Ratio: 3.7

Frame: Single-layer (6/250)

Suspension: Multi-leaf spring (7/7+3)

Wheels & Tires:

Front: Aluminum alloy wheels

Rear: Lightweight wheels

275/80R22.5 tires (longitudinal tread/18PR)

Fuel & Filtration:

600L fuel tank

Long-life fuel pre-filter (manual pump)

Safety & Compliance:

ABS (4S/4M)

Low-position non-metal bumper

Speed limit: 89 km/h

Fire extinguisher

Emission monitoring terminal

Electrical System:

165AH battery

Optional LED headlights

Visibility & Monitoring:

360° camera system

---

Body Configuration

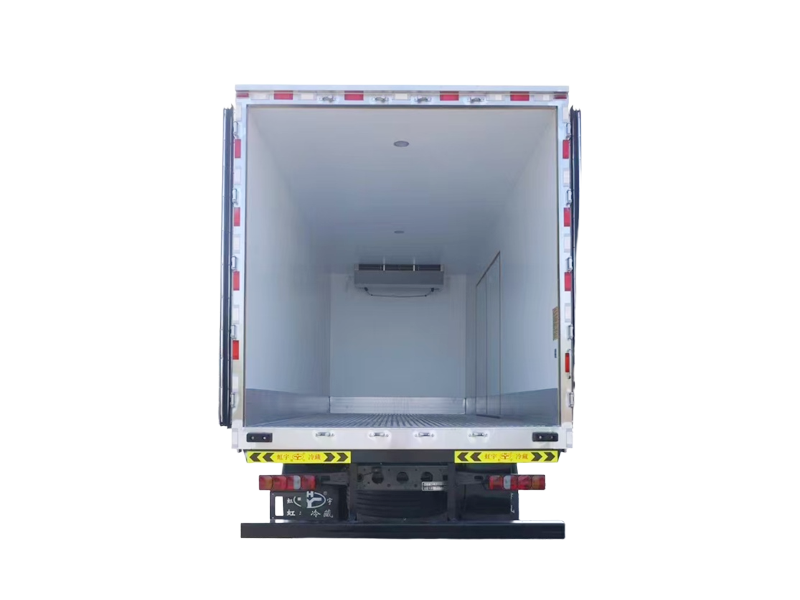

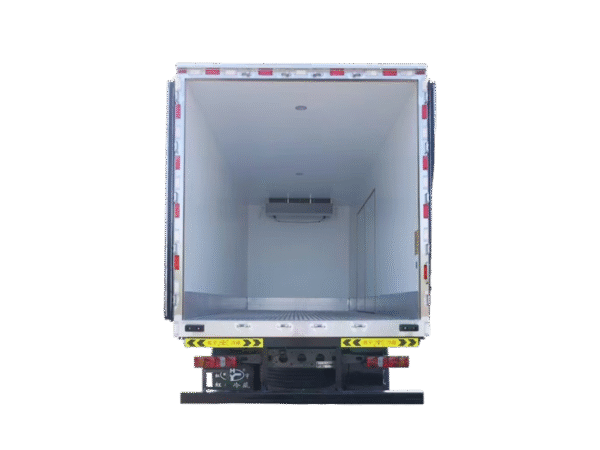

Premium Insulation Technology:

Bridge-breaking thermal isolation

3.0mm FRP interior/exterior panels

8cm XPS insulation core

Structural Features:

Wood-clad galvanized pipe framework

\”Z\”-shaped manganese steel subframe

Durability Components:

304 stainless steel door frames/locks/hinges

5-layer EPDM rubber door seals

Aluminum alloy corner protectors

Functional Design:

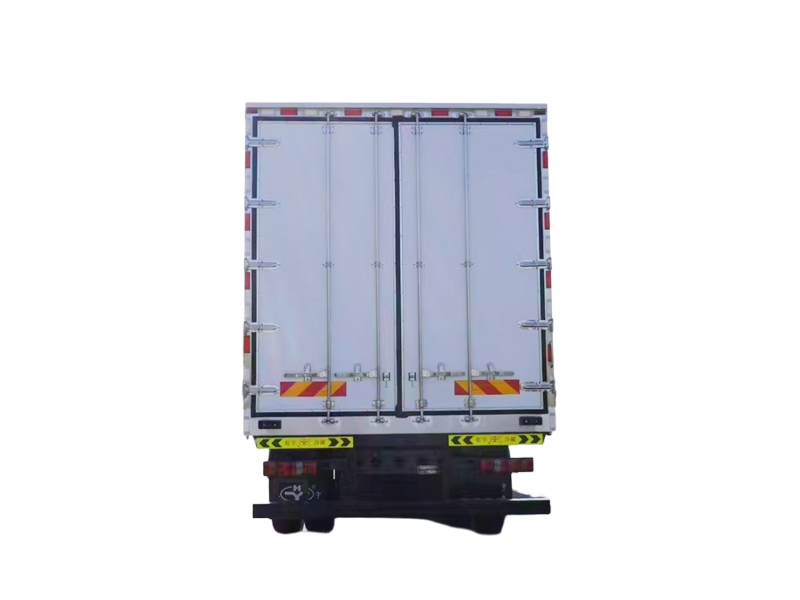

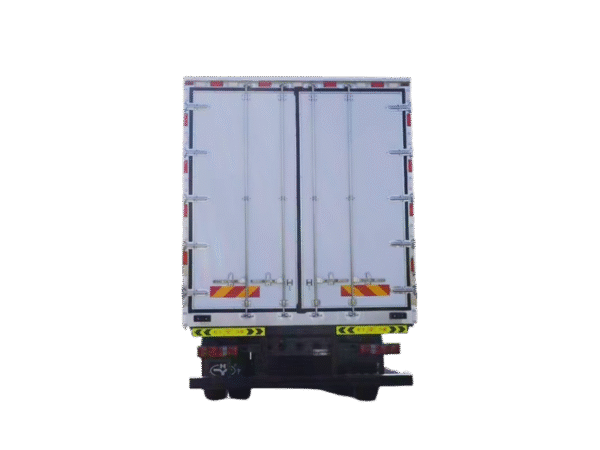

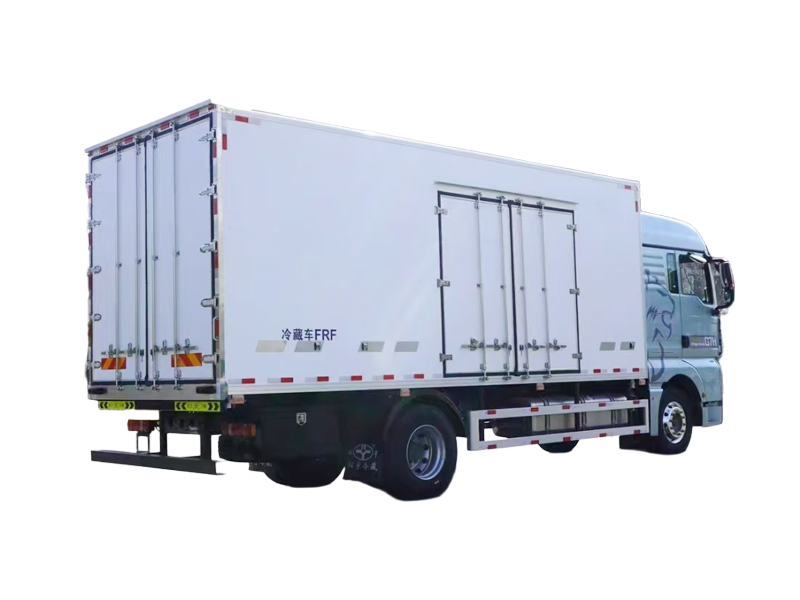

Right single side door + rear double doors

LED interior lighting system

Ventilated floor channels

Stainless steel hardware throughout

Fully welded recessed ventilation

Anti-slip wire mesh flooring

Integrated ladder toolbox

---

Optional Equipment

Refrigeration Units: Kaixue / Carrier / Thermo King

Hydraulic Tailgate

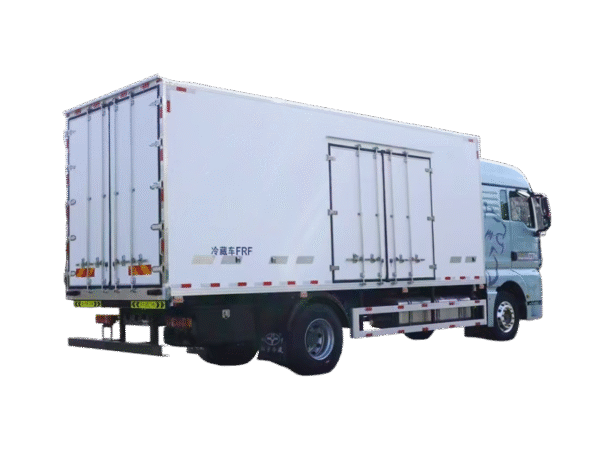

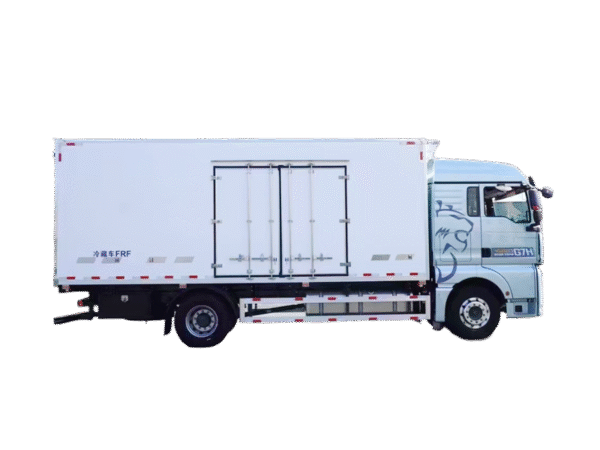

Product Details Display
