Product Details Introduction
Vehicle Introduction and Specific Parameters：
| Sinotruk King 6 Cubic Meter Mixer Truck Chassis Parameters | |||
| Vehicle Name: | Sinotruk King 6 Cubic Meter Mixer Truck | Chinese Brand: | Sinotruk King 6 Cubic Meter Mixer Truck |
| Engine: | Yuchai Power 150 Horsepower | Displacement (ml): | 4600 |
| Dimensions: | 6640, 6790, 6940, 7300 x 2350 x 3150, 3500, 3650 | Mixing Volume: | 6 Cubic Meter Mixer Truck |
| Total Weight: | 11490 (Kg) | Spring Leaf Number: | 11/11+9, 11/10+8 |
| Curb Weight: | 6495 (Kg) | Rated Weight: | 4800 (Kg) |
| Axle Load: | 6500/6500, 18000 | Wheelbase: | 3650, 3950 |
| Number of Axles: | 2 (Two Axles) (4×2) | Maximum Speed: | 83 km/h |
| Transmission: | Wanliyang 6-Speed | Front and Rear Axles: | 4 Ton Front Axle, 10 Ton Rear Axle |
| Number of Tires: | 6 | Tire Specification: | 9.00R20 Original Factory Steel Wire Tires |
| Front Wheel Track: | 1750, 1790 | Rear Wheel Track: | 1700, 1700 |
| Chassis Emission Standard: | GB17691-2005 National V; GB3847-2005 (National V Standard – Hassle-Free Registration) | ||
Mixer Truck Tank Parameters：
| all Material: | Alloy Steel (Special Wear-Resistant Material—Increases Wall Life by 3 Times or More) | Cylinder Material: | 16Mn Steel 6mm Alloy Steel |
| Blade Material: | Baosteel 520 5mm Alloy Steel (Wear-Resistant Strips Added to Increase Service Life) | Head Material: | 8mm Alloy Steel |
| Reducer: | German ZF Reducer / Italian Bonfiglioli PMP (Pure Import) | Hydraulic System: | German Rexroth, American Eaton / American Sauer-Danfoss / Italian PMP (Pure Import) |
| Water Supply System: | 400L Water Tank Pressure Water Supply | Cooling System: | Kaitong Radiator / Xinxiang Radiator |
| Feeding Speed: | Feeding Speed m³/min ≥ 3 | Discharge Speed: | Discharge Speed m³/min ≥ 2 |
| Discharge Residual Rate: | Discharge Residual Rate (%) ≤ 0.5 | Operation Method: | Three-Sided Operation from Both Sides and Cab |
| Discharge Range: | 180° Up, Down, Left, and Right Height Adjustment | Safety Device: | Leakage Receiving Device Installed |
Advantages of the Mixing Tank Body：
| Reducer: | Internationally imported brands, such as German Rexroth, ItalianPMP,and Italian Bonfiglioli, with strong load-bearing capacity and low failure rate. |
|
Hydraulic System: |
All equipped with internationally renowned hydraulic systems, including German Rexroth, American Eaton, Ameican Sauer, and Italian PMP, ensuring more stable tank operation, faster discharge speed, and lower residual rate! |
|
Supporting Facilities: |
The vehicle is designed for convenient and fast loading and unloading, with multi-functional operation methods, saving time,effort, and worry! |
|
After-Sales Service: |
The tank reducer comes with a one-year or 30,000-kilometer warranty. |

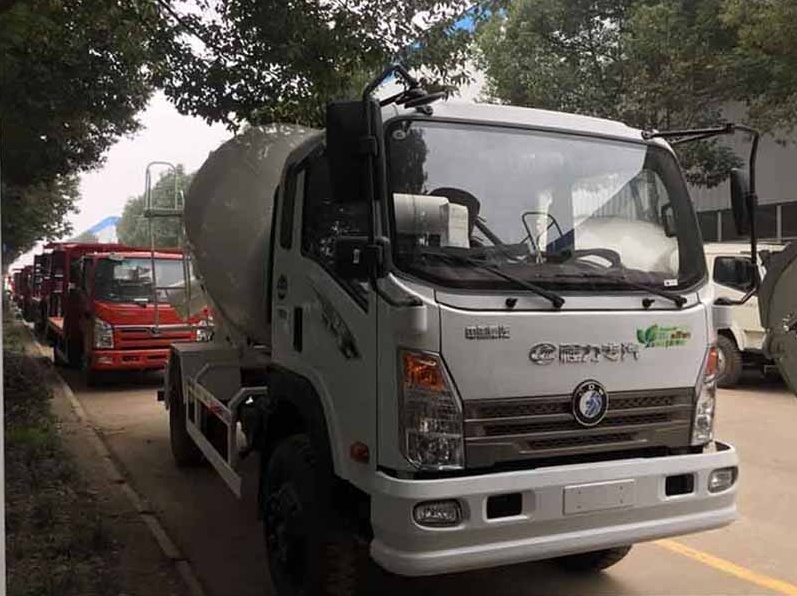

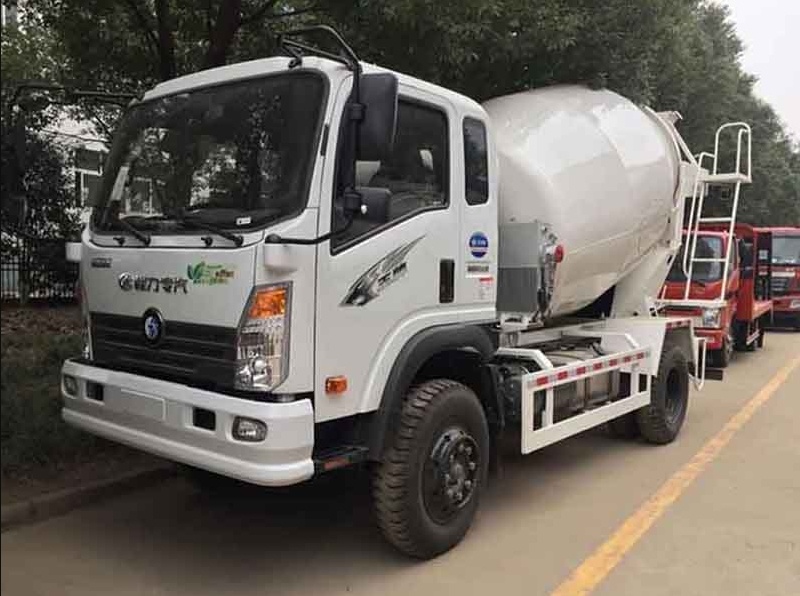

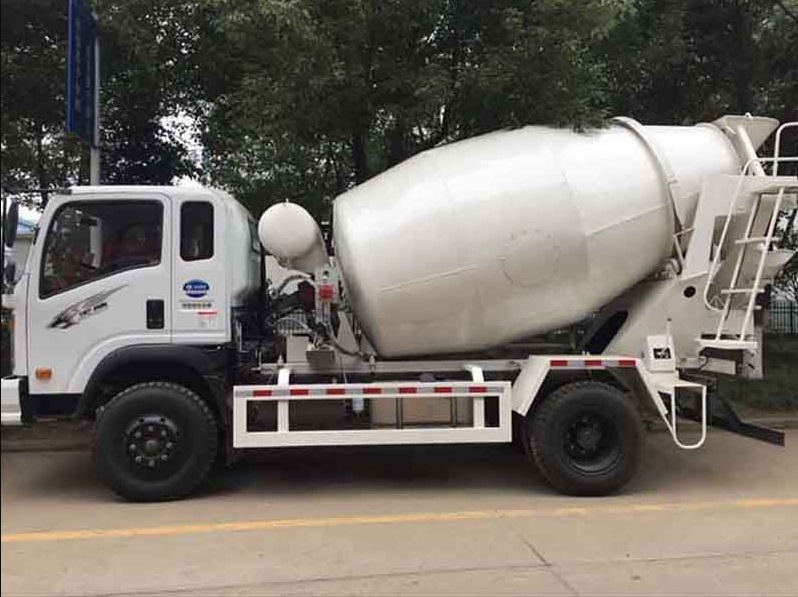

Product Details Display
