Description
Product Details Introduction

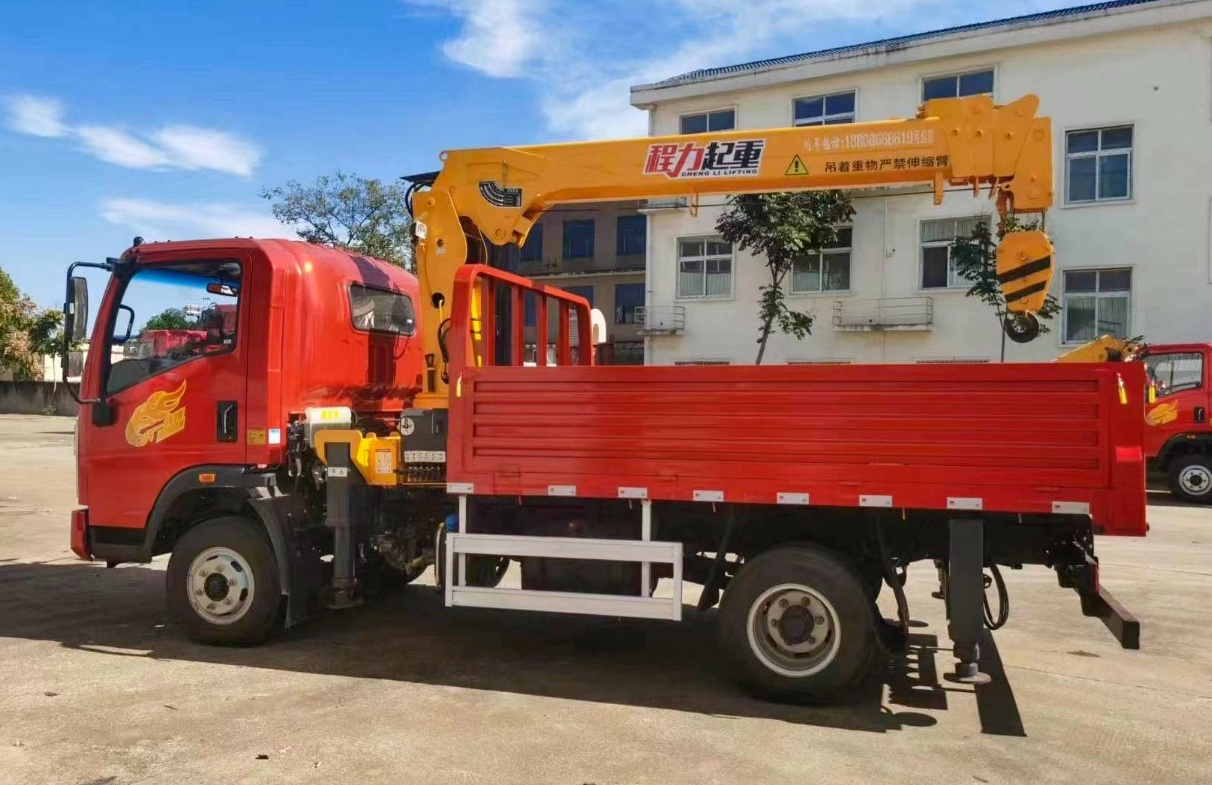

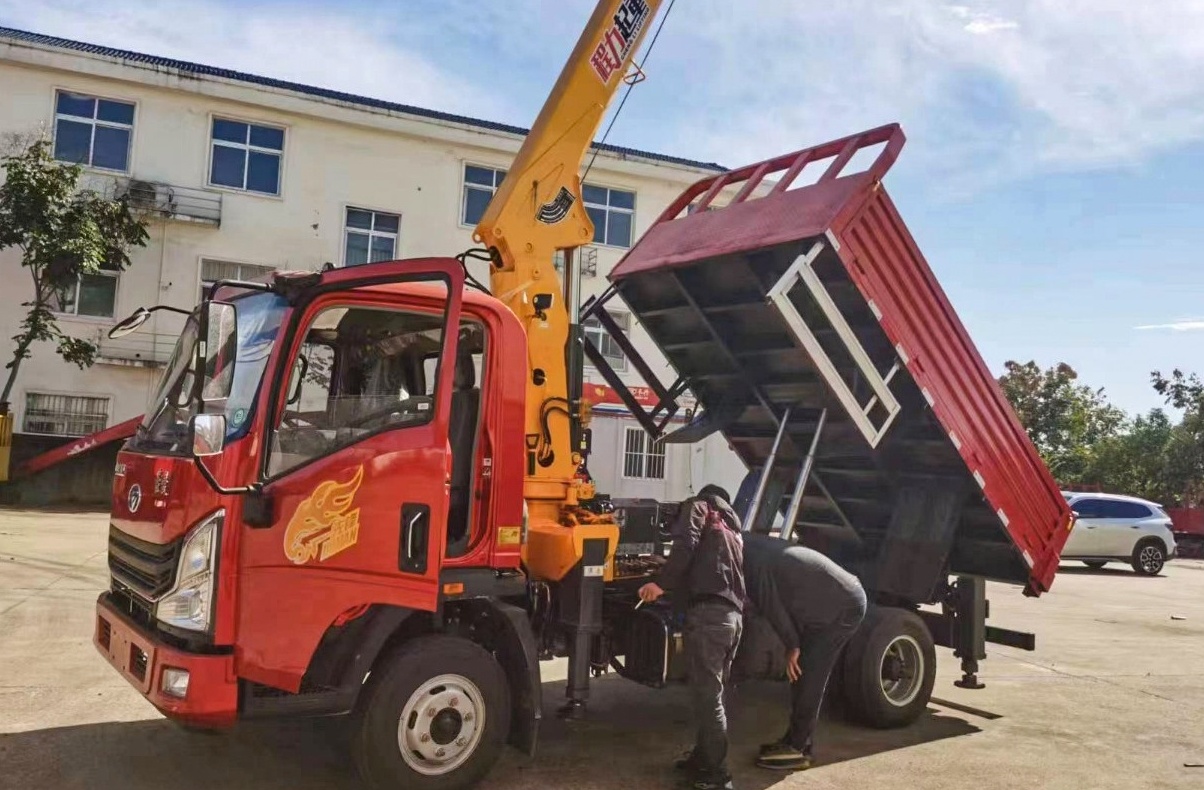

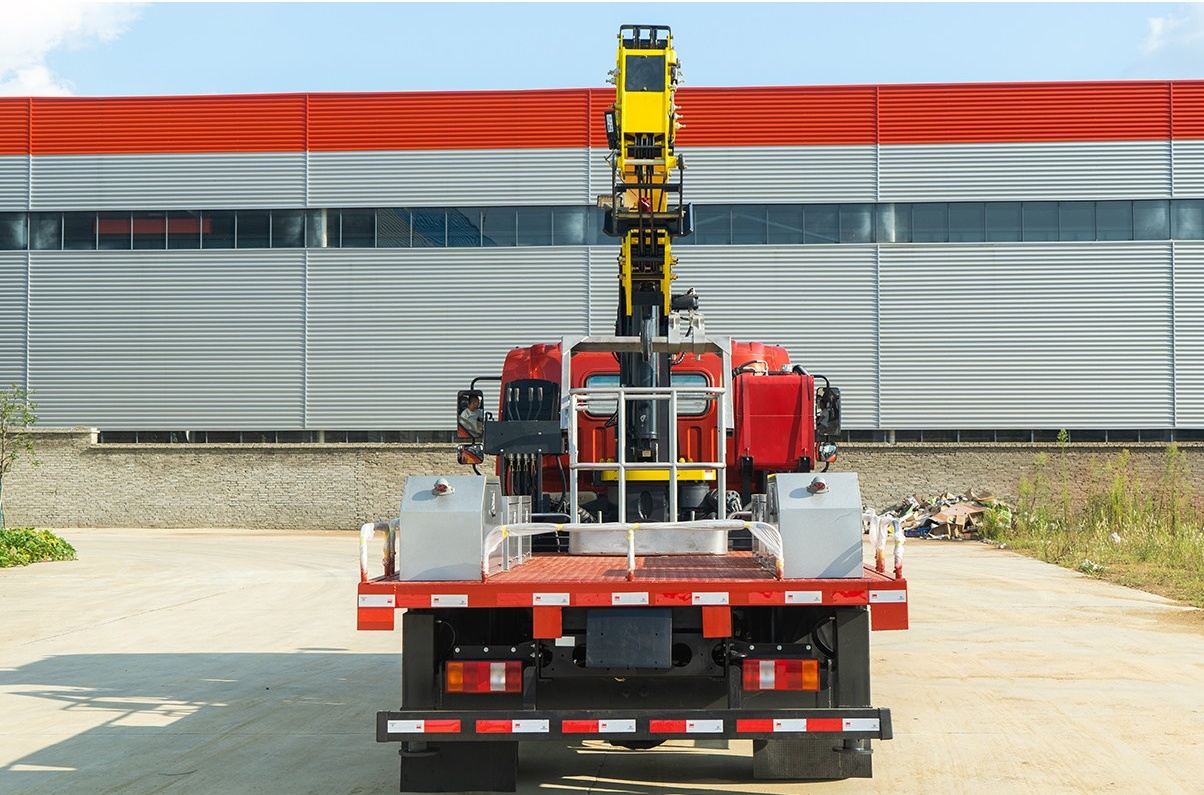

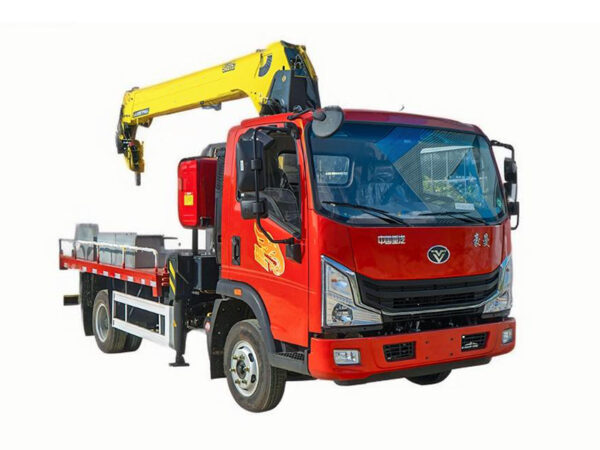

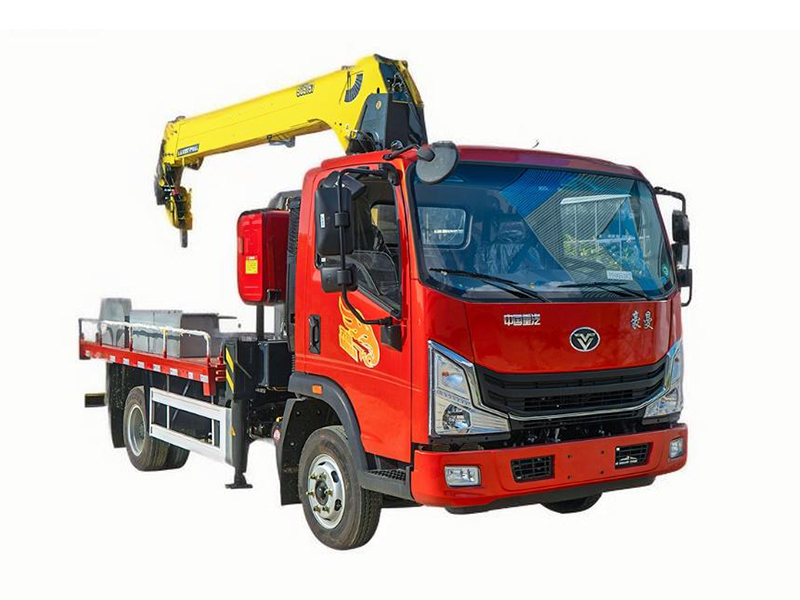

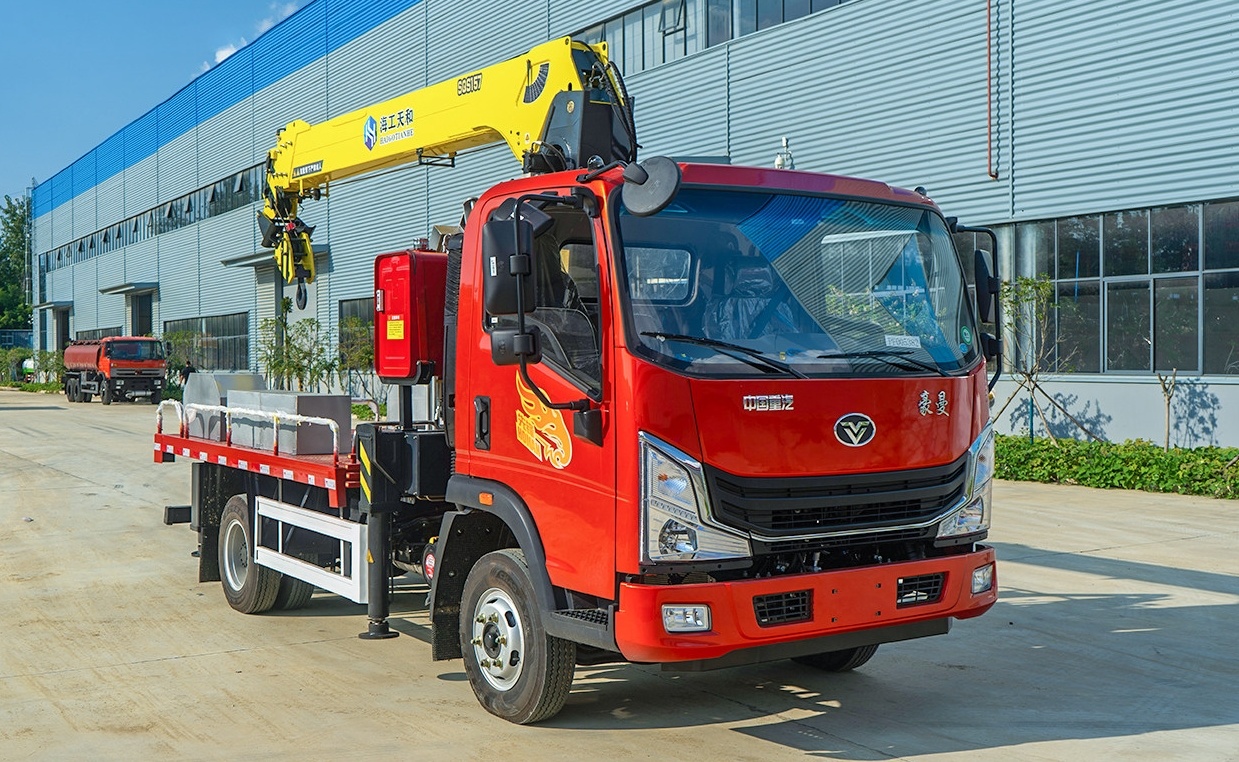

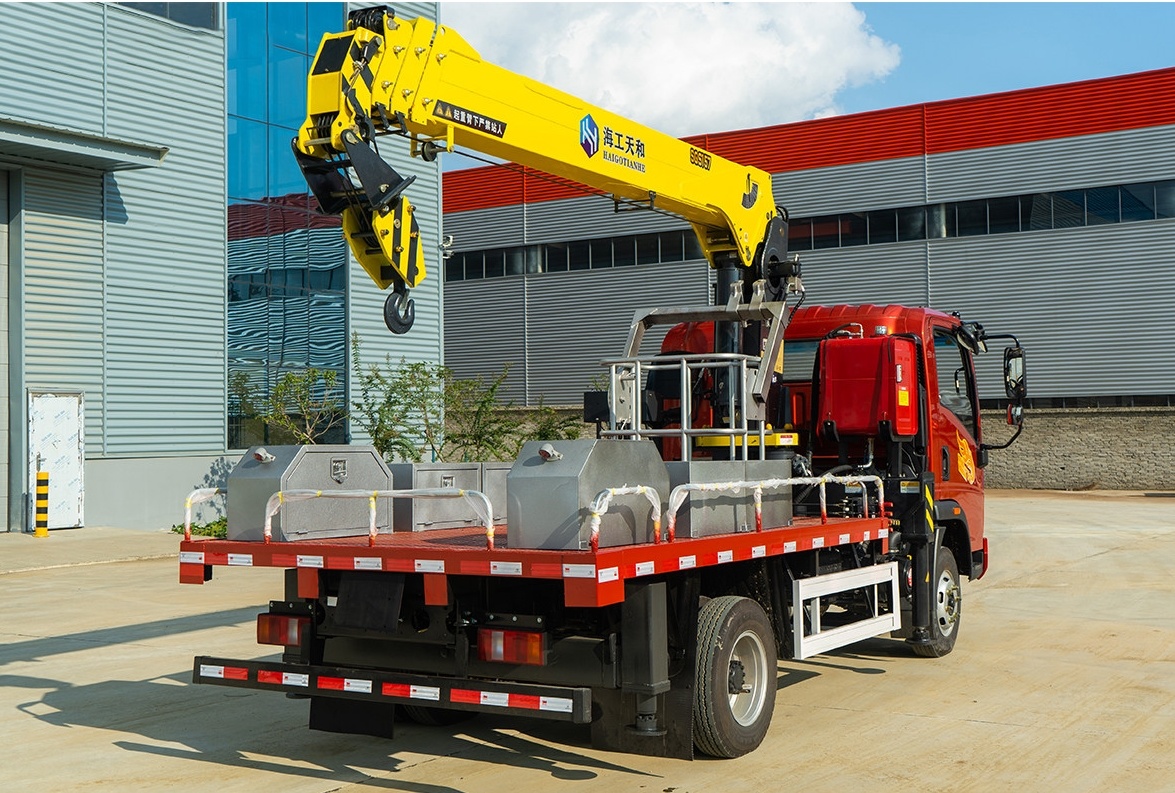

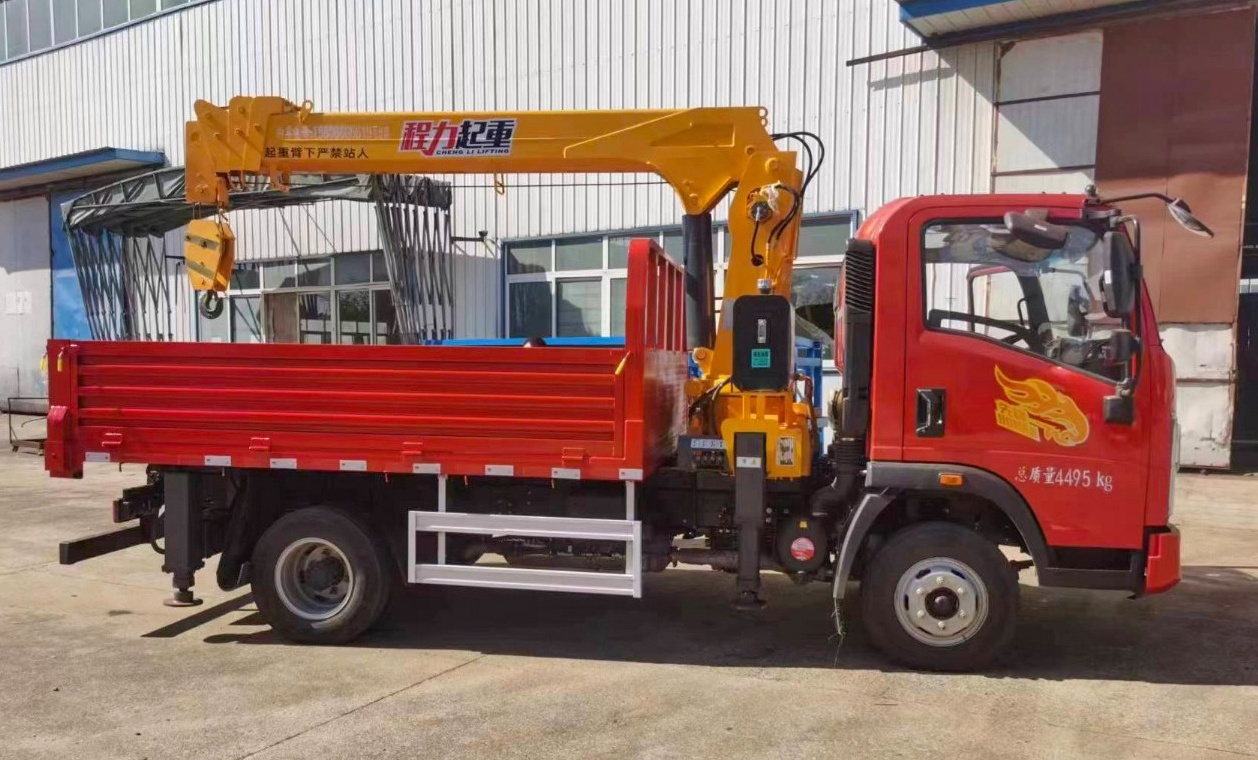

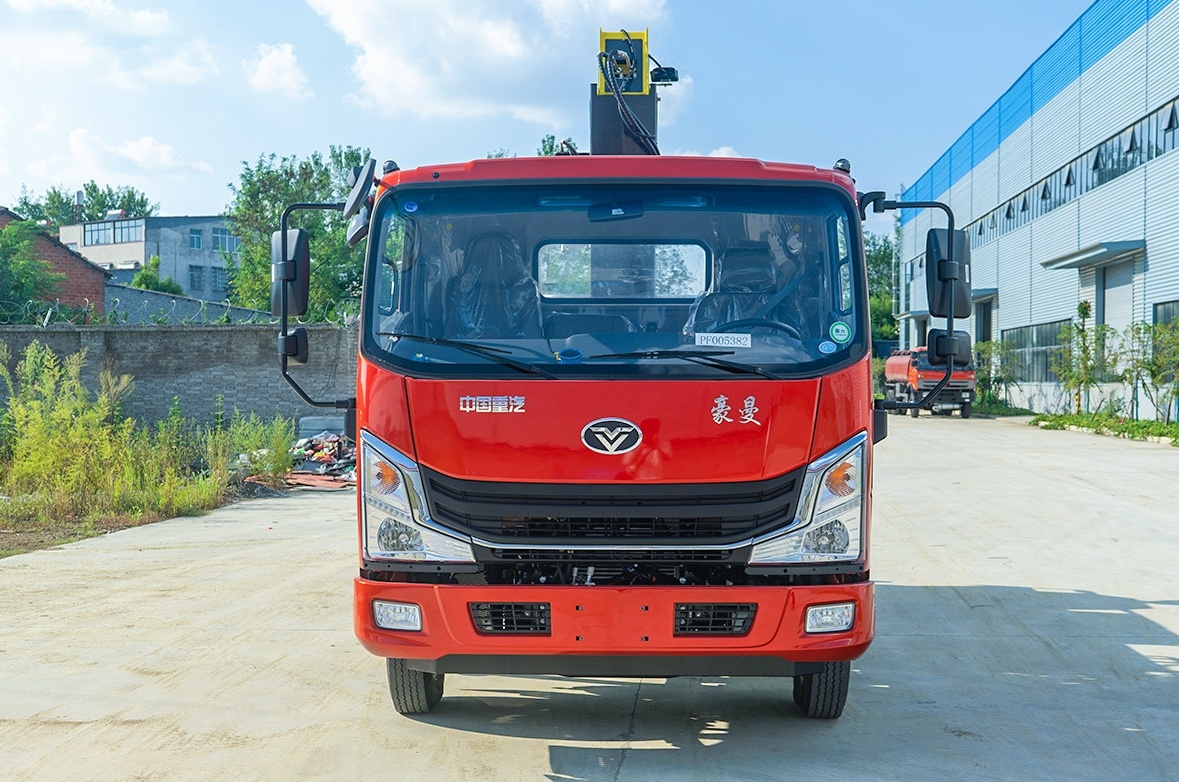

Sinotruk Hauman Blue brand [heavy duty version] truck crane
Manufacturer package on household package on blue plate (individual household)
Chassis configuration: Wheelbase: 3280mm
Cab: 2.1m wide body, widest in class full package interior leather seats high-end configuration single row with large sleeping berth
Engine: Yunnei 160/ Weichai 160 HP! 2.5 Displacement
Transmission: Fast 8 speed Rear axle: 8 tons
Frame: double girder special engineering frame bearing stronger
Configuration: standard tire 7.00R16 steel wire tire, [replaceable 8.25 steel wire tire] original electronic control air conditioning, ABS, rotation, air brake, front and down protection, automatic brake adjustment arm, adjustable headlights, multi-function steering wheel, central control door lock, electric doors and Windows, remote control key

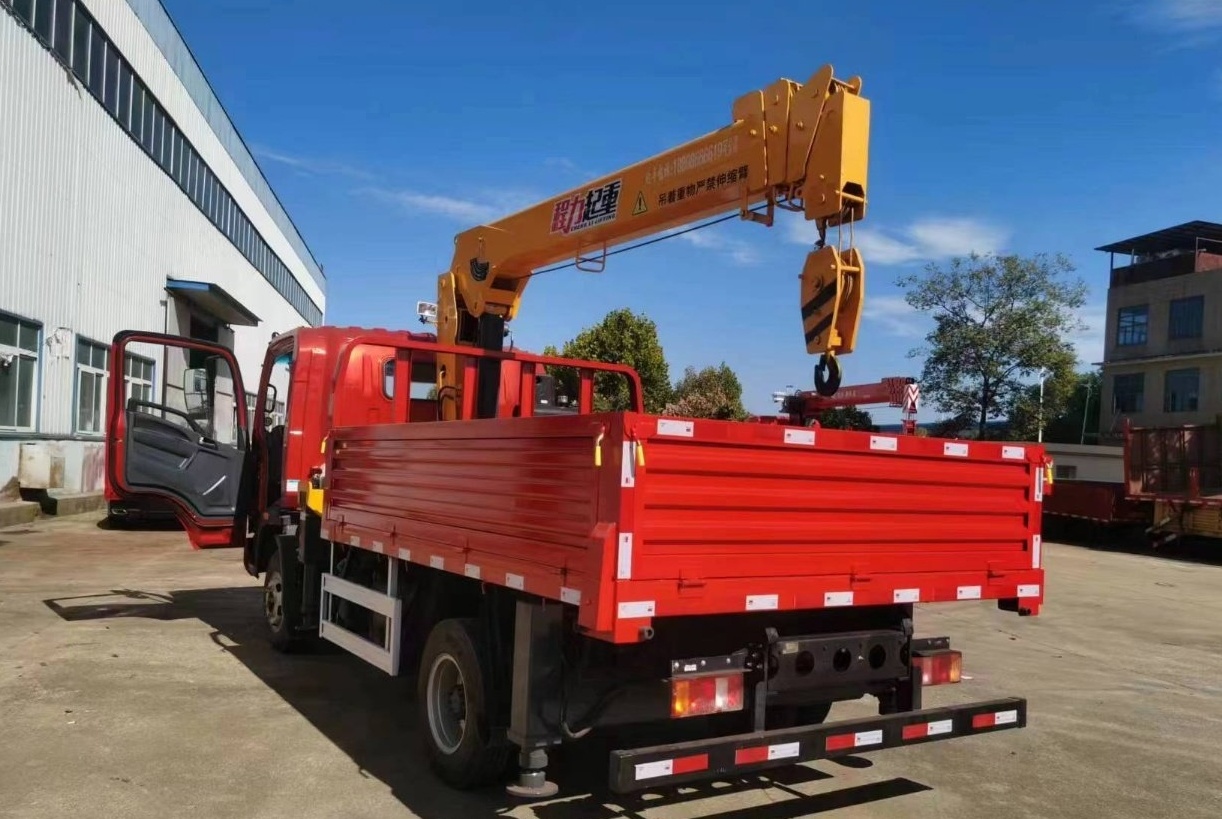

Crane configuration: Mount can be equipped with 3.2 tons to 6.3 tons of four-arm crane, the maximum working radius of 11 meters lifting height of 13 meters, full hydraulic full rotation, cargo configuration is optional!
Truck crane special function video
Operating parameter
| Straight arm crane | Folding arm crane | ||||||
| Model number | Lifting height(m) | Working radius(m) | Remark | Model number | Lifting height(m) | Working radius(m) | Remark |
| Two tons,two knots | 6.8 | 5.8 | Full rotation | Two tons,two knots | 7.5 | 4.78 | Rack cylinder |
| Two tons and three knots | 9 | 7.7 | Full rotation | 3.2 tons 2 knots | 8.5 | 5.69 | Rack cylinder |
| 3.2 tons 2 knots | 6.8 | 5.5 | Full rotation | 3.2 tons 3 knots | 10 | 7.3 | Rack cylinder |
| 3.2 tons 3 knots | 9.5 | 7.5 | Full rotation | Four tons and three knots | 10.2 | 7.3 | Rack cylinder |
| Four tons and three knots | 10 | 7.93 | Full rotation | Five tons and three knots | 11 | 8 | Full hydraulic, full rotation |
| 4 tons, 4 knots | 11.5 | 9.4 | Full rotation | Five tons, four knots | 12.8 | 9.92 | Full hydraulic, full rotation |
| Five tons and three knots | 10.5 | 8.7 | Full hydraulic, full rotation | 6.3 tons 3 knots | 11 | 8 | Full hydraulic, full rotation |
| Five tons, four knots | 12.5 | 11 | Full hydraulic, full rotation | 6.3 tons 4 knots | 13 | 9.92 | Full hydraulic, full rotation |
| 6.3 tons 3 knots | 11 | 9 | Full hydraulic, full rotation | 8 tons, 4 knots | 13 | 9.75 | Full hydraulic, full slewing, high-altitude seat |
| 6.3 tons 4 knots | 12.8 | 11 | Full hydraulic, full rotation | 10 tons, 4 knots | 13 | 9.75 | Full hydraulic, full slewing, high-altitude seat |
| 8 tons, 4 knots | 13.5 | 11.5 |
Full hydraulic, full rotary, beltHigh-altitude seat |
12 tons, 4 knots | 13 | 9.78 | Full hydraulic, full slewing, high-altitude seat |
| 10 tons, 4 knots | 14 | 12 |
Full hydraulic, full rotary, beltHigh-altitude seat |
14 tons, 5 knots | 14 | 11.4 | Full hydraulic, full slewing, high-altitude seat |
| 12 tons, 4 knots | 14.5 | 12.5 |
Full hydraulic, full rotary, beltHigh-altitude seat |
16 tons, 5 knots | 15 | 12 | Full hydraulic, full slewing, high-altitude seat |
| 14 tons, 4 knots | 17.8 | 15.8 |
Full hydraulic, full rotary, beltHigh-altitude seat |
20 tons, 7 knots | 20 | 16.8 | Full hydraulic, full slewing, high-altitude seat |
| 16 tons, 5 knots | 20 | 18.5 |
Full hydraulic, full rotary, beltHigh-altitude seat |
25 tons, 9 knots | 20 | 16.4 |
Full hydraulic, full rotary, with high seat Chair, wireless remote control |
| 20 tons, 6 knots | 26.35 | 24.35 |
Full hydraulic, full rotary, beltHigh-altitude seat |
30 tons 7 knots | 16.2 | Full hydraulic, full slewing, high-altitude seat | |
Product Details Display
