Product Details Introduction

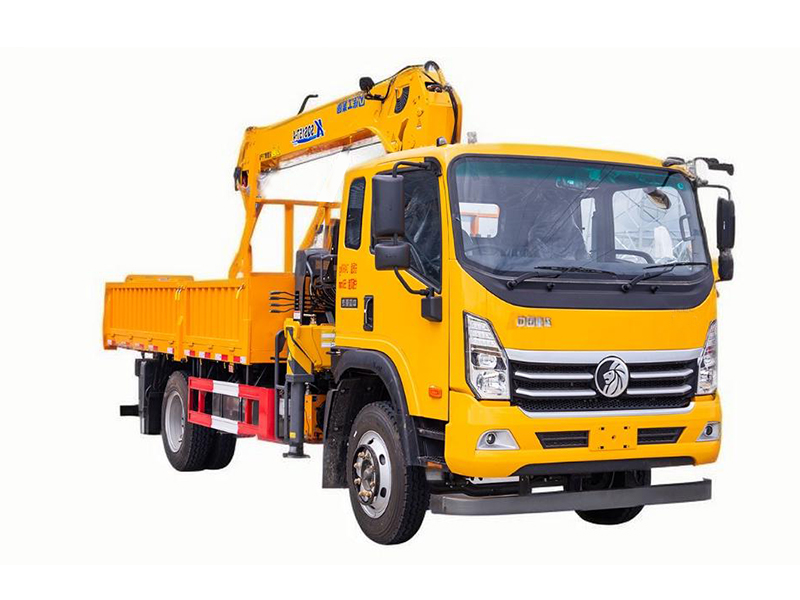

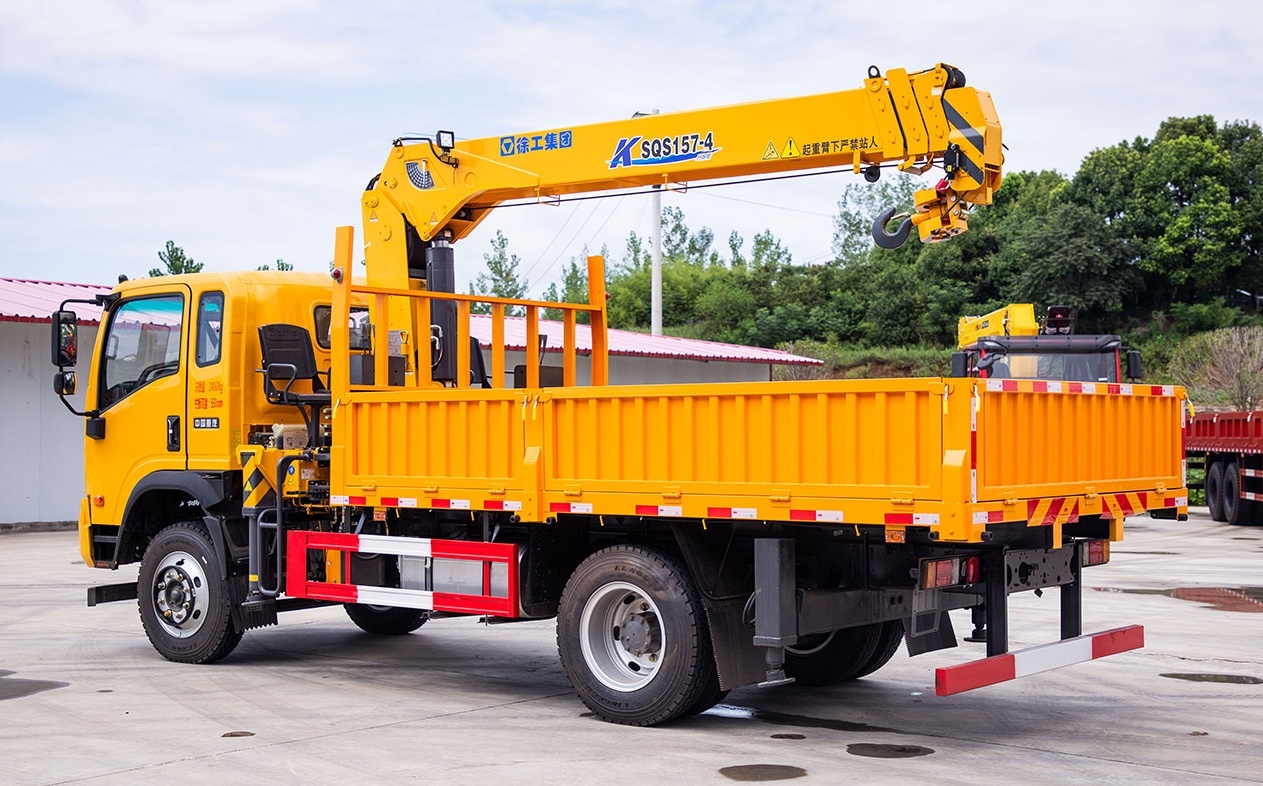

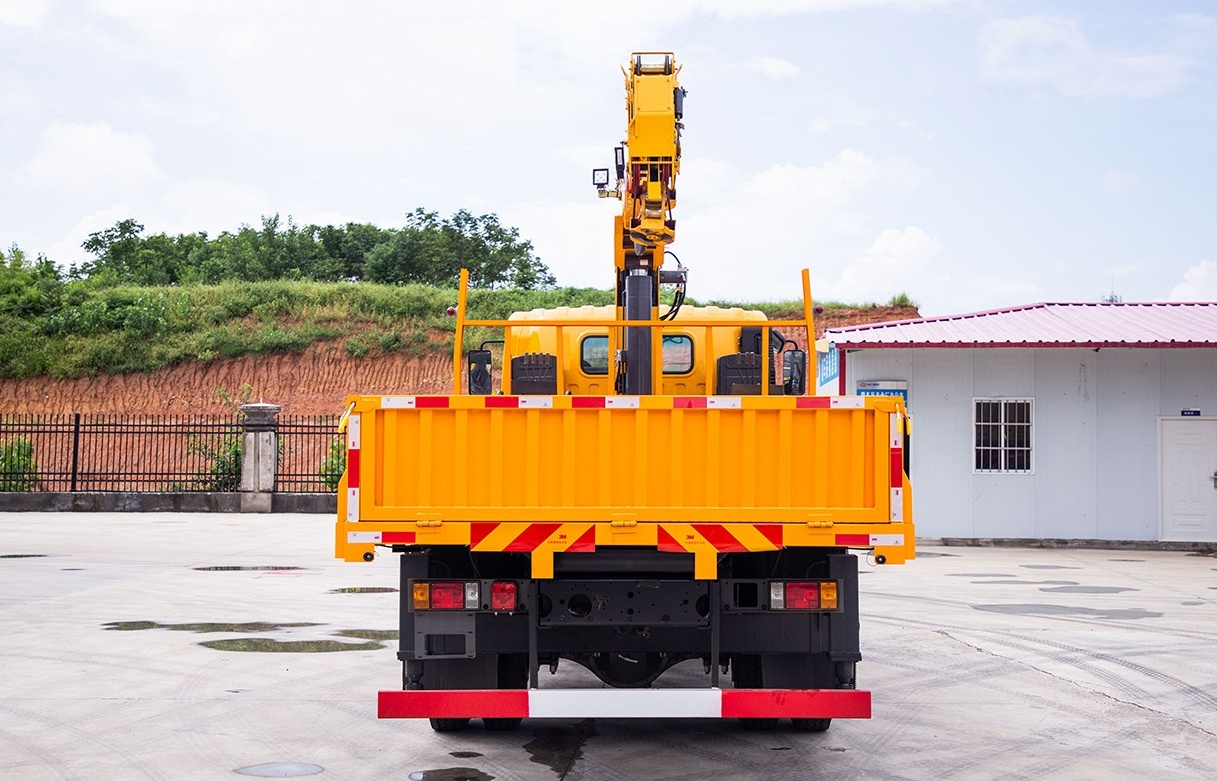

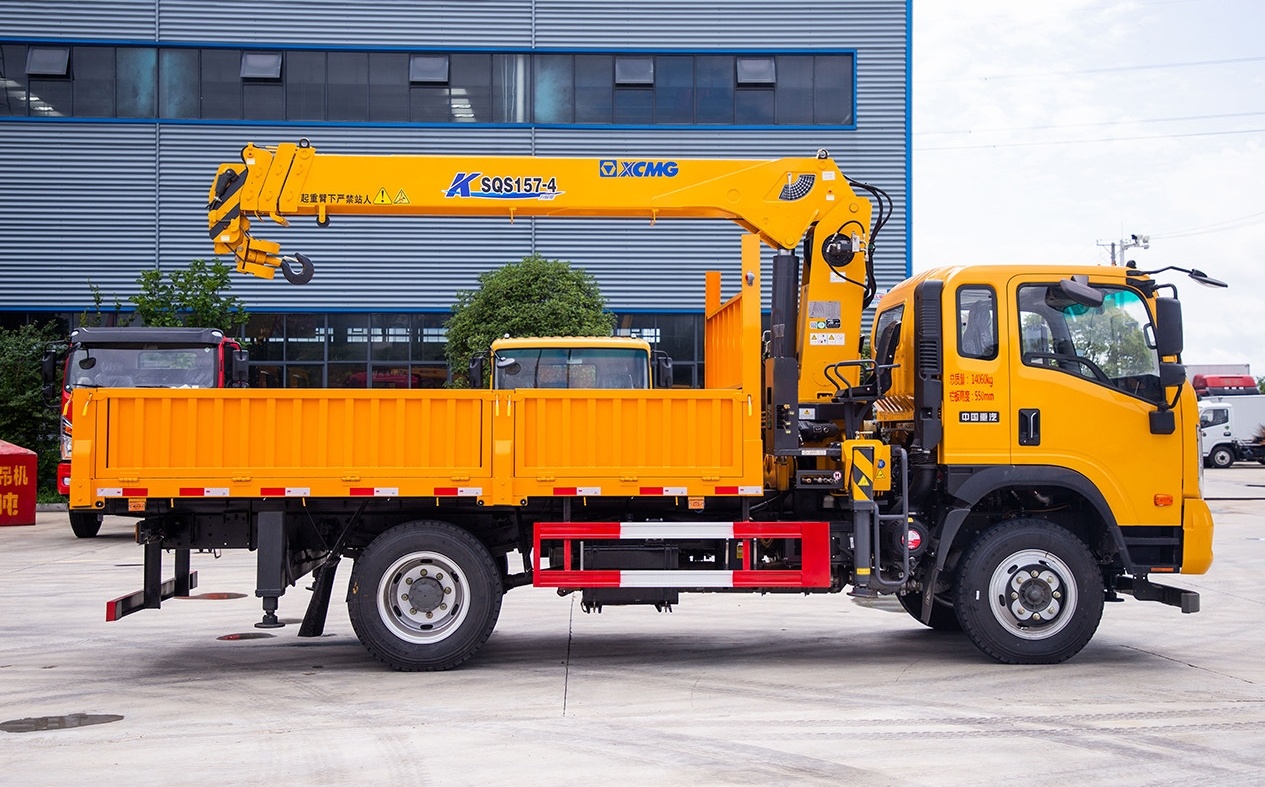

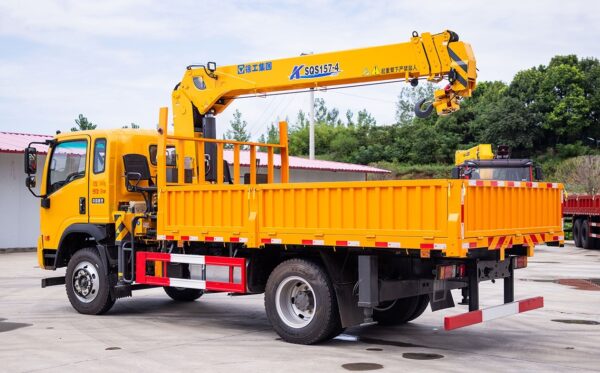

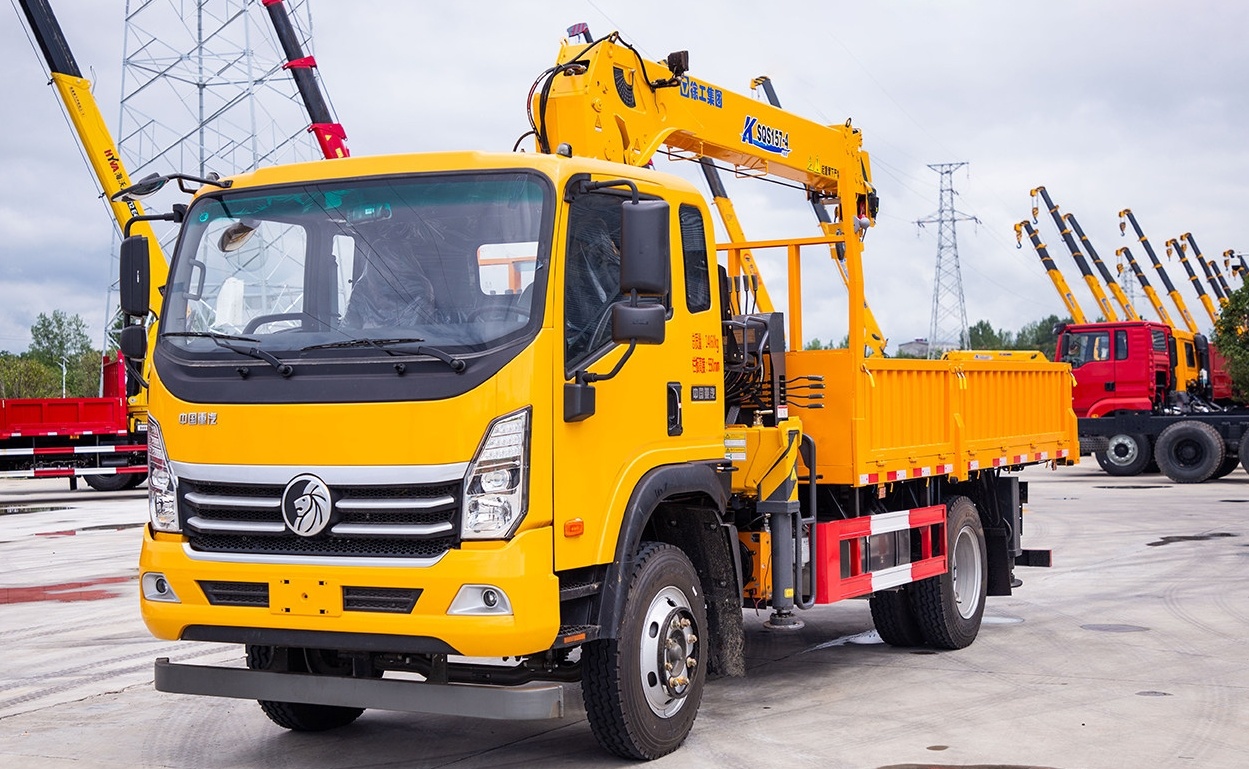

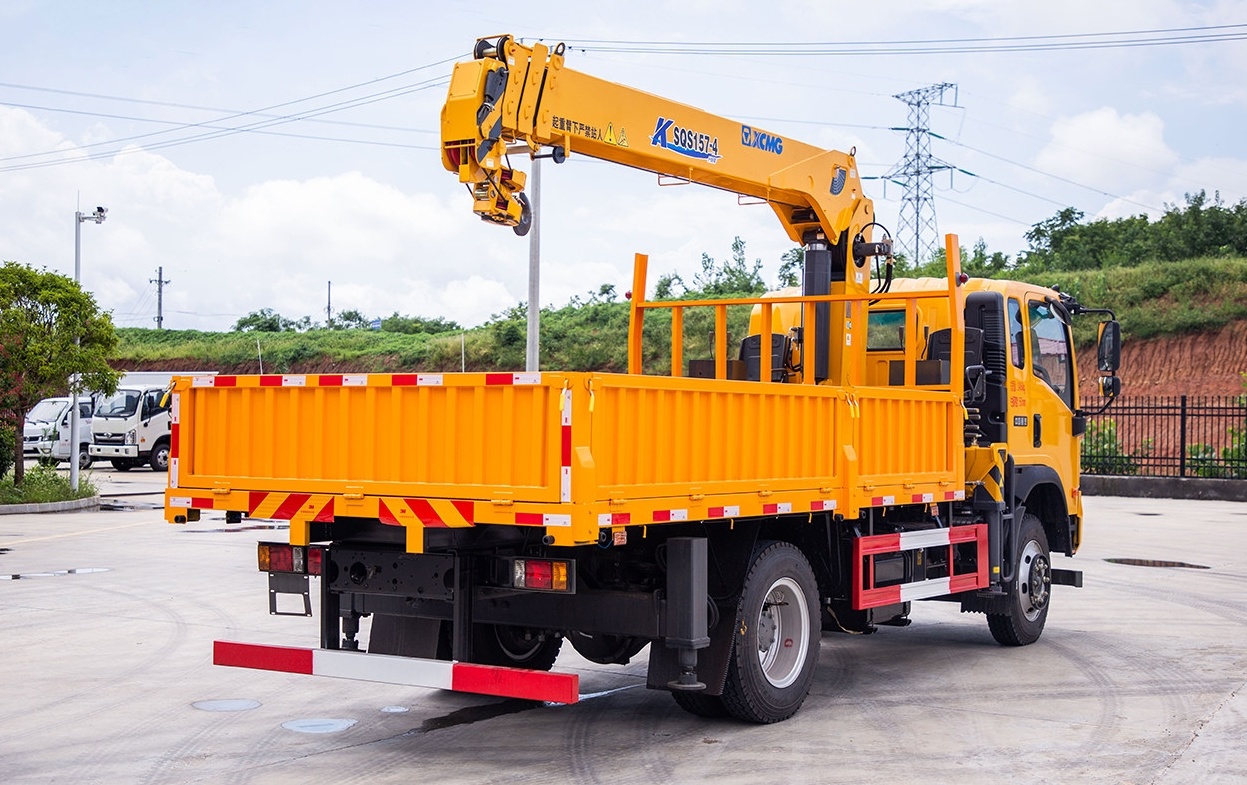

Sinotruk Ace single bridge – Xugong K6.3 tons 4 sections onboard crane configuration
Ace Single Bridge -K6.3 tons 4 knots

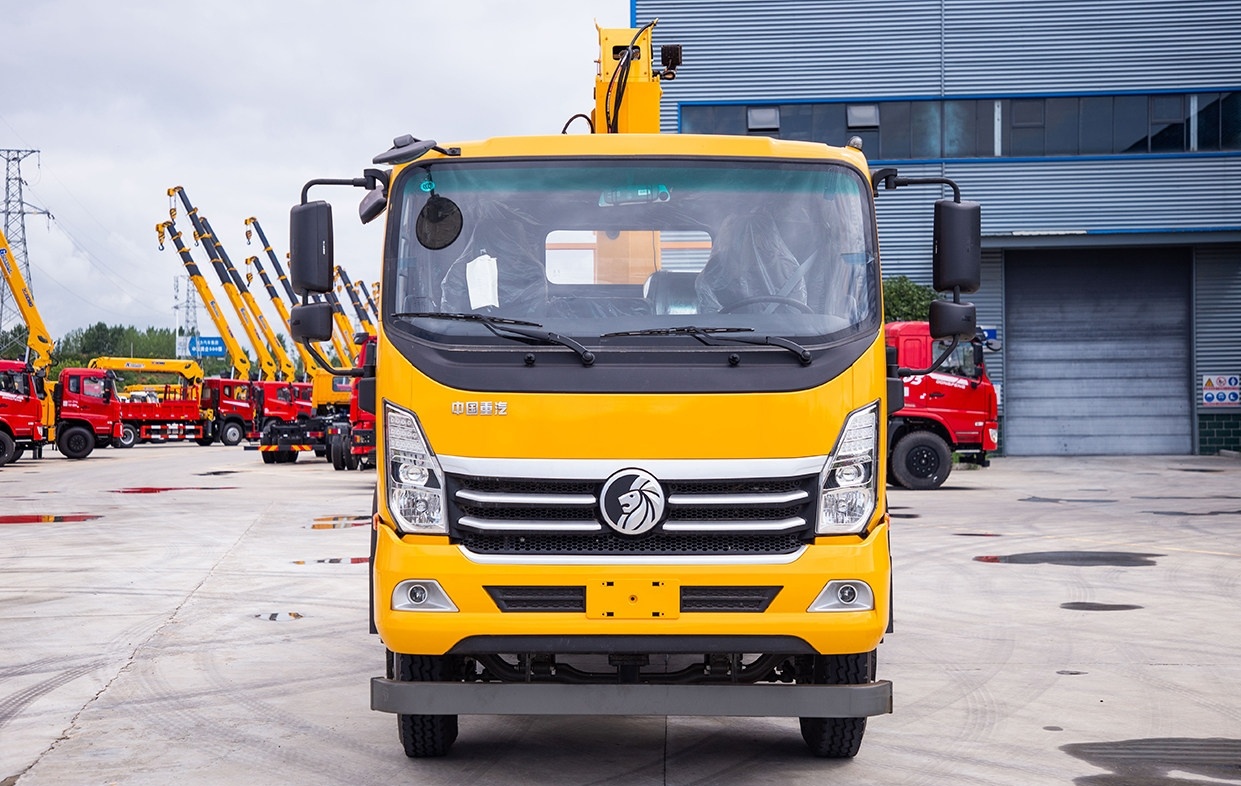

Sinotruk Ace 3600 wheelbase Weichai 160 HP 21 new cab, Fast eight gear

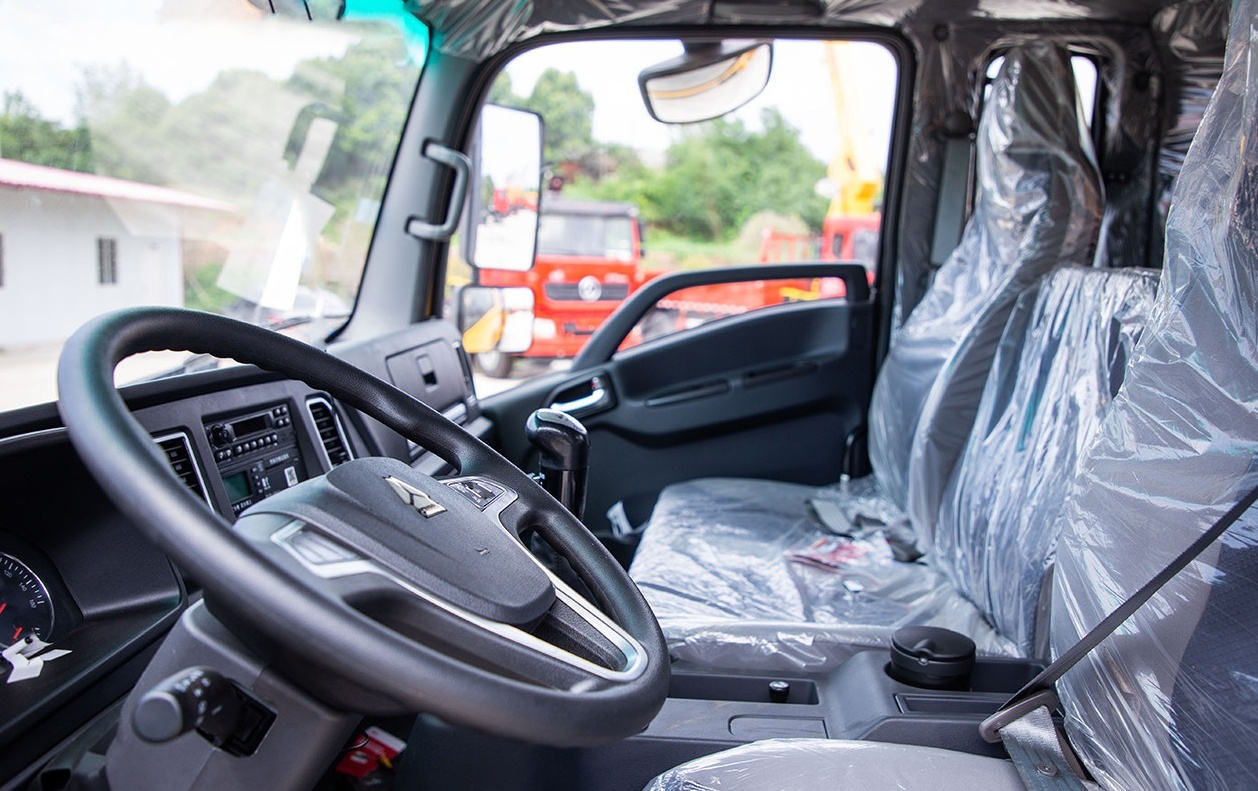

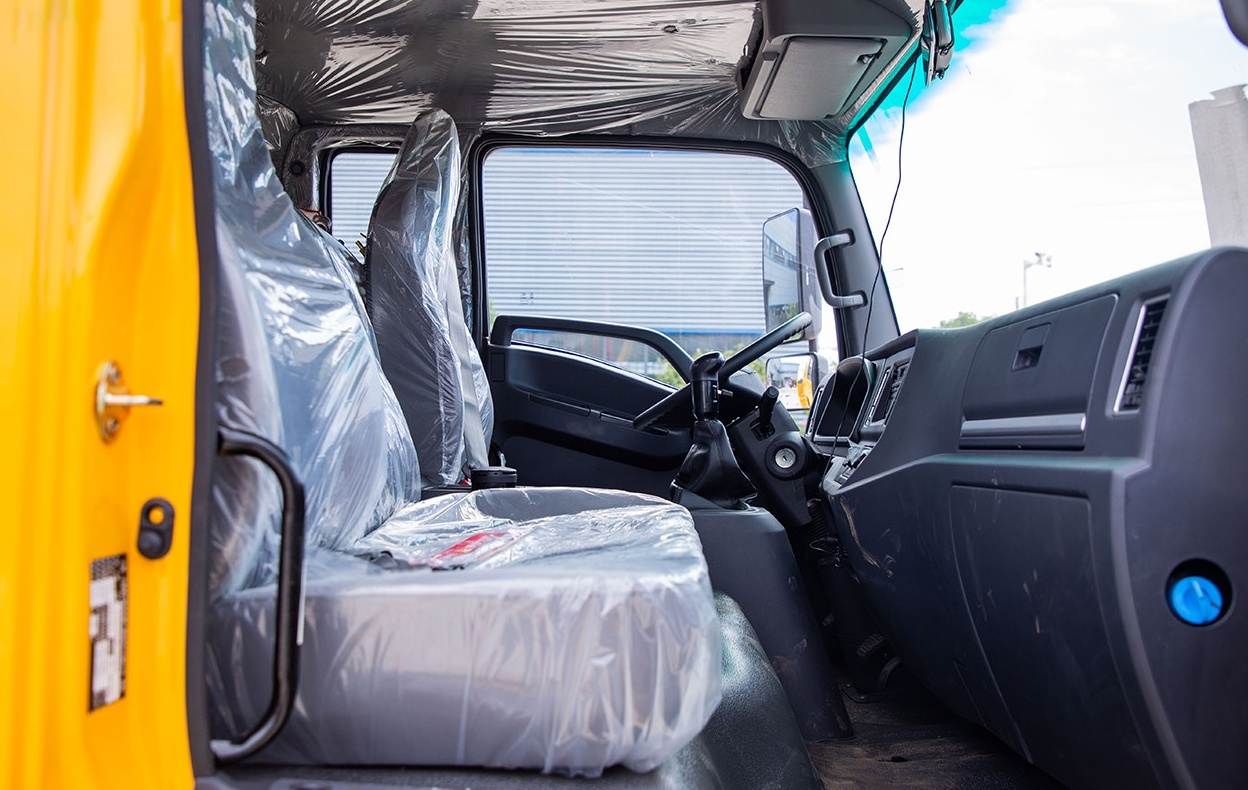

(8JS85F straight)9 tons of Queen Bridge (1534), 245×(10+8) local double girder, 8.25R20 steel wire tire, original electronic control air conditioning, multi-function steering wheel (MP3+ Bluetooth), metal paint, all-inclusive interior, central control door lock, electric doors and Windows, remote control key, remote throttle, original power takeout device, vehicle satellite positioning terminal, Right turn speech

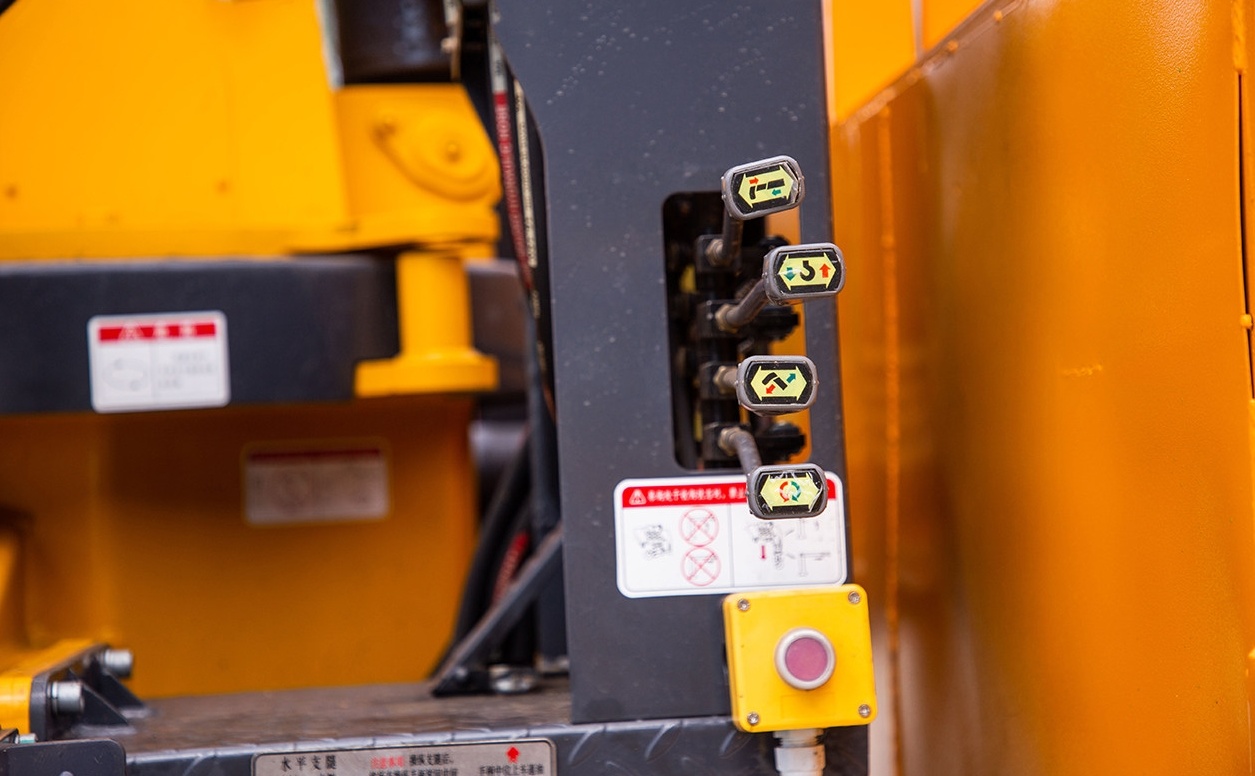

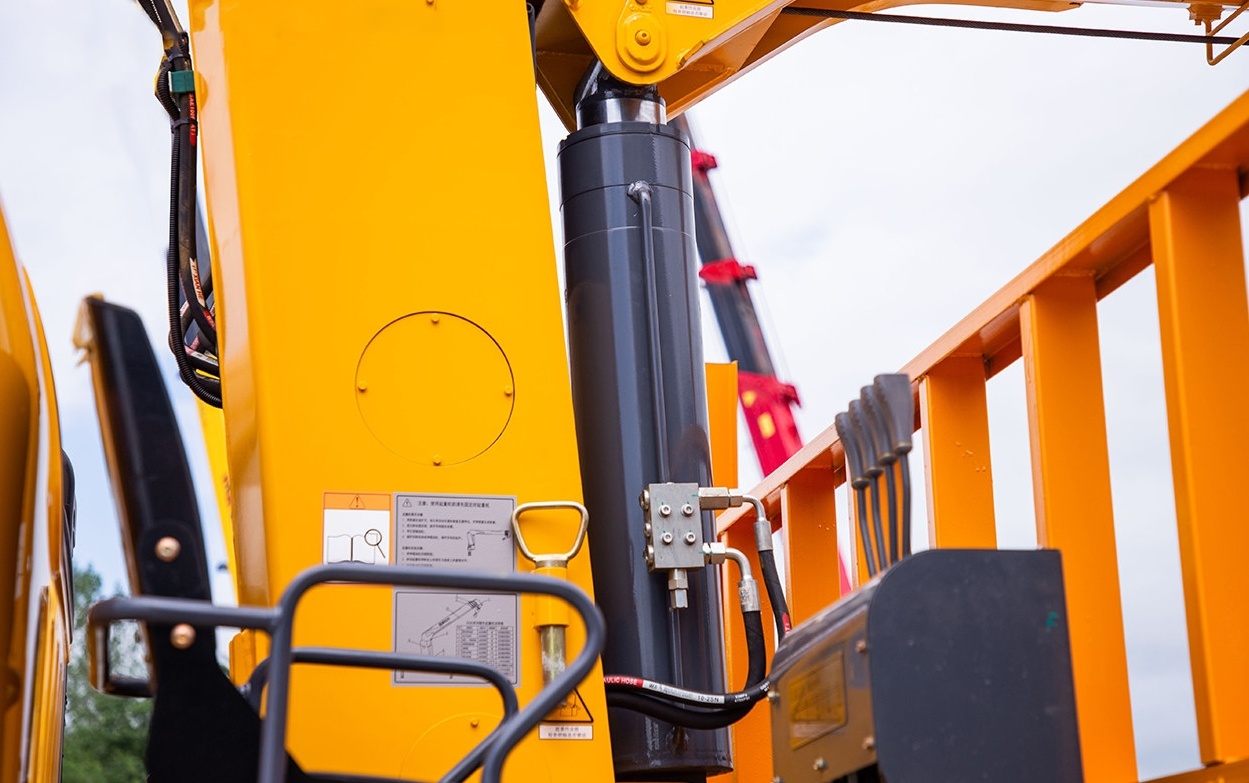

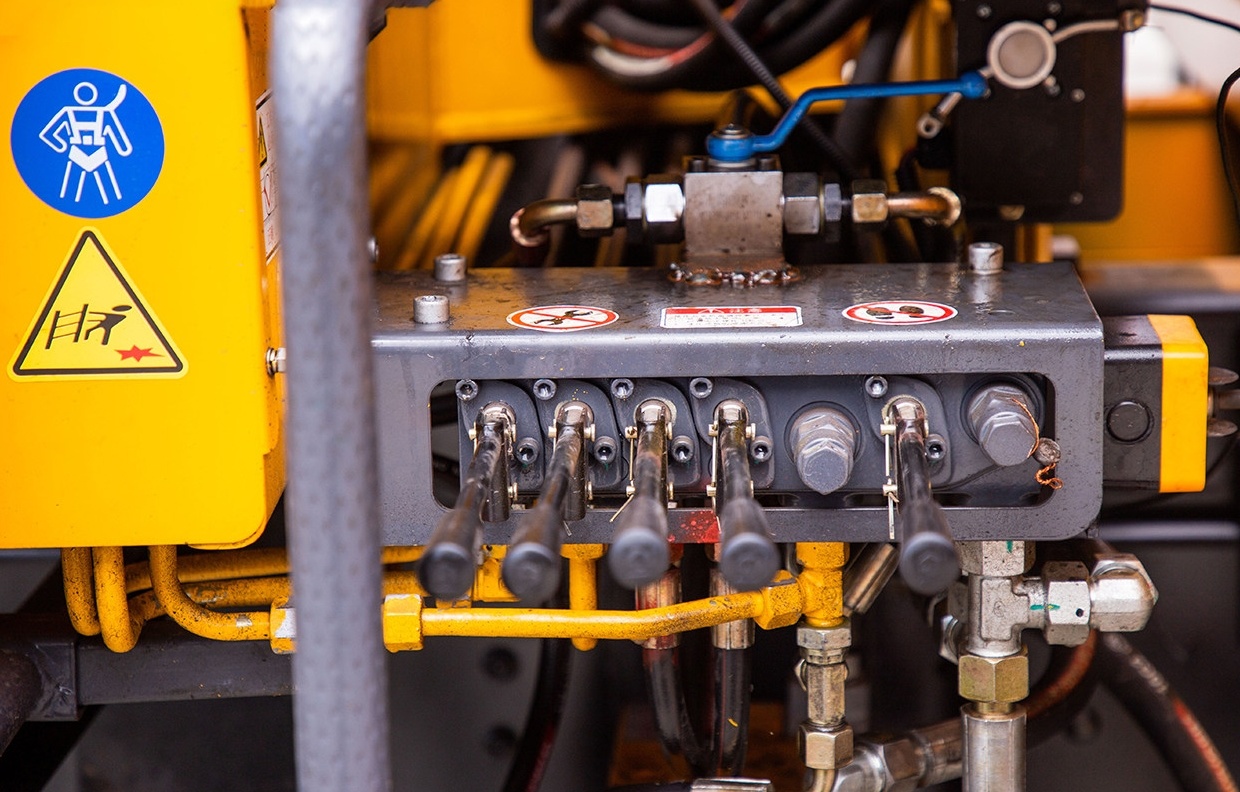

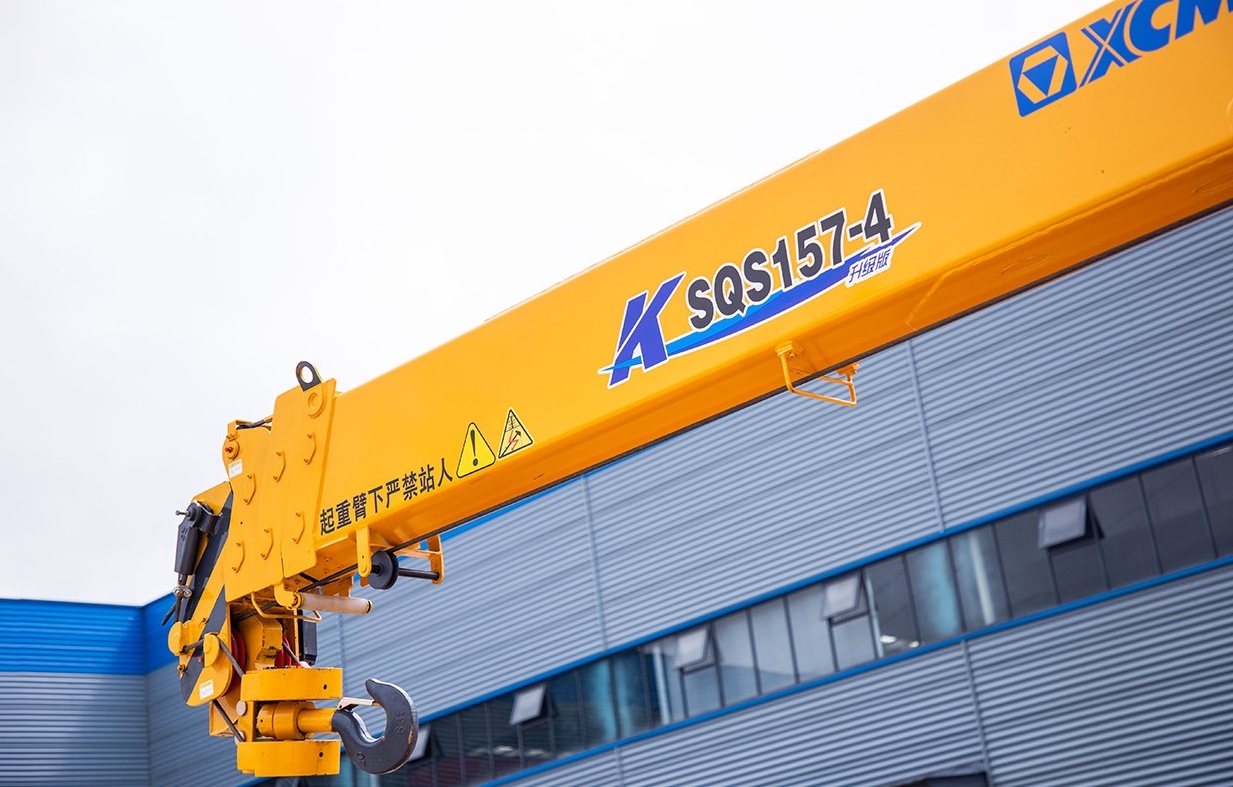

Xugong K Series 6.3 tons 4 section arm, lifting height 14.6 meters, working radius 13 meters, four position operation, full hydraulic, full rotation, automatic hook
Cargo box: 4200*2400*550
Total weight: 14060KG
Truck crane special function video
Operating parameter
| Straight arm crane | Folding arm crane | ||||||
| Model number | Lifting height(m) | Working radius(m) | Remark | Model number | Lifting height(m) | Working radius(m) | Remark |
| Two tons,two knots | 6.8 | 5.8 | Full rotation | Two tons,two knots | 7.5 | 4.78 | Rack cylinder |
| Two tons and three knots | 9 | 7.7 | Full rotation | 3.2 tons 2 knots | 8.5 | 5.69 | Rack cylinder |
| 3.2 tons 2 knots | 6.8 | 5.5 | Full rotation | 3.2 tons 3 knots | 10 | 7.3 | Rack cylinder |
| 3.2 tons 3 knots | 9.5 | 7.5 | Full rotation | Four tons and three knots | 10.2 | 7.3 | Rack cylinder |
| Four tons and three knots | 10 | 7.93 | Full rotation | Five tons and three knots | 11 | 8 | Full hydraulic, full rotation |
| 4 tons, 4 knots | 11.5 | 9.4 | Full rotation | Five tons, four knots | 12.8 | 9.92 | Full hydraulic, full rotation |
| Five tons and three knots | 10.5 | 8.7 | Full hydraulic, full rotation | 6.3 tons 3 knots | 11 | 8 | Full hydraulic, full rotation |
| Five tons, four knots | 12.5 | 11 | Full hydraulic, full rotation | 6.3 tons 4 knots | 13 | 9.92 | Full hydraulic, full rotation |
| 6.3 tons 3 knots | 11 | 9 | Full hydraulic, full rotation | 8 tons, 4 knots | 13 | 9.75 | Full hydraulic, full slewing, high-altitude seat |
| 6.3 tons 4 knots | 12.8 | 11 | Full hydraulic, full rotation | 10 tons, 4 knots | 13 | 9.75 | Full hydraulic, full slewing, high-altitude seat |
| 8 tons, 4 knots | 13.5 | 11.5 |
Full hydraulic, full rotary, beltHigh-altitude seat |
12 tons, 4 knots | 13 | 9.78 | Full hydraulic, full slewing, high-altitude seat |
| 10 tons, 4 knots | 14 | 12 |
Full hydraulic, full rotary, beltHigh-altitude seat |
14 tons, 5 knots | 14 | 11.4 | Full hydraulic, full slewing, high-altitude seat |
| 12 tons, 4 knots | 14.5 | 12.5 |
Full hydraulic, full rotary, beltHigh-altitude seat |
16 tons, 5 knots | 15 | 12 | Full hydraulic, full slewing, high-altitude seat |
| 14 tons, 4 knots | 17.8 | 15.8 |
Full hydraulic, full rotary, beltHigh-altitude seat |
20 tons, 7 knots | 20 | 16.8 | Full hydraulic, full slewing, high-altitude seat |
| 16 tons, 5 knots | 20 | 18.5 |
Full hydraulic, full rotary, beltHigh-altitude seat |
25 tons, 9 knots | 20 | 16.4 |
Full hydraulic, full rotary, with high seat Chair, wireless remote control |
| 20 tons, 6 knots | 26.35 | 24.35 |
Full hydraulic, full rotary, beltHigh-altitude seat |
30 tons 7 knots | 16.2 | Full hydraulic, full slewing, high-altitude seat | |
Product Details Display
