Product Details Introduction

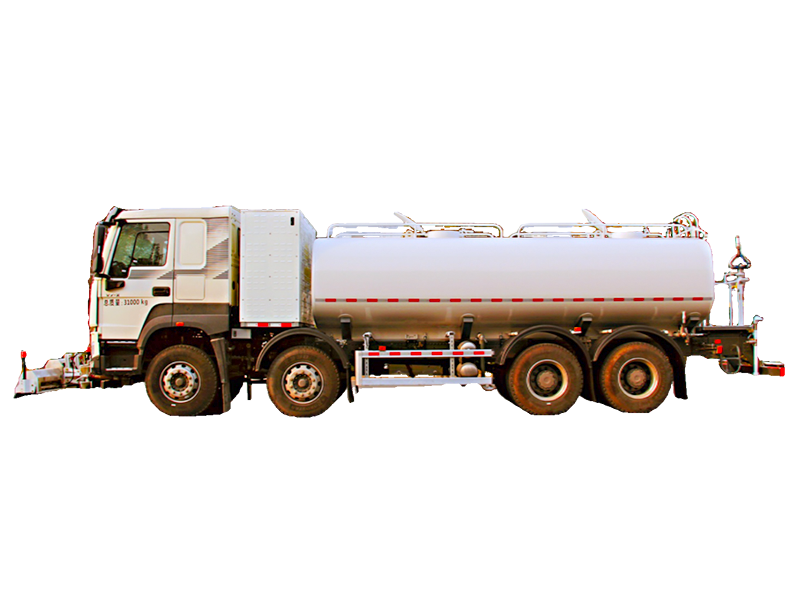

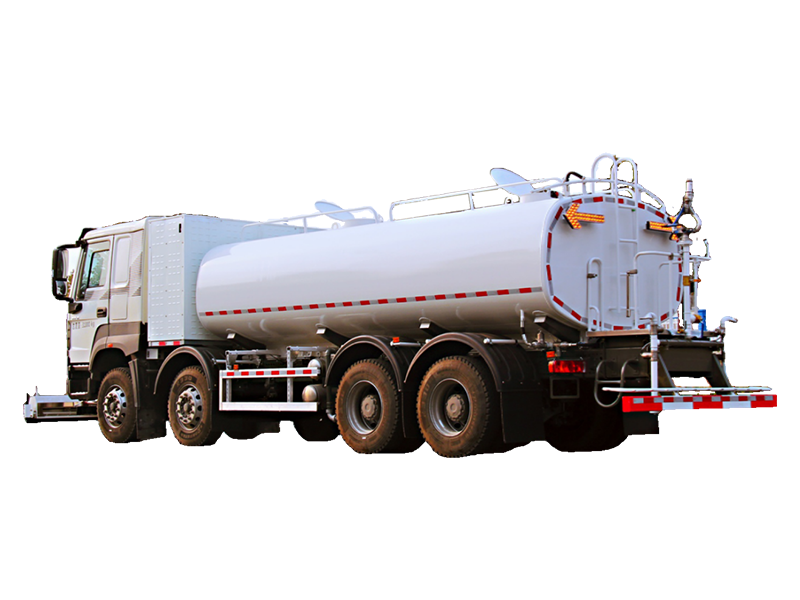

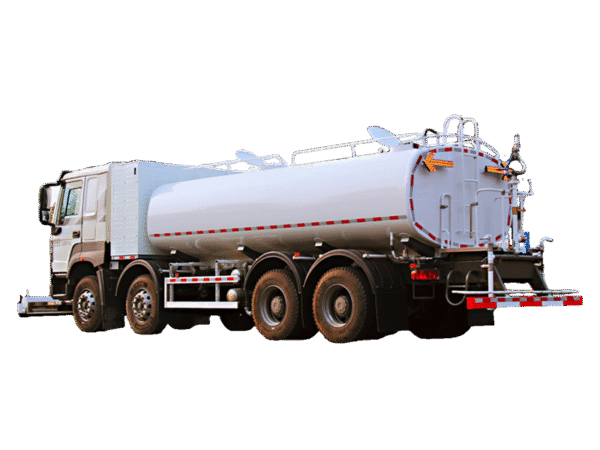

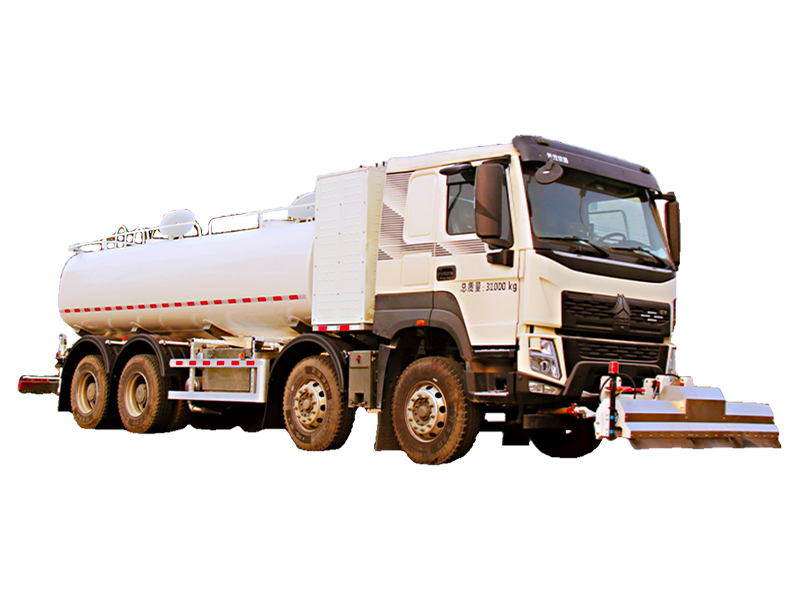

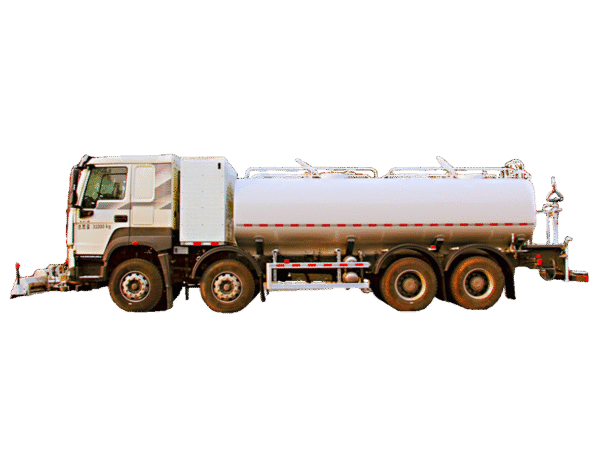

Sinotruk 31t Pure Electric Cleaning & Watering Truck (17m³)

Chassis Configuration

Chassis Model: ZZ1312V3567Z13BEV

Cab: Sinotruk HOWO V7-X

Battery: CATL 350kWh LFP (LiFePO4) battery pack

Transmission: Fully automatic

Motor: Permanent magnet synchronous motor (peak power: 360kW)

Tires: 12R22.5-18PR

Wheelbase: 1800+3525+1350mm

Curb Weight: 11,900kg

Smart Features:

Data terminal (T-box)

CAN bus LCD instrument cluster

MP5 multimedia system

Rearview camera

Cruise control

Air-suspension driver seat

Dual PTO Interfaces: 60kW + 100kW high-power connections for superstructure

Electric System Protection: IP67 or higher

Range: 280km (full charge in 1.5-2 hours via standard charger)

Warranty: 5 years or 200,000km

Superstructure Configuration

Water Tank: 17m³ capacity

Material: Q235 carbon steel

Baffle thickness: 3mm

Tank body thickness: 4mm

Head plate thickness: 5mm

Valves & Piping:

Large-diameter full-bore ball valves

Cast steel tees

Reinforced main pipeline

Die-Cast Aluminum Fittings:

One-piece die-cast aluminum alloy elbows, tees, pump outlet cross fittings, and pump inlet straight fittings (weld-free, leak-proof).

Standardized modular design for easy maintenance.

Lightweight and durable.

Other Components:

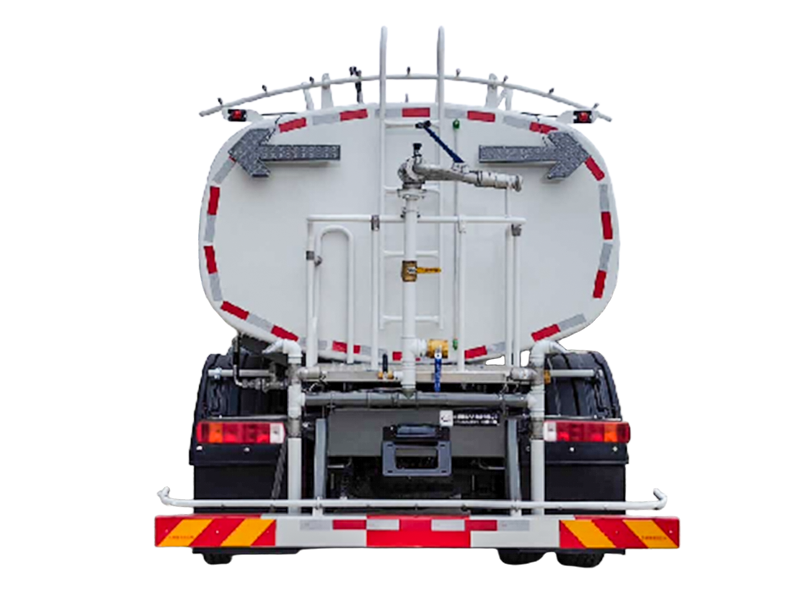

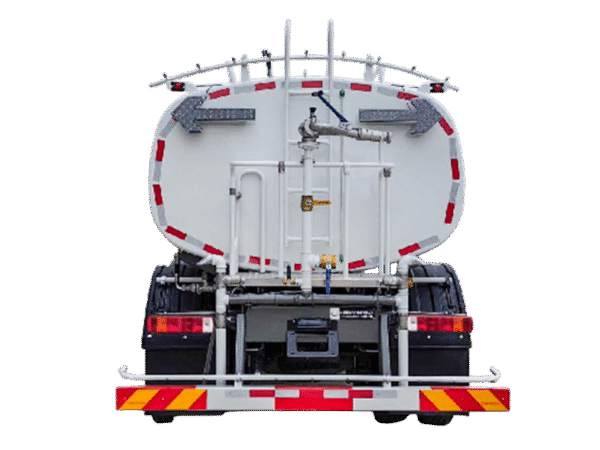

Aluminum alloy rear sprinkler

Stainless steel ball valves

S-type high-pressure water cannon (adjustable spray patterns: direct jet, heavy/medium/drizzle rain; max range: 30m).

Performance:

Suction lift: ≥6m

Spray width: ≥16m

Jet range: ≥30m

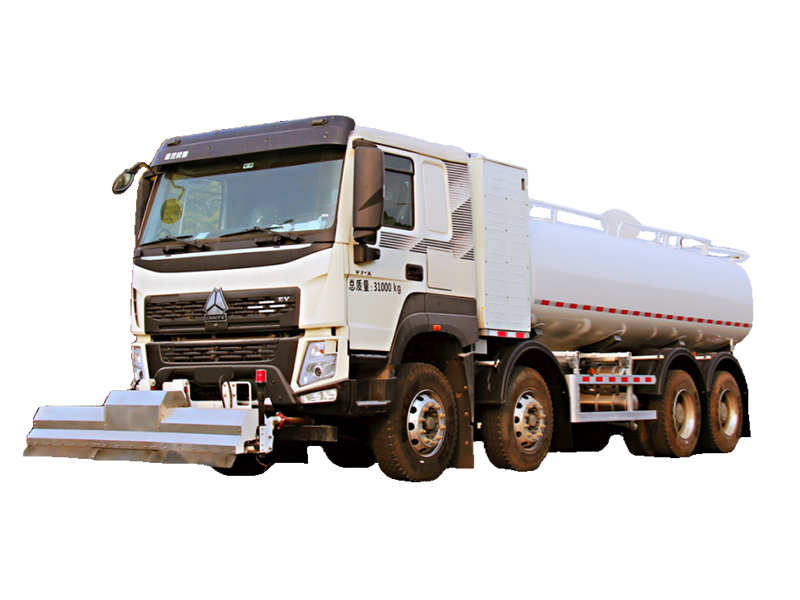

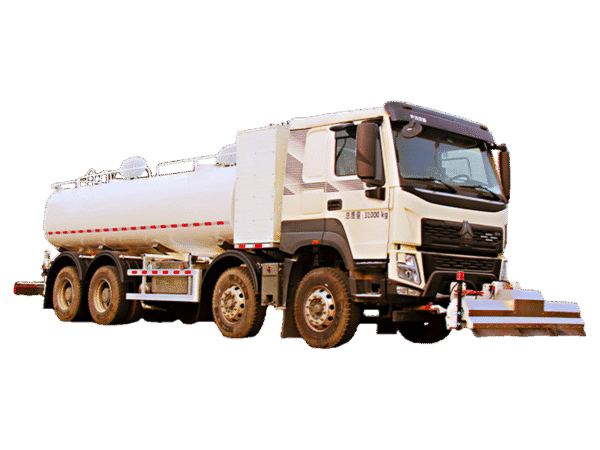

Optional: Front-mounted flushing frame

Key Features

Zero Emissions: Pure electric powertrain for eco-friendly urban operations.

High Efficiency: Fast charging (1.5-2 hours) and 280km range.

Intelligent Design: CAN bus system + telematics (T-box) for fleet management.

Premium Watering System: Leak-proof aluminum fittings + multi-function cannon.
