Product Details Introduction

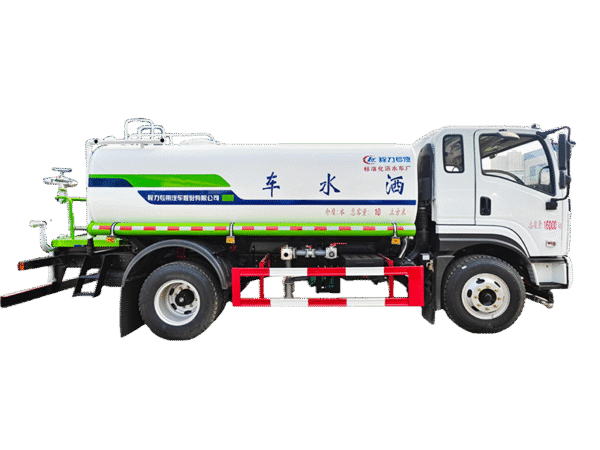

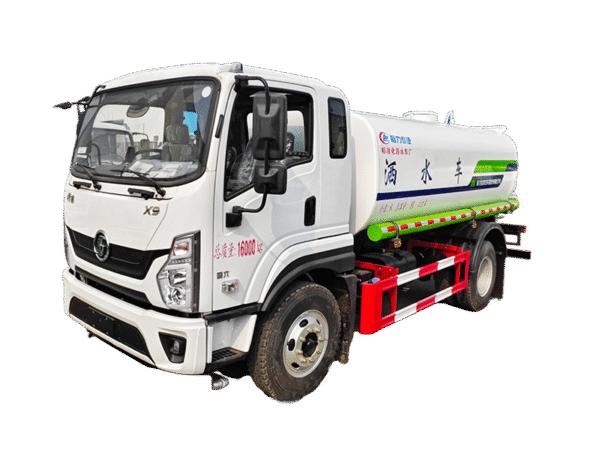

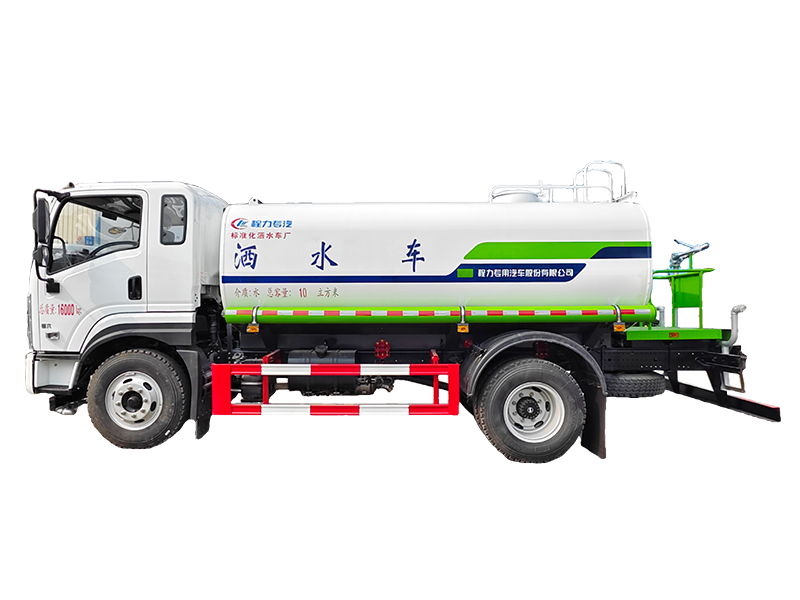

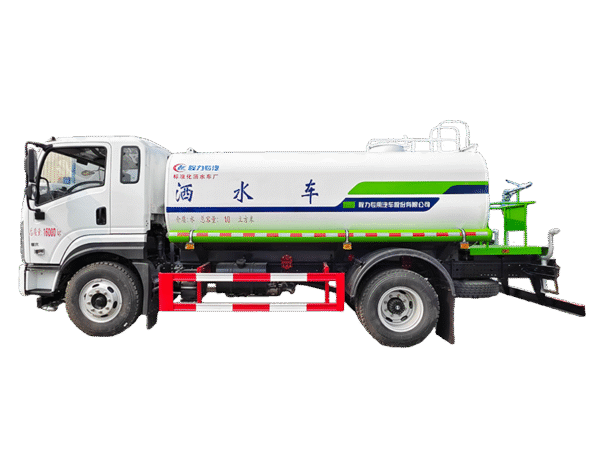

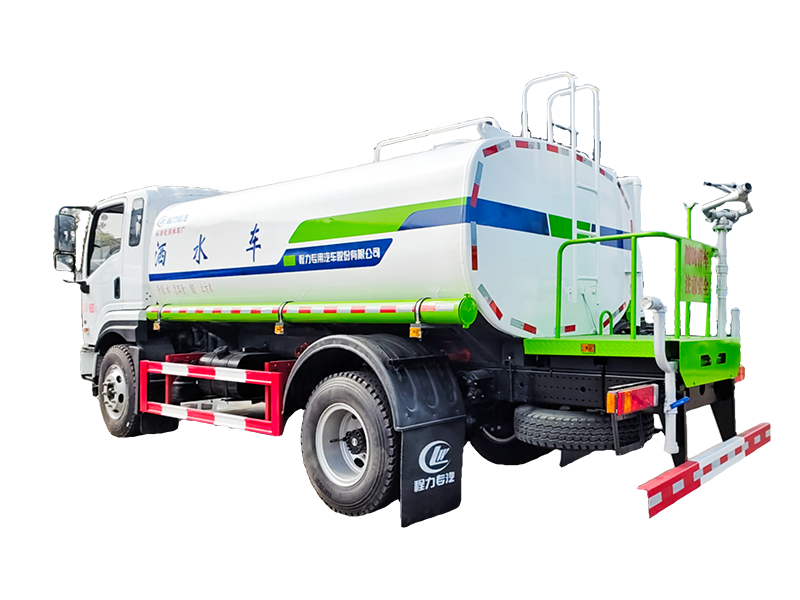

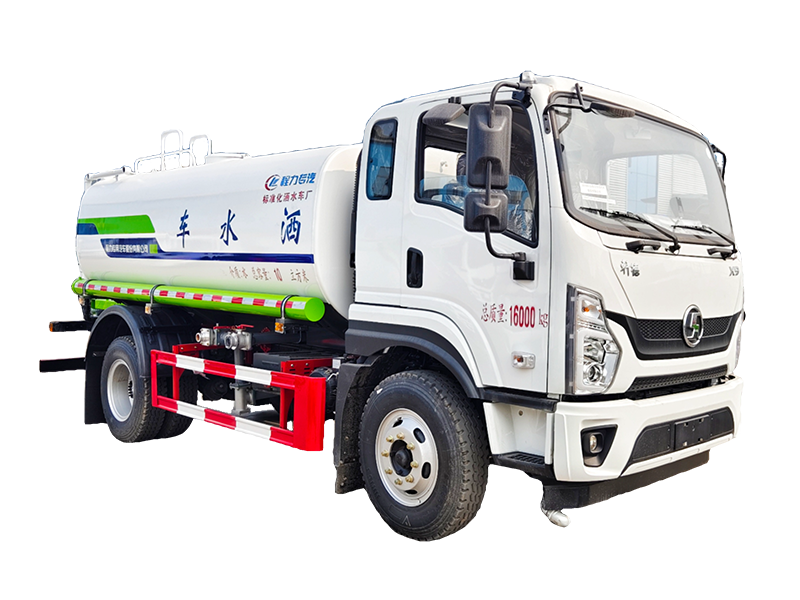

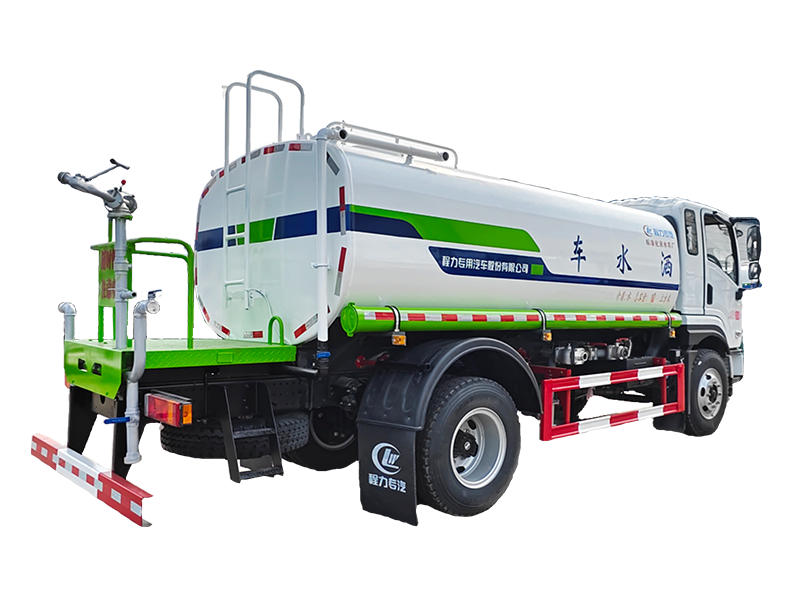

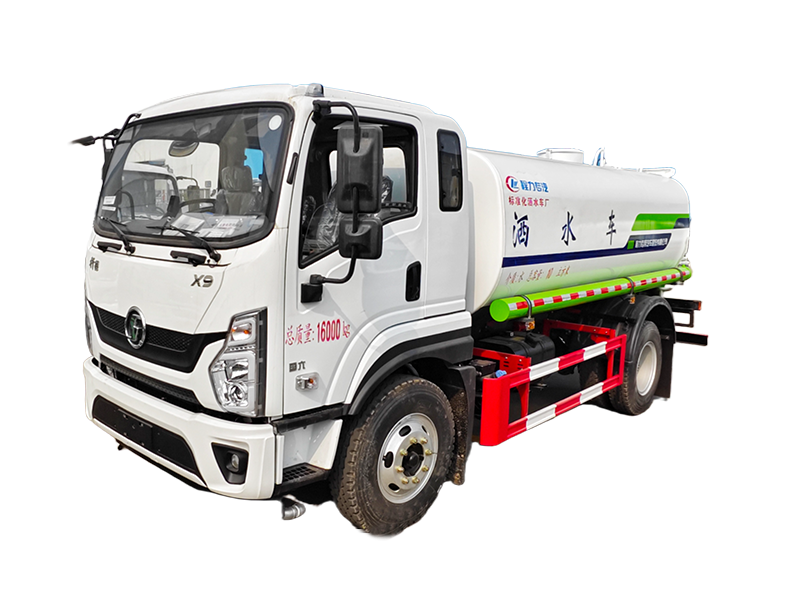

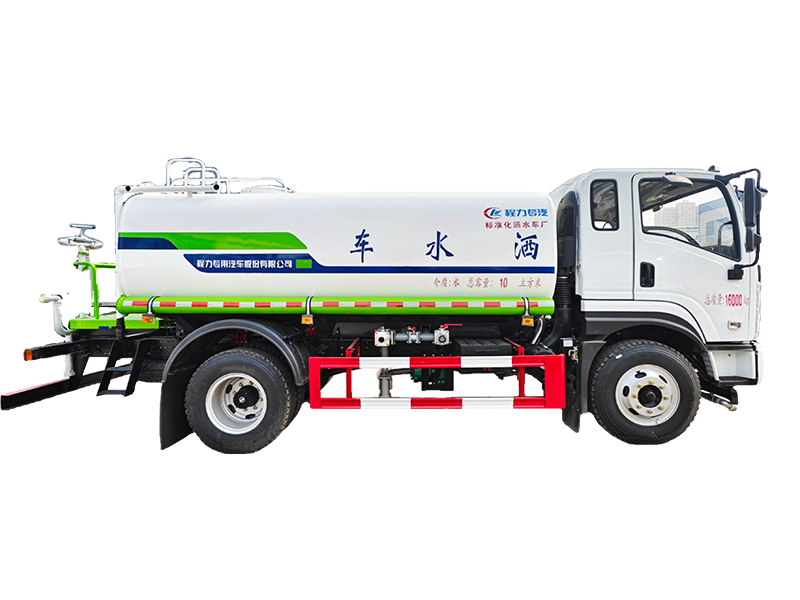

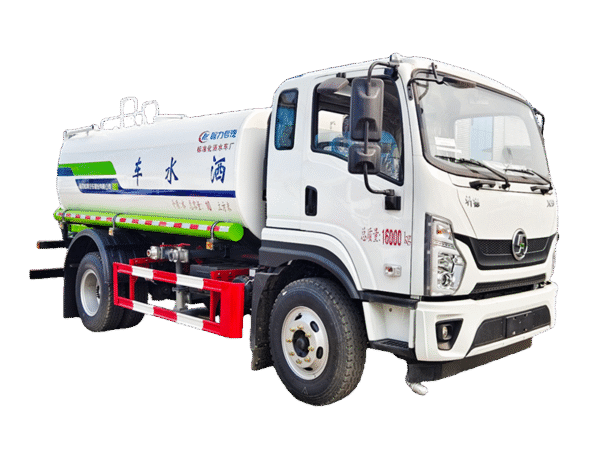

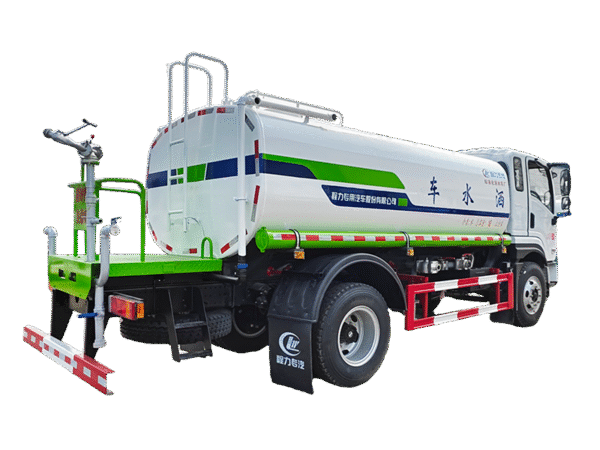

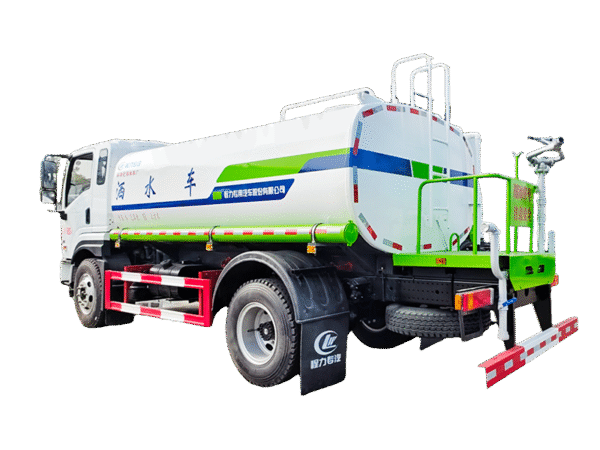

Shacman Xunde X9 12-Cubic-Meter Water Truck

Chassis Configuration

Wheelbase: 3950mm

Engine Options: Yuchai 170 HP / Yunnei 177 HP

Transmission: Fast 8-speed manual gearbox (with PTO)

Tires: 9.00R20/16PR

Fuel Tank: 130L steel tank

Cab: X9 extended cab / 2120mm wide cab

Additional Features:

Power windows & central locking

Clutch booster

Dual 100Ah maintenance-free batteries

Reinforced double-layer frame (861×232mm, 6+4 construction)

Front axle: 3.2T capacity / Rear axle: 8T capacity

Superstructure Configuration

Water Tank: 12m³ capacity

Material: Q235 carbon steel

Baffle thickness: 3mm

Tank body thickness: 4mm

Head plate thickness: 5mm

Valves & Piping:

Large-diameter full-bore ball valves

Aluminum alloy tees

Reinforced main pipeline (76mm)

Die-Cast Aluminum Fittings:

One-piece die-cast aluminum alloy elbows, tees, pump outlet cross fittings, and pump inlet straight fittings (no welds, leak-proof design).

Standardized modular design for easy maintenance/replacement.

Lightweight, durable, and aesthetically refined.

Other Components:

Aluminum alloy rear sprinkler

Stainless steel ball valve high-pressure water cannon

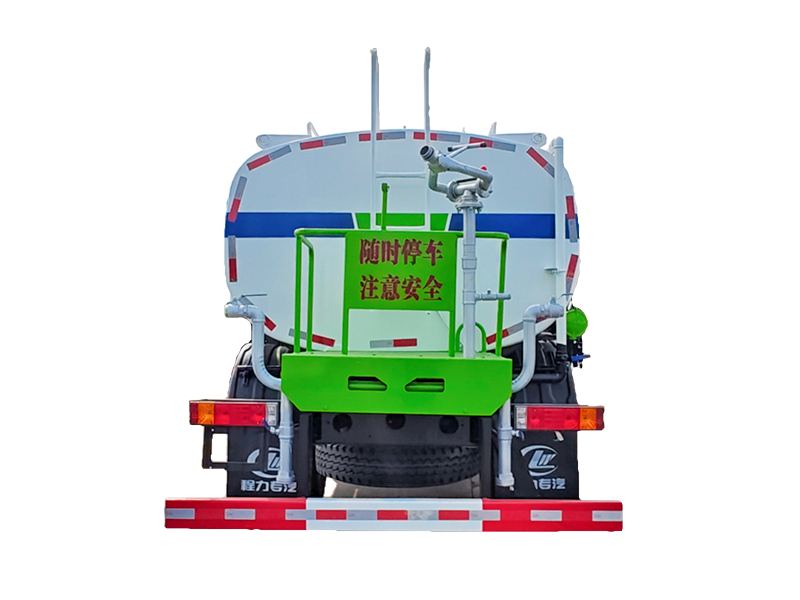

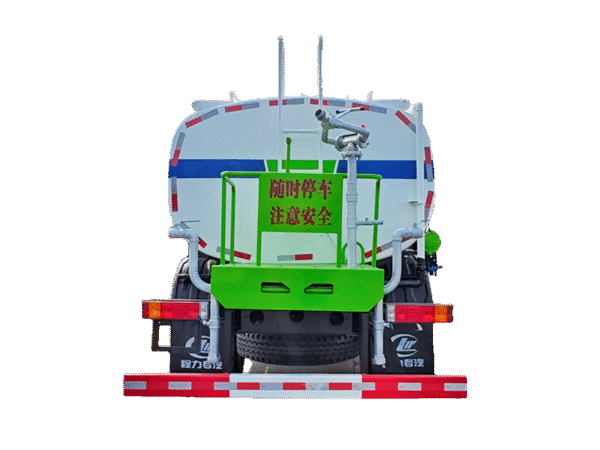

Anti-Slip Work Platform:

2mm perforated steel plate (optimized drainage, non-slip surface).

Press-formed structure for enhanced strength and lightweight performance.

Specialized Watering Functions

Spray Systems:

Front flush / Rear spray / Side spray

Rear work platform with high-pressure绿化 cannon (adjustable spray patterns: direct jet, heavy rain, medium rain, drizzle; max range: 30m).

High-Performance Pump:

Firefighting inlet connection

Self-priming capability (suction lift ≥6m)

Built-in filter

Performance Metrics:

Spray width: ≥16m

Jet range: ≥30m

Mist coverage: ≥15m
