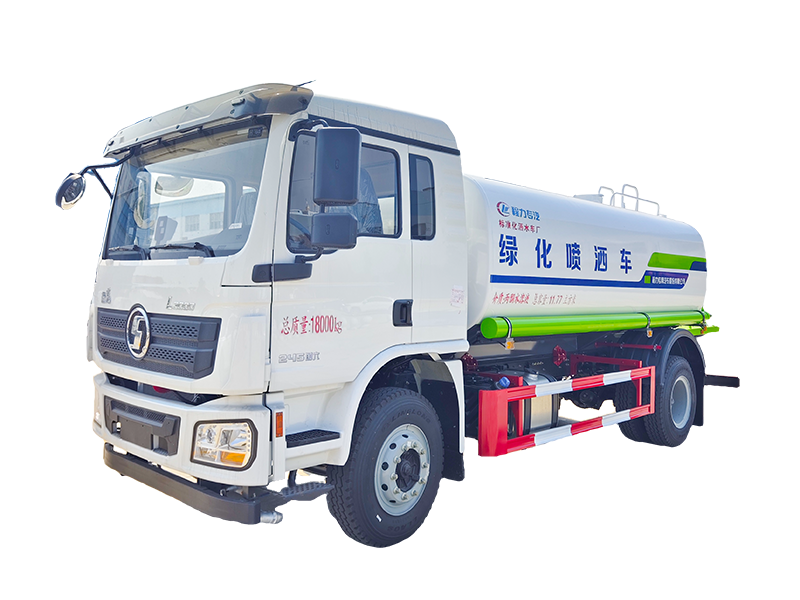

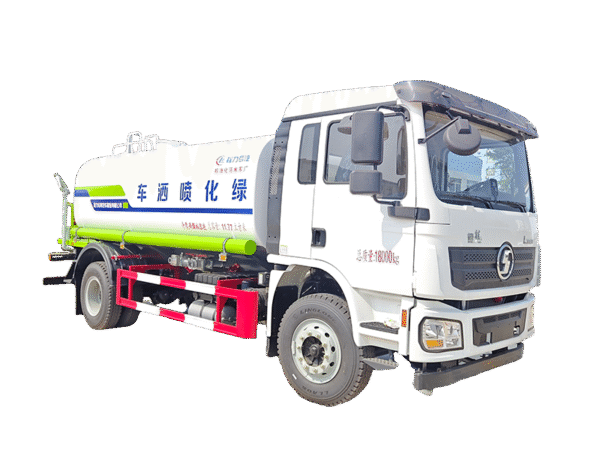

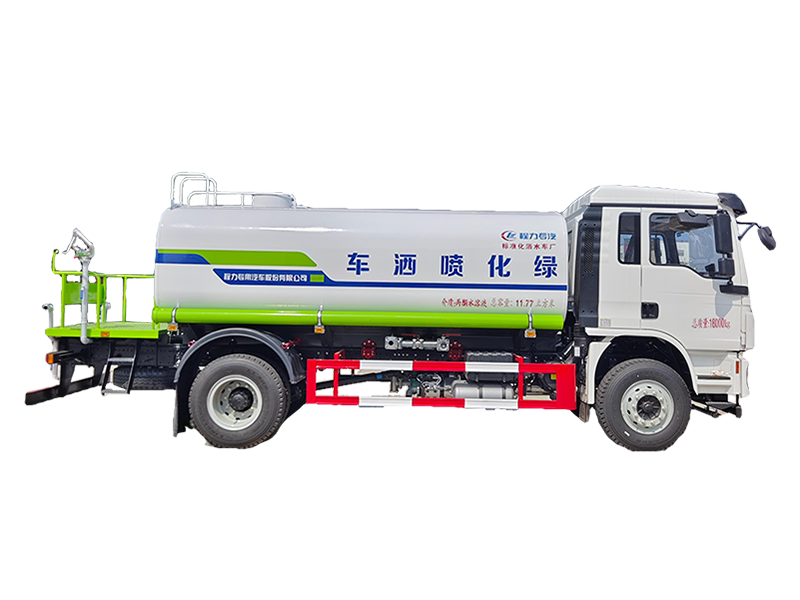

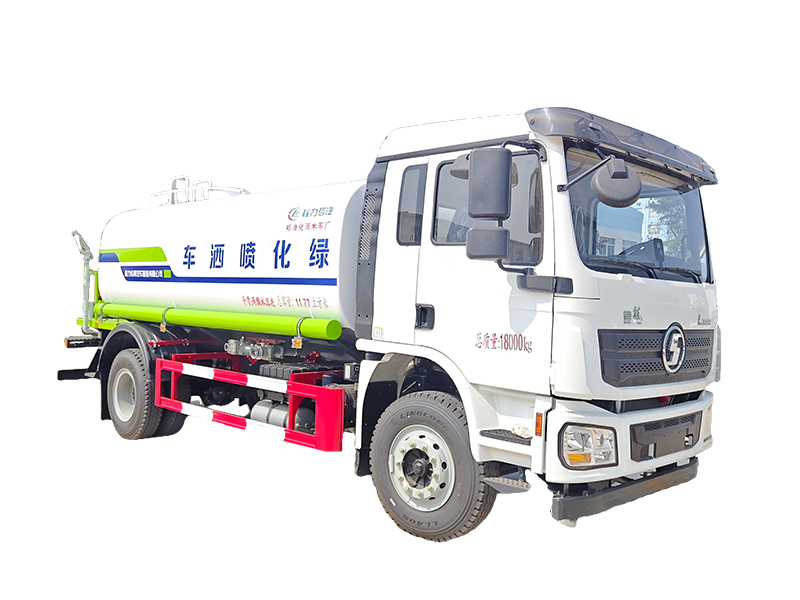

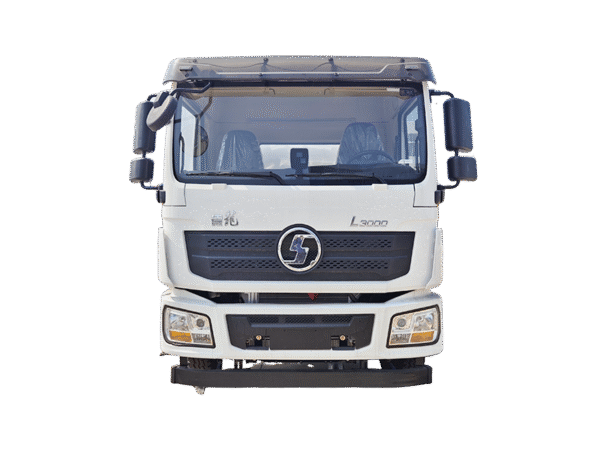

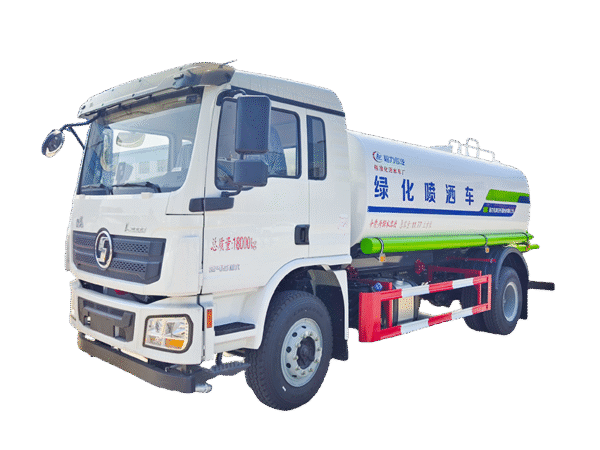

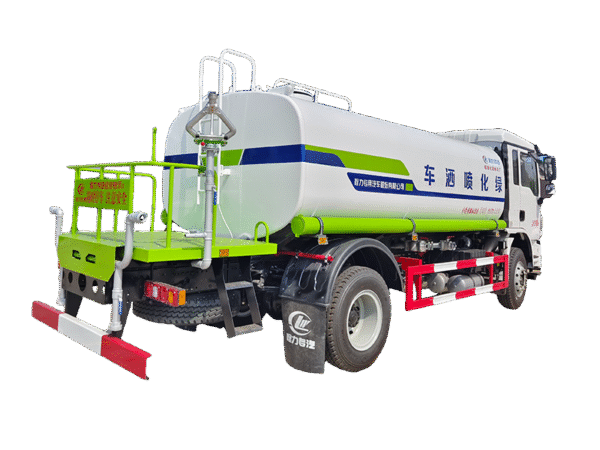

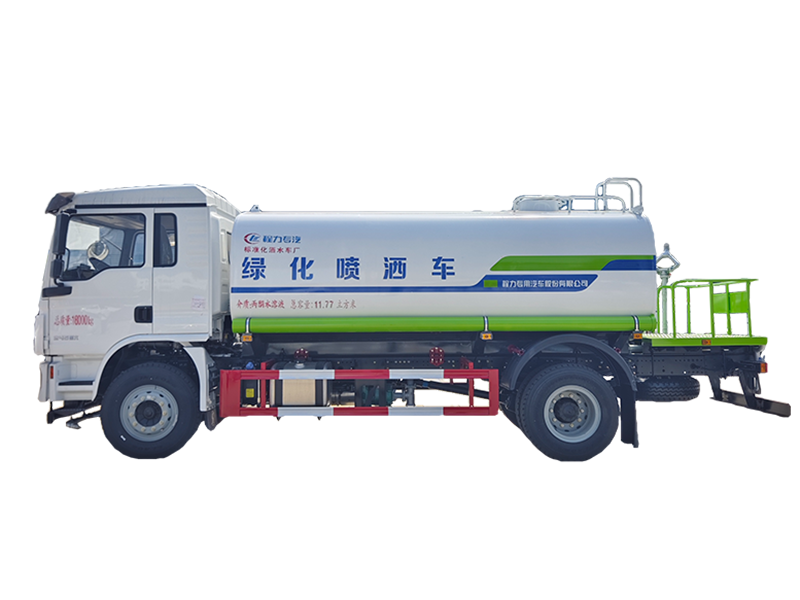

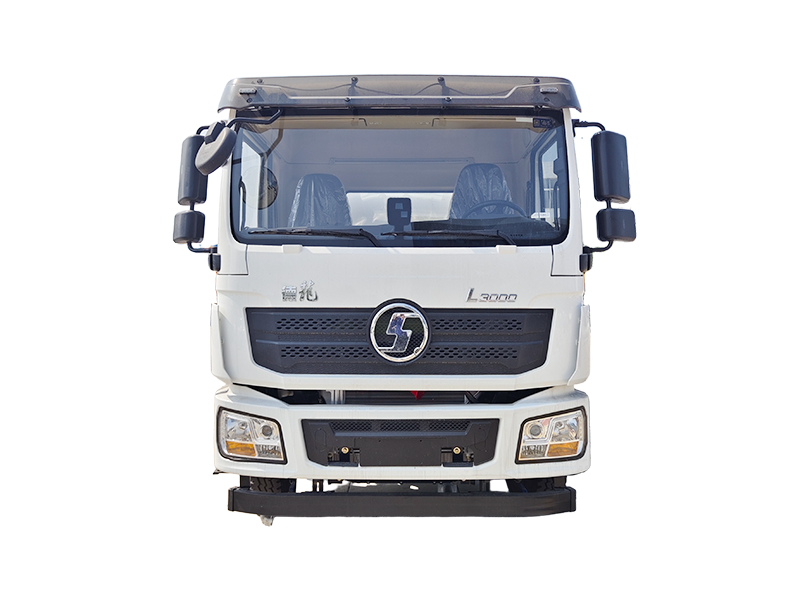

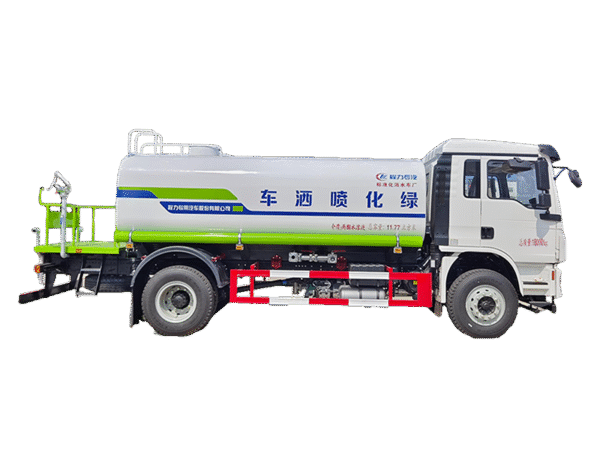

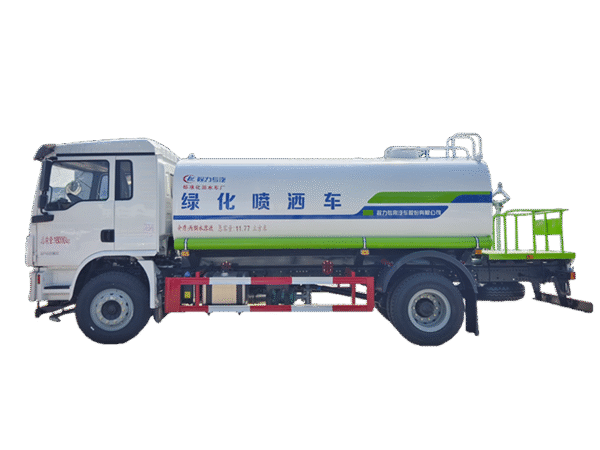

Shacman Delong L3000 Water Truck (14m³)

Here’s the professional English translation of the Shacman Delong L3000 Water Truck (14m³) configuration and specifications:

---

I. Chassis Highlights

1. Powertrain

Yuchai 200 HP Engine: Suitable for short/medium-distance transport, fuel-efficient, low maintenance cost, ideal for municipal sanitation operations.

8JS85E-C Transmission (8-speed manual): Adapts to complex road conditions, strong climbing capability, matches medium-duty load requirements.

4000mm Wheelbase: Balances vehicle maneuverability and tank stability, optimized for urban road operations.

2. Load Capacity & Safety

4.8T Front Axle + 8.7T Rear Axle: High-load design supports a full 14m³ water tank (~14 tons).

Reinforced Frame (870×250mm): Enhances torsional resistance, extends chassis lifespan.

10.00R20 Tires: Durable with strong grip, suitable for construction sites, suburban roads, and varied terrains.

Speed Limited to 89km/h: Complies with regulations, ensures operational safety.

---

II. Superstructure Configuration

1. Tank Design

Material: Q235 carbon steel (WISCO), 4mm tank body + 5mm head plate, corrosion-resistant, cost-effective.

Anti-sloshing Baffles: Reduces water turbulence during transit, improves stability.

Capacity: 14m³ (~14,000L), suitable for medium-to-large-scale watering tasks.

2. Spraying System

Multi-functional Nozzles:

Front Flush (road cleaning), Rear Spray (road wetting), Side Spray (greenery irrigation).

Firefighting-style Water Cannon:

Range ≥30m (jet mode), supports misting for dust suppression (ideal for construction sites/firefighting assistance).

Adjustable modes (heavy rain/drizzle/mist/column), adaptable to diverse scenarios.

High-power Pump: Self-priming and self-draining, allows rapid water intake from rivers/fire hydrants.

3. Convenience Features

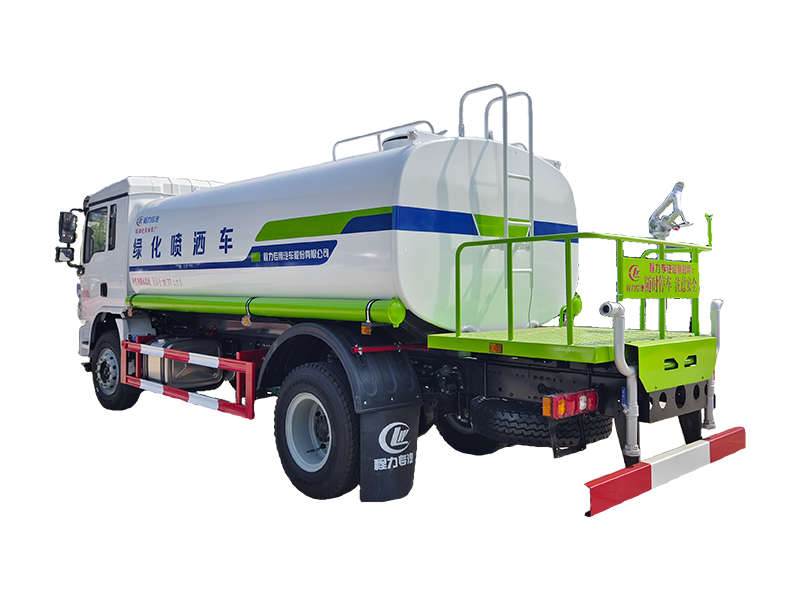

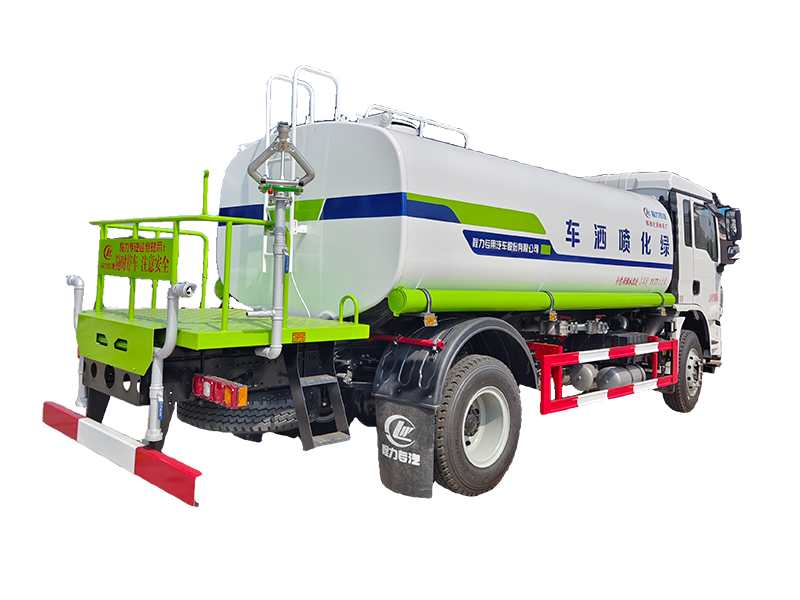

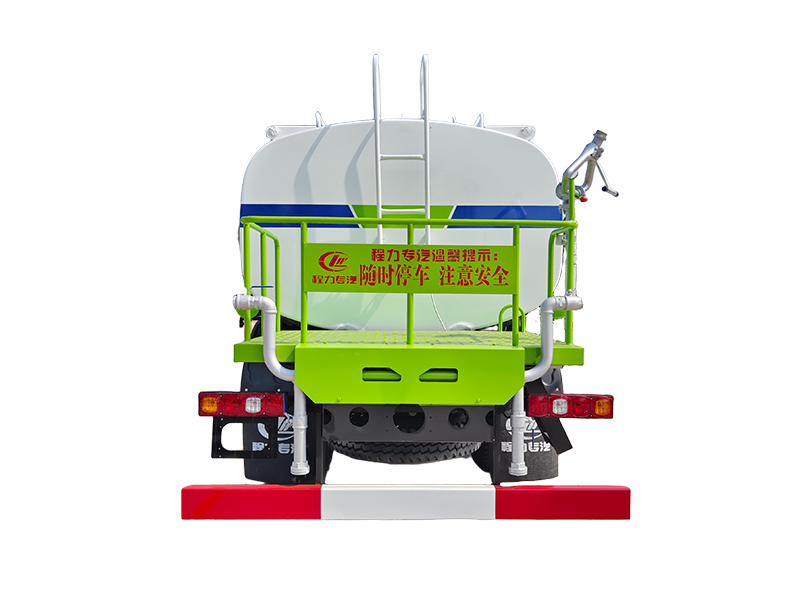

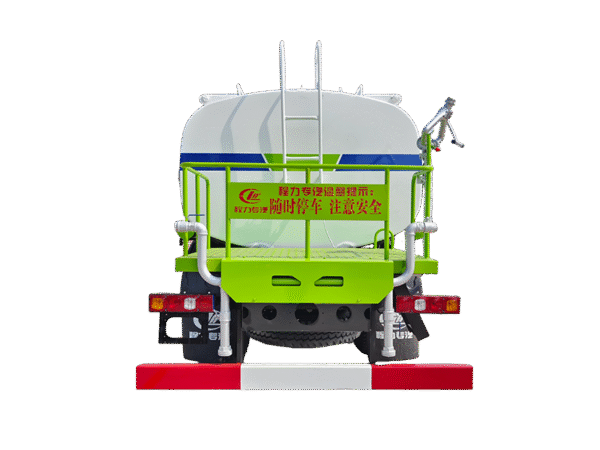

Rear Work Platform: Perforated anti-slip design ensures operator safety.

Fire Hydrant Connection + Drain Valve: Enables emergency water supply or quick drainage.

Triple-filter Screen: Prevents nozzle clogging, prolongs pump life.

---

III. Typical Applications

Urban Sanitation:

Road cleaning, dust suppression (PM2.5 control via misting), greenbelt irrigation.

Construction/Mining Sites:

Long-range water cannon for dust control, reinforced chassis for rough terrains.

Emergency Firefighting:

Auxiliary firefighting support with 30m jet range for initial fire response.

Rural Roads:

Rear spray maintains road moisture, reduces dust pollution.

---

IV. Advantages & Precautions

Advantages:

Yuchai engine + Shacman chassis: High reliability, extensive service network.

Versatile spraying system: Multi-purpose use, excellent cost-performance ratio.

Precautions:

Carbon steel tank: Requires regular anti-corrosion treatment (especially in coastal/humid regions).

Winter use: Drain tank to prevent pipe freezing and cracking.
