Product Details Introduction
Vehicle Introduction and Specific Parameters：
| Chassis Parameters of Shaanxi Automobile Delong 18 Cubic Meter Mixer Truck | |||
| Vehicle Name: | Shaanxi Automobile Delong Mixer Truck | Chinese Brand: | Shaanxi Automobile Delong F3000 Mixer Truck |
| Engine: | Weichai 375 horsepower | Sales (m): | 11596 |
| Dimensions: | 11800×2500×4000 | Mixing Capacity: | 16 cubic meters (16 cubic meter mixer truck) |
| Total Weight: | 31000 (Kg) | Spring Leaf Number: | 13/14/12, left 14 right 13/left 14 right 13/12 |
| Curb Weight: | 16000 (Kg) | Rated Weight: | 14490, 14425 (Kg) |
| Axle Load: | 6500/6500/18000 | Wheelbase: | 1800+3050+1350, 1410 (mm) |
| Number of Axles: | 4 (four axles) | High Speed: | 83 (km/h) |
| Transmission: | Fast 12-speed gearbox | Front/Rear Axle: | 9-ton front axle, 16-ton double rear axle (stainless steel axle) |
| Number of Tires: | 10+1 | Tire Specification: | 12.00R20 original steel wire tire |
| Front Track: | 2005/2005 | Rear Track: | 1865/1865 |
| Chassis Emission Standard: | (China V standard – hassle-free registration) | ||
Mixer Truck Tank Parameters：
| Wall Material: | Alloy Steel (Special Wear-Resistant Material – Increases Wall Lifespan by More Than 3 Times) | Drum Material: | 16 Manganese Steel, 6mm Alloy Steel |
| Blade Material: | Baosteel 520.5mm Alloy Steel (Wear-Resistant Strips Added to Increase Lifespan) | Head Material: | 8mm Alloy Steel |
| Reducer: | German ZF Reducer / Italian Bonfiglioli PMP (Pure Import) | Hydraulic System: | German Rexroth / American Eaton / American Sauer / Italian PMP (Pure Import) |
| Water Supply System: | 400L Water Tank with Pneumatic Water Supply | Cooling System: | Kairui Radiator / Xinxiang Radiator |
| Feeding Speed: | Feeding Speed m³/min ≥ 3 | Discharge Speed: | Discharge Speed m³/min ≥ 2 |
| Residual Discharge Rate: | Residual Discharge Rate (%) ≤ 0.5 | Operation Method: | Three-Sided Operation (Left, Right, and Cab) |
| Discharge Range: | 180° Up, Down, Left, and Right Height Adjustment | Safety Device: | Funnel Receiving Device Installed |
Advantages of the Mixing Tank Body：
| Reducer: | Internationally imported brands, such as German Rexroth, ItalianPMP,and Italian Bonfiglioli, with strong load-bearing capacity and low failure rate. |
|
Hydraulic System: |
All equipped with internationally renowned hydraulic systems, including German Rexroth, American Eaton, Ameican Sauer, and Italian PMP, ensuring more stable tank operation, faster discharge speed, and lower residual rate! |
|
Supporting Facilities: |
The vehicle is designed for convenient and fast loading and unloading, with multi-functional operation methods, saving time,effort, and worry! |
|
After-Sales Service: |
The tank reducer comes with a one-year or 30,000-kilometer warranty. |

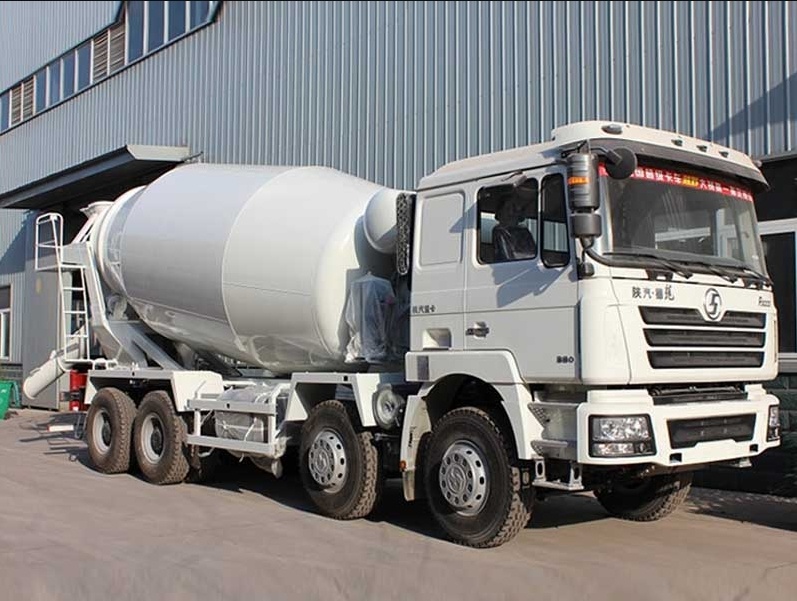

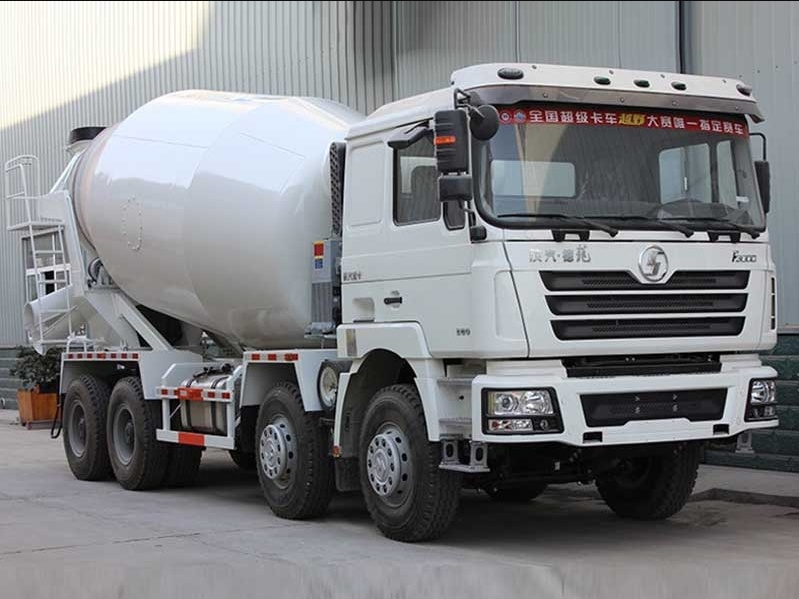

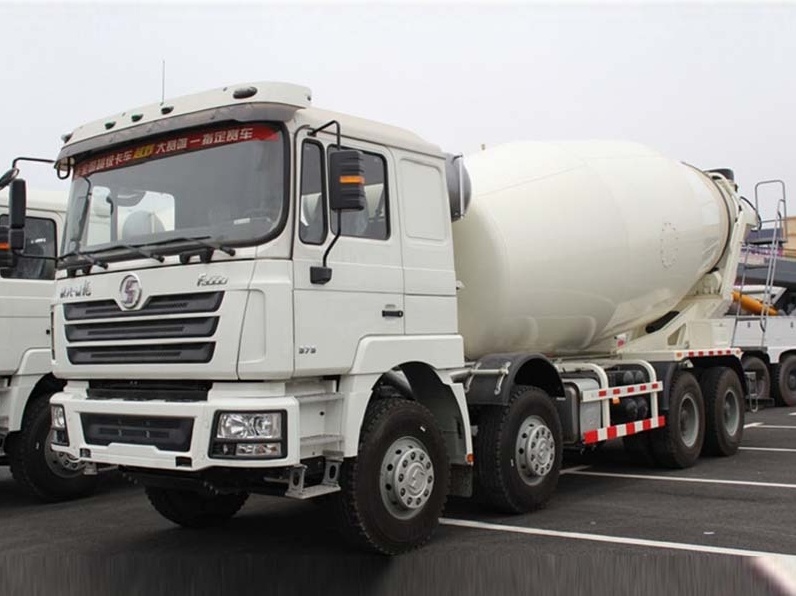

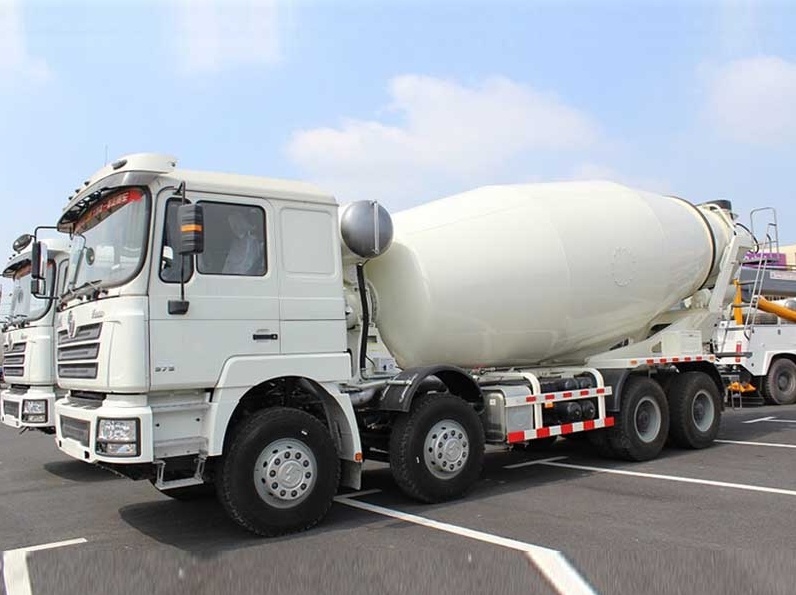

Product Details Display
