Product Details Introduction

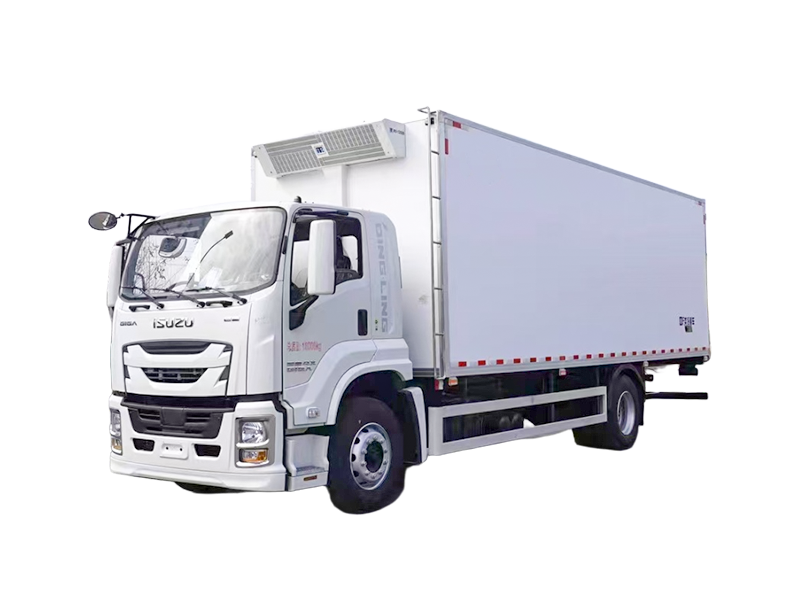

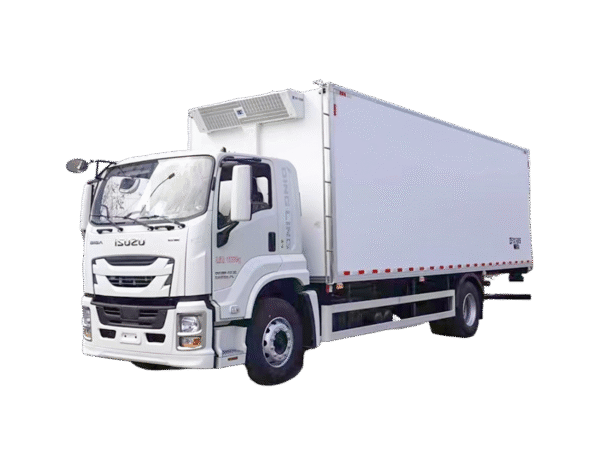

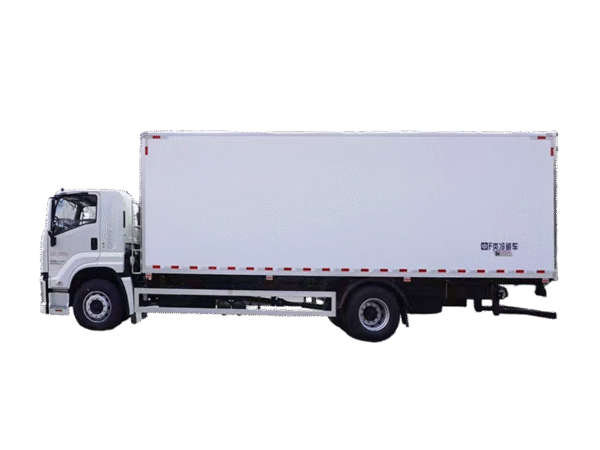

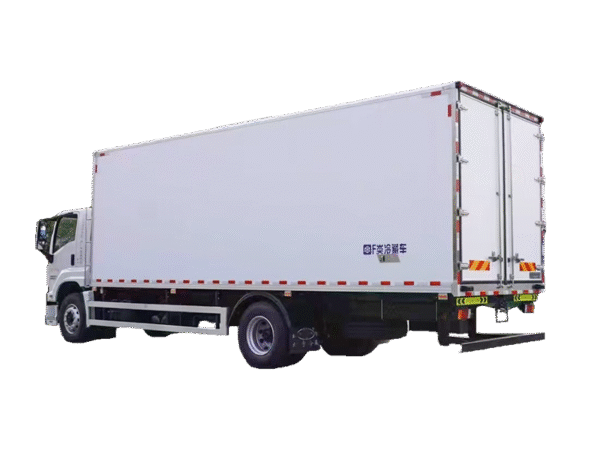

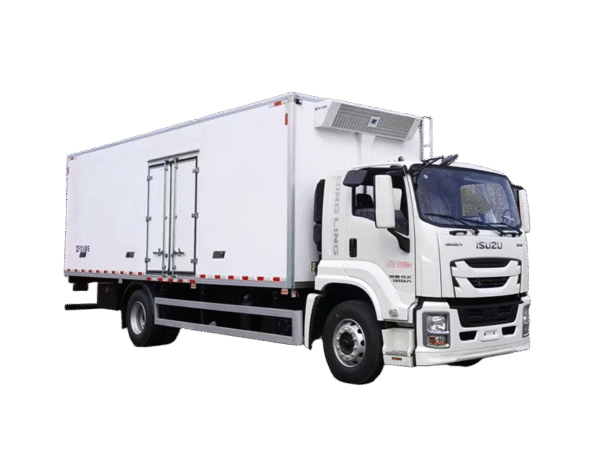

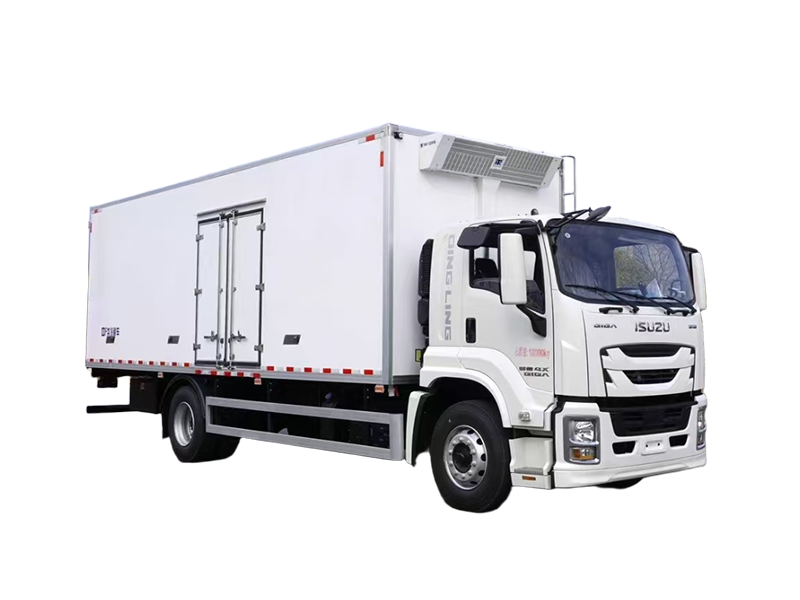

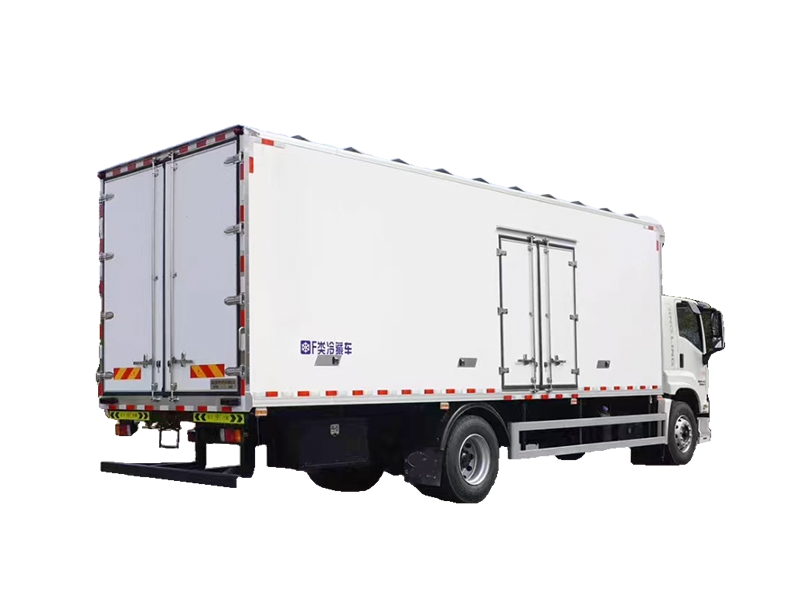

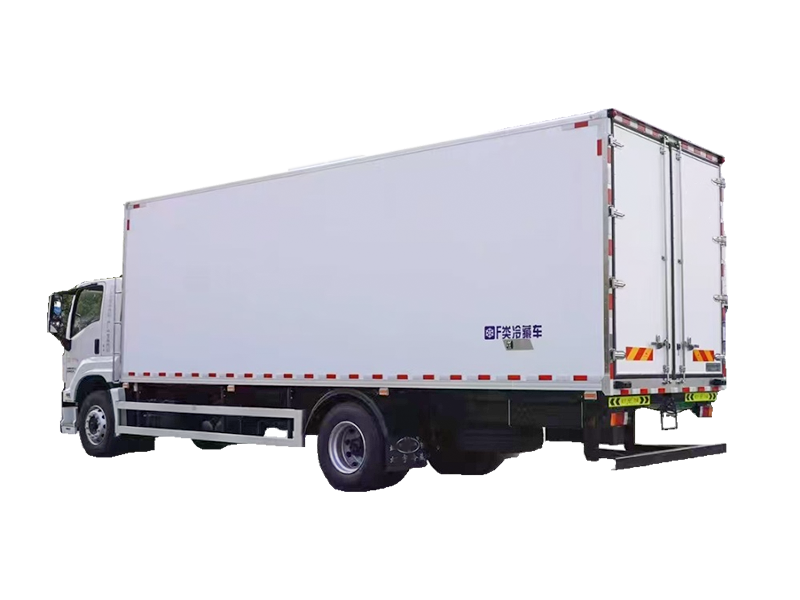

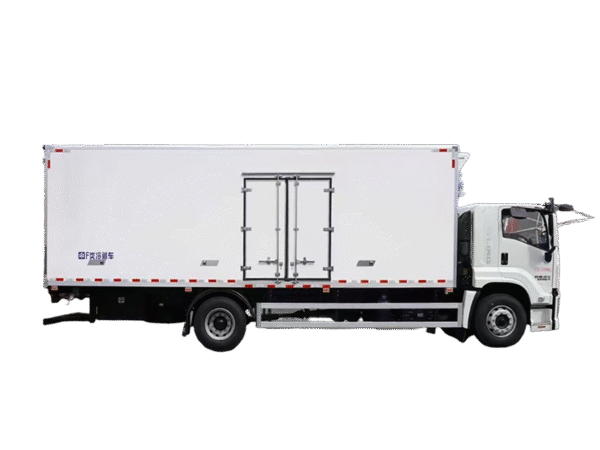

Qingling Isuzu GIGA Refrigerated Truck

A high-performance commercial vehicle designed for cold chain logistics, featuring core parameters and detailed configuration analysis.

---

1. Basic Parameters

Overall Dimensions

Length × Width × Height: 10,000 × 2,600 × 3,850 mm

Application: Complies with GB1589-2016 road vehicle dimension limits (total length ≤12m), suitable for urban distribution and medium/long-distance cold chain transport.

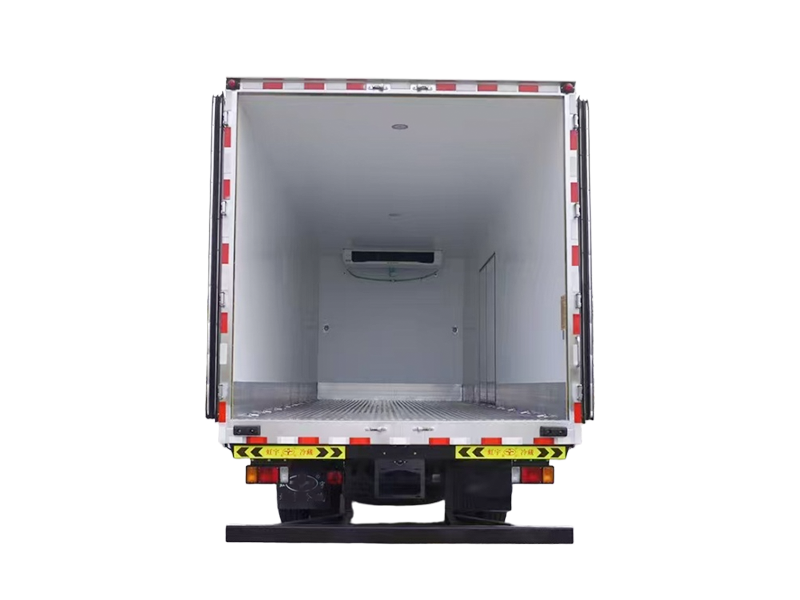

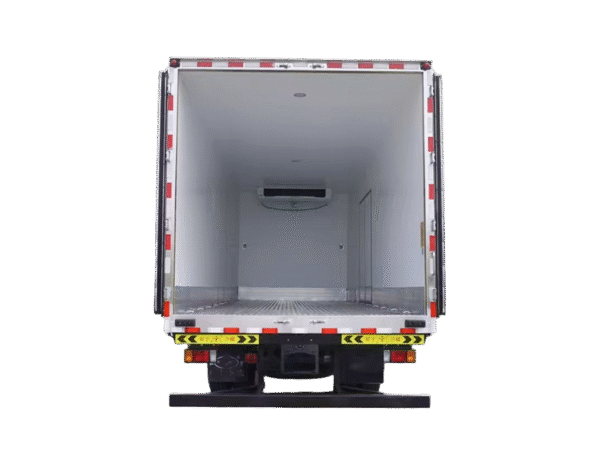

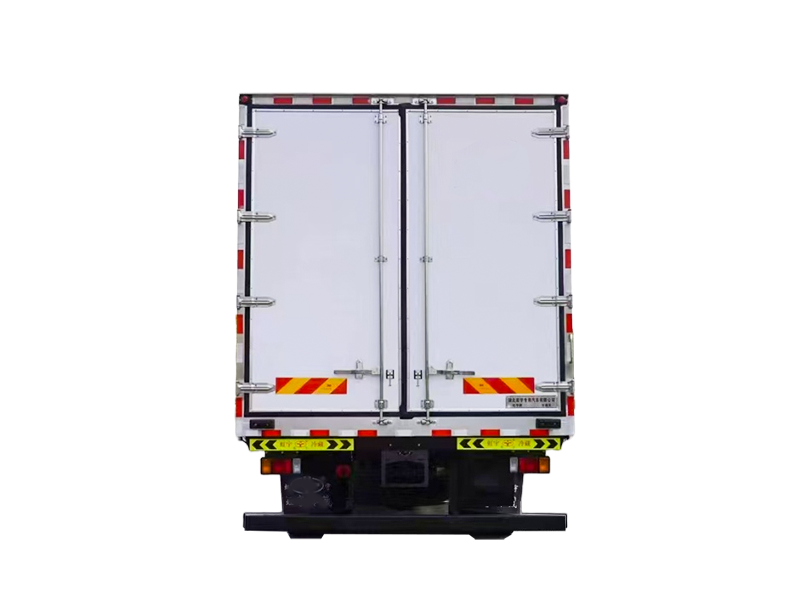

Cargo Box Dimensions

Interior (L × W × H): 7,600 × 2,440 × 2,400 mm

Volume: ~44.6 m³ (theoretical capacity), ideal for high-density goods (e.g., frozen products, pharmaceuticals).

Wheelbase: 5,550 mm

Optimized turning radius and stability for complex road conditions.

---

2. Powertrain

Engine

Model: Isuzu 4HK1-TCG62 (China VI emissions)

Displacement: 5,193 ml

Power/HP: 165 kW / 225 HP

Features: High torque at low RPM (~800 N·m @1,500 rpm), excellent fuel efficiency, designed for heavy-duty long-haul transport.

Transmission

FAST 8-speed manual transmission

Advantage: Multi-gear design adapts to varying loads, enhancing climbing and high-speed performance.

---

3. Chassis & Load Capacity

Axle Configuration

Front Axle: 6.3-ton capacity

Rear Axle: 13-ton single-reduction axle

Gross Weight: Estimated 18–25 tons (subject to official certification), strong load-bearing capability.

Braking System

ABS + Air-Operated Parking Brake, ensuring emergency braking safety, especially in rain/snow.

Tires: 275/80R22.5

Low-rolling-resistance tubeless tires, balancing durability and fuel economy.

---

4. Cab & Comfort

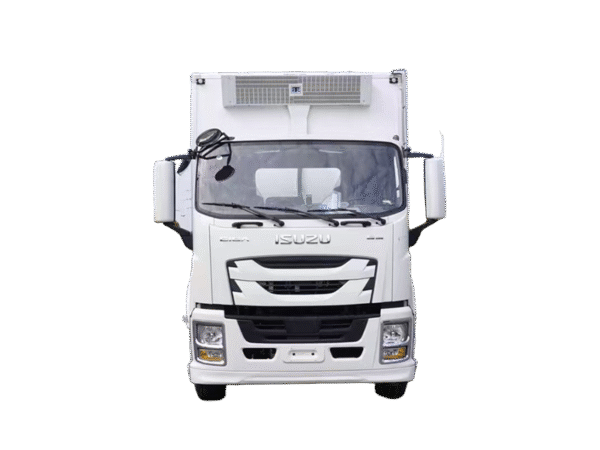

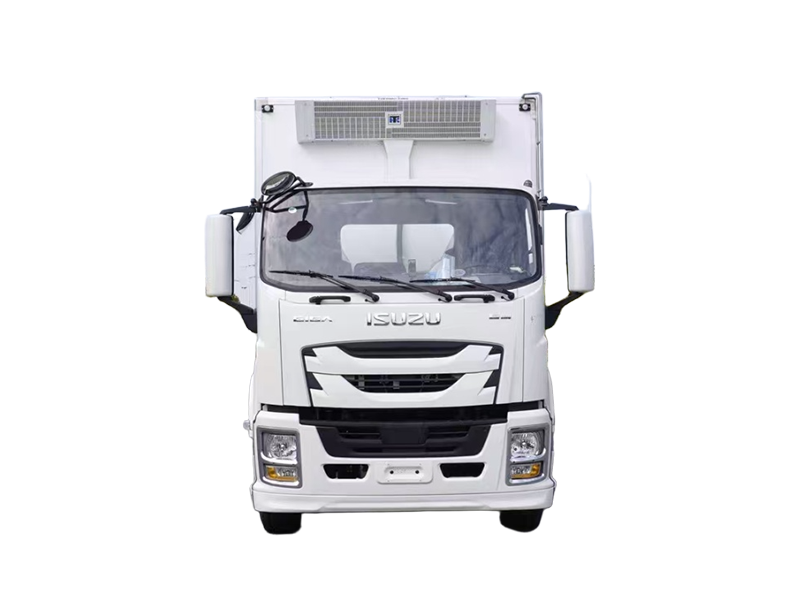

Cab: New Isuzu GIGA 4X wide cab

Standard: Multi-function steering wheel, power windows, central locking + remote key, A/C & heating.

Ergonomics: Four-point suspension reduces driver fatigue on long journeys.

Refrigeration Unit (Optional)

Recommended: Independent -18°C to +12°C units (e.g., Carrier, Thermo King) for multi-temperature zones.

---

5. Applications & Competitor Comparison

Advantages:

Isuzu engine offers higher reliability and lower failure rates vs. domestic counterparts.

Large-volume cargo box suits e-commerce cold chain and supermarket distribution.
