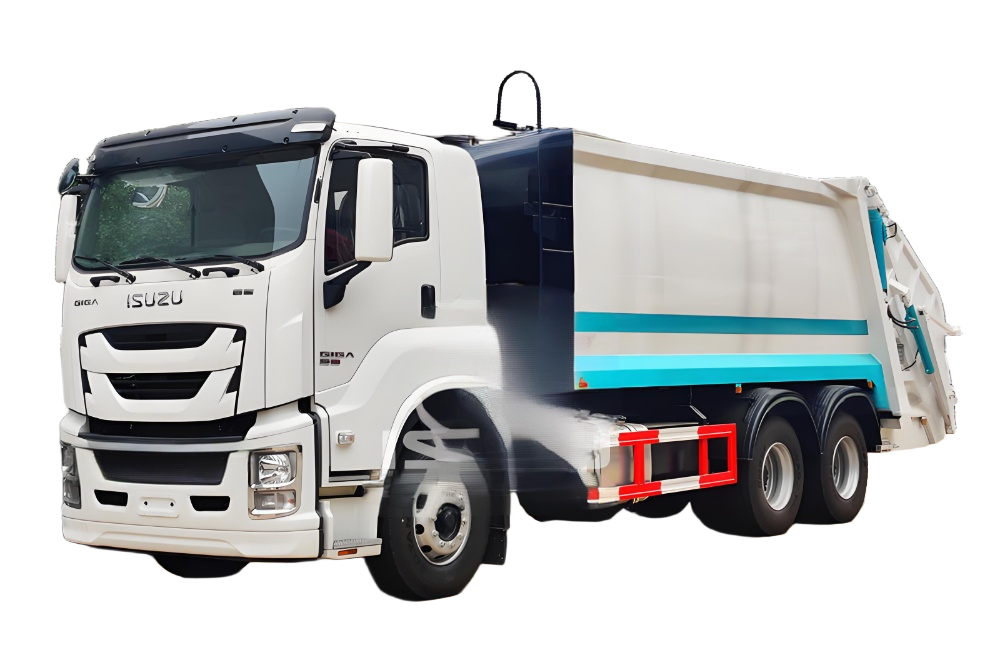

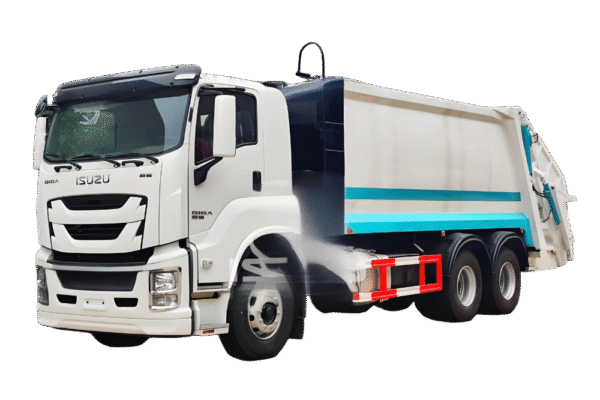

Qingling Isuzu State 616-20 square compression garbage truck

Chassis model

Isuzu giant coffee GIGA country six chassis

Chassis manufacturer

Qingling Automobile Co., Ltd

pilothouse

Original Isuzu single row, can take 2 people

Box volume

16 Cubic

Box material

High strength steel, arc box

navar

CAN bus intelligent system, electric-hydraulic integrated control

dumping gear

1. Optional rear bucket flip mechanism (120,240,360,660 and 1100)

2. The garbage bucket tipping mechanism is optional

engine

6 UZ 1-TCG61 (National 6 Standard 380 HP)

6 WG 1-TCG60 (State 6 standard 420 hp)

6 WG 1-TCG61 (State 6 standard 460 hp)

6 WG 1-TCG62 (State 6 standard 520 hp)

Tyre model

295/80R22.5  ¥295/80R22.5

12R22.5

Number of tires

10 + 1 (64) drive

outline dimension

10270×2500×3380mm

wheel base

4600 + 1370MM 4600 + 1370 mm

Isuzu compression type garbage truck performance characteristics

pilothouse

Flat head all-metal enclosed cab, single row cab, panoramic curved type windshield. Select a new front cover, front bumper, front combination lamps, car doors and Windows, front surrounding lower mask.

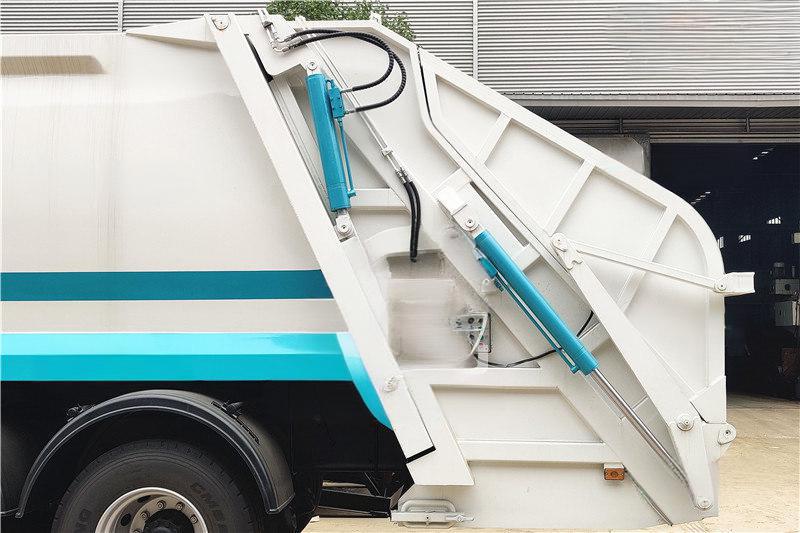

The strength of the box is high

The box body adopts high strength steel quality, integrated side plate bending design, not easy to deformation, high precision strength, longer life.

Good economy

The computer control system automatically controls the throttle when the special equipment is working

Double insurance system

CAN bus electronic control system, with the computer control box received operation dual functions, greatly guarantee and improve the vehicle safety utilization rate

Intelligent selection

Optional GPS, front and rear reversing image, hanging bucket or garbage bucket after turning mechanism, water hand washing box, etc.
