Description
Product Details Introduction
Vehicle Introduction and Specific Parameters：
| Lightweight – Sinotruk T5G 12 Cubic Meter Mixer Truck Chassis Parameters | |||
| Vehicle Name: | Sinotruk T5G 12 Cubic Meter Mixer Truck | Chinese Brand: | Sinotruk T5G 12 Cubic Meter Mixer Truck |
| Dimensions: | 9930x2496x3850 | Mixing Capacity: | 12 Cubic Meters (12 Cubic Meter Mixer Truck) |
| Gross Weight: | 31000 (Kg) | Wheelbase: | 1800+3050.3025+1350 |
| Curb Weight: | 13420(Kg) | Rated Weight: | 17450(Kg) |
| Front Overhang: | 1430/2175 | Rear Overhang: | 1430/2200 |
| Front/Rear Track: | 2015/2015.2035/2035.1850/1850 | Engine Model: | MC07.35-50 |
| Chassis Emission Standard: | GB17691-2005 National V, GB3847-2005 (National V Standard – Easy Registration) | ||
Mixer Truck Tank Parameters：
| Media Material: | Alloy Steel (Special Wear-Resistant Material – Increases Media Lifespan by More Than 3 Times) | Drum Material: | 16Mn Steel 6mm Alloy Steel |
| Blade Material: | Baosteel 520.5mm Alloy Steel (Equipped with Wear-Resistant Strips for Extended Lifespan) | Head Material: | 8mm Alloy Steel |
| Reducer: | German ZF Reducer / Italian Bonfiglioli PMP (Fully Imported) | Hydraulic System: | German Rexroth, American Eaton / American Sauer / Italian PMP (Fully Imported) |
| Water Supply System: | 400L Water Tank with Air Pressure Water Supply | Cooling System: | Kaidi Radiator / Buduo Radiator |
| Feeding Speed: | Feeding Speed m³/min ≥ 3 | Discharge Speed: | Discharge Speed m³/min ≥ 2 |
| Residual Discharge Rate: | Residual Discharge Rate (%) ≤ 0.5 | Operation Method: | Three-Way Operation from Both Sides and the Cab |
| Discharge Range: | 180° Up, Down, Left, and Right Height Adjustment | Safety Device: | Equipped with Leakage Receiving Device |
Advantages of the Mixing Tank Body：
| Reducer: | Internationally imported brands, such as German Rexroth, Italian PMP, and Italian Bonfiglioli, with strong load-bearing capacity and low failure rate. |
| Hydraulic System: | All equipped with internationally renowned hydraulic systems, including German Rexroth, American Eaton, American Sauer, and Italian PMP, ensuring more stable tank operation, faster discharge speed, and lower residual rate! |
| Supporting Facilities: | The vehicle is designed for convenient and fast loading and unloading, with multi-functional operation methods, saving time, effort, and worry! |
| After-Sales Service: | The tank reducer comes with a one-year or 30,000-kilometer warranty. |

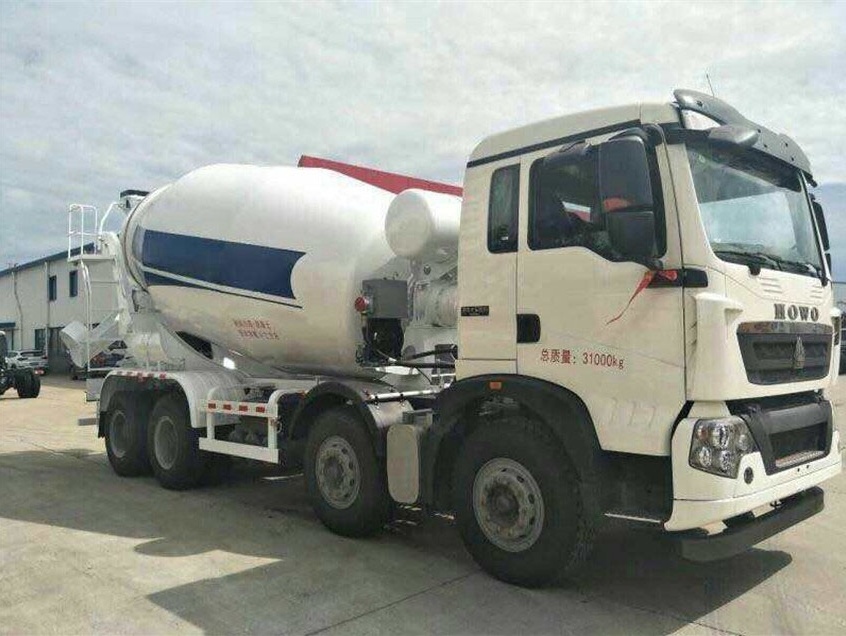

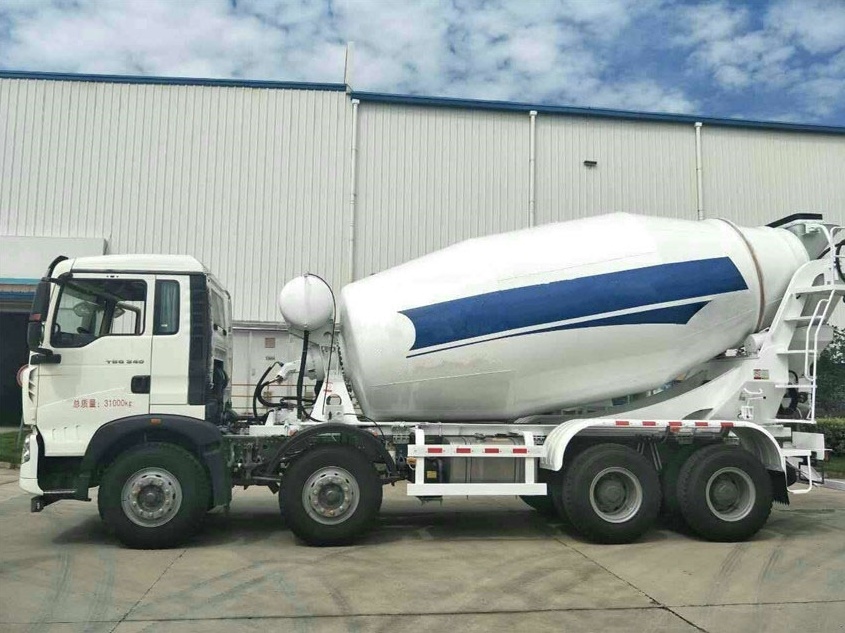

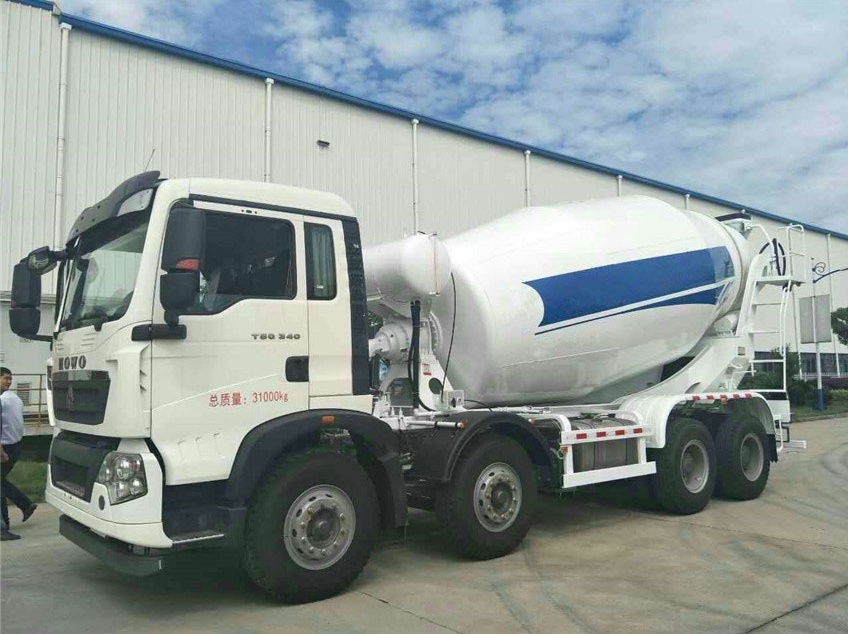

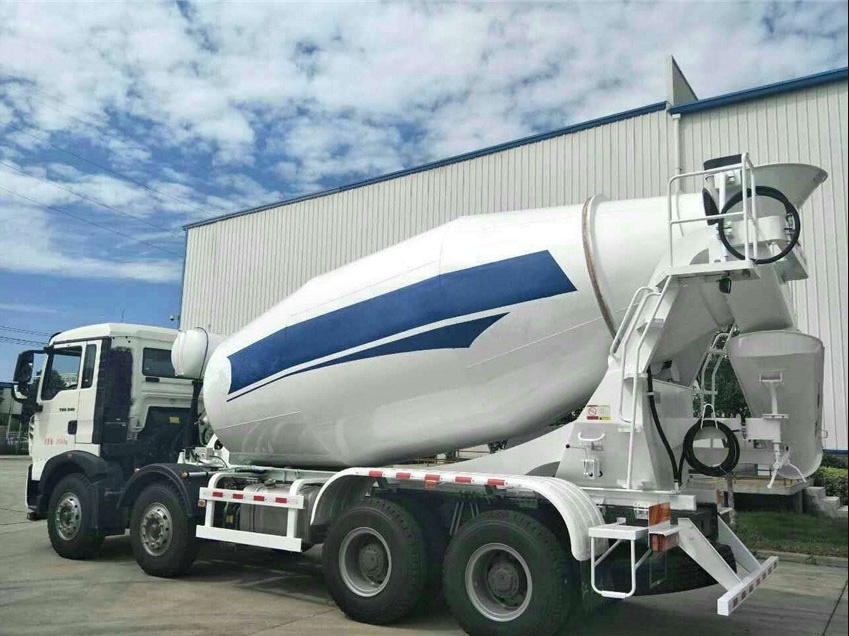

Product Details Display
