Product Details Introduction

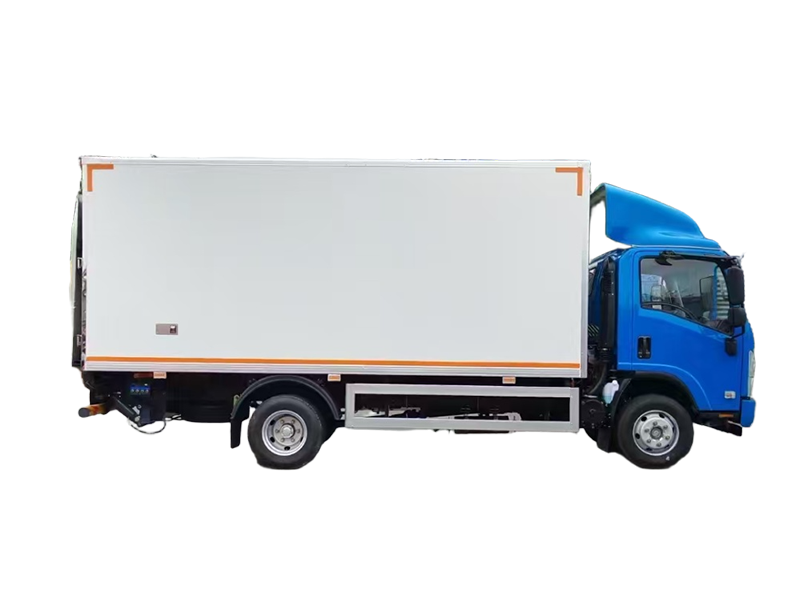

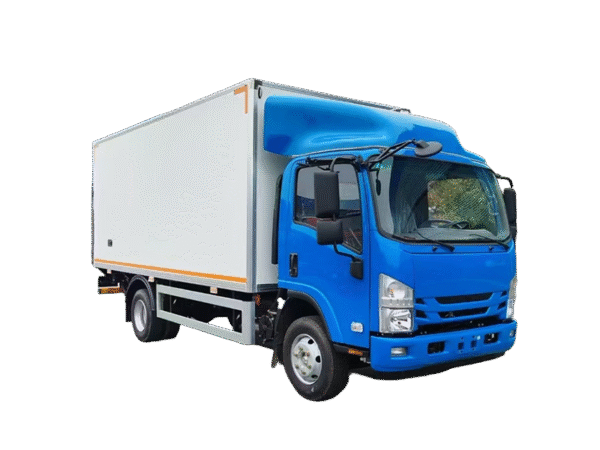

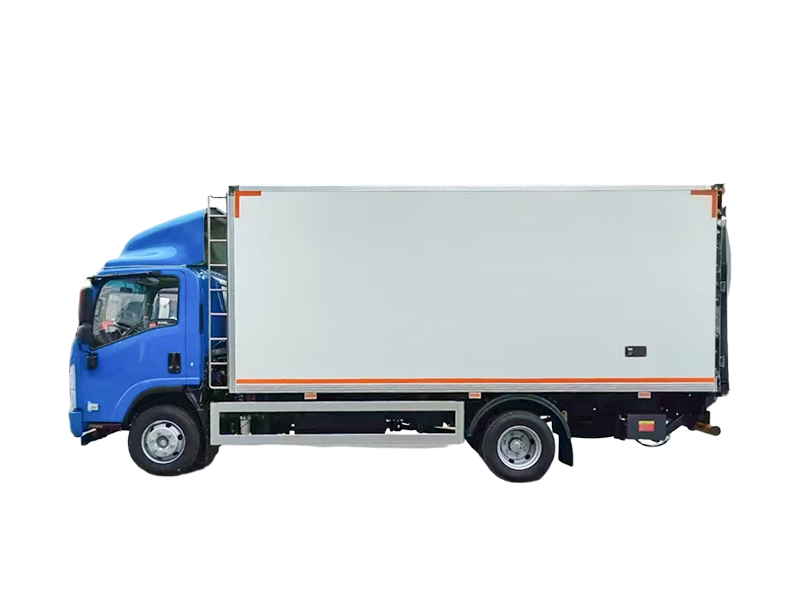

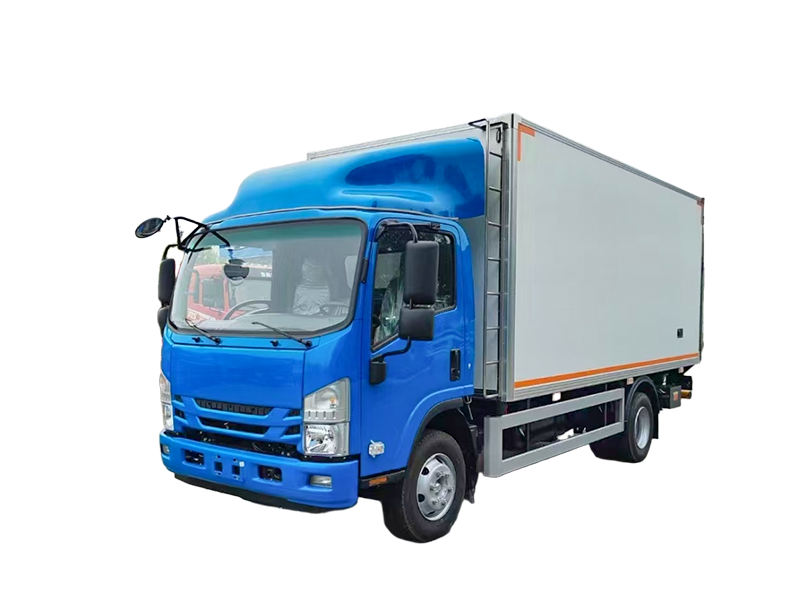

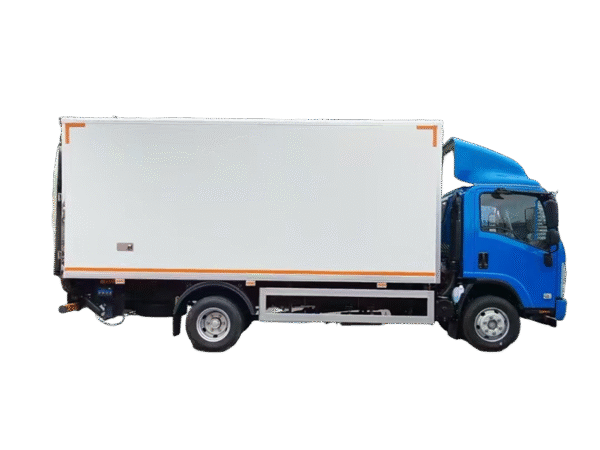

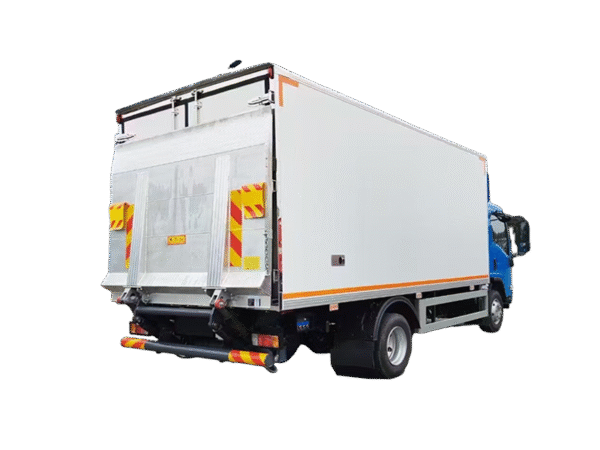

Isuzu KV600 Refrigerated Truck

1. Chassis Configuration

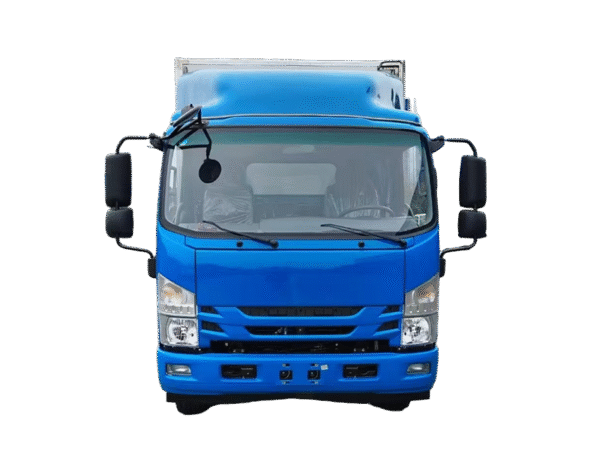

Cab: Isuzu KV600 wide-body cab, seats 3

Engine: Isuzu 130 HP

Axles:

Front axle: 2.5-ton capacity

Rear axle: 4.8-ton capacity

Tires: 700R16 steel-belted tires

Transmission: Isuzu MSB 5-speed manual

Comfort & Safety: Factory A/C, power steering, air-operated parking brake

---

2. Cargo Box Configuration

Manufacturing Process: Hydraulic adsorption one-piece molding (ensures seamless insulation)

Insulation Standard: Meets China Class A thermal performance

Internal Dimensions (Single-row): 4,050 × 1,990 × 1,810 mm → 14.5 m³ capacity

Material:

Exterior/Interior Panels: Nano-fiberglass (anti-UV, heat-resistant, high hardness, anti-oxidation)

Wall Thickness: 8 cm

Frame: Rust-proof lightweight steel structure

Insulation: Gap-free polyurethane foam filling

Floor Options:

Aluminum alloy tread plate OR

Nano-fiberglass smooth panel

Reinforcements:

Zinc-plated stainless steel corner guards

Thickened aluminum alloy edges

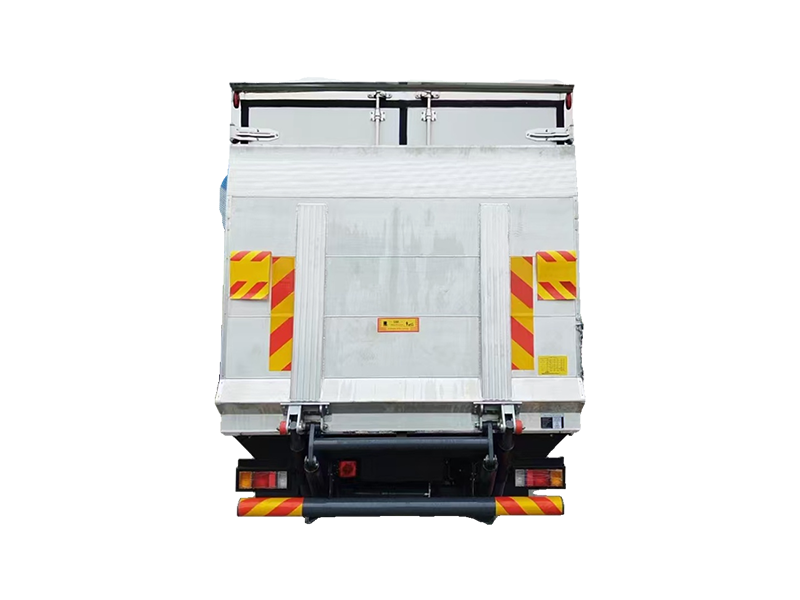

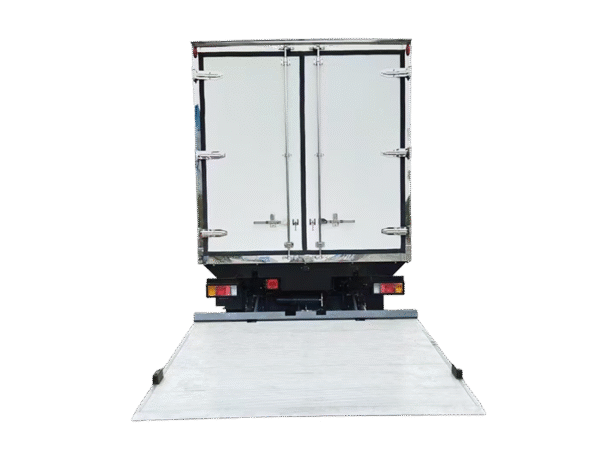

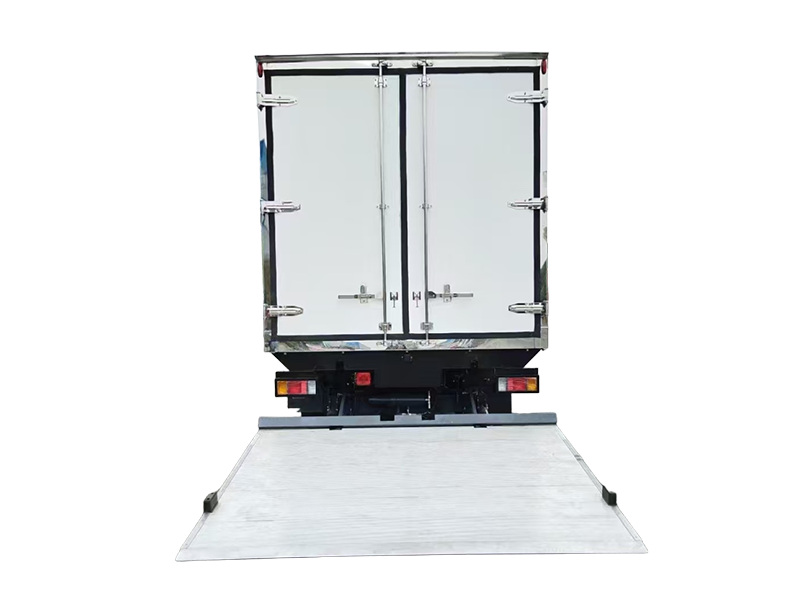

Stainless steel rear door frame, heavy-duty hinges & locks

Lighting: Built-in LED cargo light & width-marker lights

---

3. Optional Refrigeration Units

Temperature Range:

Standard: -5°C, -10°C, -15°C, -18°C to -20°C

Dual-Temp (Heating+Cooling): +20°C to -18°C (for extreme climates)

Domestic Brands: Kingtec (K-series), Hanya, Hanxue, Huatai, Songhan, Kaixue, Chaoku

International Brands: Carrier (USA), Thermo King (USA)

Unit Types:

Standalone (Self-powered)

Split System (Vehicle-engine powered)

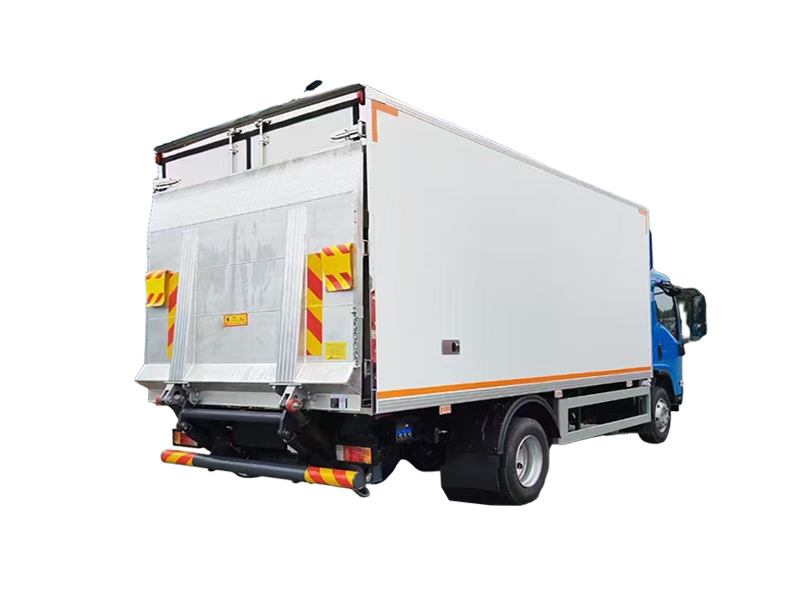

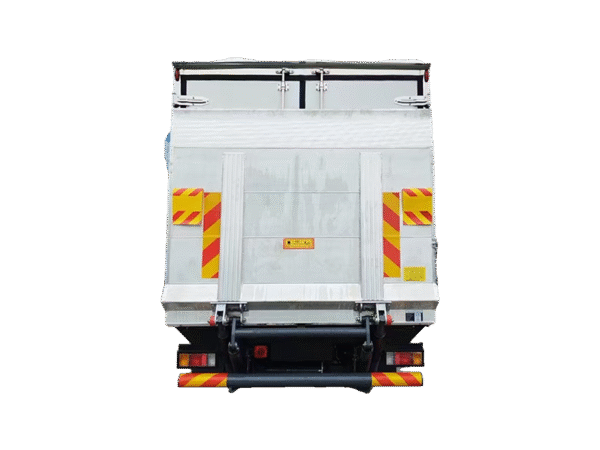

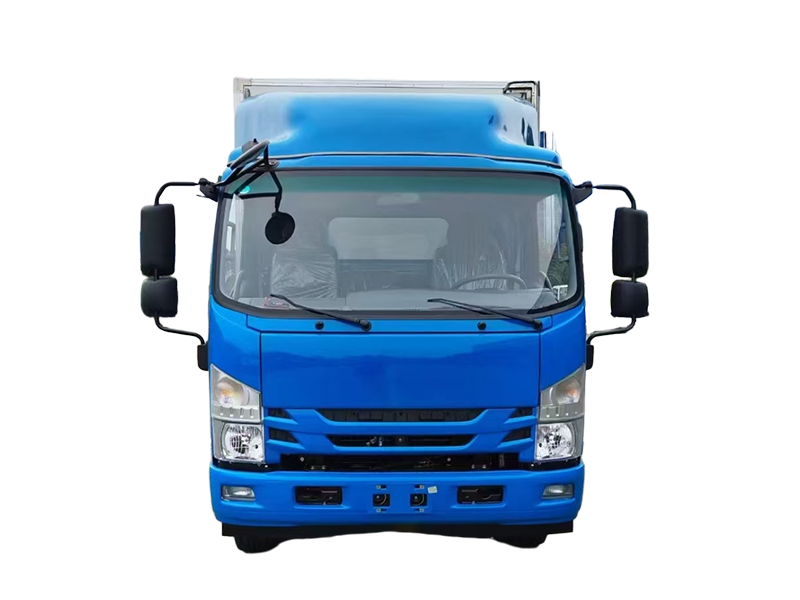

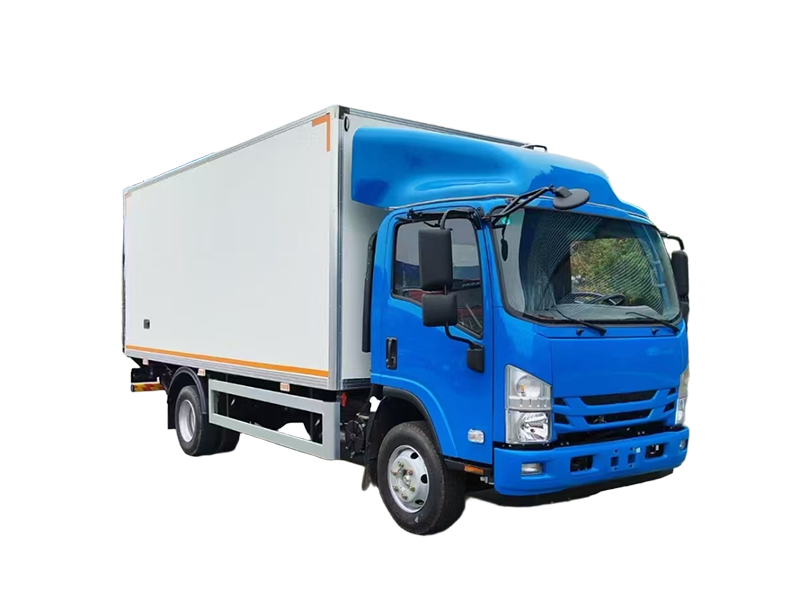

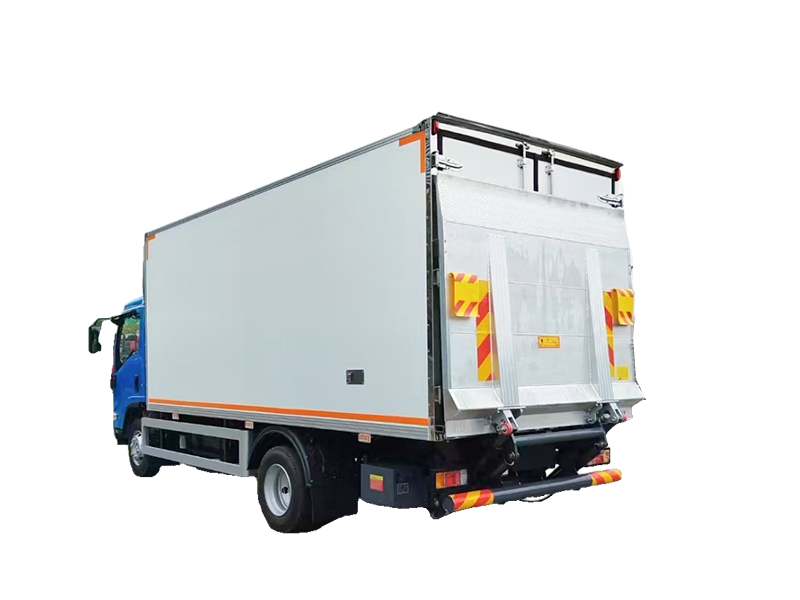

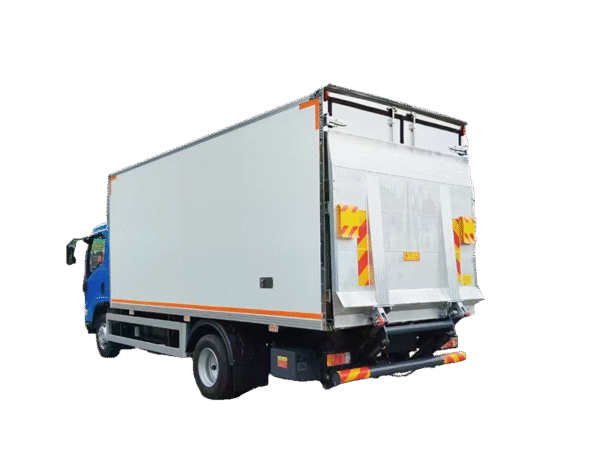

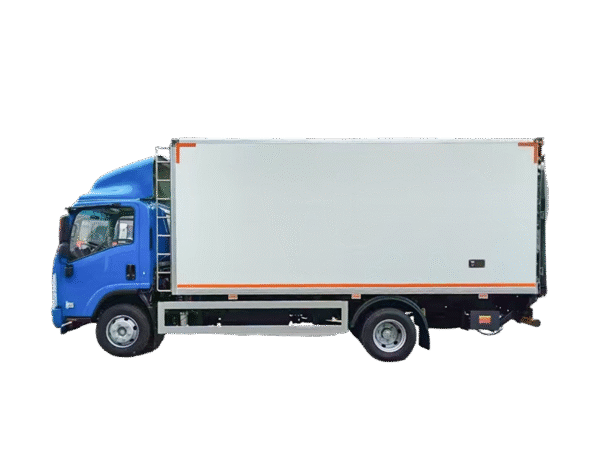

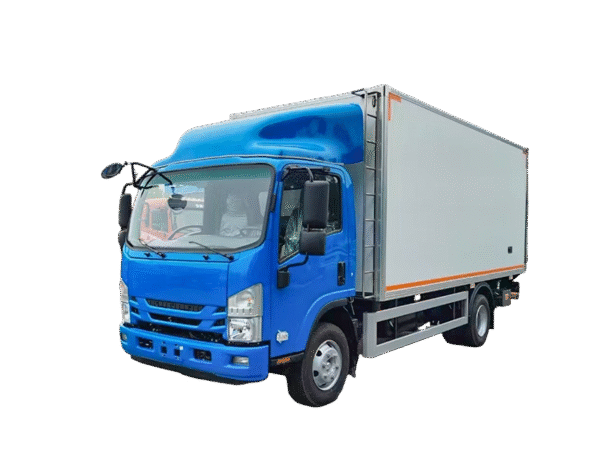

Product Details Display
