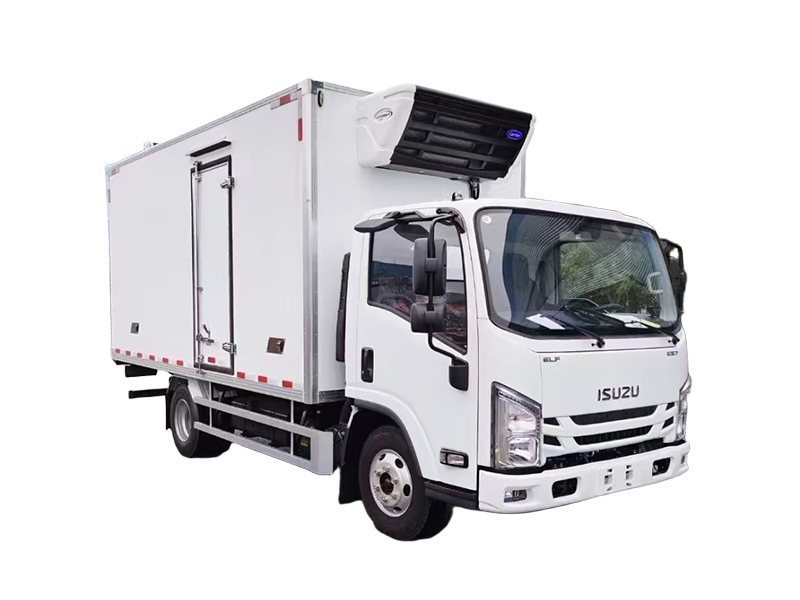

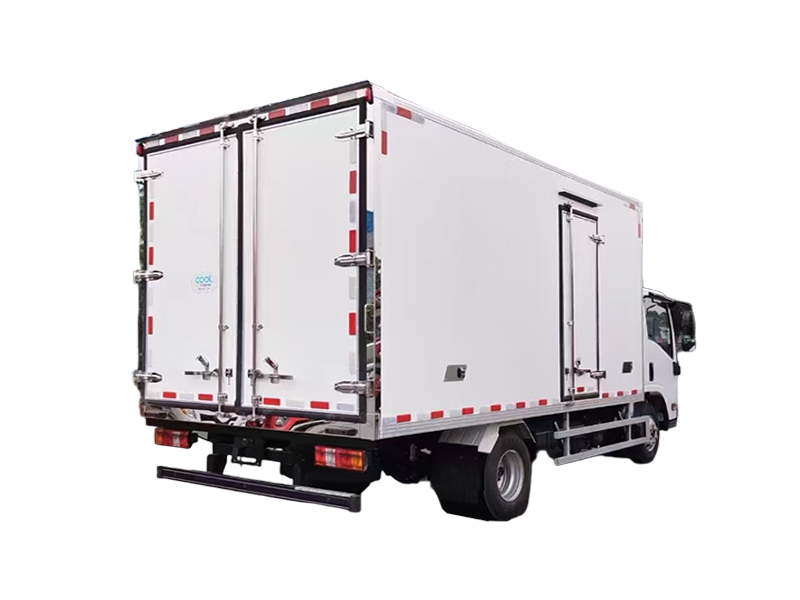

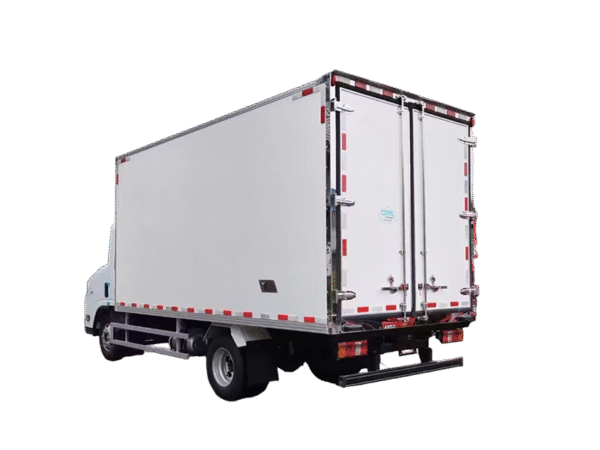

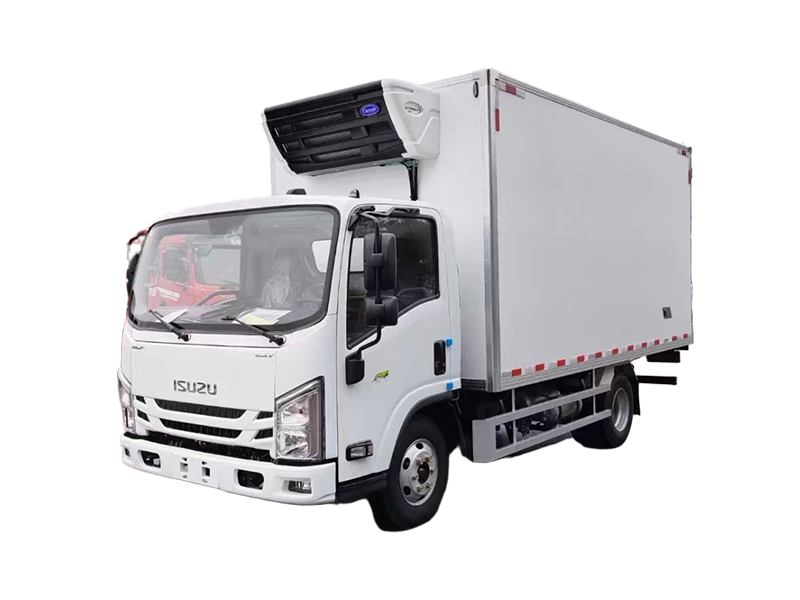

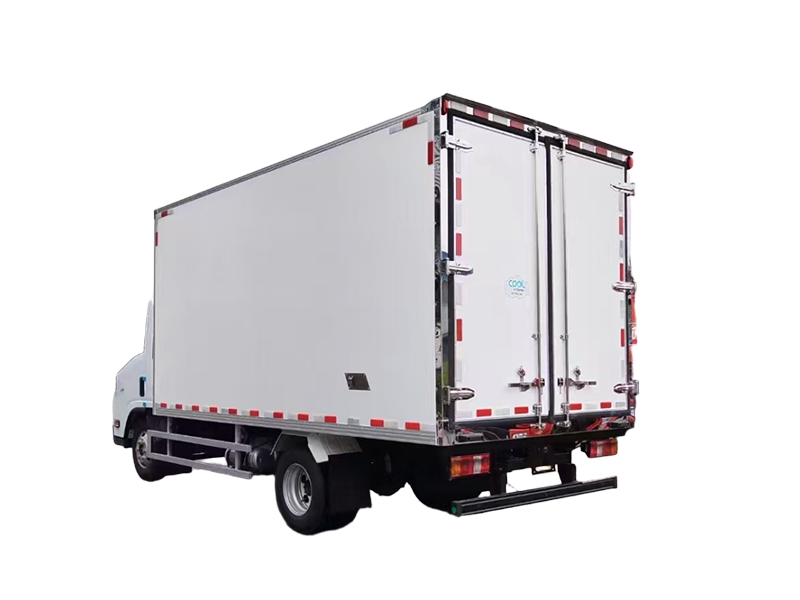

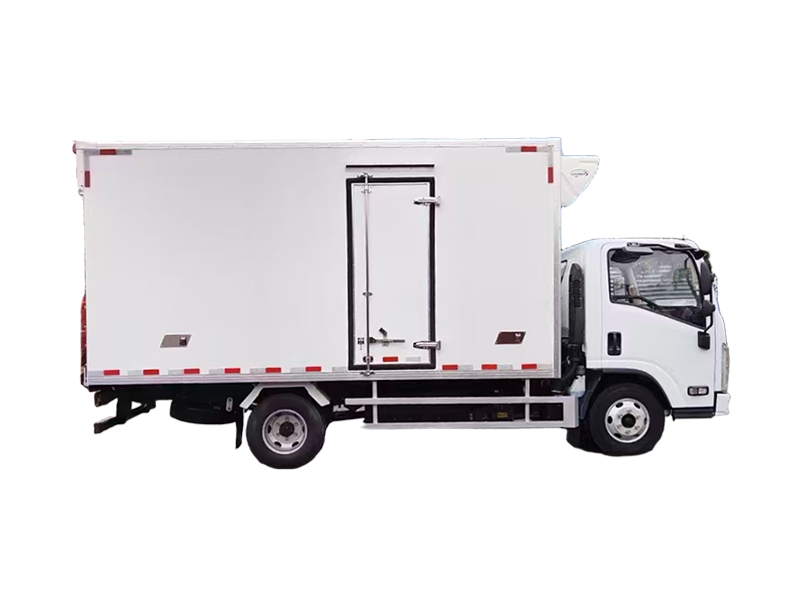

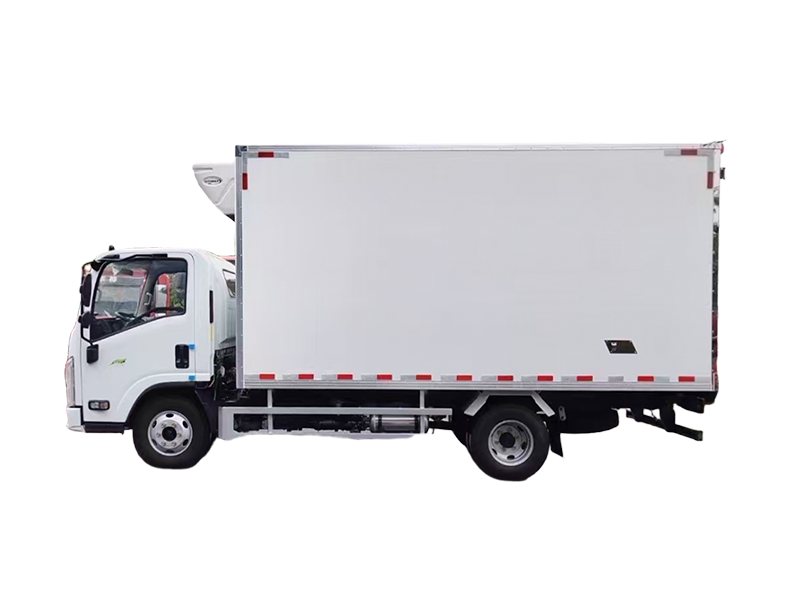

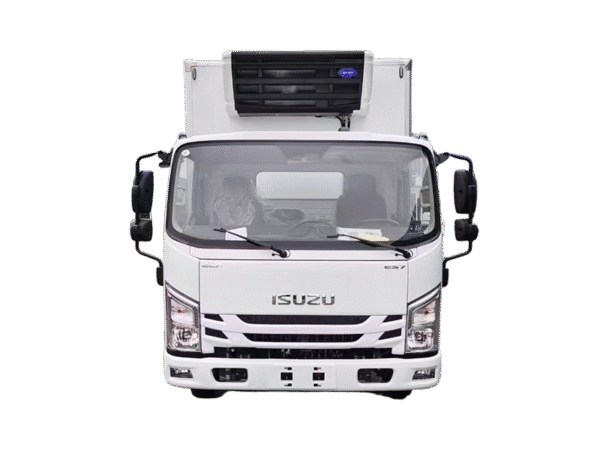

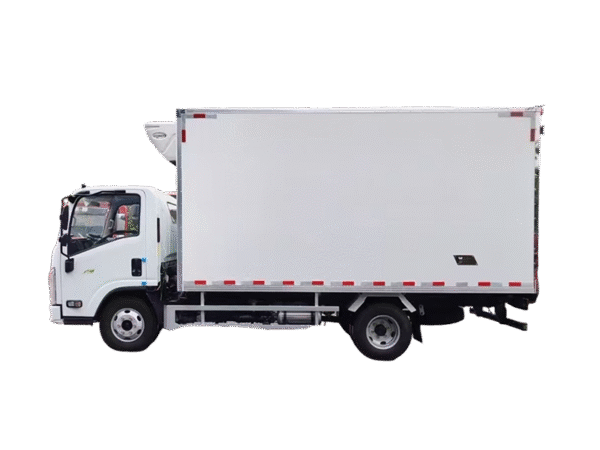

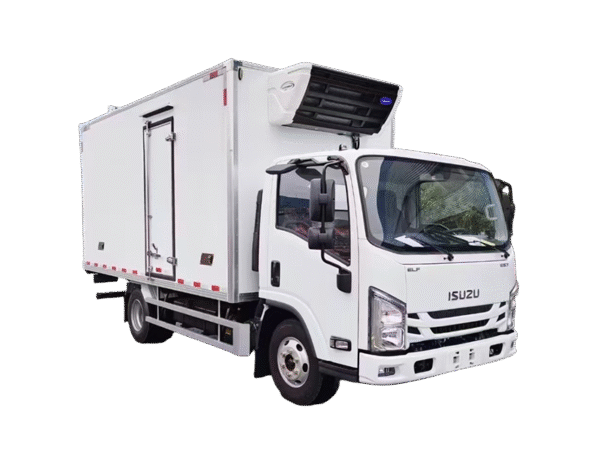

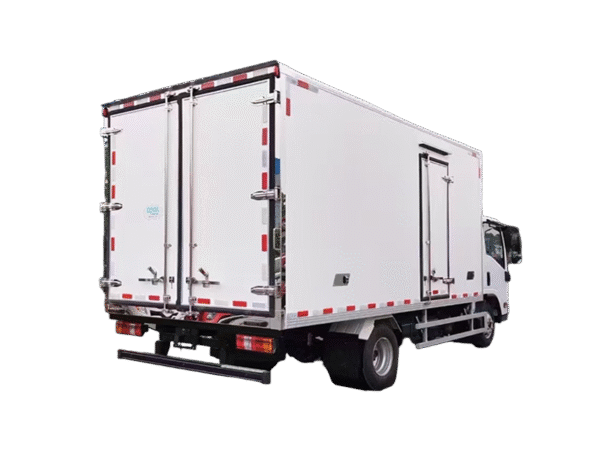

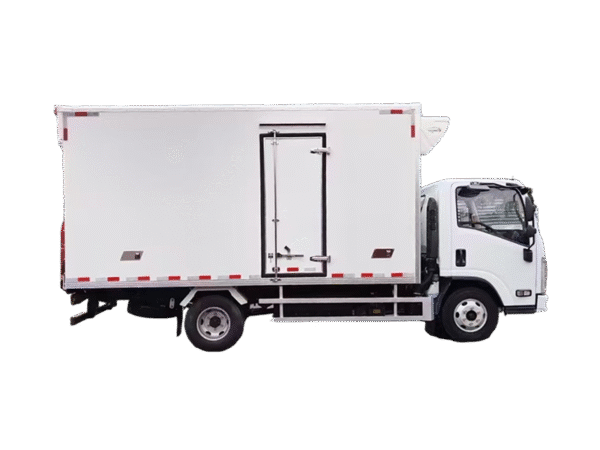

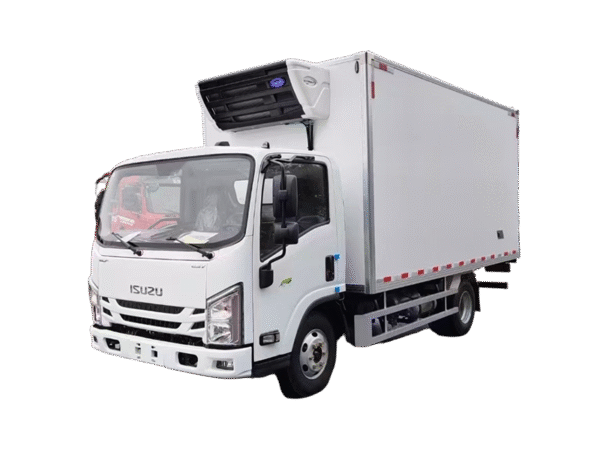

Isuzu EC7 Refrigerated Truck – Technical Specifications

1. Key Dimensions

Overall Vehicle (L×W×H): 5,995 × 2,280 × 3,200 mm

Cargo Box (Internal L×W×H): 4,000 × 2,100 × 2,100 mm

Volume: ~17.6 m³

Wheelbase: 3,360 mm

2. Powertrain & Performance

Engine: Isuzu JE493ZLQ6G (China VI Compliant)

Power: 85 kW / 115 HP

Displacement: 2,771 cc

Transmission: Getrag 5MT (5-speed manual)

Fuel Efficiency: Optimized for urban/suburban cold-chain logistics

3. Chassis & Suspension

Tires: 7.00R16LT 8PR (Robust load-bearing capacity)

Axles:

Front Axle: High-strength design with anti-roll stabilizer bar

Rear Axle: 4T high-strength stamped integral axle

Frame: 750 medium-duty high-strength steel (700L grade)

Braking: ABS + Air Parking Brake (Enhanced safety)

4. Cab & Driver Comfort

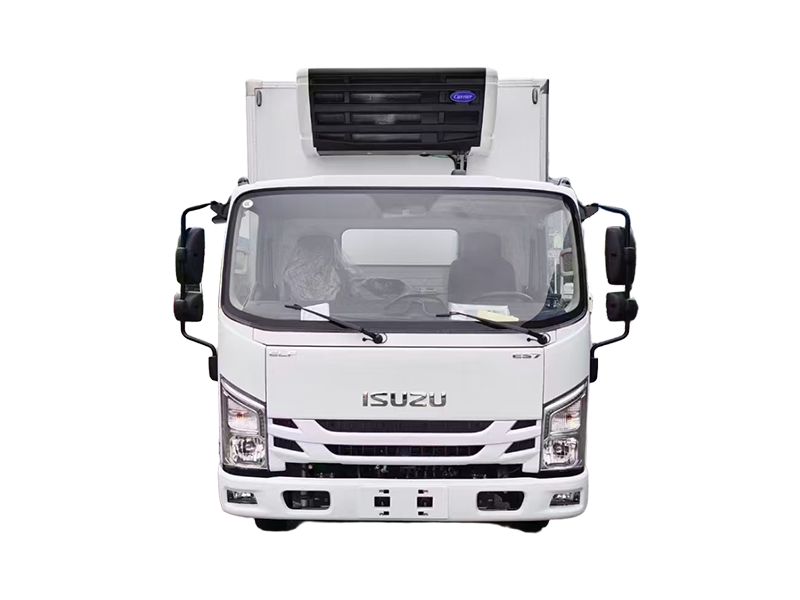

Wide-Body Cab (EC7): Spacious interior for 2-3 occupants

Convenience Features:

Air conditioning (cooling/heating)

Power windows

Remote central locking

Hydraulic power steering

Ergonomics: Optimized driver seat for reduced fatigue

5. Cargo Box Specifications

Insulation: Polyurethane foam (thickness customizable)

Walls: Fiberglass or composite panels (optional)

Floor: Anti-slip aluminum alloy or reinforced plywood

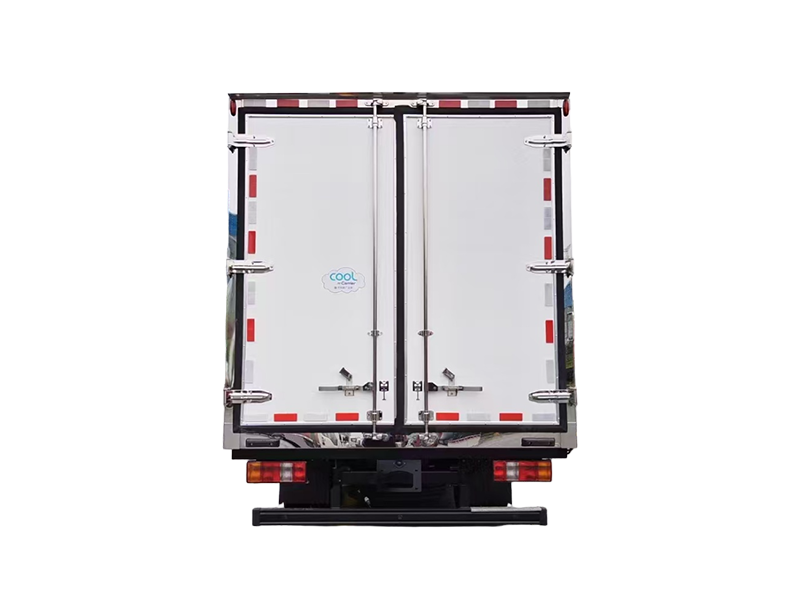

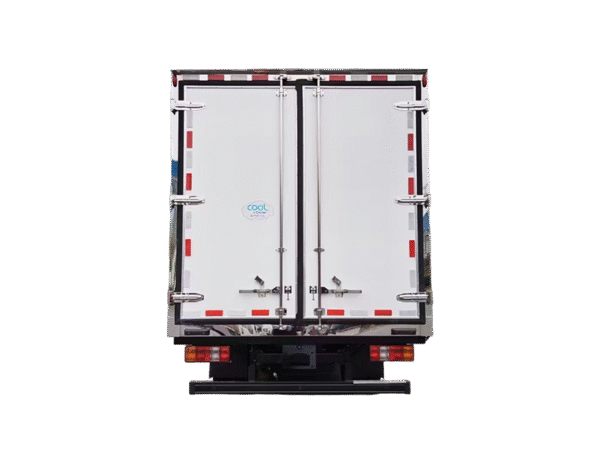

Door: Rear swing doors with secure locking

6. Optional Refrigeration Units

Temperature Range: -15°C to +12°C (customizable)

Brands: Domestic (Kingswell, Hanyue) or International (Carrier, Thermo King)

Power Options:

Standalone (Diesel-powered)

Vehicle-powered (Split system)
