product name

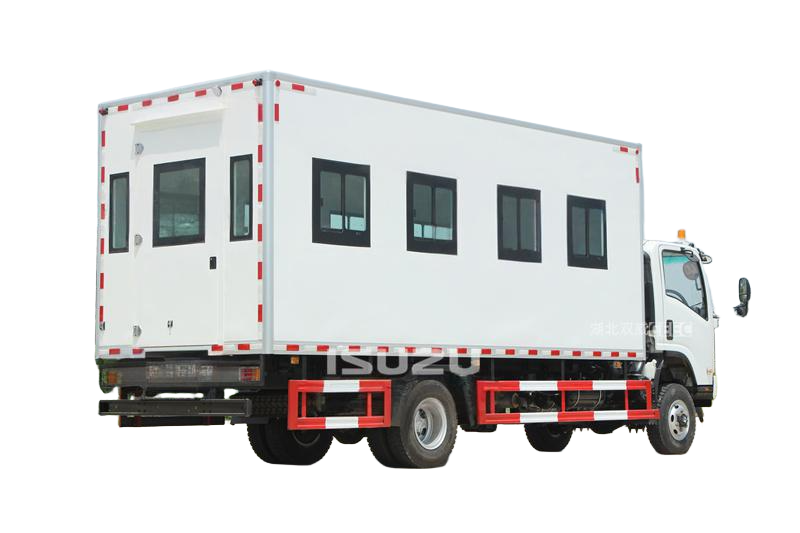

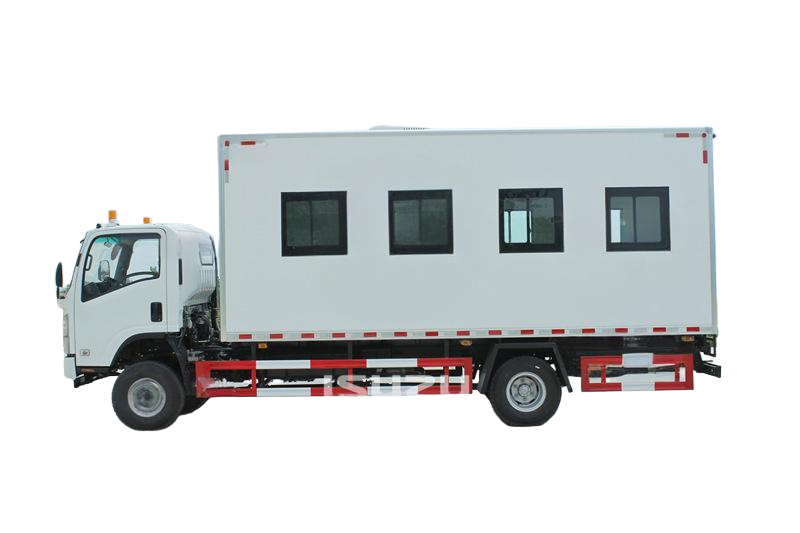

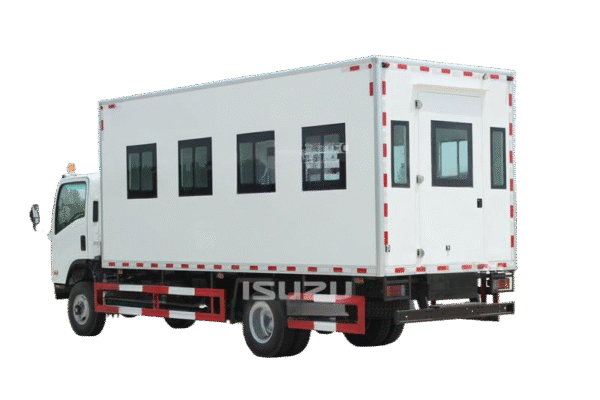

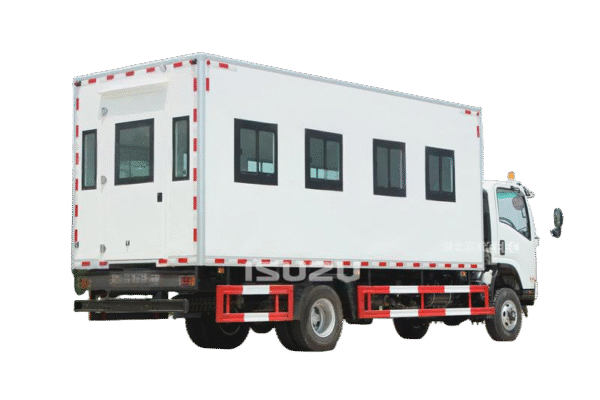

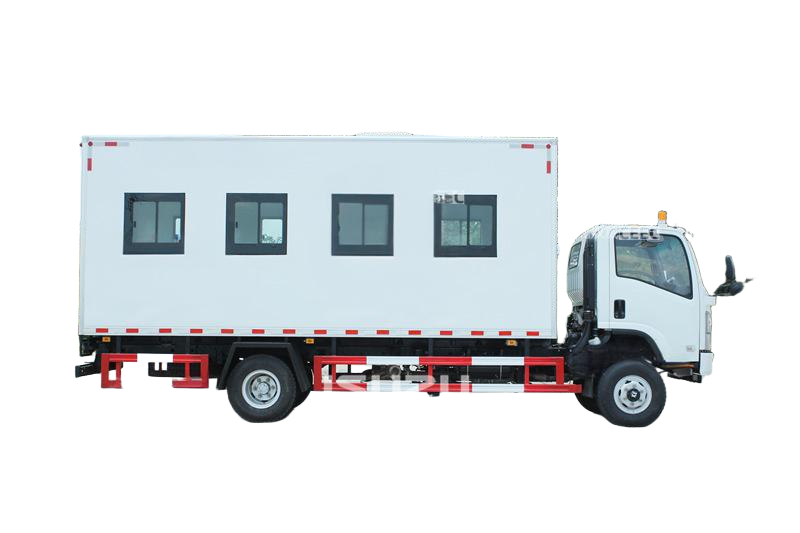

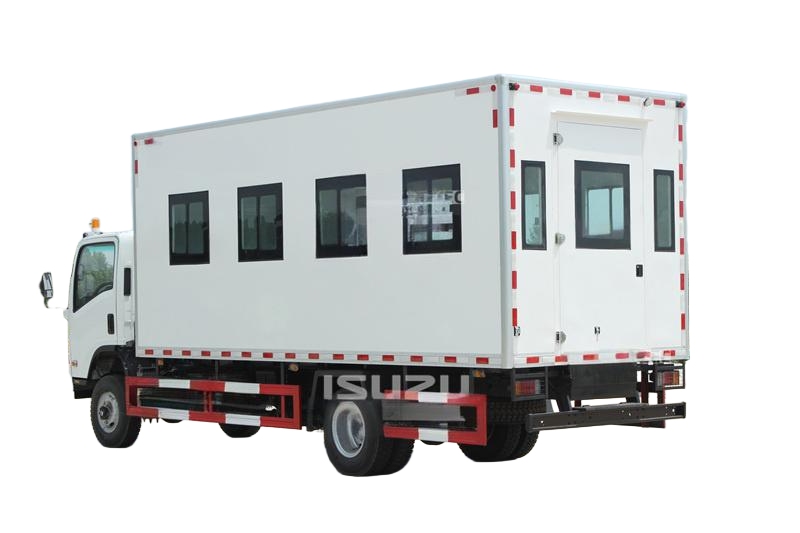

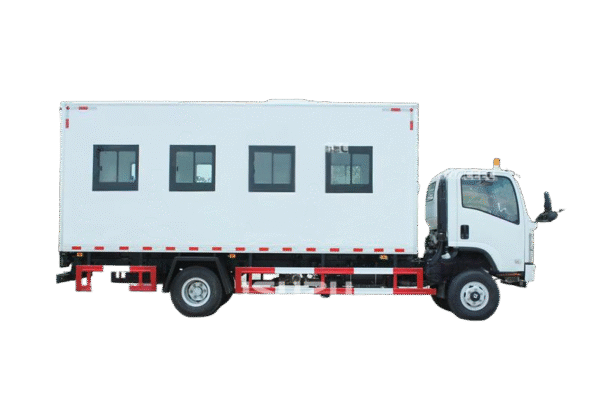

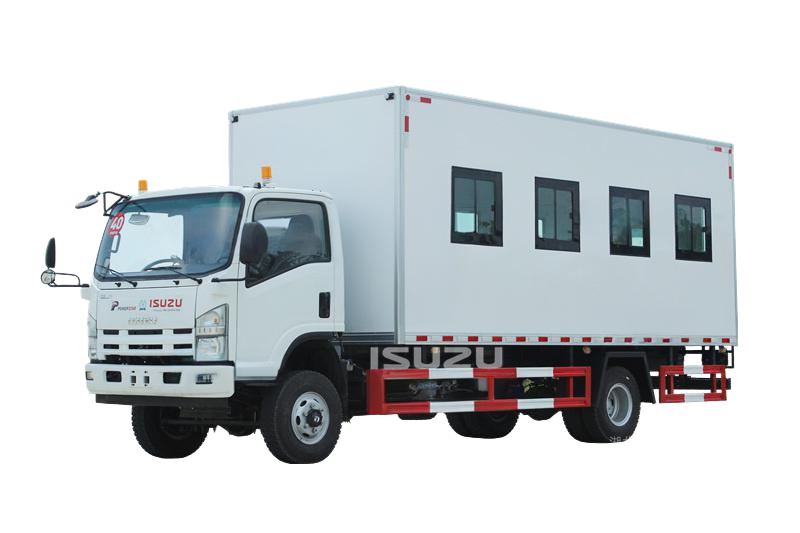

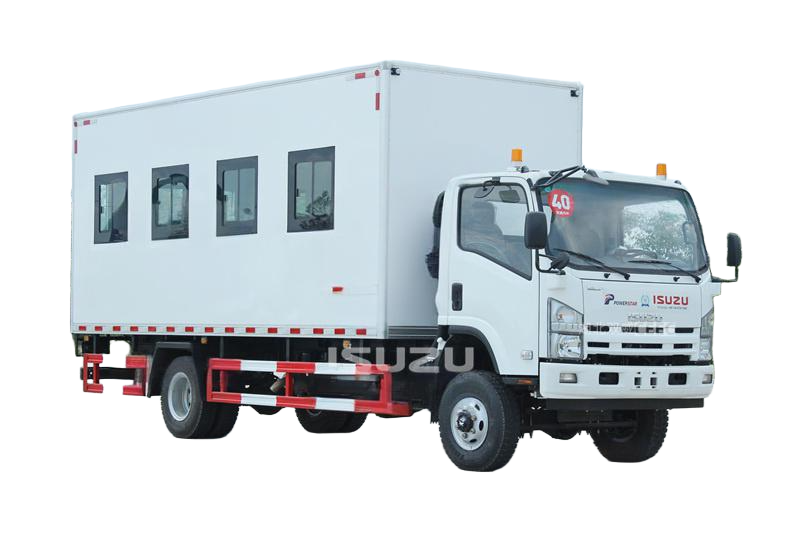

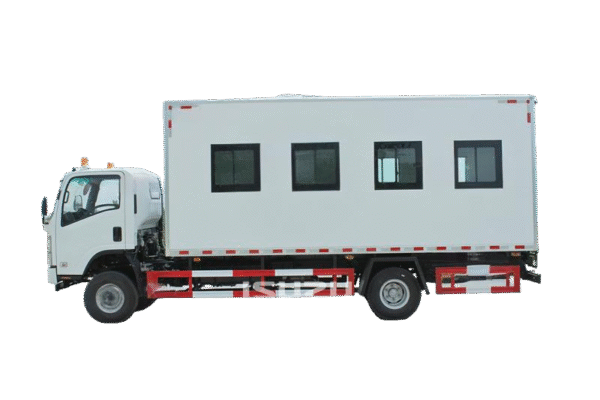

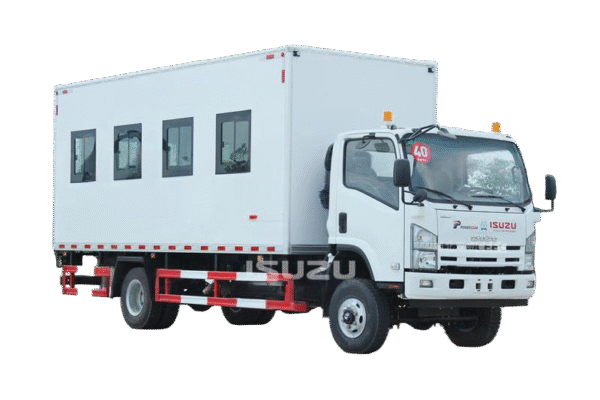

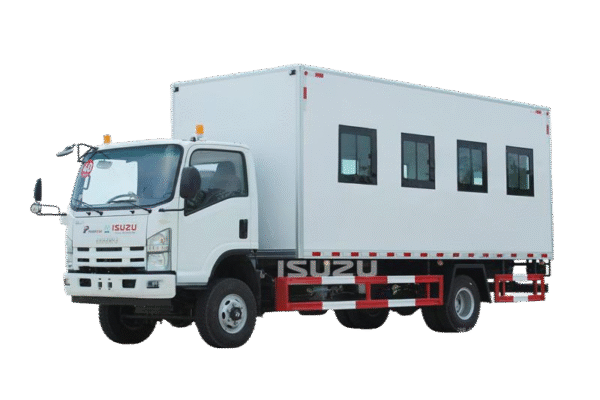

Isuzu 700P all-wheel-drive troop carrier

delivery cycle

25 Days

Vehicle color coating

According to customer requirements

Vehicle size and weight

gross mass

12000 kg

And 12,000 kg

curb weight

And 6,500 kg 6500 kg

outline dimension

7960×2360×3680

Chassis parameters

model

Isuzu 700P chassis

wheel base

4475

engine

Isuzu 4HK1-TC51 190 horsepower

gear-box

Isuzu MLD 6 gear

tyre

Standard with 235 / 75R17.5 tires

Optional configuration

Wheelbase, and the engine horsepower

Other configuration

Air conditioning, power steering, central locking, electric doors and Windows

Vehicle process

The inside of the tank is preservative

Epoxy resin anticorrosive coating

welding requirements

Ensure that the weld seam is uniform and smooth, the welding is firm and reliable, there shall be no cracks, slag inclusion, weld through, leakage of welding, and prevent water leakage and seepage

Painting requirements

The total thickness of two-component paint and paint film is 80 μ m

guard

Rear fender: metal fender,

rain test

The company\’s rain test platform is established based on military testing standards but exceeds them. The military standard requires a rainfall rate of 6-8 mm/min, while our vehicle rain test platform has a rainfall rate of 12 mm/min. During the manufacturing process of vehicles, they must undergo three rain tests: the first after the exterior skin is completed and external facilities such as air conditioning and awnings are installed, to check the vehicle\’s seal; the second after the primer is applied; and the third after the entire vehicle is painted, for the final rain test. Throughout this process, if any leakage or issues are detected, repairs will be carried out.

Lamps and signs

Side light: 3 side sign lights are installed on each side of the tank 2, and the lamp wiring harness is sealed and fixed.

3M reflective strip: it is glued to the side and rear of the tank, and consists of red and white signs. The reflective strip should reflect the width and length of the cargo box, and meet the national standards of the territory

Other instructions

The car is equipped with both Chinese and English operation instructions, vulnerable parts list, chassis parts atlas.

Isuzu soldier transport vehicle performance characteristics

pilothouse

Flat head all-metal enclosed cab, single row cab, panoramic curved type windshield. Select a new front cover, front bumper, front combination lamps, car doors and Windows, front surrounding lower mask.

The strength of the box is high

The box is made of high strength and high quality steel, solid and durable.

Strong carrying capacity

The load mass can reach 3000kg and has strong carrying capacity in similar products.

The locking mechanism is reliable

After the door is closed, it is reliably locked to ensure transportation safety.
