Description
Product Details Introduction
主要技术参数/Main technical parameters
|
类别 category |
项目 Item |
单位 unit |
数据 Data |
|
|
尺寸参数 size parameter |
总长/vehicle length |
mm |
6995 |
|
|
总宽/vehicle width |
mm |
2240 |
||
|
总高/vehicle height |
mm |
3490 |
||
|
质量参数 Quality parameters |
乘坐人数 (含驾驶员) Number of passengers allowed |
人 |
3 |
|
|
总质量/Total mass |
kg |
7300 |
||
|
主要 性能 参数 Main performance parameters |
工作平台额定载荷/working platform load rating |
kg |
600 |
|
|
最大作业高度/MAX. operating height |
m |
23 |
||
|
最大作业幅度/MAX. operating range |
m |
10 |
||
|
支腿跨距 outrigger span |
横向/ Transverse direction |
mm |
5600 |
|
|
纵向/Longitudinal direction |
mm |
5400 |
||
|
工作平台回转/work platform rotation |
。 |
360 |
||
|
臂架变幅时间/Arm amplitude change time |
s |
≥60 |
||
|
臂架回转速度/Arm rotation speed |
s/r |
60≤t≤120 |
||
|
支腿收放时间/Leg extension and retraction time |
s |
≤60 |
||
|
行驶参数
Driving parameters |
前悬/Front overhang |
mm |
1110 |
|
|
后悬/Rear overhang |
mm |
2525 |
||
|
前伸/protract |
mm |
/ |
||
|
后伸/Extension |
mm |
/ |
||
|
轴距/wheelbase |
mm |
3360 |
||
|
最高行驶速度/Max driving speed |
km/h |
100 |
||
|
最小离地间隙/Min ground clearance |
mm |
410 |
||
|
接近角/Approach angle |
。 |
/ |
||
|
离去角/Departure angle |
。 |
/ |
||
配置说明/CoNFlGURATloN DESCRlpTloN
|
部件名称 component Name |
简要说明 Brief description |
|
底盘/chassis |
五十铃(,SUZU) QL1073BUHAcY |
|
发动机/Engine |
4KB1-TcG60 2.499L 96KW 130PS |
|
驾驶室配置 cabin configuration |
前桥3.3吨, 后桥4.8吨, 变速箱5档, 驾驶室可翻转, 带中控锁, 遥控 钥匙, 电动车窗, 倒车雷达, 带空调。The front axle weighs 3.3 tons, and the rear axle weighs 4.8 tons. The gearbox has 5 gears. The cab can be tilted. ,t is equipped with a central control lock, a remote control key, power windows, a reversing radar, and an air conditioner. |
|
围栏及走台板 Fence and waIkway board |
不锈钢围栏, 铝合金防滑走台板 Stainless steel fence, aluminum alloy anti slip walkway board |
|
取力系统 power take-off system |
气动取力/Pneumatic power take-off |
|
工作平台 working pIatform |
4000× 1670× 1100mm (吊篮尺寸可按客户要求定制/The size of the hanging basket can be customized according to customer requirements) |
|
臂架形式 Arm form |
五节十八边形同步伸缩臂 Five section eighteen sided synchronous telescopic arm |
|
回转装置 Rotator |
360。连续回转/360。 continuous rotation |
|
支腿 outrigger |
前V后V型单节支腿 Front V-shaped and rear V-shaped single legged support |
|
操作 operate |
无线遥控盒操作, 下车液压手柄操作, 整车可实现全液压电动应急操 作。 wireless remote control box operation, hydraulic handle operation of the vehicle, the entire vehicle can achieve full hydraulic electric emergency operation. |
|
控制系统 controI system |
瑞雅特自研发高空车控制系统, 稳定性强/Ruiyate self–developed high-altitude vehicle control system with strong stability |
|
调平系统 IeveIing system |
组合式自动调平系统 (等容积油缸) combined Automatic Leveling System (Equal Volume cylinders) |
基本功能及安全配置lBasic functions and safety configuration
|
名称/Name |
简要说明/Brief |
|
支腿软腿检测 Leg soft leg detection |
实时检测支腿受力状态, 一旦检测到有支腿松动报警限动 Real-time detection of the leg force state, once the leg is detected loose alarm limit movement |
|
上下车自动互锁装置 upper and lower automatic vehicle interlock device |
自动实现上下车互锁, 防止上下车同时操作, 实现安全保护 Automatically interlocks the upper and lower controls to prevent simultaneous operation, ensuring safety protection for aerial work platforms. |
|
应急电动液压泵 Emergency electric-hydraulic pump |
当底盘发动机或液压主泵发生故障时, 将工作人员送回到地面 send the staff back to the ground when the chassis engine or hydraulic main pump fails. |
|
紧急停止装置 Emergency stop device |
用于紧急停止操作 For emergency stop operation |

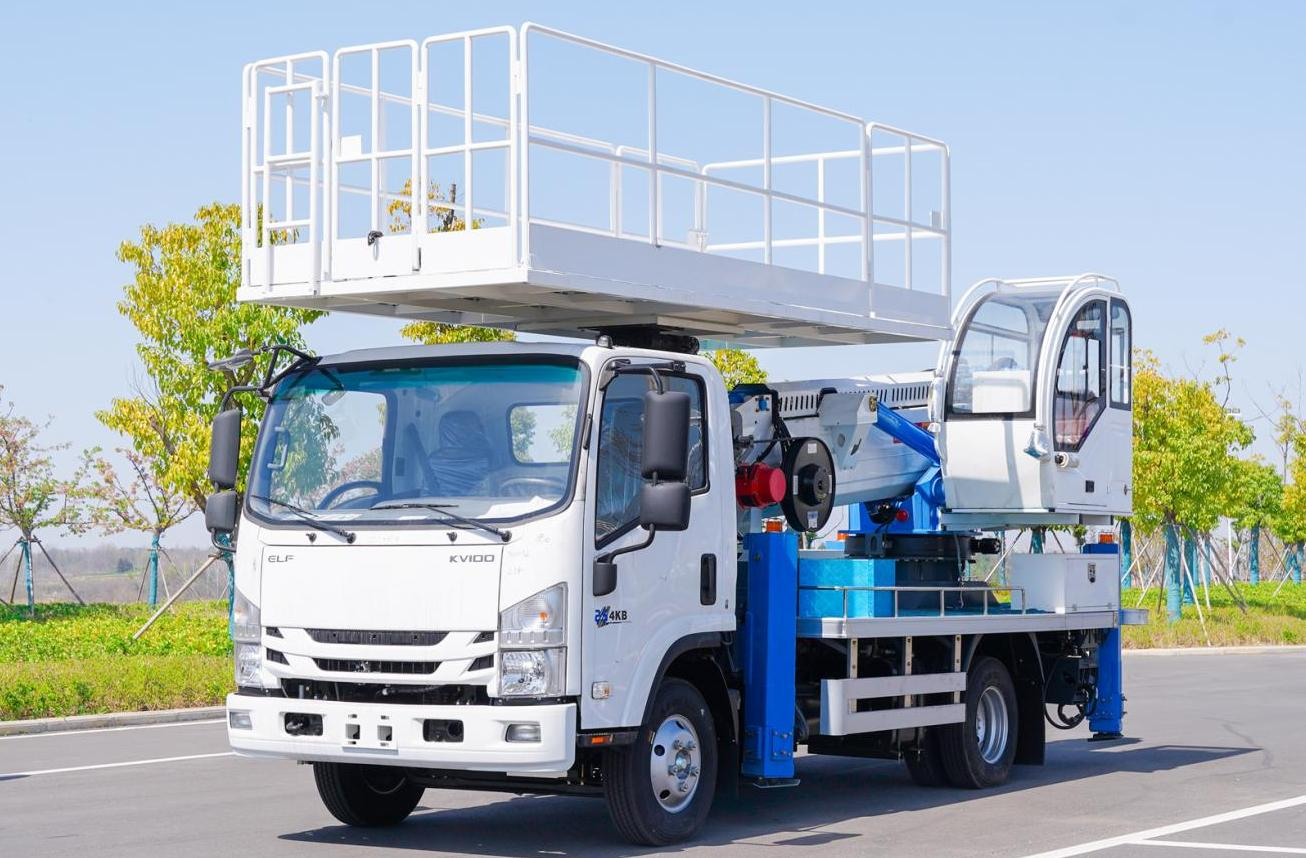

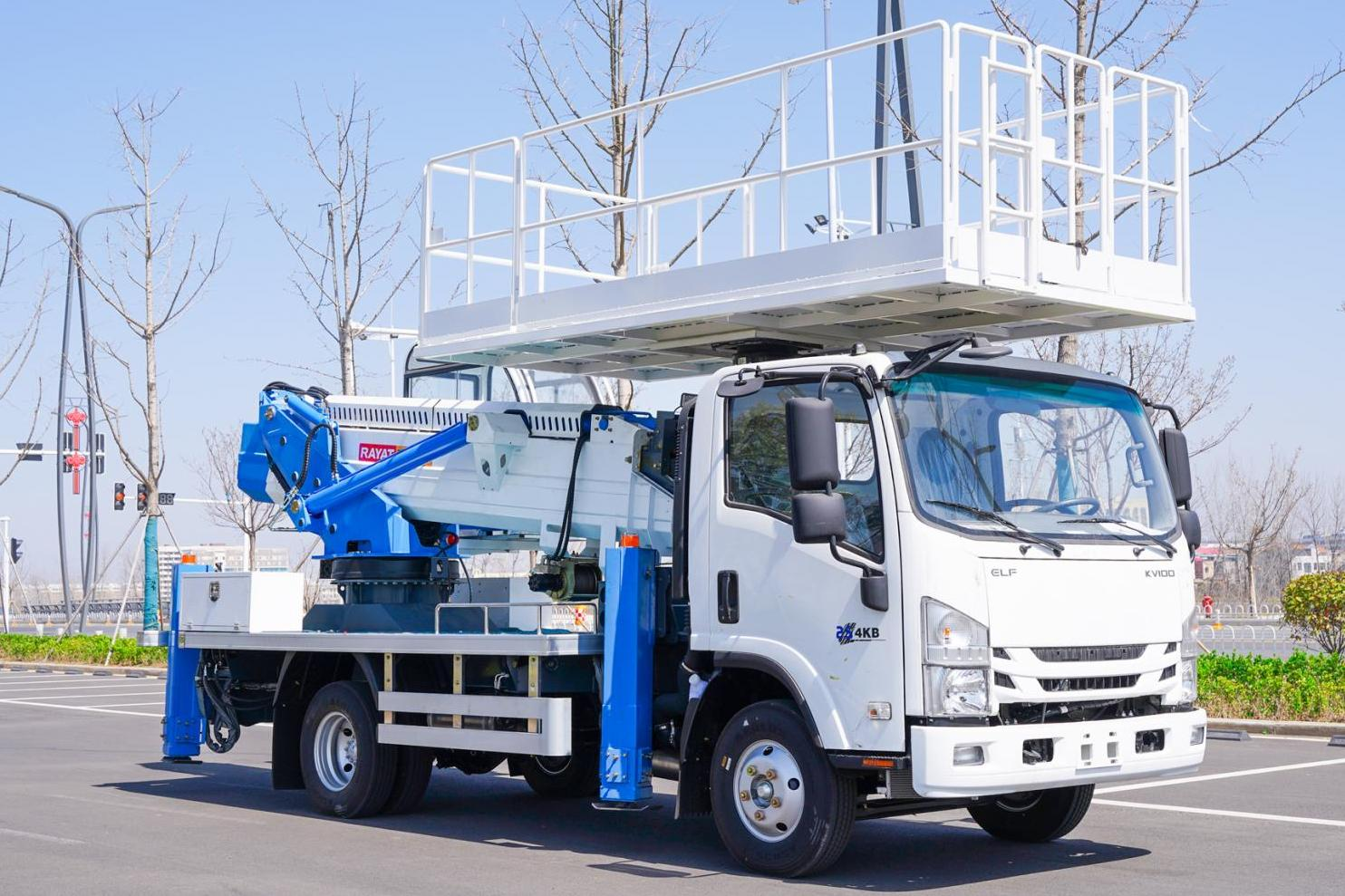

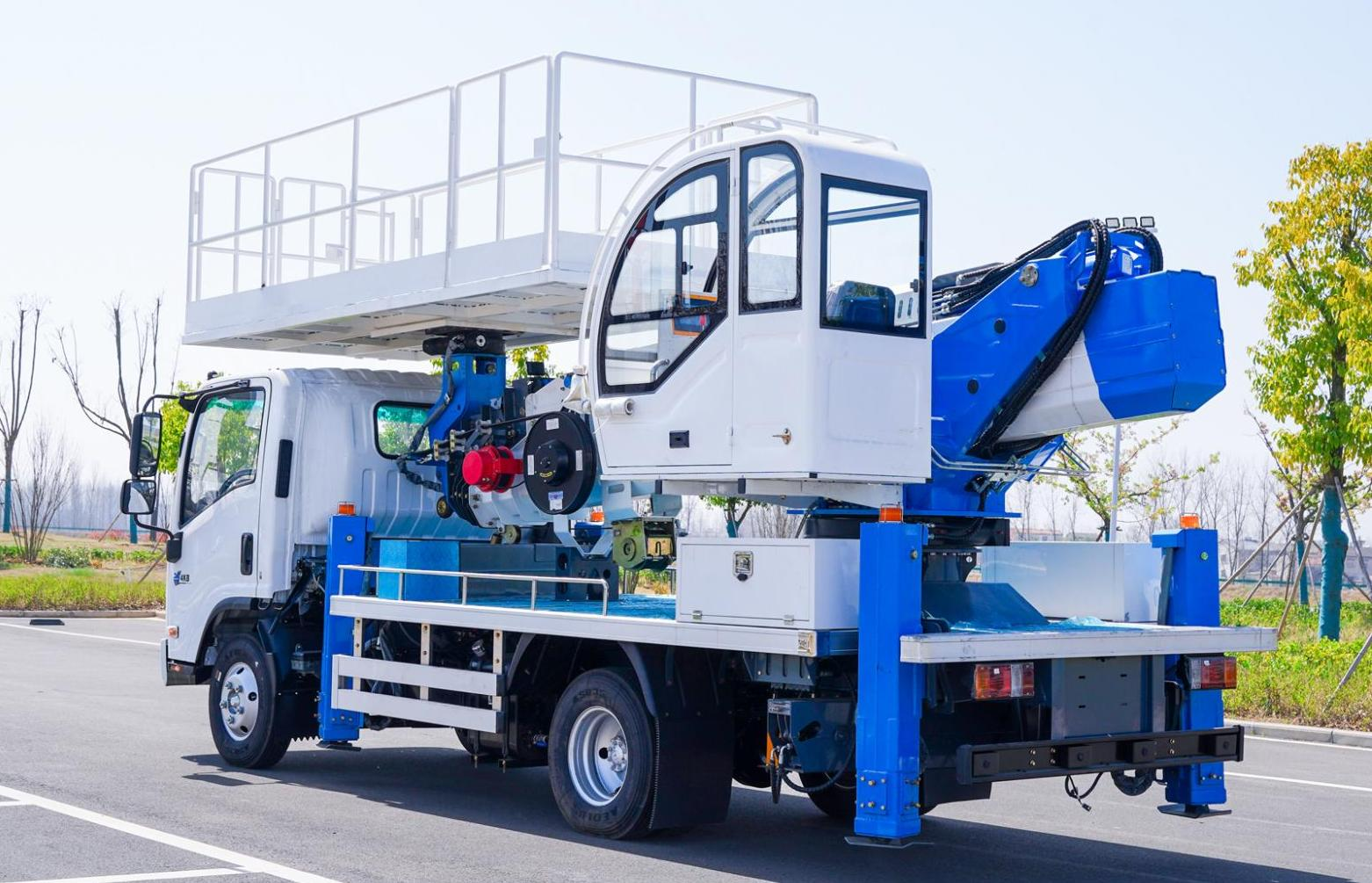

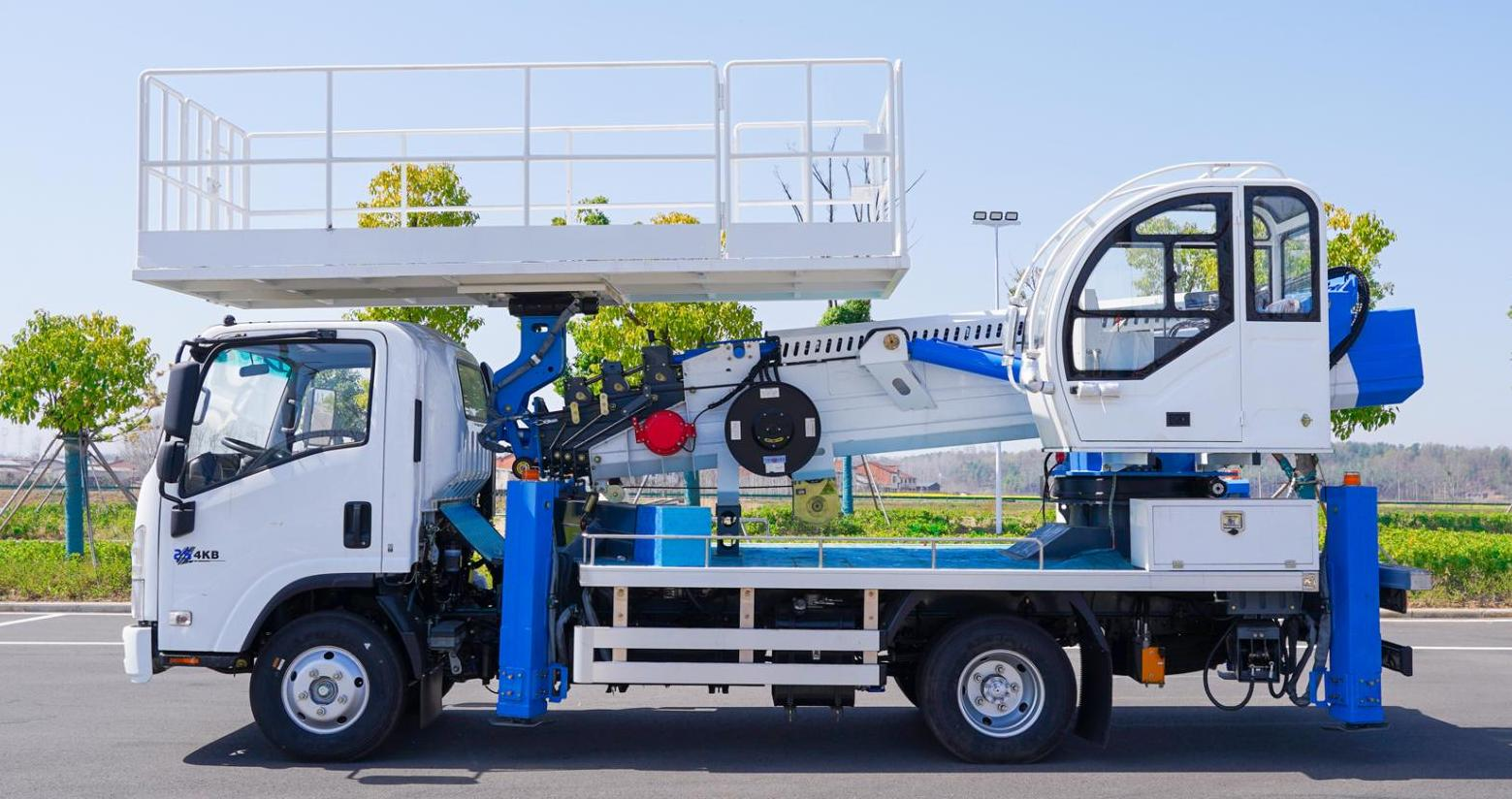

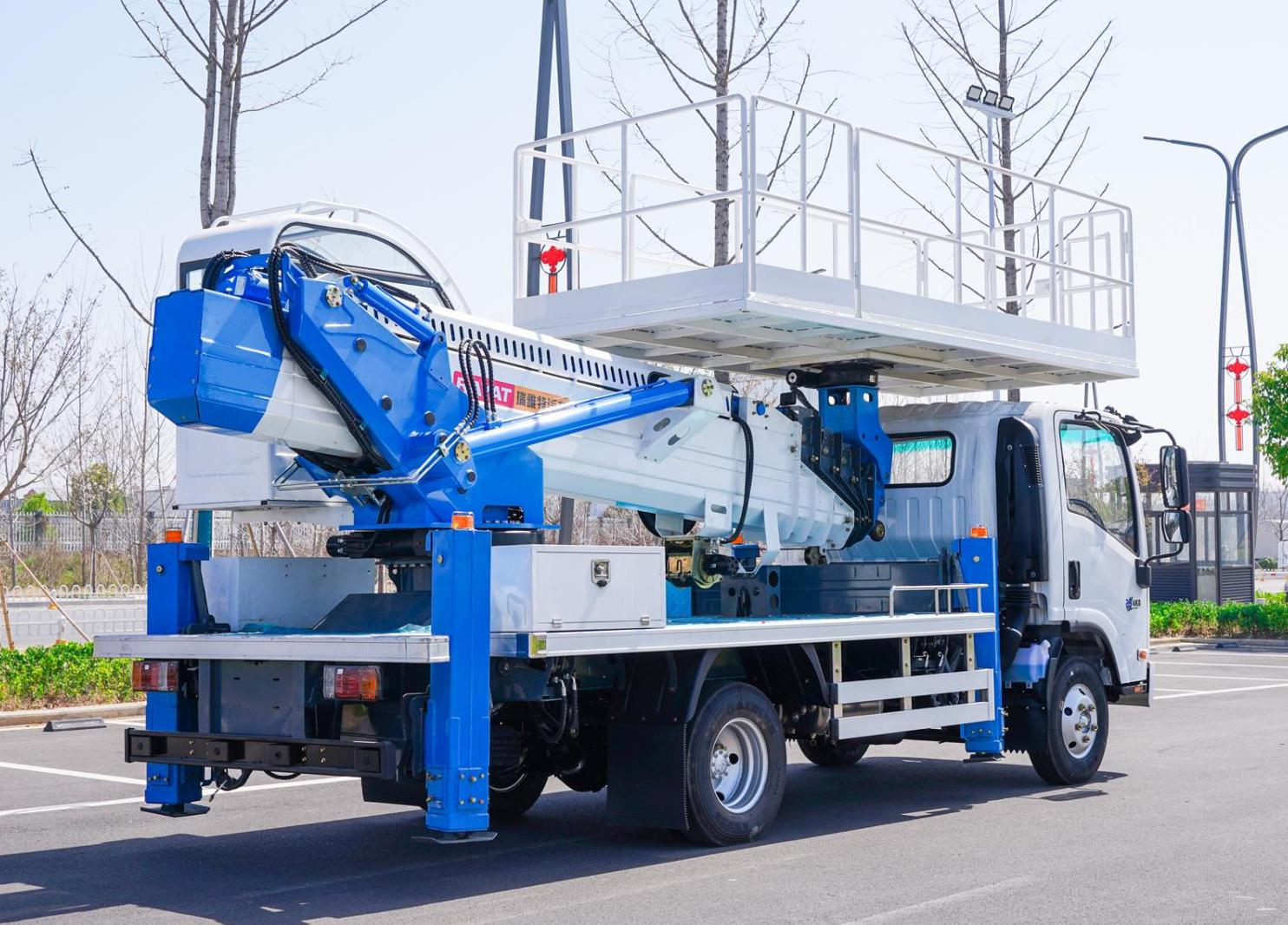

Product Details Display
