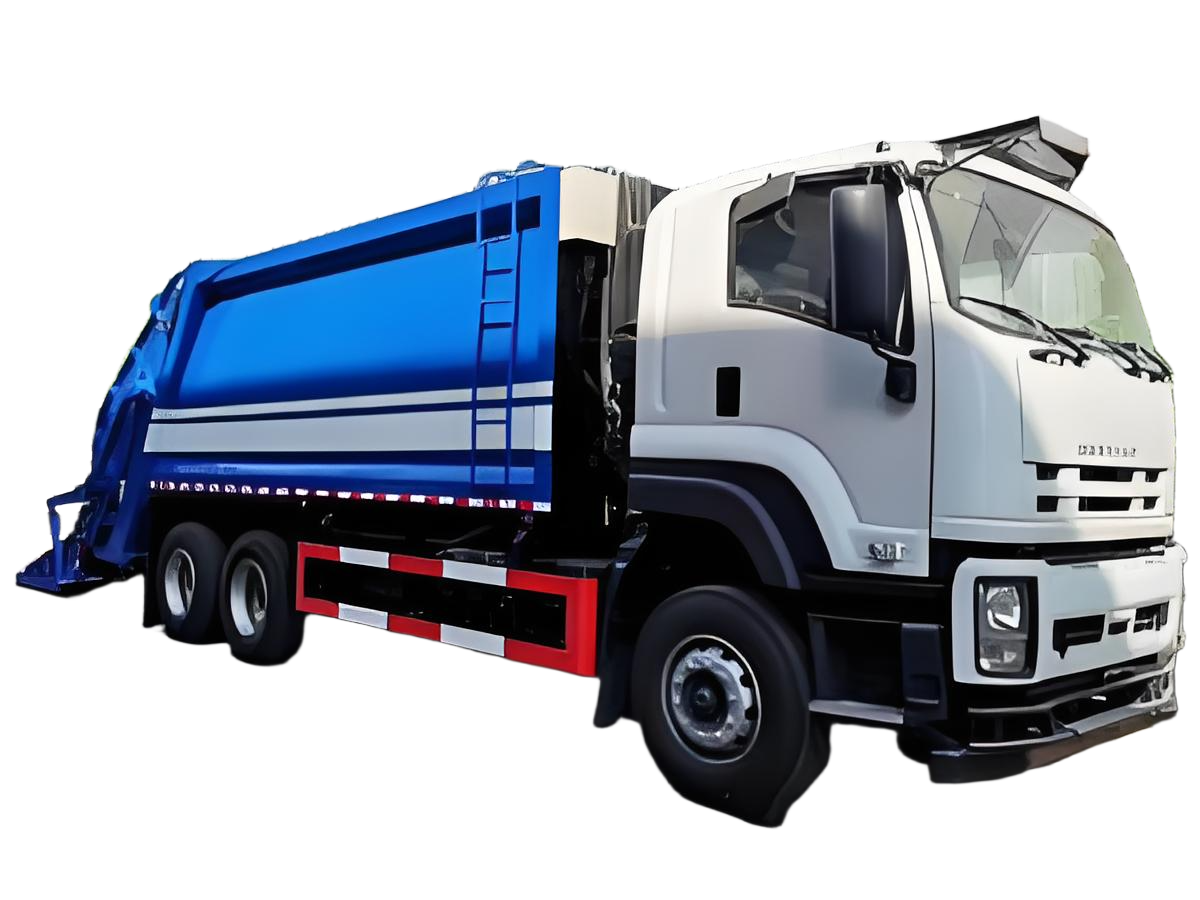

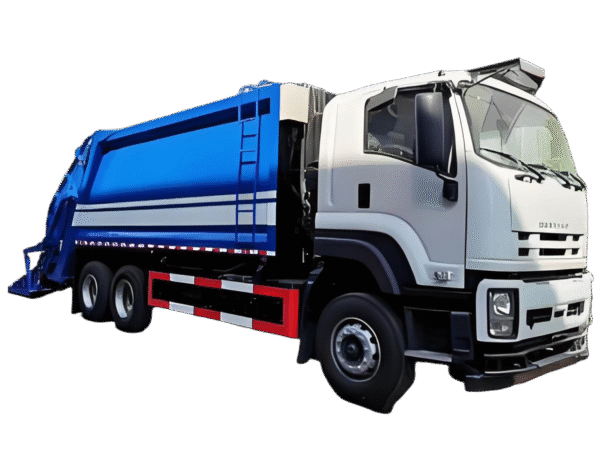

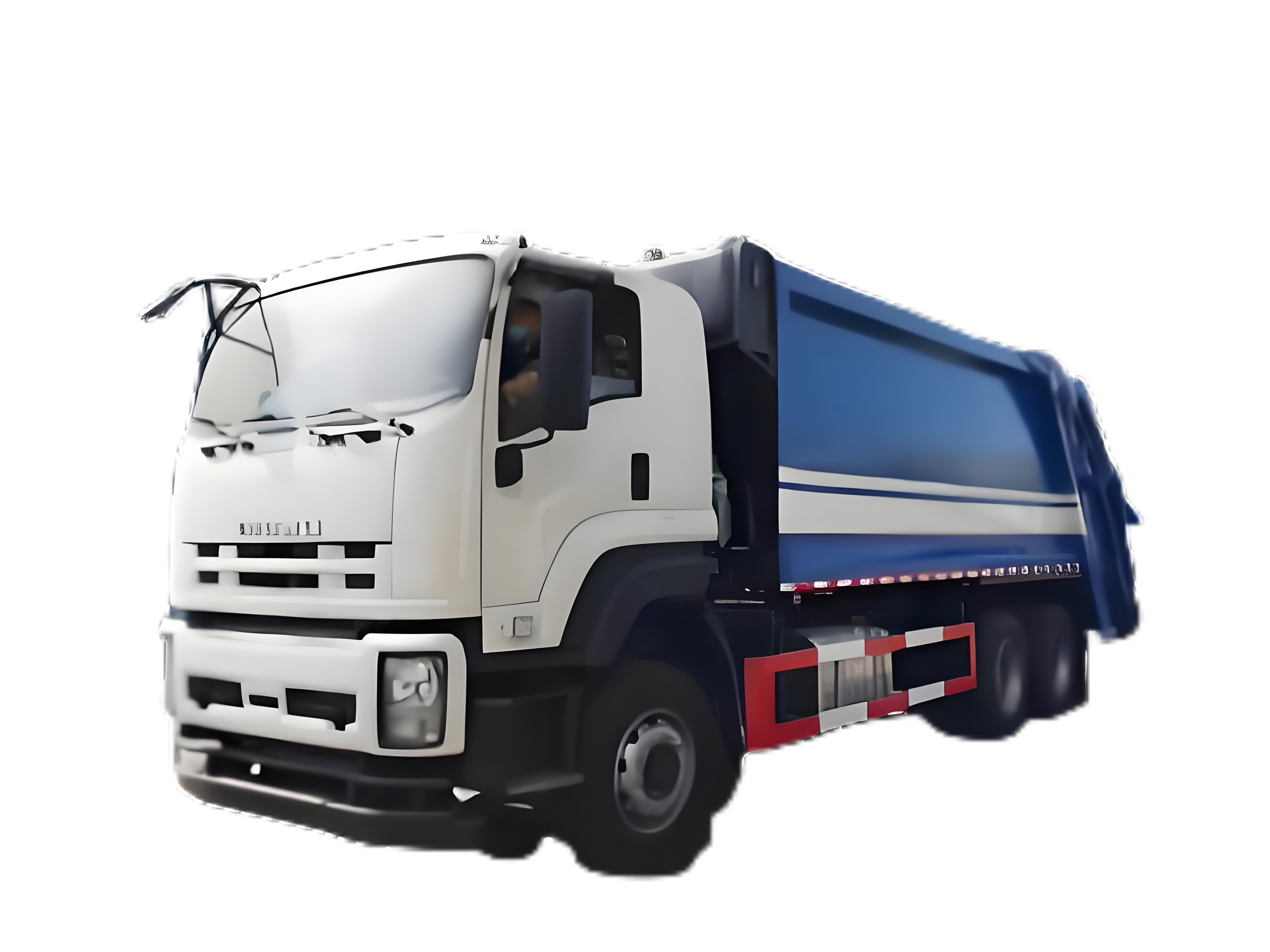

Brand / model

Isuzu / GC18QL350L5

Optical drive type

42 left

outline dimension

(Length x wide x high)

10,2702,5453,380 (mm)

gross vehicle load

25,000kg

The curb weight

16,620kg

wheel base

4,565 + 1,370mm

Chassis design

Isuzu gigabit

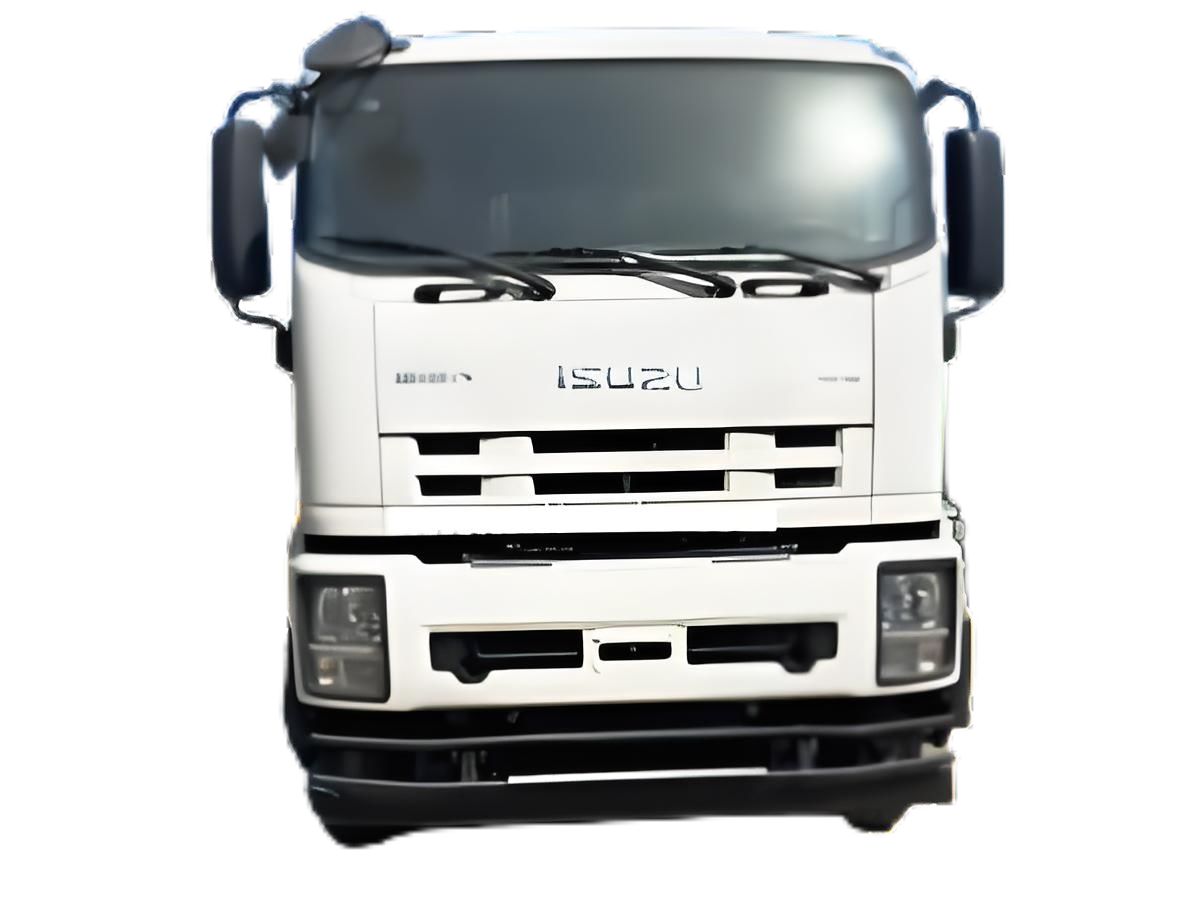

cabin

Hydraulic power steering type.

1 driver + 2 passengers

Drive wheel (tyres)

6 + 4 plus 11 spare tires (XNUMX tires)

Tire size

315 / 80R22.5

engine

Brand / model

Isuzu / 6 UZI-TCG 51

type

In-line 6-cylinder, 4-stroke direct injection, water cooling, intercooler turbocharging

gression

9,839L

nominal capacity

350 hp (257 kW) @2,000 rpm

Peak torque

1,422 Newton mi @1,400rpm

effluent standard

Euro 5

T transfer

Brand / model

ZF/ 8S2030TO

type

diesel oil

operate

user\’s manual

Speed number

8F + 2R

Installation and construction

Isuzu chassis; body; rear baffle (rear hopper); ejection / unloading board; compaction plate; skateboard

capacity

18m3

Body steel

trash can

High corrosion resistance Q235 carbon steel body floor thickness 5 mm, side and roof thickness 4 mm.(IS-2062 Grade A or ASTM a36)

The hopper floor

NM 450 (similar to HARDOX) wear-resistant, high-strength steel plate.

tail-board

High-strength steel plate of 4 mm in thickness

squeeze board

High-strength steel plate of 5 mm in thickness

Rear baffle (rear funnel)

Rear gate floor, rear hopper floor extension of body interior and side walls.

The tailgate is connected to the body through a top hinge and opened up by two double-acting hydraulic cylinders

Compaction rate

The compression ratio (volume) varies between 3:6-1: XNUMX according to the characteristics and density of the waste used in the area (the above parameters are for domestic waste)

The hopper capacity

The garbage capacity of the hopper is about 2m3

seal

A specially designed leakage-proof rubber sealing ring is used between the tail door and the car body

lock

Hydraulic locking by reversing of two hydraulic tailgate lift cylinders.

Safety props

The rear door has a safety support bar (manual) between the body and the rear door to ensure safety during maintenance

Safety valve

The rear baffle and hydraulic piping are equipped with fall prevention safety valves to prevent sudden falls.

CONTROL

The system is controlled by the PLC control box and can enable, start, stop, single cycle, continuous cycle and rescue activities. The tailgate and header controls are located in front of the body. All loading controls are installed on the right side of the tailgate, and all devices are manually controlled for safety reasons. Compaction is controlled by button power and manually in emergency

Garbage emissions

The unloading period lasts for at least 4 minutes and 30 seconds.

Top plate: The unloading plate (panel) will be moved in a gradual (phased) manner.

hydraulic component

Front direction control valve (front distributor)

Main safety valve.

Full-arc hydraulic pressure, dual-action.

The cylinder are designed to achieve the specified cycle time and compression ratio.

Include hydraulic cylinder piping and holes.

All high pressure hydraulic oil hoses are rated approximately 4 times the operating pressure of the particular system.
