Description

Product Details Introduction

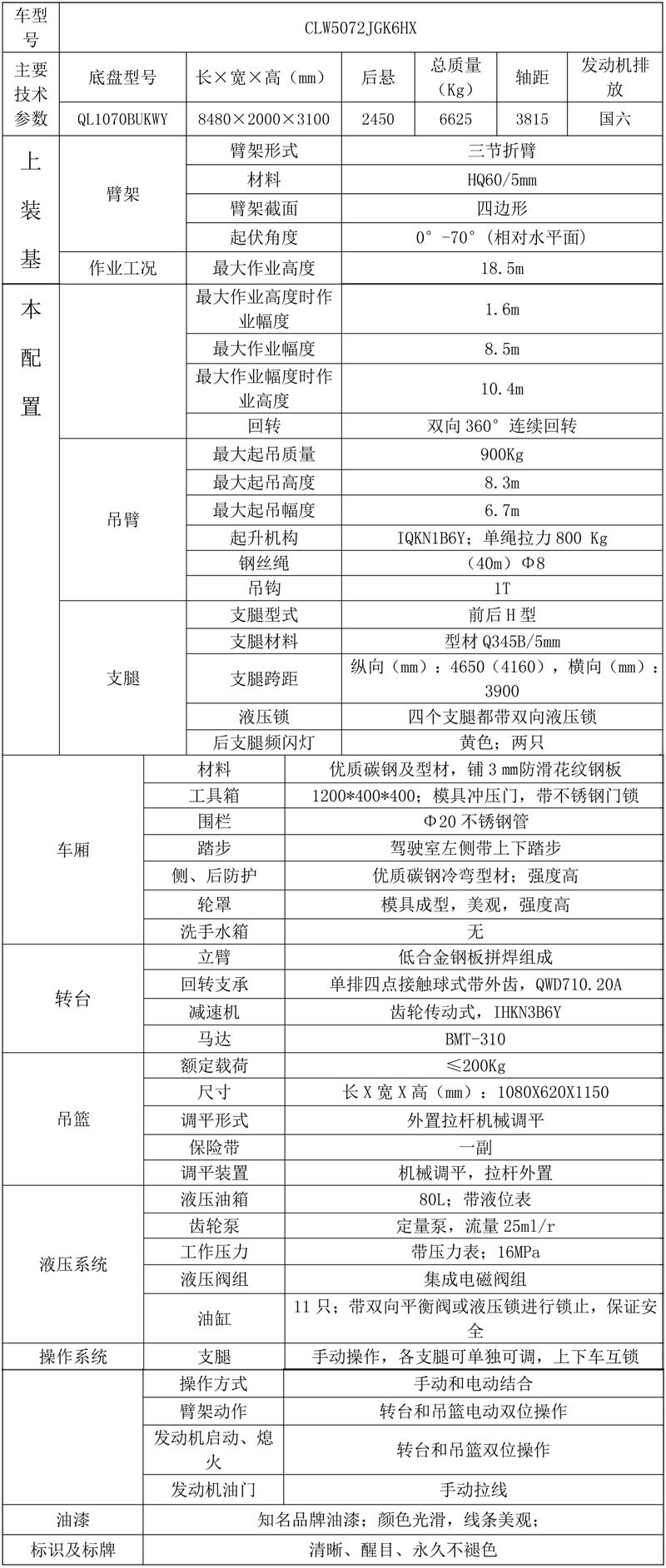

Chassis Configuration: Chassis model: QL1070BUKWY, main configurations: 100P double-row cab, Isuzu 4KH1CN6LB engine with China VI emissions, 120 horsepower, 88KW, Isuzu MSB five-speed gearbox, equipped with air conditioning, power steering, central locking and electric windows on the front door, standard 7.00R16 tires, air brakes (oil brakes available as an option).

Special Performance: Hydraulic 360-degree full rotation, three-section folding boom, single hydraulic lifting cylinder with a bidirectional balance valve, electrically controlled operation of the lifting arm, four adjustable hydraulic cylinders for outriggers with bidirectional hydraulic locks (outrigger operation is manual and can be controlled individually), two sets of control stations (upper and lower), equipped with a 1-ton hook, maximum lifting capacity of 1 ton.

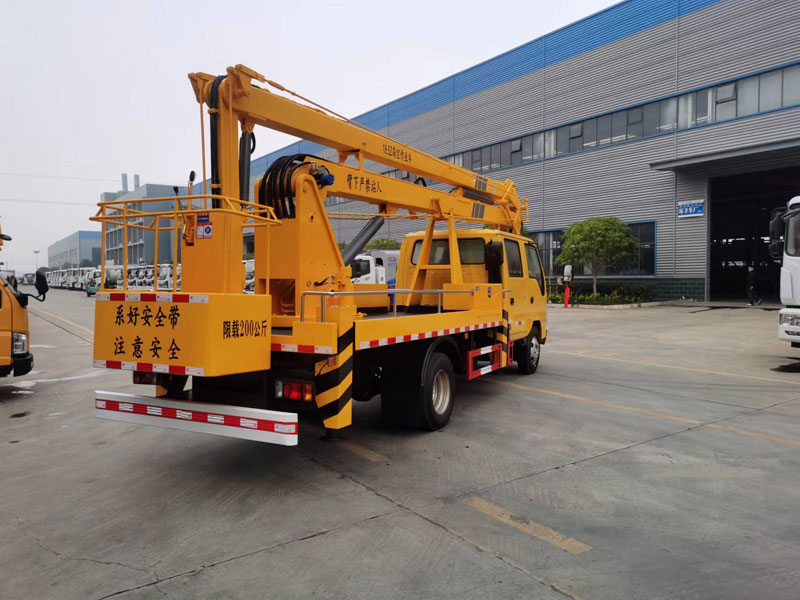

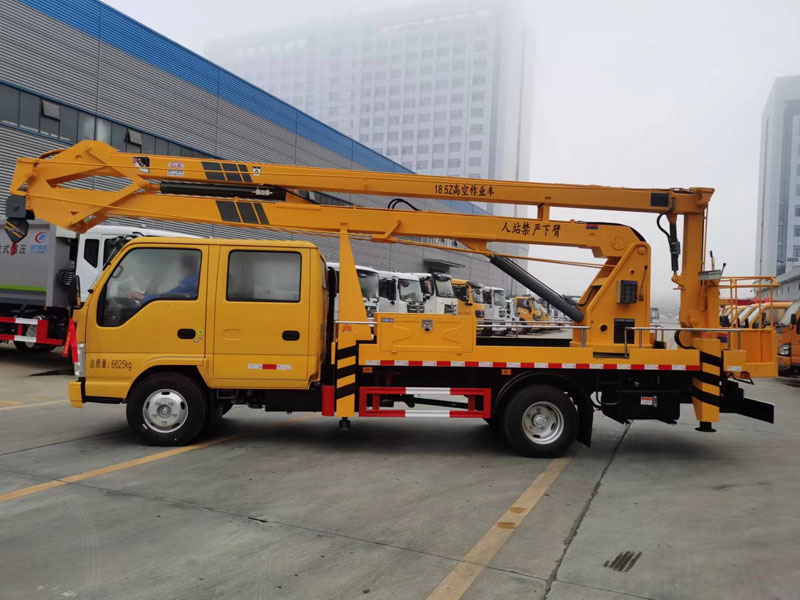

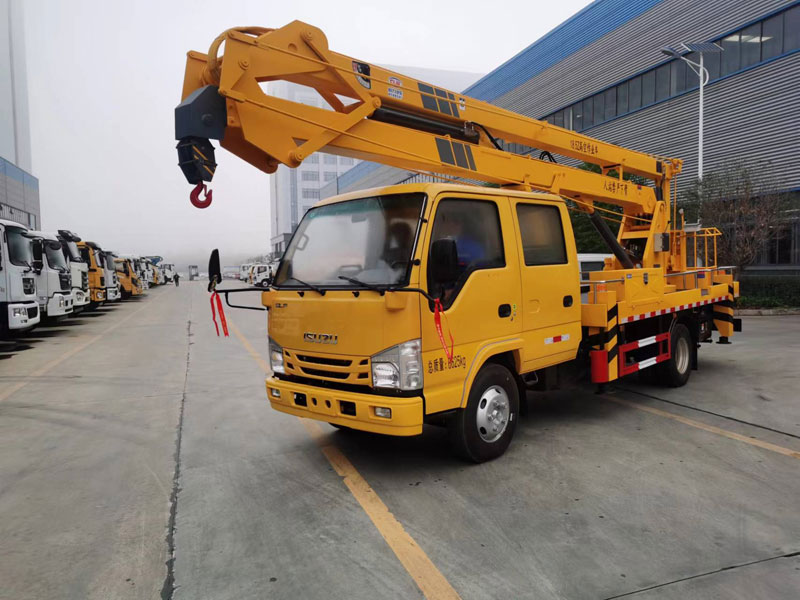

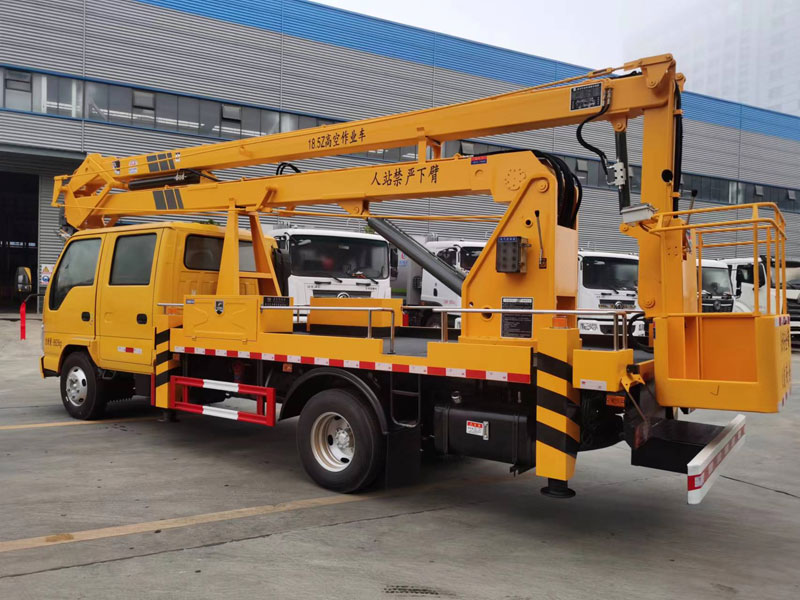

Product Details Display
