Product Details Introduction

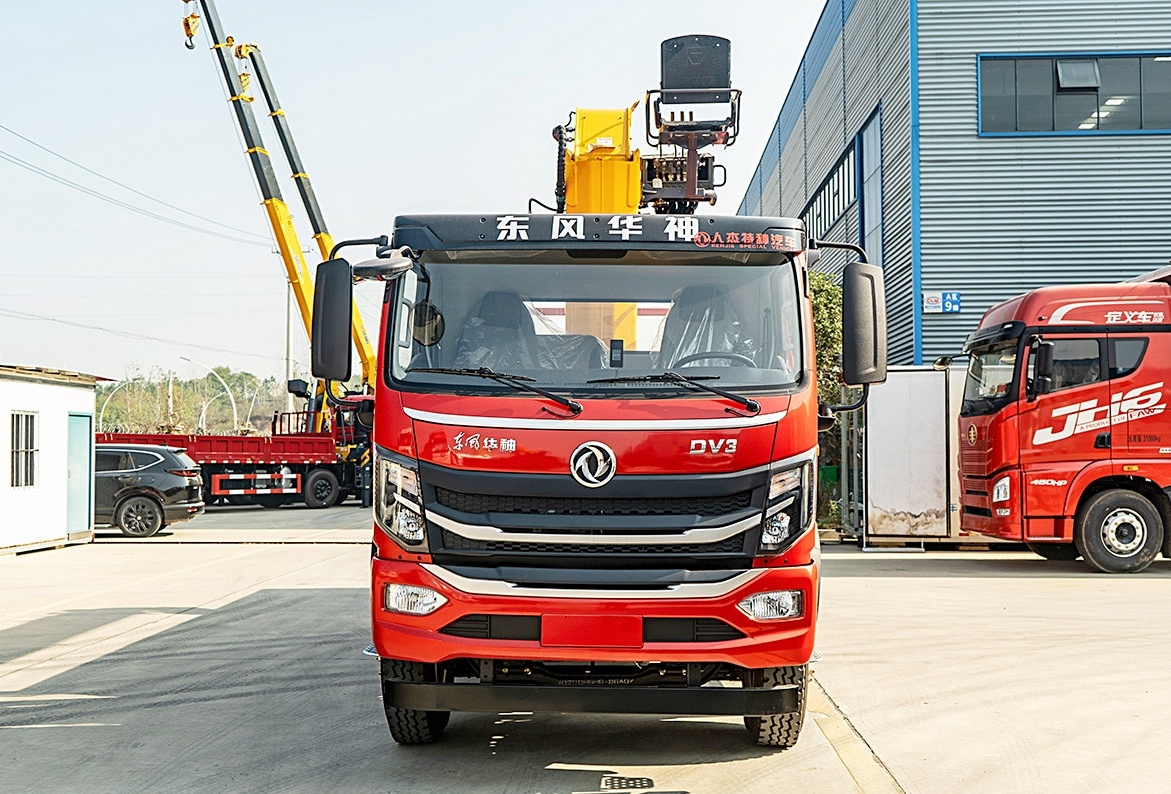

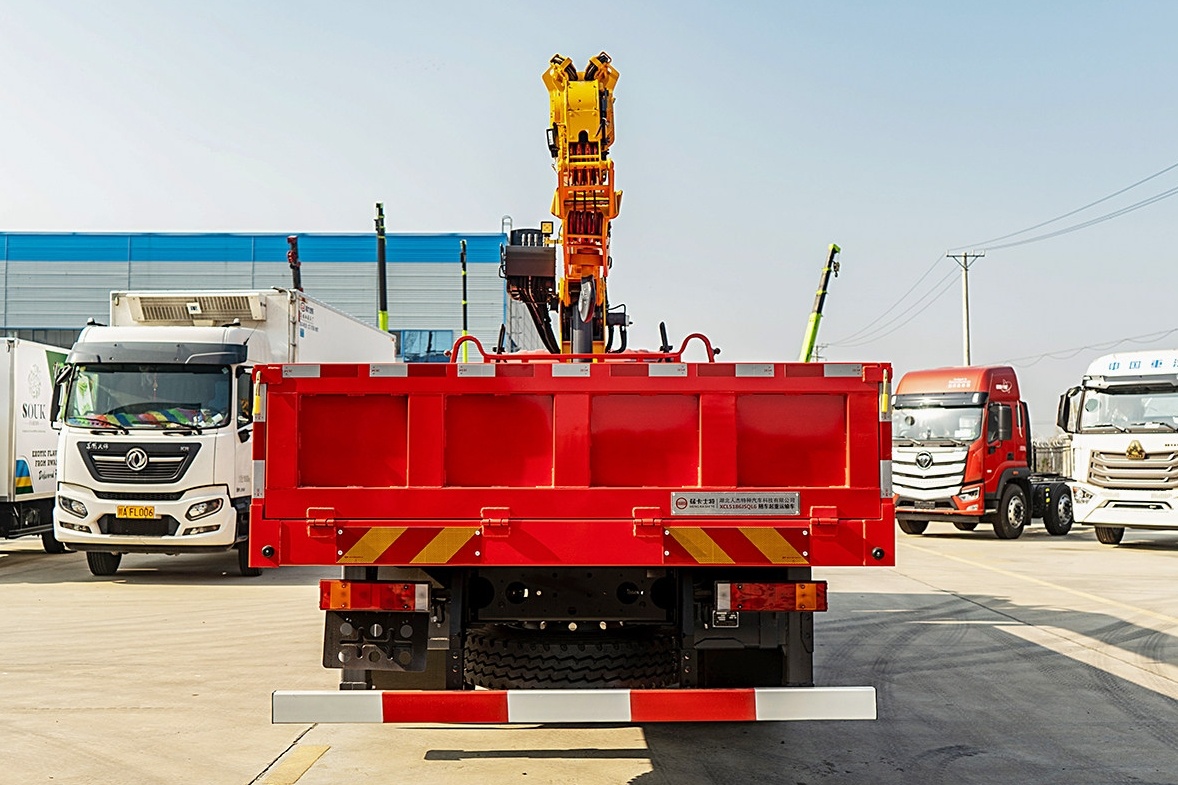

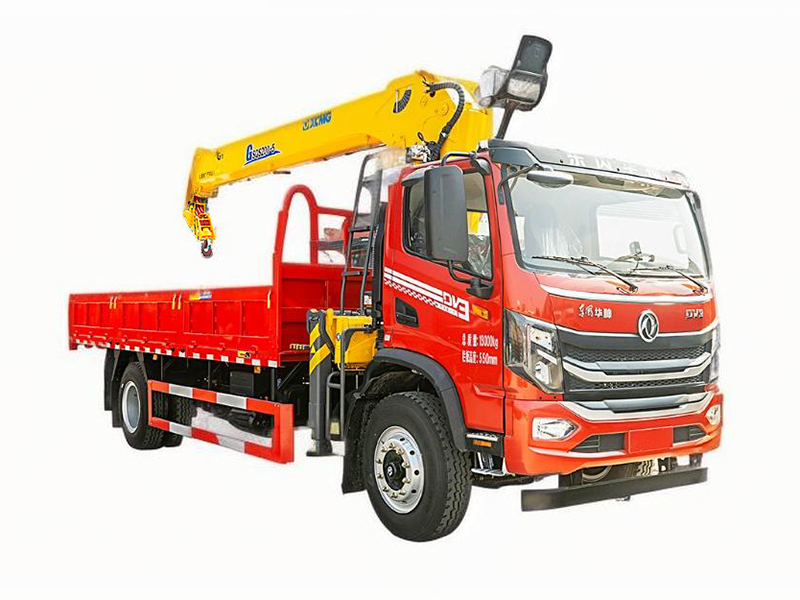

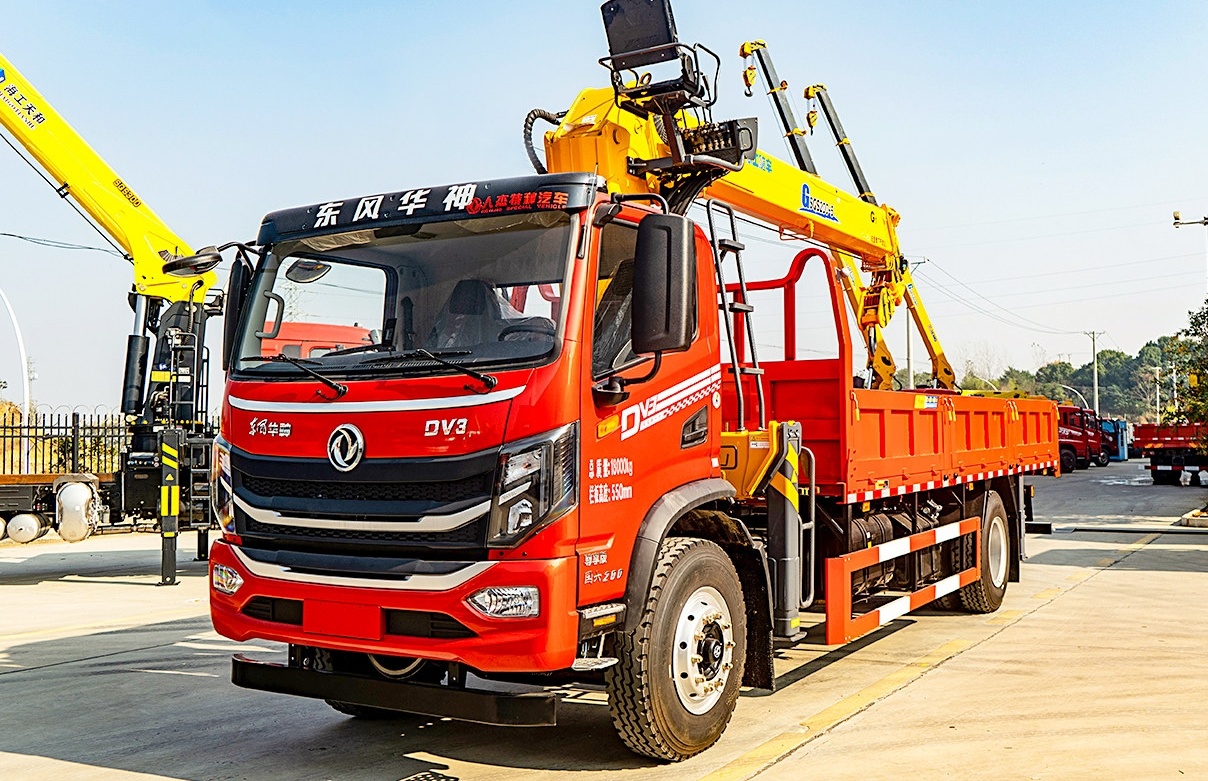

Huashen DV3 Single bridge -G type 8 tons -5 section arm configuration
Dongfenghuashen DV3 row and half cab, 4500 wheelbase, Yuchai 200 horsepower, multi-lock one, remote control central control, airbag seat, with driving record, sunshade, LED daytime running lights, multi-functional steering wheel, front top utility box, air conditioning, integrated rearview mirror, transmission: SC8JS85E-C flanged power extract.

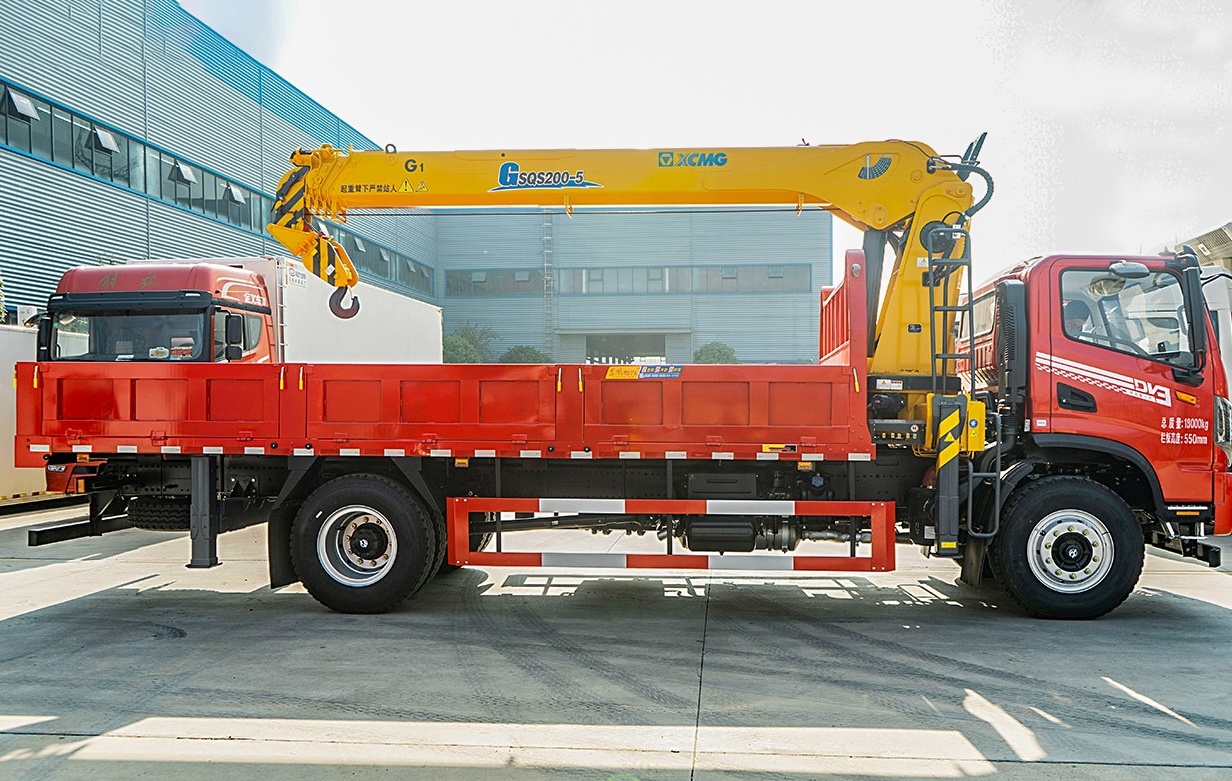

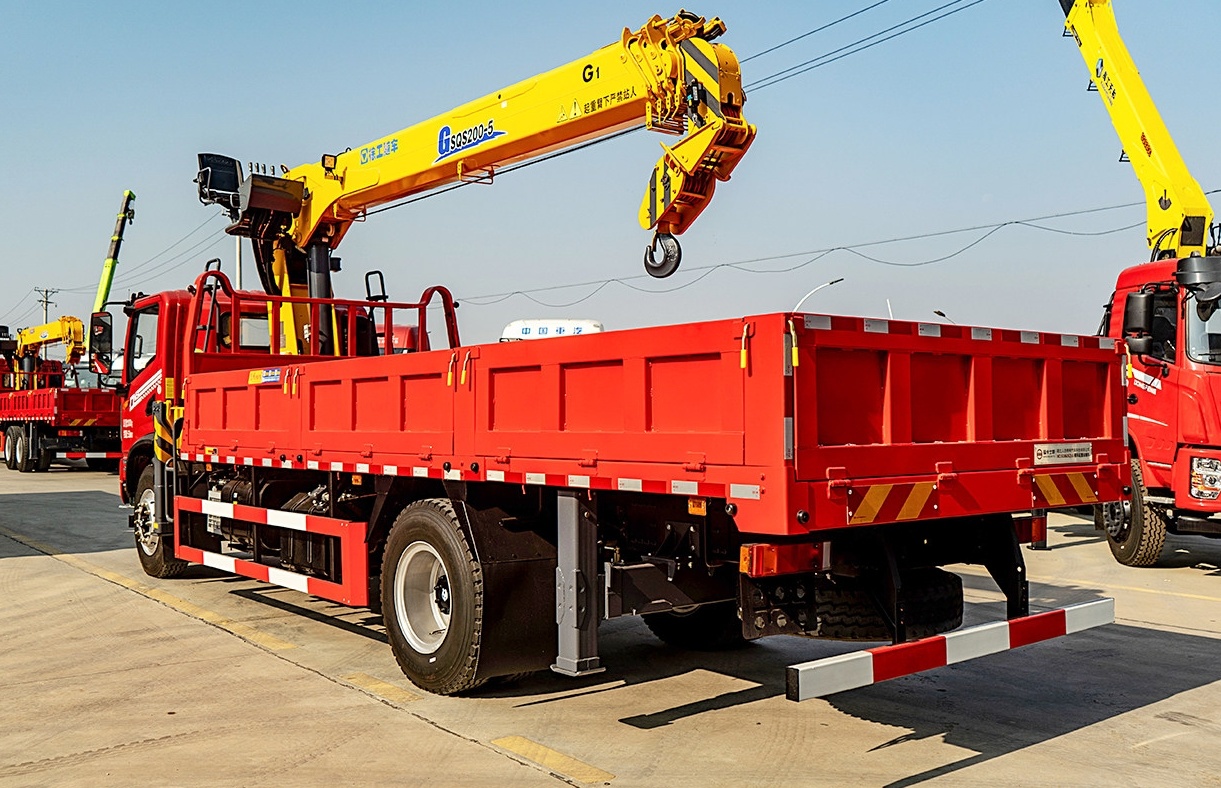

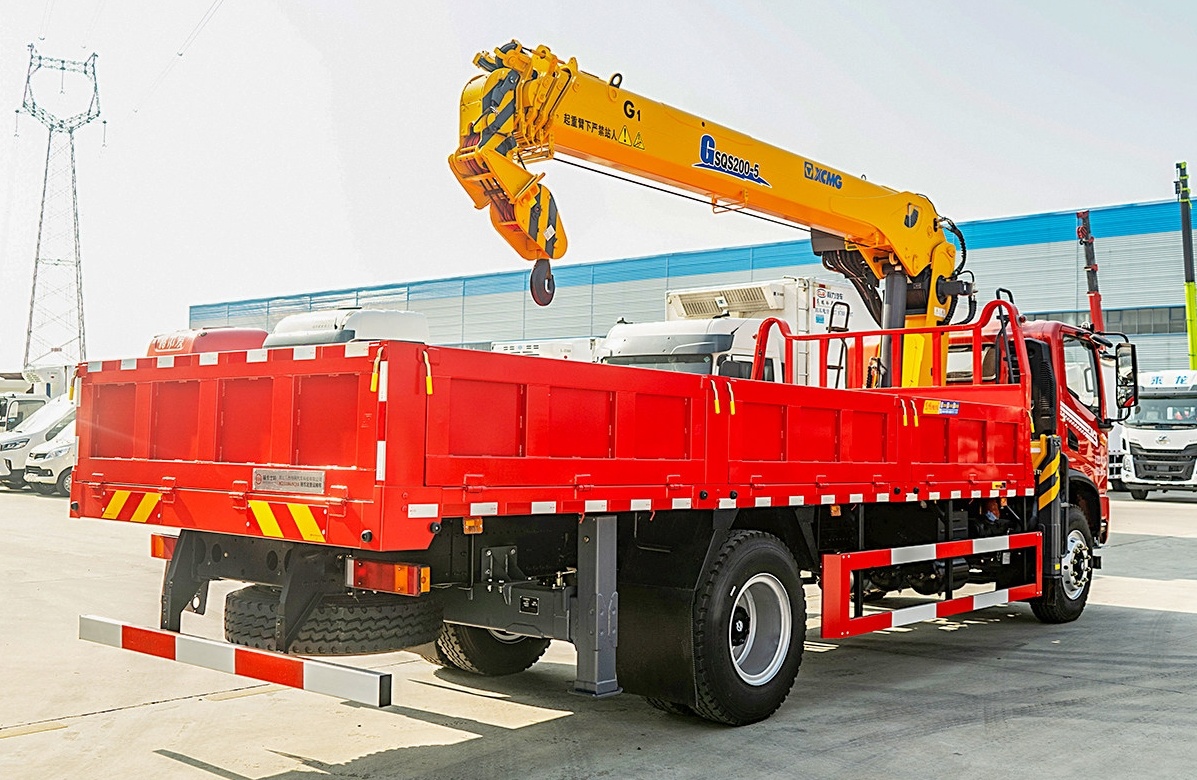

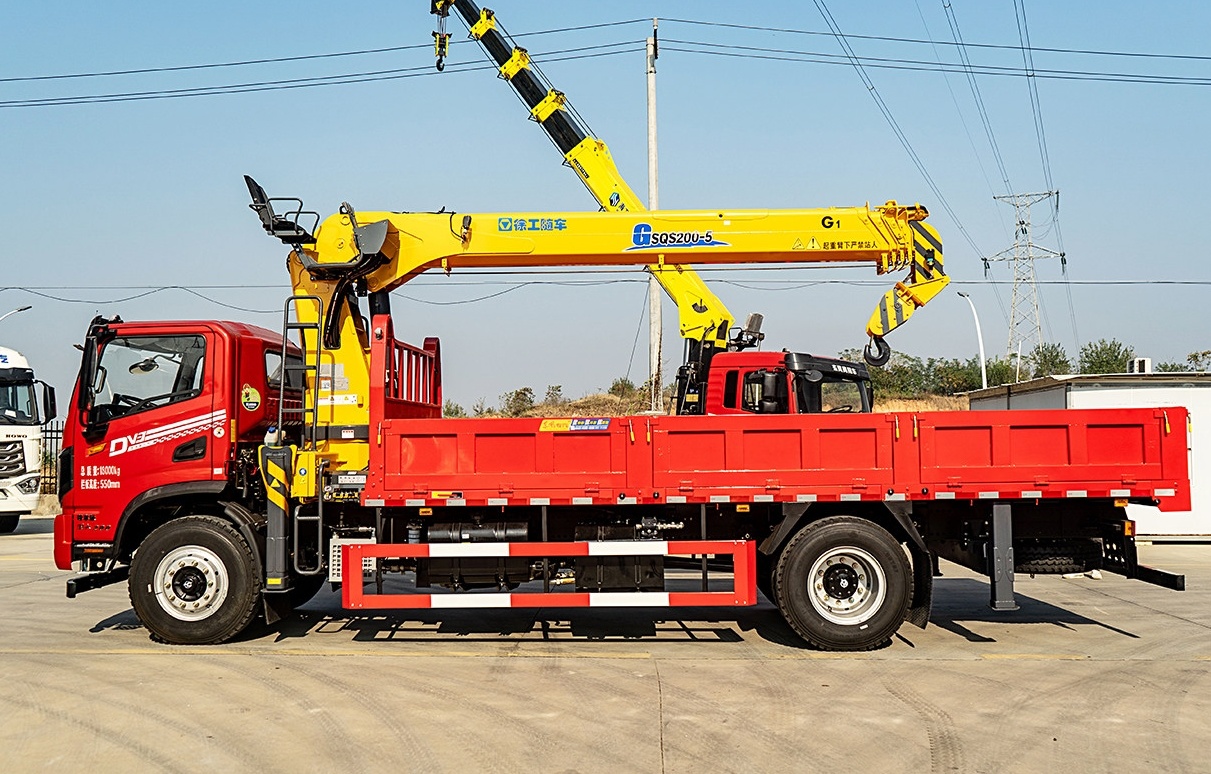

Xugong 8 tons 5 section straight arm crane, lifting height 20.6 meters, working radius 18.6 meters, single chamber hydraulic rear leg.
Truck crane special function video
Operating parameter
| Straight arm crane | Folding arm crane | ||||||
| Model number | Lifting height(m) | Working radius(m) | Remark | Model number | Lifting height(m) | Working radius(m) | Remark |
| Two tons,two knots | 6.8 | 5.8 | Full rotation | Two tons,two knots | 7.5 | 4.78 | Rack cylinder |
| Two tons and three knots | 9 | 7.7 | Full rotation | 3.2 tons 2 knots | 8.5 | 5.69 | Rack cylinder |
| 3.2 tons 2 knots | 6.8 | 5.5 | Full rotation | 3.2 tons 3 knots | 10 | 7.3 | Rack cylinder |
| 3.2 tons 3 knots | 9.5 | 7.5 | Full rotation | Four tons and three knots | 10.2 | 7.3 | Rack cylinder |
| Four tons and three knots | 10 | 7.93 | Full rotation | Five tons and three knots | 11 | 8 | Full hydraulic, full rotation |
| 4 tons, 4 knots | 11.5 | 9.4 | Full rotation | Five tons, four knots | 12.8 | 9.92 | Full hydraulic, full rotation |
| Five tons and three knots | 10.5 | 8.7 | Full hydraulic, full rotation | 6.3 tons 3 knots | 11 | 8 | Full hydraulic, full rotation |
| Five tons, four knots | 12.5 | 11 | Full hydraulic, full rotation | 6.3 tons 4 knots | 13 | 9.92 | Full hydraulic, full rotation |
| 6.3 tons 3 knots | 11 | 9 | Full hydraulic, full rotation | 8 tons, 4 knots | 13 | 9.75 | Full hydraulic, full slewing, high-altitude seat |
| 6.3 tons 4 knots | 12.8 | 11 | Full hydraulic, full rotation | 10 tons, 4 knots | 13 | 9.75 | Full hydraulic, full slewing, high-altitude seat |
| 8 tons, 4 knots | 13.5 | 11.5 |
Full hydraulic, full rotary, beltHigh-altitude seat |
12 tons, 4 knots | 13 | 9.78 | Full hydraulic, full slewing, high-altitude seat |
| 10 tons, 4 knots | 14 | 12 |
Full hydraulic, full rotary, beltHigh-altitude seat |
14 tons, 5 knots | 14 | 11.4 | Full hydraulic, full slewing, high-altitude seat |
| 12 tons, 4 knots | 14.5 | 12.5 |
Full hydraulic, full rotary, beltHigh-altitude seat |
16 tons, 5 knots | 15 | 12 | Full hydraulic, full slewing, high-altitude seat |
| 14 tons, 4 knots | 17.8 | 15.8 |
Full hydraulic, full rotary, beltHigh-altitude seat |
20 tons, 7 knots | 20 | 16.8 | Full hydraulic, full slewing, high-altitude seat |
| 16 tons, 5 knots | 20 | 18.5 |
Full hydraulic, full rotary, beltHigh-altitude seat |
25 tons, 9 knots | 20 | 16.4 |
Full hydraulic, full rotary, with high seat Chair, wireless remote control |
| 20 tons, 6 knots | 26.35 | 24.35 |
Full hydraulic, full rotary, beltHigh-altitude seat |
30 tons 7 knots | 16.2 | Full hydraulic, full slewing, high-altitude seat | |
Product Details Display
