Product Details Introduction

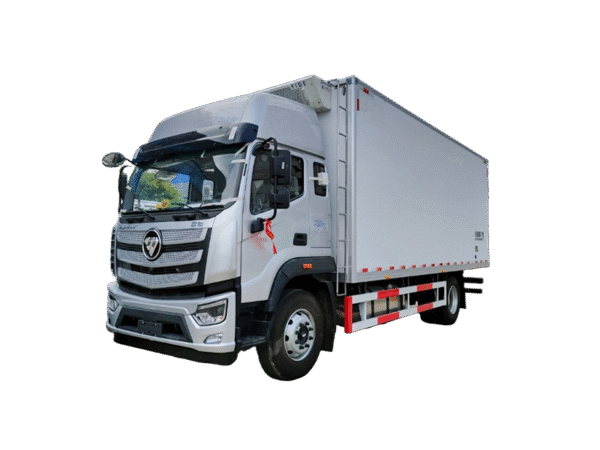

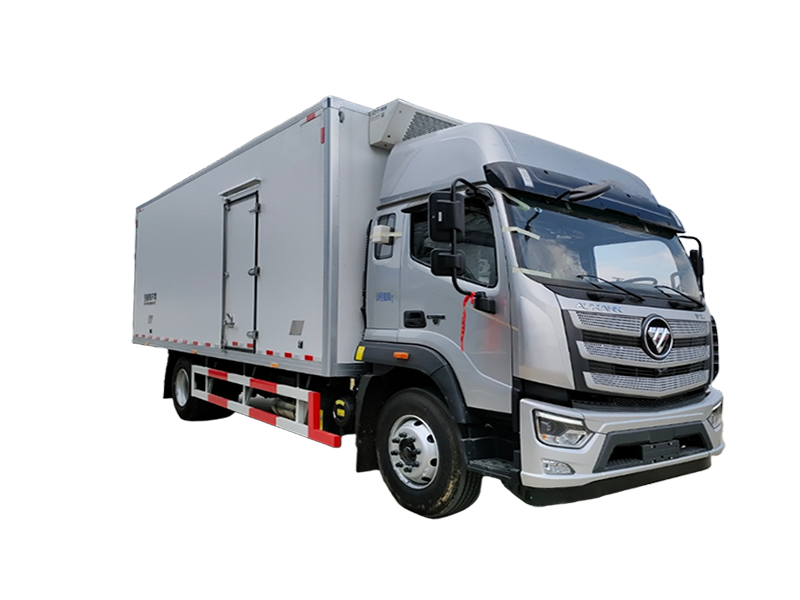

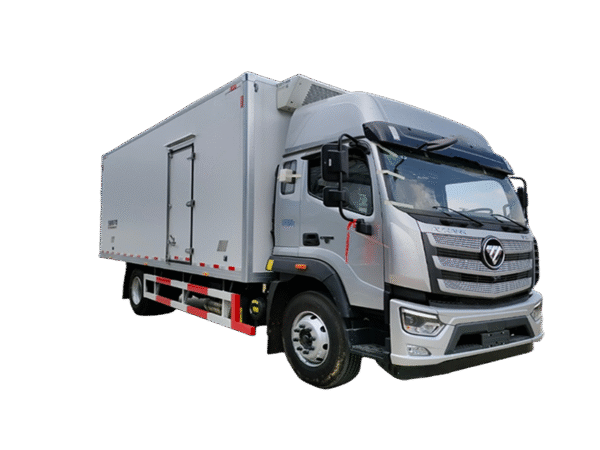

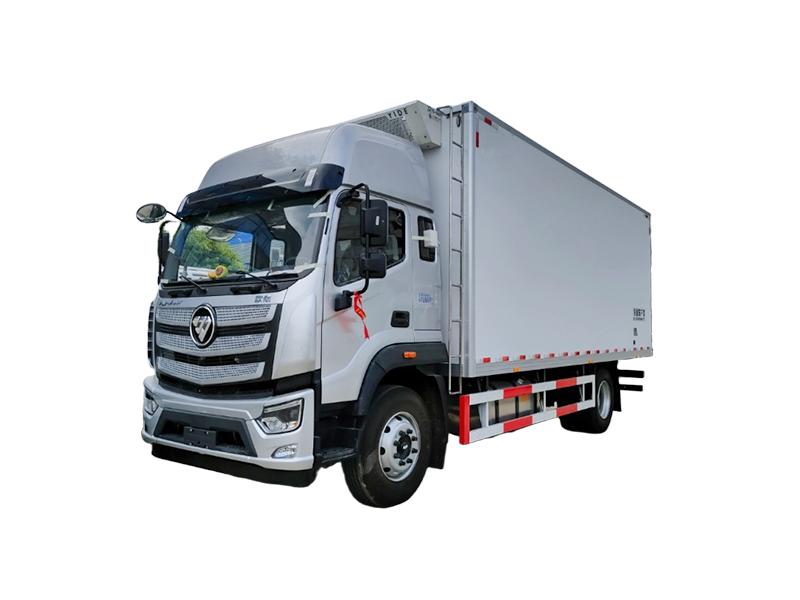

Foton Ouhang Refrigerated Truck (6.8m)

Vehicle Specifications

Overall Dimensions (L×W×H): 9300×2600×3950mm

Cargo Dimensions (L×W×H): 6800×2450×2500mm

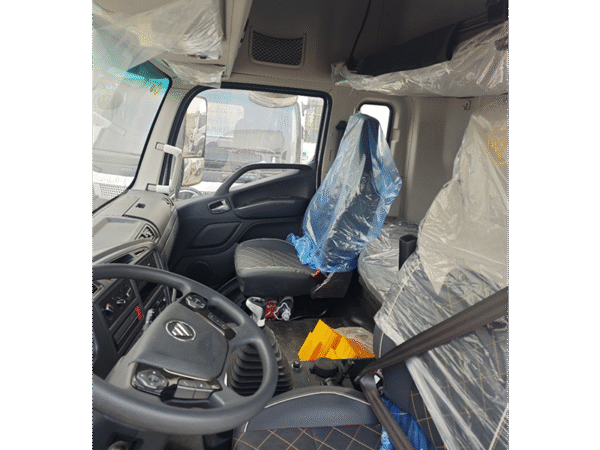

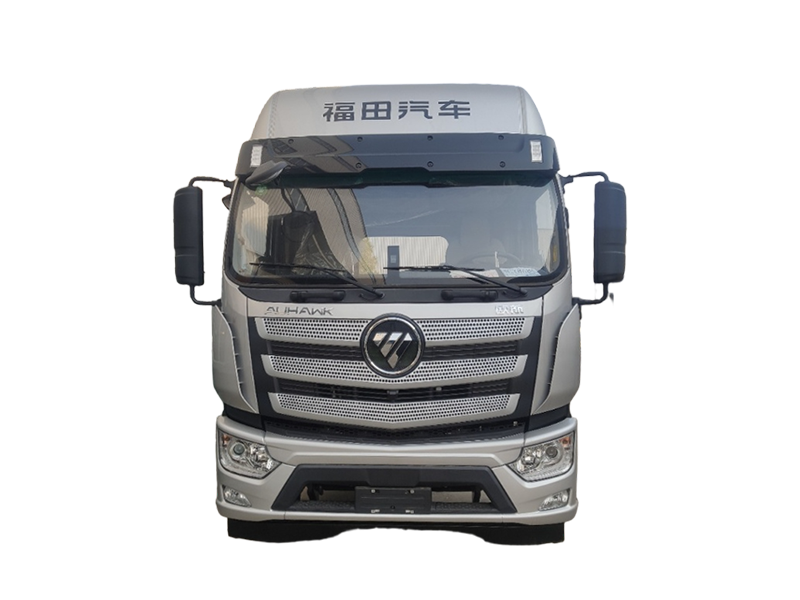

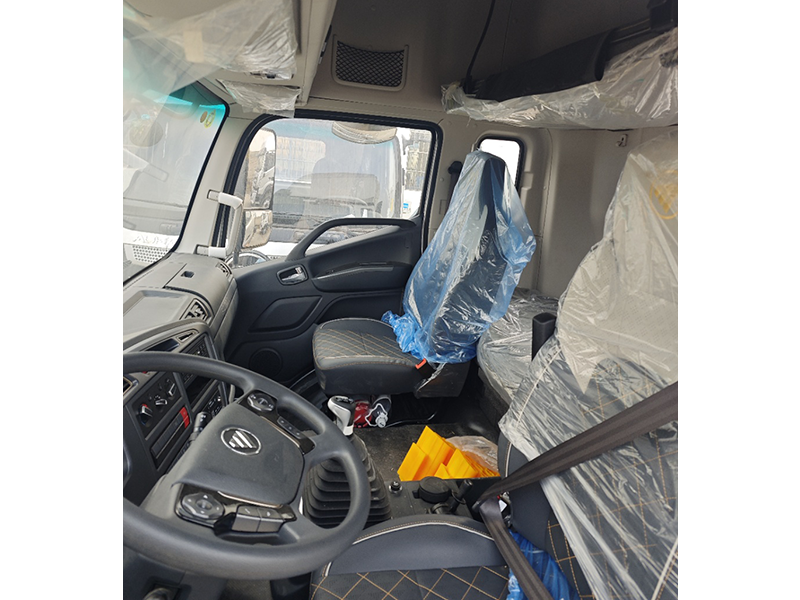

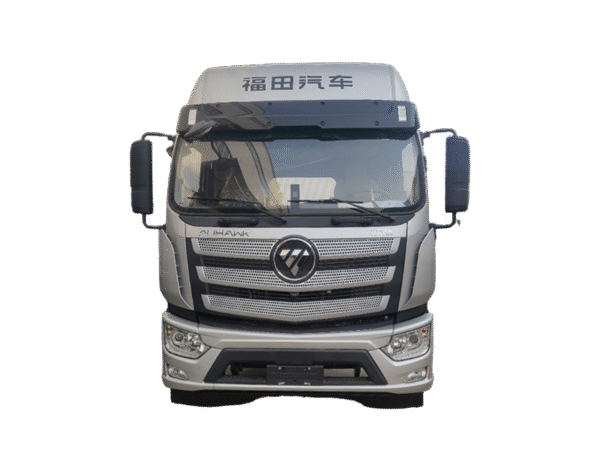

Cab Configuration: Ouhang 2200 high-roof double sleeper

Wheelbase: 5150mm

Powertrain

Engine: YCS06300-61 (6-cylinder Yuchai 300HP)

Power: 221kW/300HP

Max Torque: 1200N·m

Transmission: FST9JS119TA (Fast 9-speed manual)

Tires: 275/80R22.5 18PR

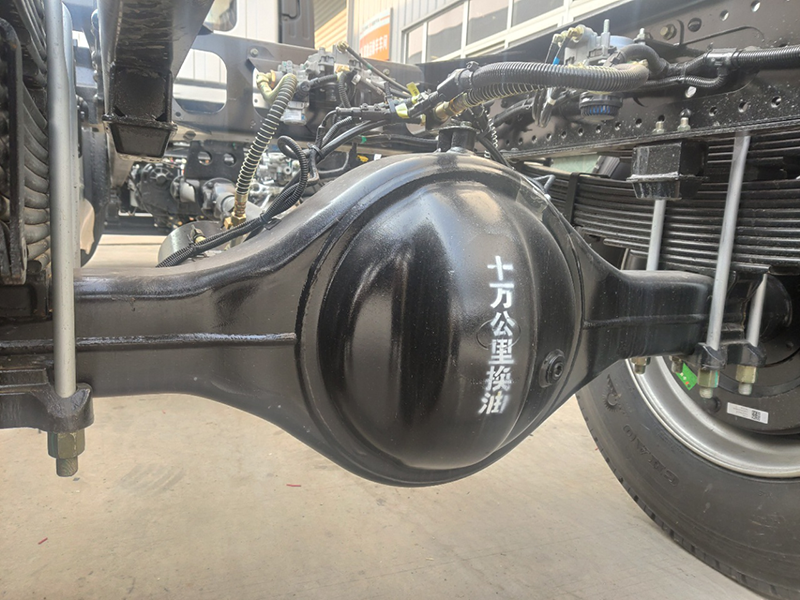

Axle Ratio: 4.333

Axle Load Capacity (Front/Rear): 1945kg/1800kg

Leaf Springs: 10/10+8

Chassis Configuration

Fuel System: 600L aluminum alloy tank

Electrical System: 2×135Ah maintenance-free batteries

Brakes: Front/rear drum brakes

Suspension: Full-floating 4-spring suspension

Convenience Features:

Hydraulic cab tilt

Sleeper berth (extended cab)

Power windows

Central locking

Remote key

Mercedes silver metallic paint

Heated mirrors

120A alternator

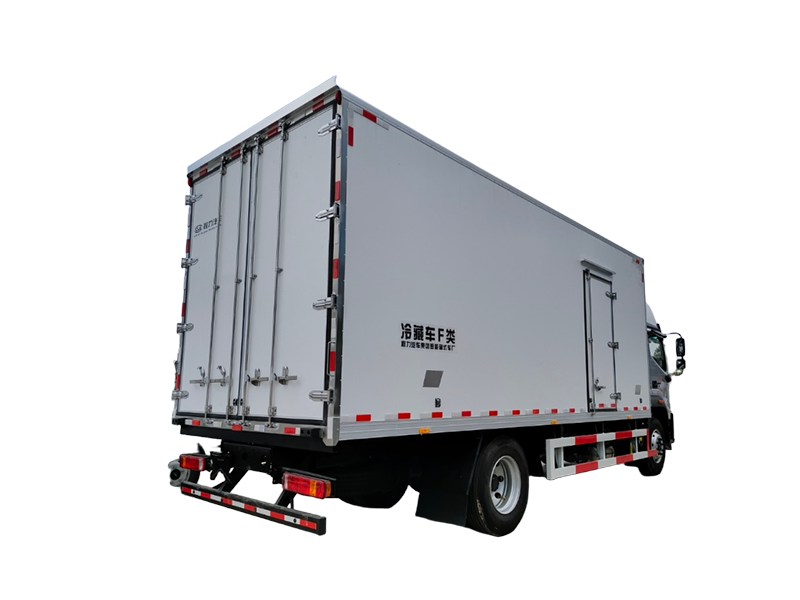

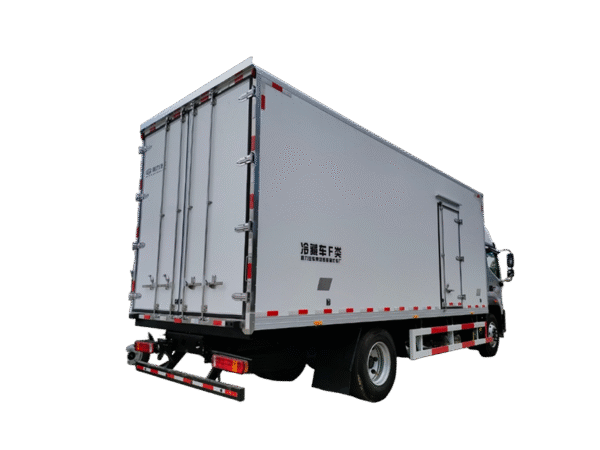

Refrigerated Body Construction

Wall Structure:

Fiberglass inner/outer walls

8cm polyurethane insulation core

Doors:

Rear double doors

Optional right-side single/double side door (front position)

Flooring: Aluminum checker plate with front drainage holes

Sealing System: Labyrinth-pattern rubber door seals

Protective Features:

Aluminum alloy edge trim

Stainless steel corner guards

Stainless steel door locks/frames/hinges

Lighting: Energy-efficient LED interior lights

Refrigeration Options

Selectable units from: Huatai, Carrier, Kaili, Kaixue, Hanxue, Thermo King

Optional Accessories

Movable meat hook frame

Dock-leveling slide rails

Straight slide rails

Ventilation channels

Insulated partitions

Stainless steel interior lining

Hydraulic tailgate
