Product Details Introduction

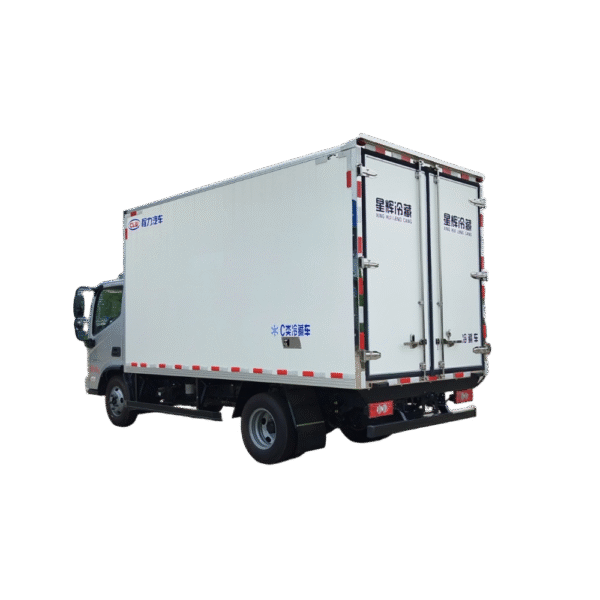

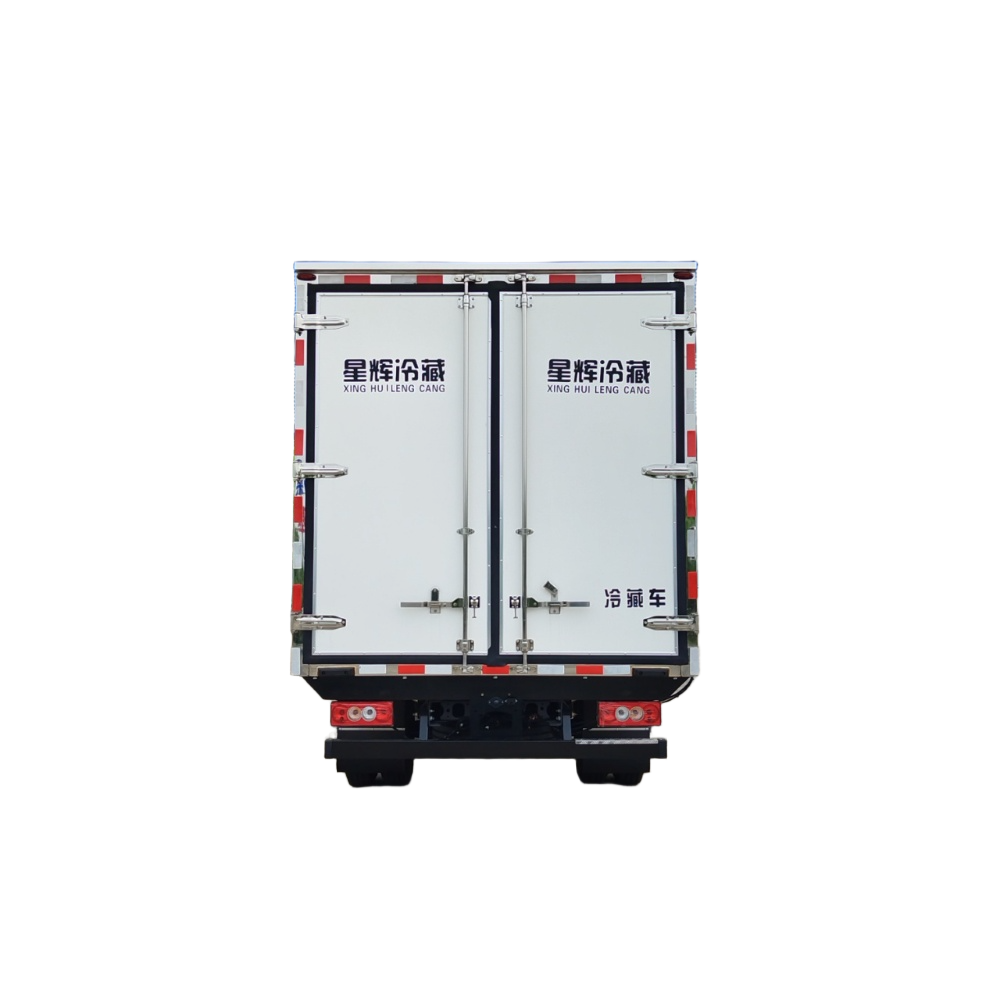

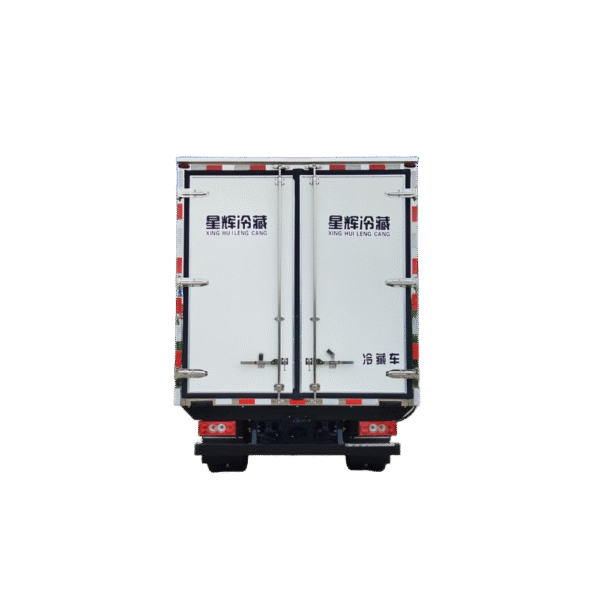

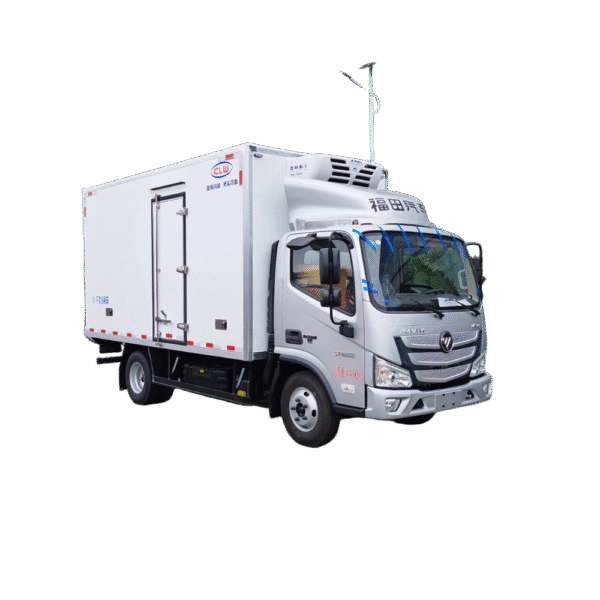

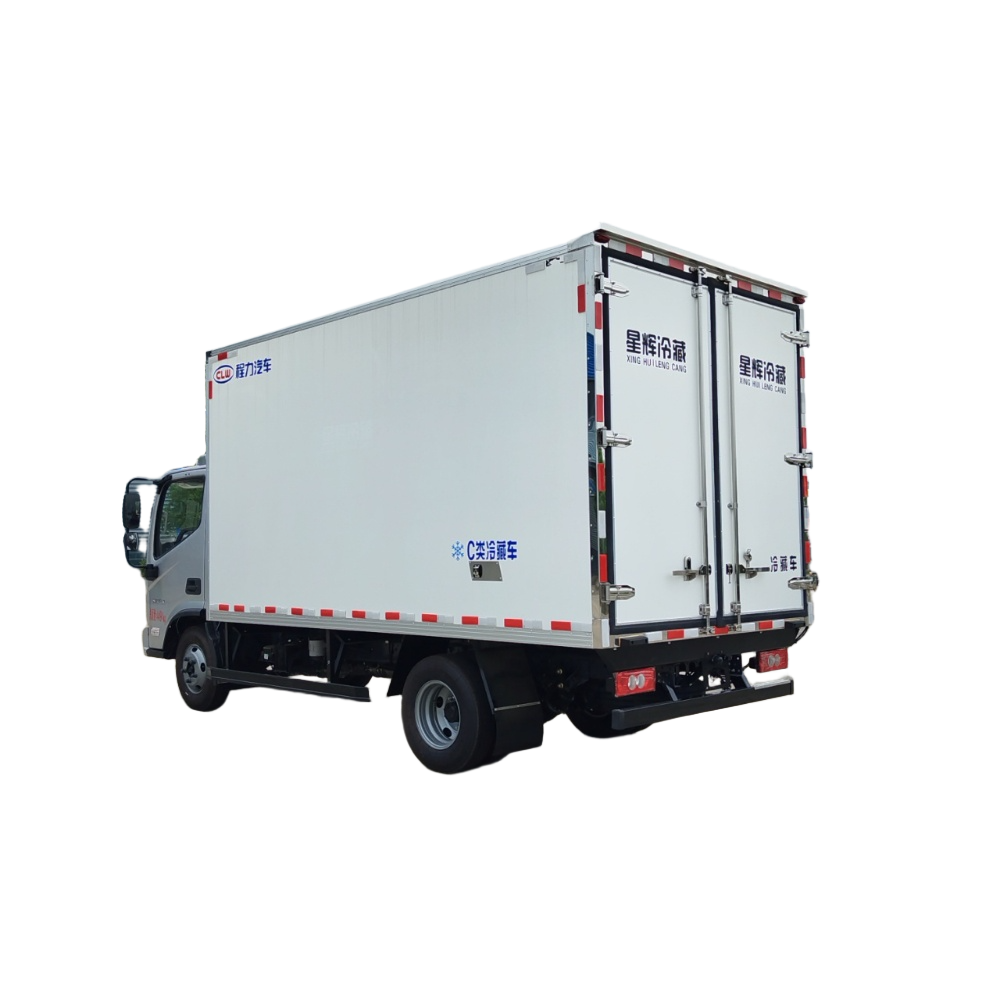

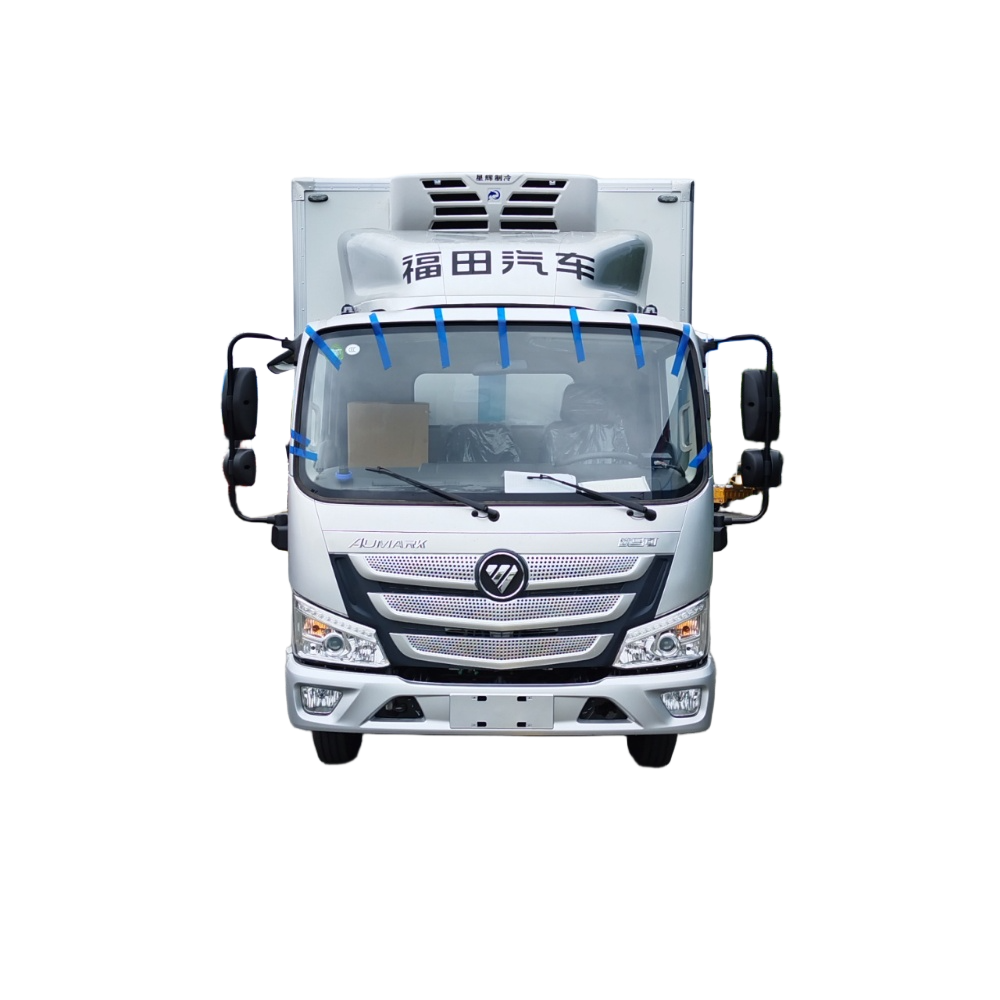

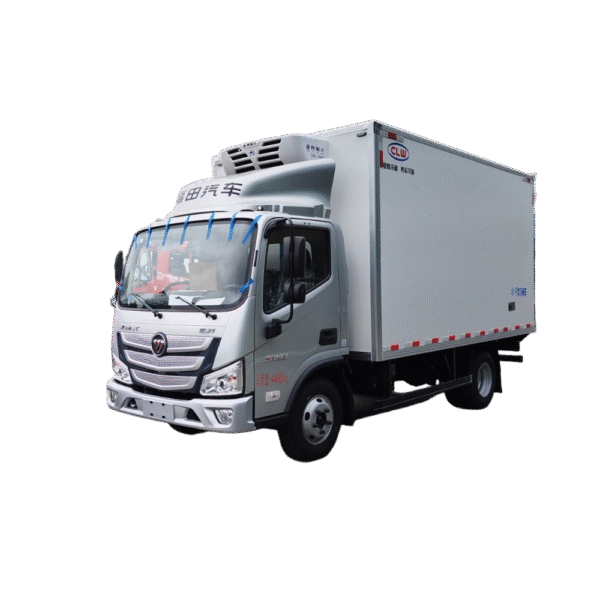

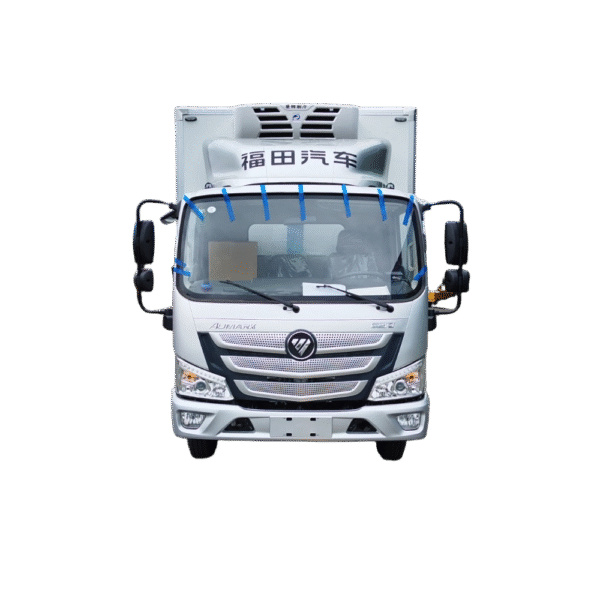

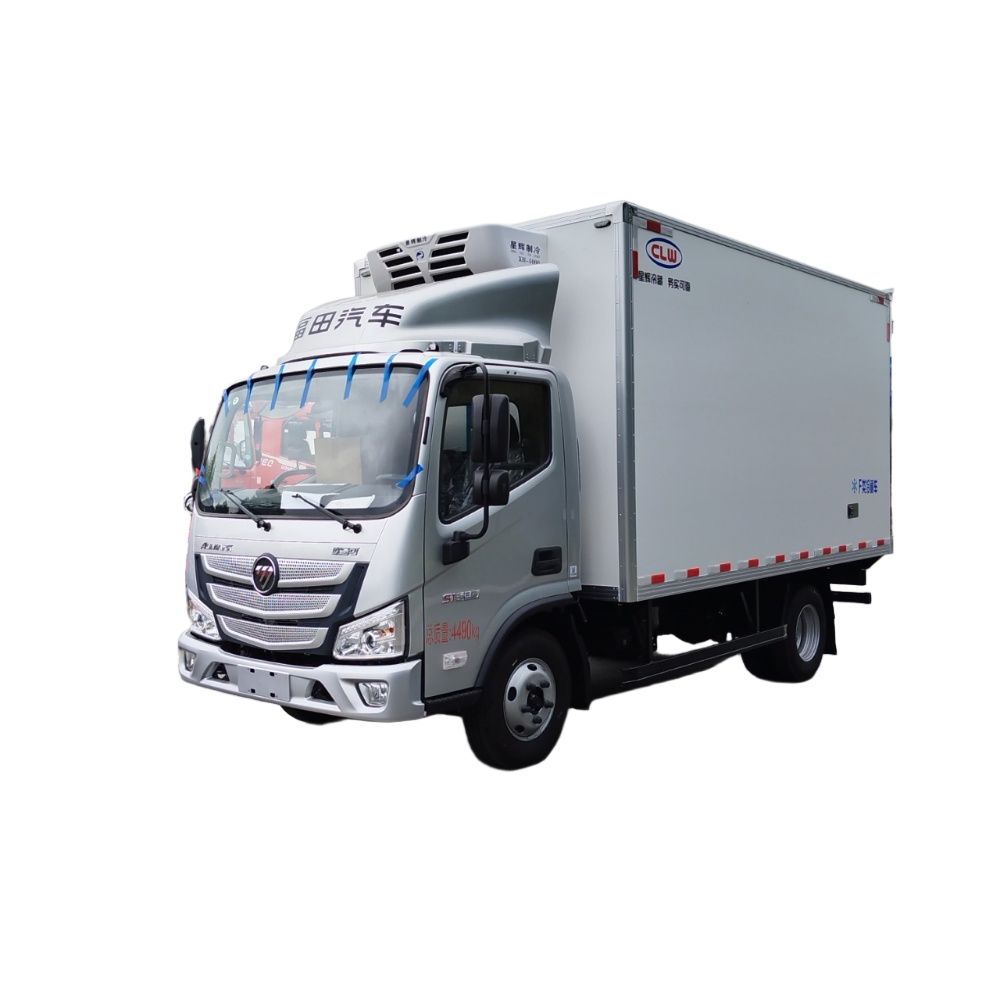

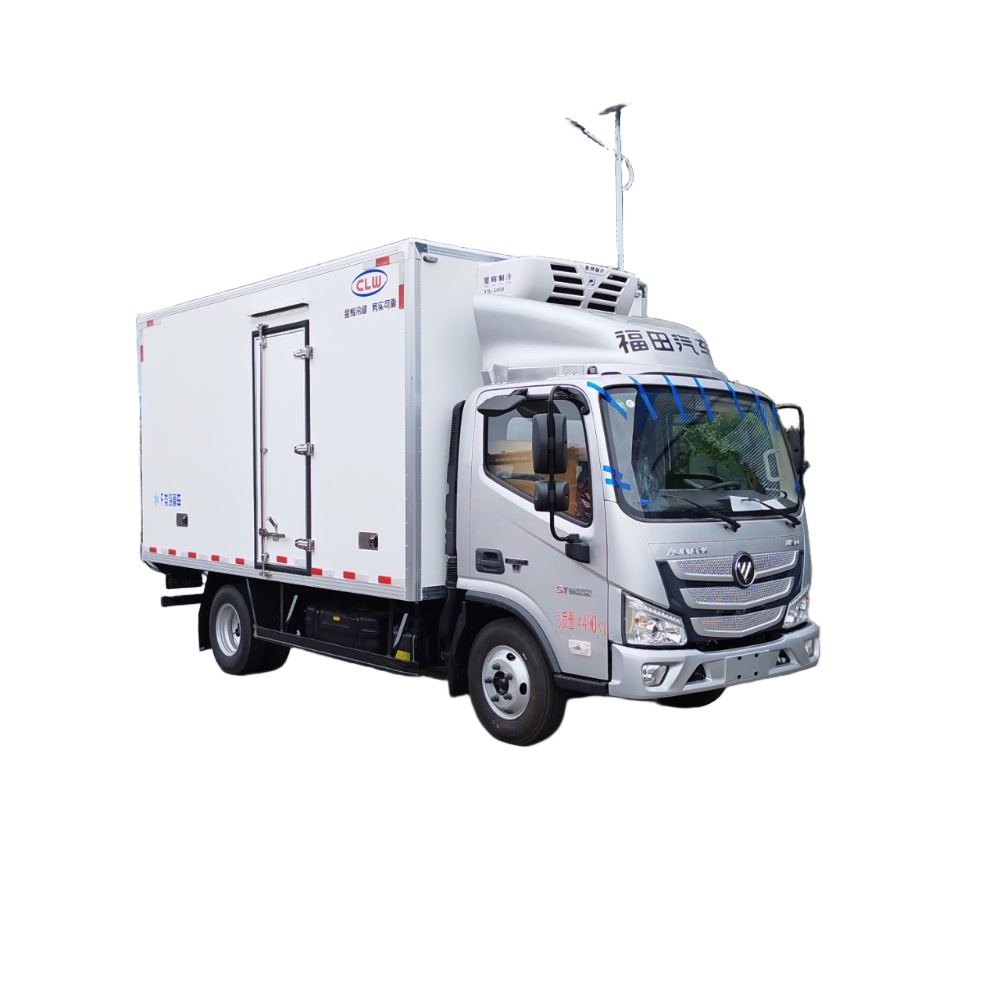

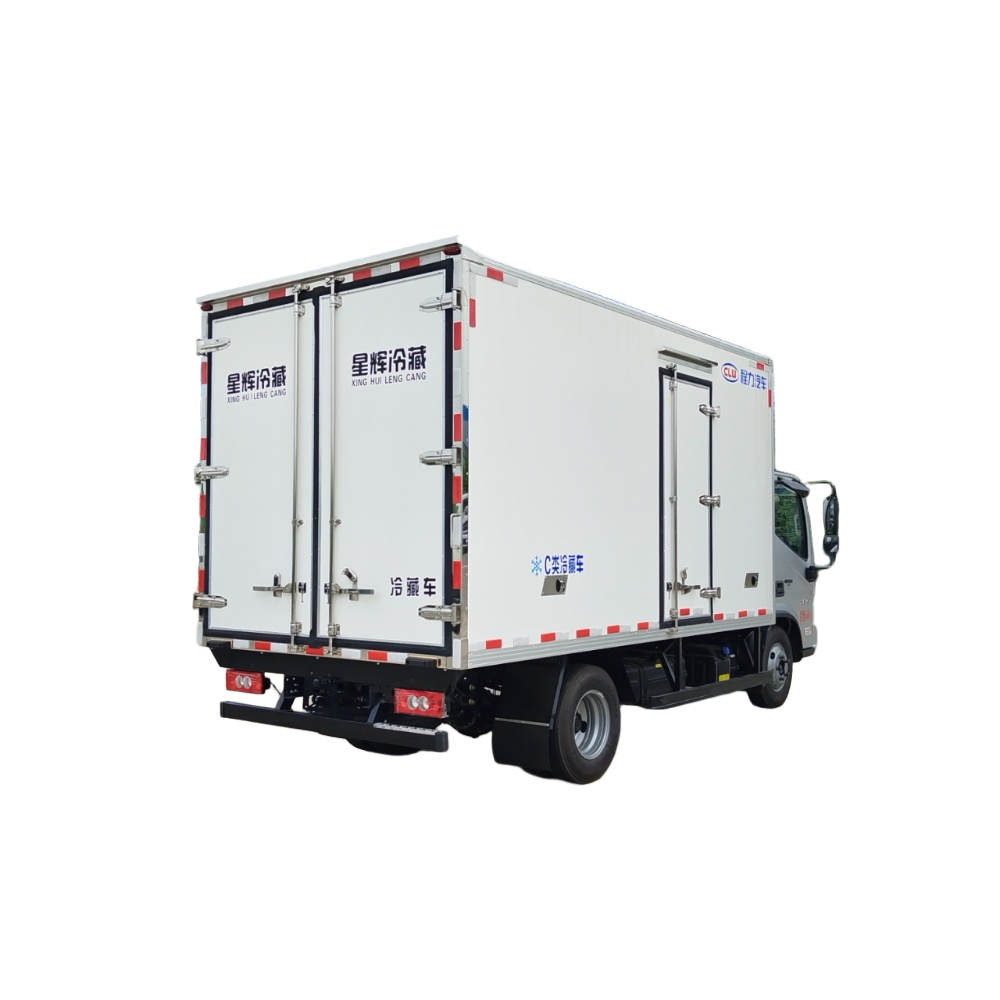

Foton Aumark S1 Refrigerated Truck (4.2m)

Vehicle Specifications

Overall Dimensions (L×W×H): 5995×2260×3250mm

Cargo Compartment Dimensions (L×W×H): 4080×2100×2100mm

Cargo Volume: 18 cubic meters

Engine Model: 4F25TC (Foton OUKANG 158 HP / 2499ml displacement)

Chassis Configuration

Cab: Tiltable 1880mm wide cab

Transmission: Wanliyang 6-speed manual

Electrical System: 24V battery

Steering: Power-assisted steering

Braking System: Air brakes with spring parking brake, ABS, front disc/rear drum

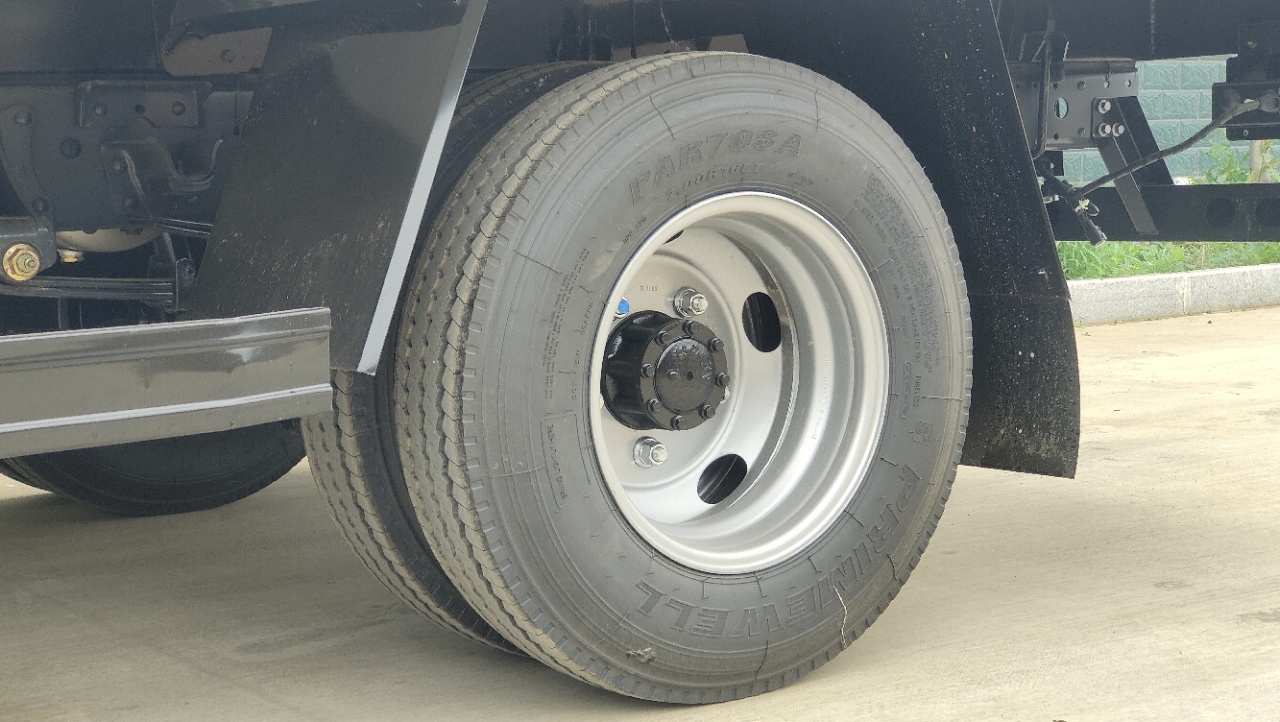

Tires: 7.00R16 tubeless radial tires

Fuel Tank: 80L capacity

Comfort & Features:

Air conditioning

Telematics terminal

Central locking

Power windows

Remote keyless entry

Cruise control

MP3 audio system

Multi-function steering wheel

Wheelbase: 3360mm

Body Configuration

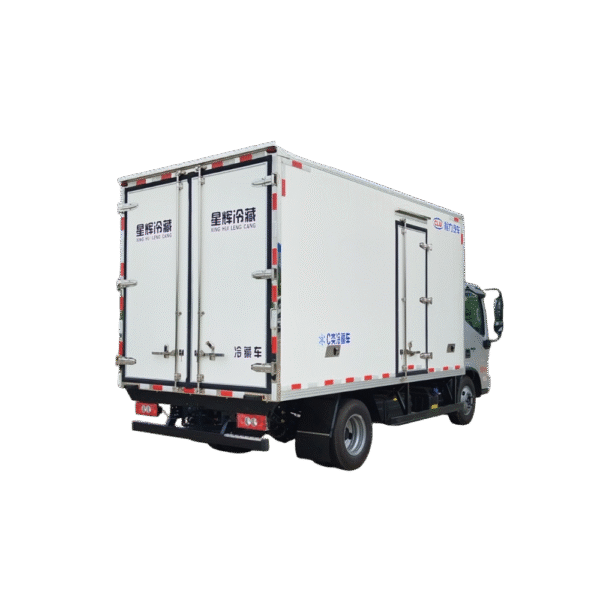

(1) Insulated Cargo Box:

Steel-wood composite structure with thermal break technology

Galvanized steel pipe framework

Inner/outer walls: Premium fiberglass (non-reflective, excellent thermal insulation, high rigidity, oxidation-resistant)

Core insulation: 8mm XPS (extruded polystyrene) foam

High-strength adhesive + hot-press molding (automated glue application ensures uniform adhesion, prevents bulging, and enables rapid panel production)

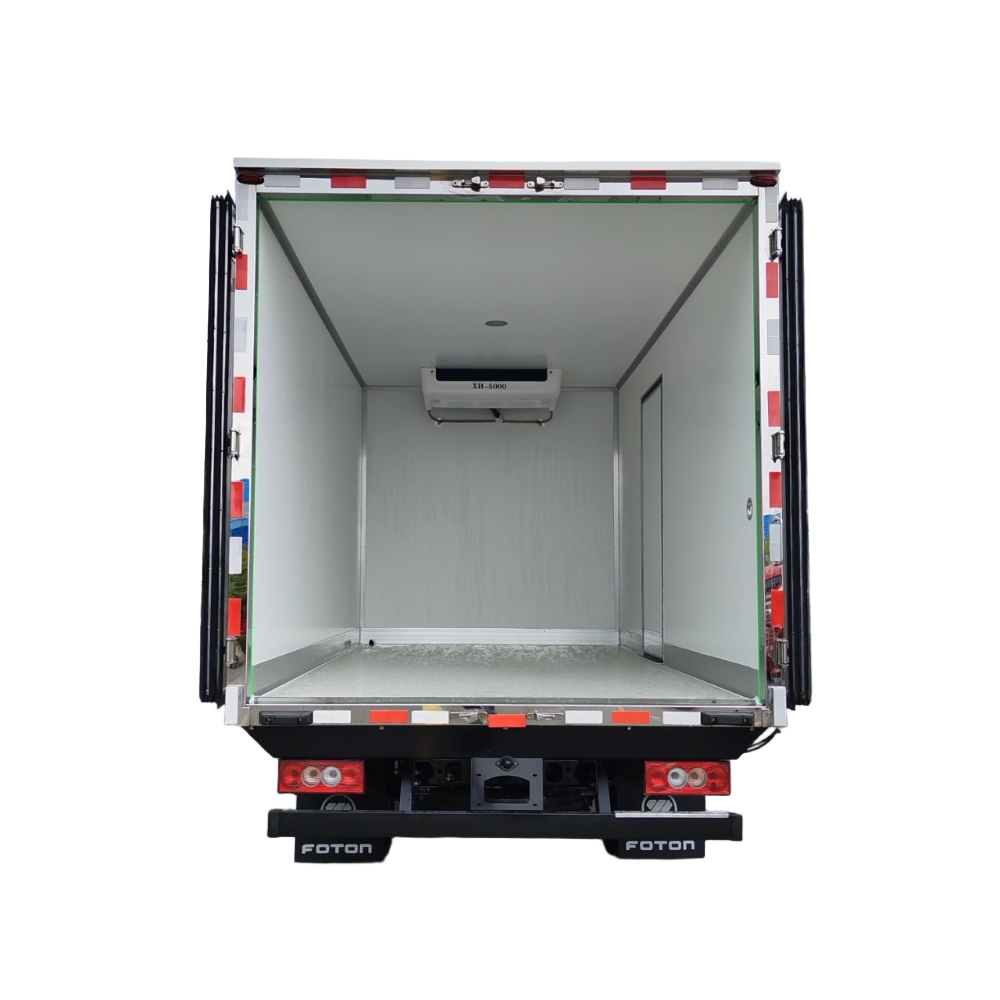

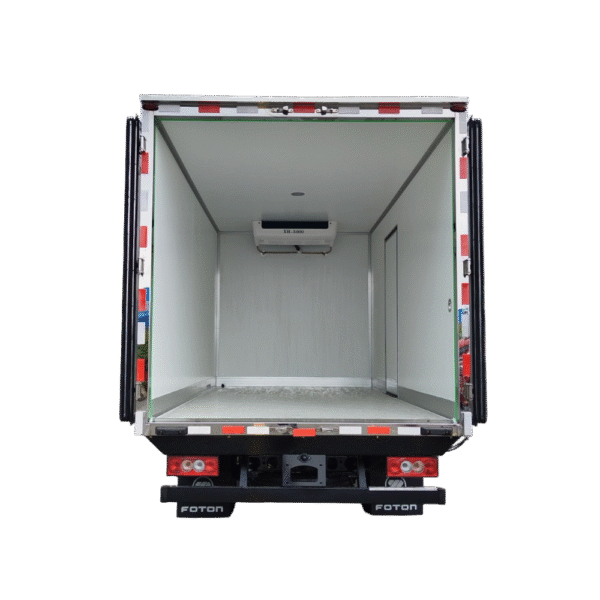

(2) Interior & Sealing:

Floor: Plastic-steel anti-slip plate

15cm interior side skirts

Reinforced right-angled edge wrapping

Front drainage ports

Labyrinth-pattern rubber door seals

Polished stainless steel door frame

(3) Compartment Accessories:

Reinforced aluminum alloy perimeter trim

Stainless steel corner protectors

Stainless steel door locks & hinges

Stainless steel latches & hardware

Energy-efficient LED interior lighting
