Description

Product Details Introduction

Foton Aoling Refrigerated Truck (4.2m)
Overall Dimensions (L×W×H): 5995×2260×3265 mm
Cargo Compartment Dimensions (L×W×H): 4085×2100×2100 mm
Engine Power/HP: 102 kW / 145 HP, 2499L displacement
Engine Model: Yunnei Power (YN25AL)

Chassis Configuration:

1880mm tiltable cab

Wanliyang 6-speed manual transmission

4.5-ton rear axle

7.00R16LT 8PR tires

Air brakes (spring brake)

Power steering

Cruise control

Multi-function 4-way adjustable steering wheel

Central locking, power windows, remote key

Automatic brake slack adjuster

Adjustable headlights

Factory-installed air conditioning

12V dual batteries (80Ah × 2)

Straight-through frame

Leaf spring suspension: 3/5+2

Wheelbase: 3360 mm

Body Configuration:
(1) The refrigerated compartment adopts a steel-wood hybrid structure with thermal break insulation technology. The frame uses galvanized steel pipes, with inner/outer walls made of high-quality fiberglass (non-light-absorbing, excellent thermal insulation, high rigidity, oxidation-resistant). The middle layer is filled with 8mm-thick XPS extruded polystyrene foam, bonded by high-strength adhesive and hot-press molded (fully automated glue-spraying press ensures even adhesive distribution, prevents bulging, and enables rapid panel forming).

(2) The floor is made of wear-resistant plastic-steel checker plate, with side skirts inside the compartment, right-angled edge wrapping, front drainage holes, labyrinth-style rubber door seals, and polished stainless steel door frames.

(3) Compartment Accessories:

Reinforced aluminum alloy edge trim

Stainless steel corner guards

Stainless steel door locks & hinges

Stainless steel locking mechanisms & hardware

Energy-efficient LED interior lighting

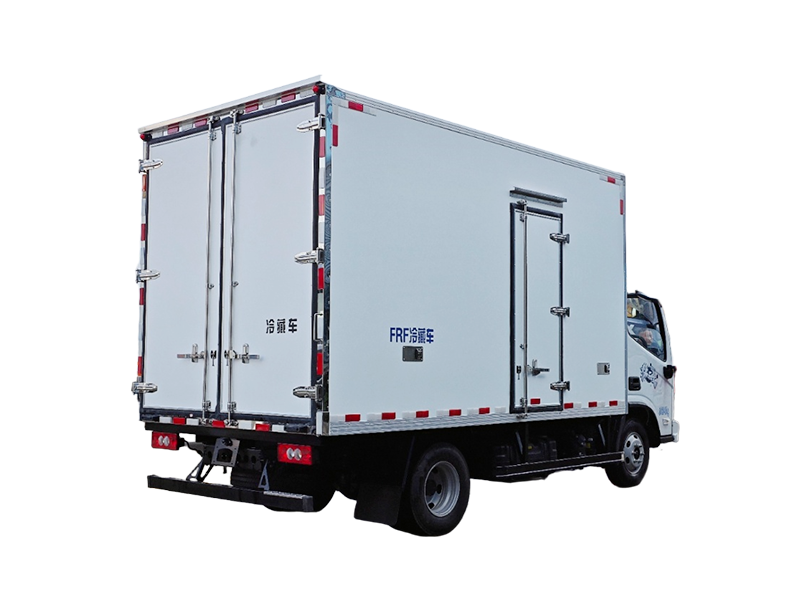

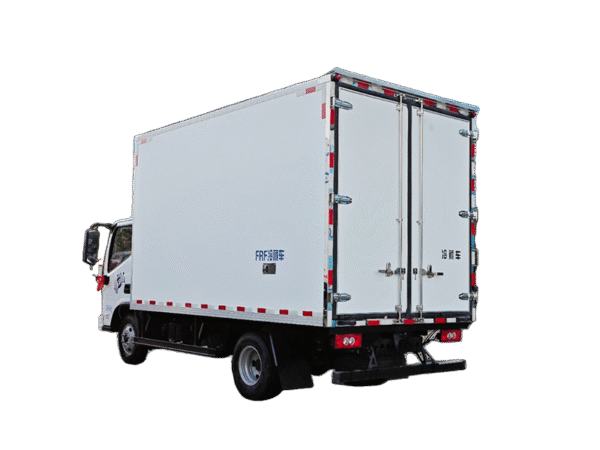

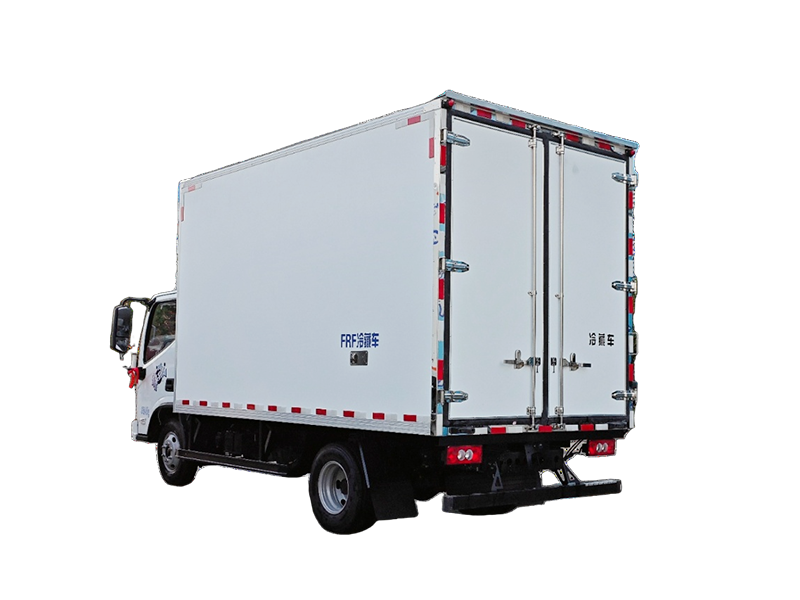

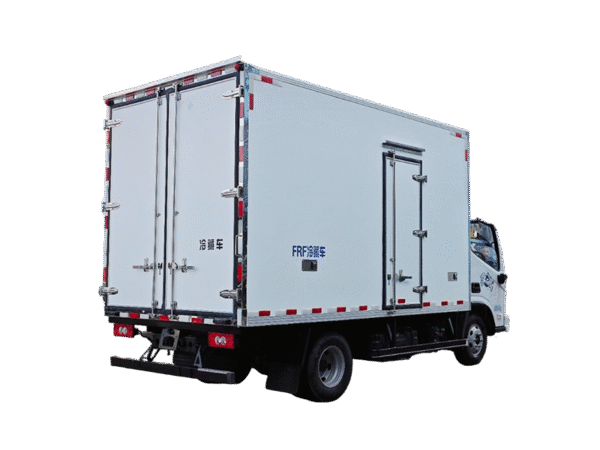

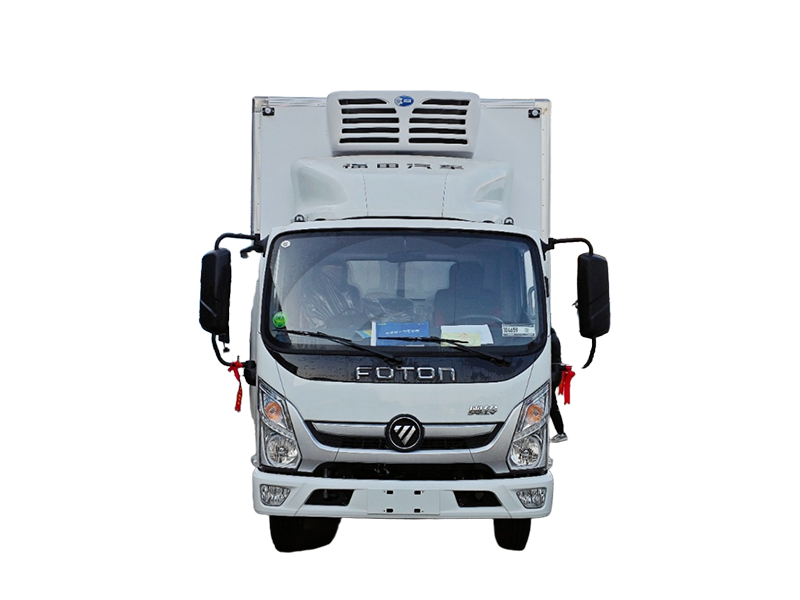

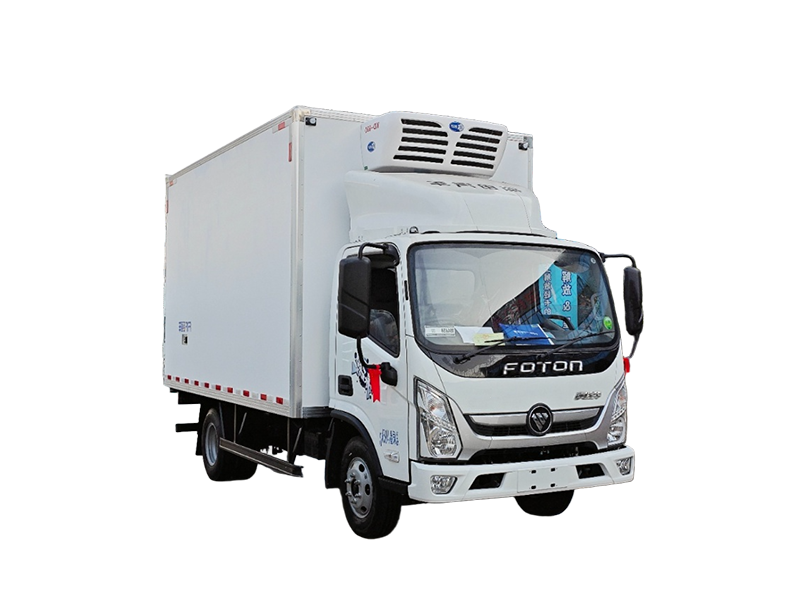

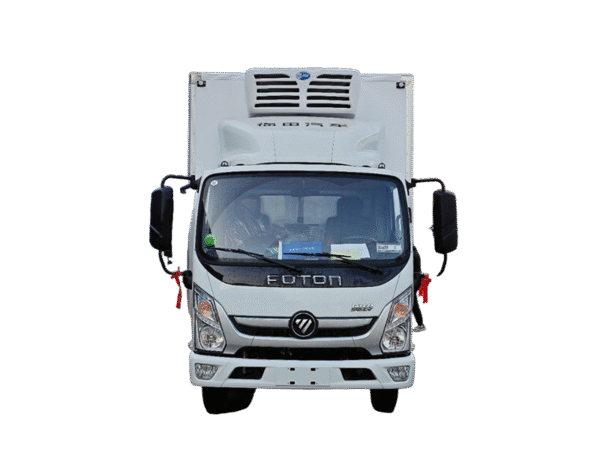

Product Details Display
