Description
Product Details Introduction
Vehicle Introduction and Specific Parameters：
| Foton 7 Cubic Meter Mixer Truck Chassis Parameters | |||
| Vehicle Name: | Foton 7 Cubic Meter Mixer Truck | Chinese Brand: | Foton 7 Cubic Meter Mixer Truck |
| Engine: | Weichai 160 Horsepower | Displacement (mJ): | 3767 |
| Dimensions: | 7225x2320x3700 | Mixing Capacity: | 7 Cubic Meters (7 Cubic Meter Mixer Truck) |
| Gross Weight: | 15800 (Kg) | Number of Spring Leaves: | 13/14/12, Left 14 Right 13 / Left 14 Right 13 / 1 |
| Curb Weight: | 6800 (Kg) | Rated Weight: | 8805 (Kg) |
| Axle Load: | 5600/12000 | Wheelbase: | 3900 |
| Number of Axles: | 2 (Two Axles) (4×2) | Maximum Speed: | 83 (km/h) |
| Transmission: | Dongfeng 5-Speed | Front/Rear Axle: | 3.6 Ton Front Axle, 9 Ton Tandem Rear Axle |
| Number of Tires: | 6 | Tire Specification: | 9.00-R20 Steel Wire Tire |
| Front Track: | 1759 | Rear Track: | 1728 |
| Chassis Emission Standard: | GB17691-2005 National V, GB3847-2005 (National V Standard – Easy Registration) | ||
Mixer Truck Tank Parameters：
| Media Material: | Alloy Steel (Special Wear-Resistant Material – Increases Overall Lifespan by More Than 3 Times) | Drum Material: | 16Mn Steel 6mm Alloy Steel |
| Blade Material: | Baosteel 520 5mm Alloy Steel (Equipped with Wear-Resistant Strips for Extended Lifespan) | Head Material: | 8mm Alloy Steel |
| Reducer: | German ZF Reducer / Italian Bonfiglioli PMP (Fully Imported) | Hydraulic System: | German Rexroth, American Eaton / American Sauer / Italian PMP (Fully Imported) |
| Water Supply System: | 400L Water Tank with Air Pressure Water Supply | Cooling System: | Kaidi Radiator / Xinxiang Radiator |
| Feeding Speed: | Feeding Speed m³/min ≥ 3 | Discharge Speed: | Discharge Speed m³/min ≥ 2 |
| Residual Discharge Rate: | Residual Discharge Rate (%) ≤ 0.5 | Operation Method: | Three-Way Operation from Both Sides and the Cab |
| Discharge Range: | 180° Up, Down, Left, and Right Height Adjustment | Safety Device: | Equipped with Leakage Receiving Device |
Advantages of the Mixing Tank Body：
| Reducer: | Internationally imported brands, such as German Rexroth, Italian PMP, and Italian Bonfiglioli, with strong load-bearing capacity and low failure rate. |
| Hydraulic System: | All equipped with internationally renowned hydraulic systems, including German Rexroth, American Eaton, American Sauer, and Italian PMP, ensuring more stable tank operation, faster discharge speed, and lower residual rate! |
| Supporting Facilities: | The vehicle is designed for convenient and fast loading and unloading, with multi-functional operation methods, saving time, effort, and worry! |
| After-Sales Service: | The tank reducer comes with a one-year or 30,000-kilometer warranty. |

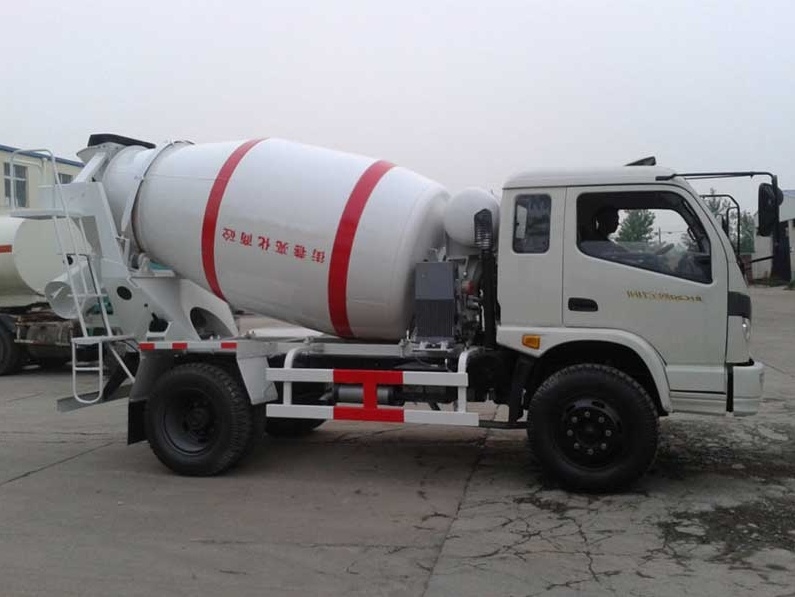

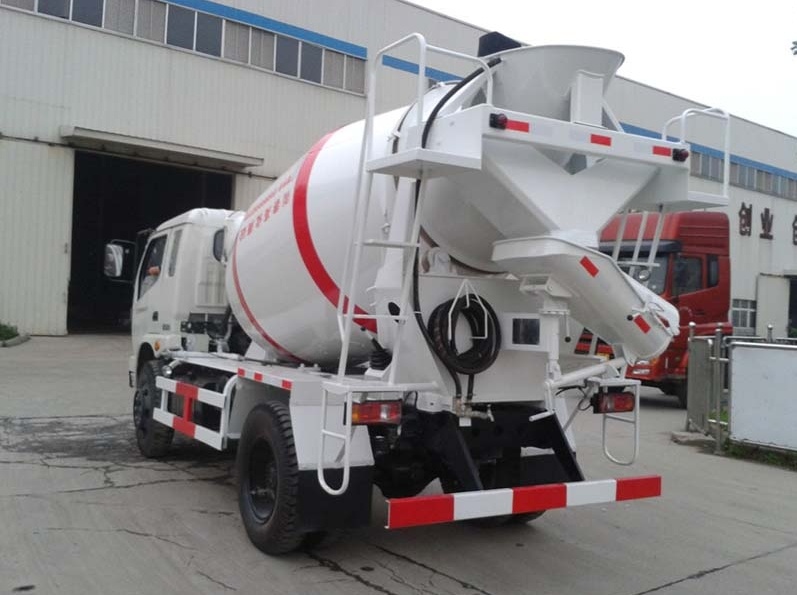

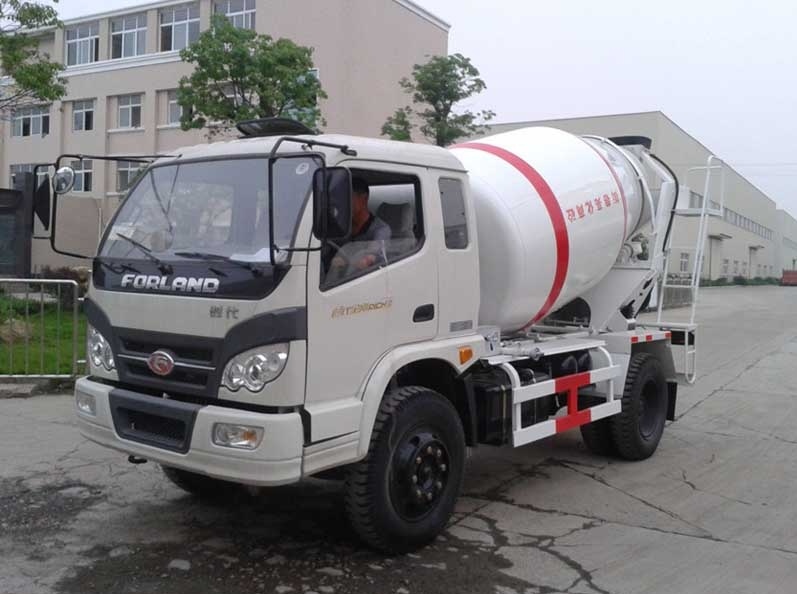

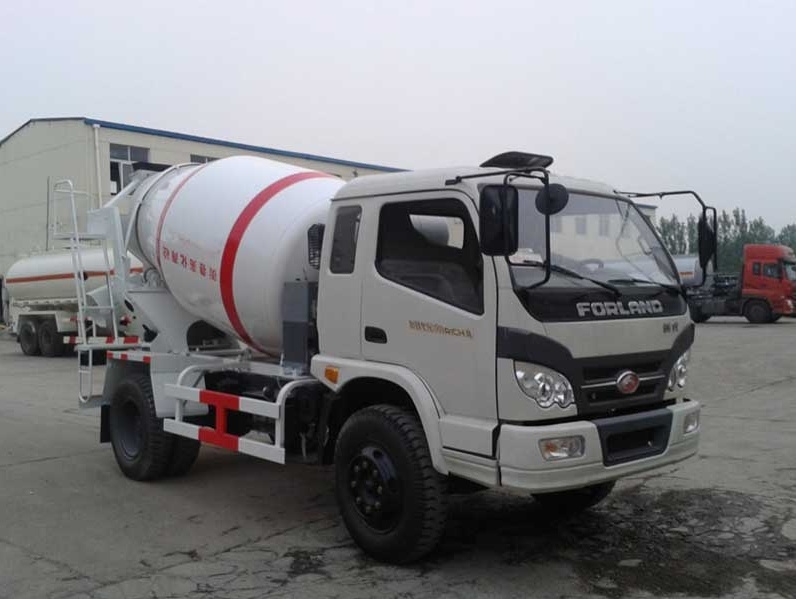

Product Details Display
