Product Details Introduction
Performance Characteristics：

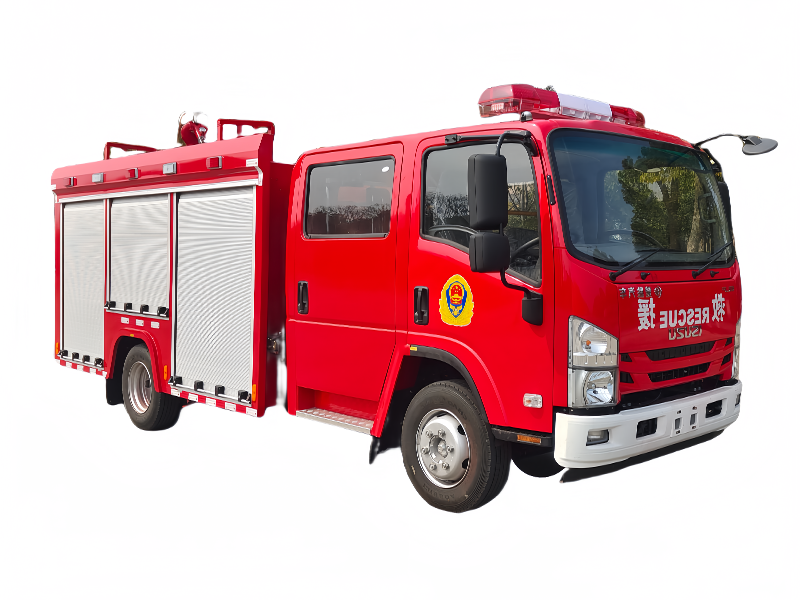

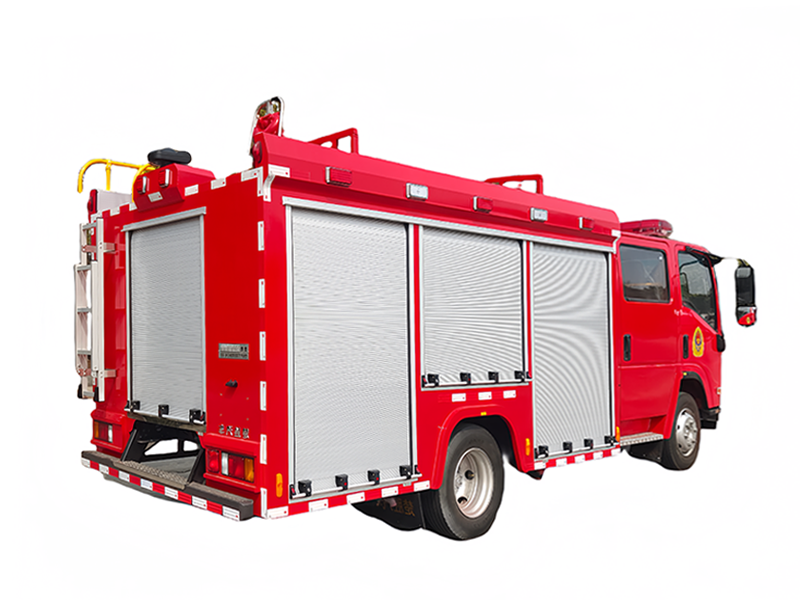

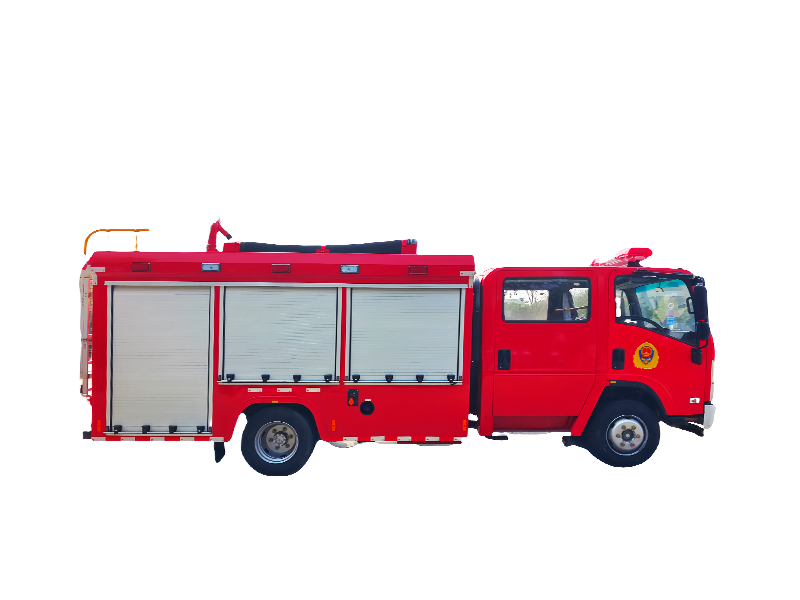

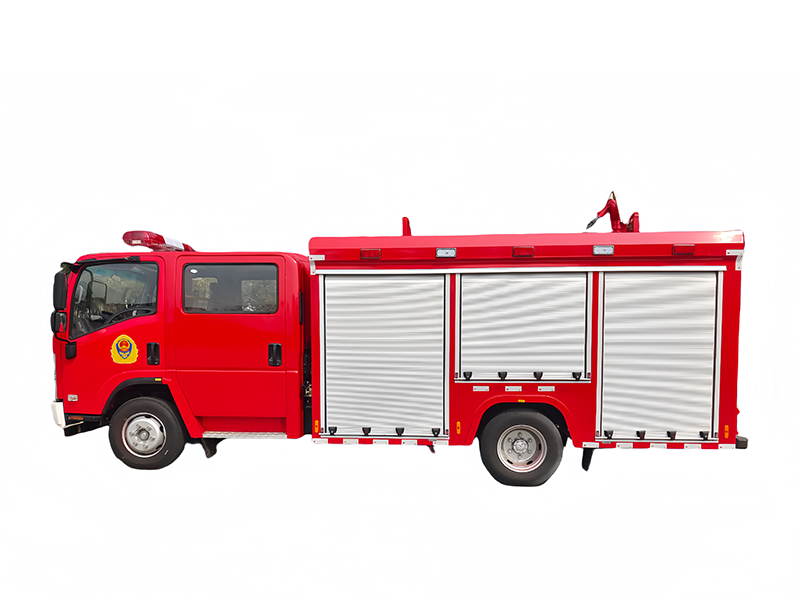

5100GXFSG/PM40/Q6 Water Tank/Foam Fire Truck is built on a specially designed chassis from Qingling, compliant with the National VI emission standard, and equipped with an engine power of 151 kW. It features a CB10/40 low-pressure vehicle fire pump. On the roof, it is equipped with a PS8/40 fire monitor. This fire truck is reliable in performance, practical in functionality, and user-friendly in operation. The vehicle\’s control system adopts an electrical control system, with an operation control panel installed in the pump room. The buttons and switches are ergonomically designed for convenient and intuitive operation.
Parameter Configuration :
| No. | Name | Parameters: CSC5100GXFSG/PM40/Q6 Water Tank/Foam Fire Truck |
| 1 | Overall Dimensions (mm) | 7025x2300x3050 |
| 2 | Chassis Model | Qingling QL1110AMKAY4X2 |
| 3 | Wheelbase (mm) | 3815 |
| 4 | Engine Model | Isuzu 4KH1-TCG60 |
| 5 | Engine Power / Horsepower | 151kw / 205 HP |
| 6 | Crew (including driver) (persons) | Modified double row 3+3 persons |
| 7 | Fire Extinguishing Agent Capacity (kg) | Water >2950Kg, Foam >900Kg |
| 8 | Fire Pump Flow Rate | Normal pressure pump 40L/s @ 1.0MPa |
| 9 | Fire Monitor Flow Rate, Range | 32L/s @ 0.8MPa, Water >60m, Foam >48m |
Product Details Display
