Performance Characteristics：

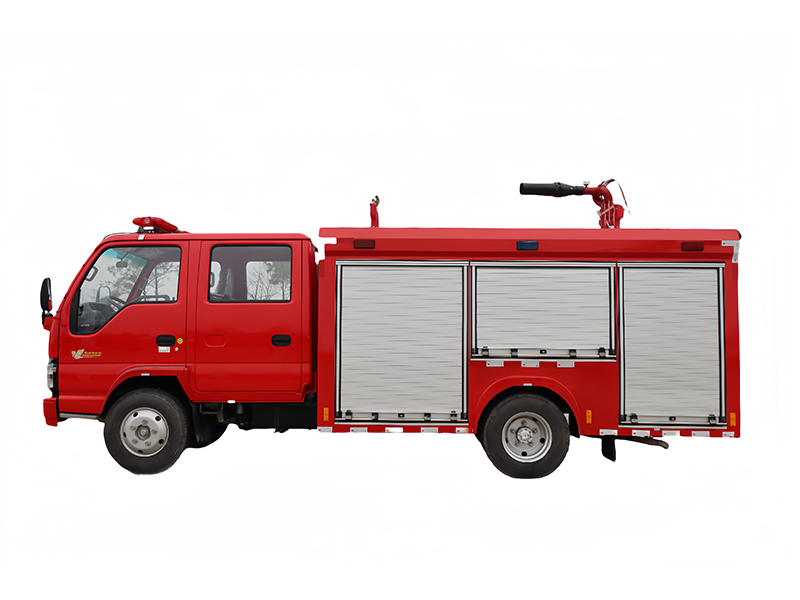

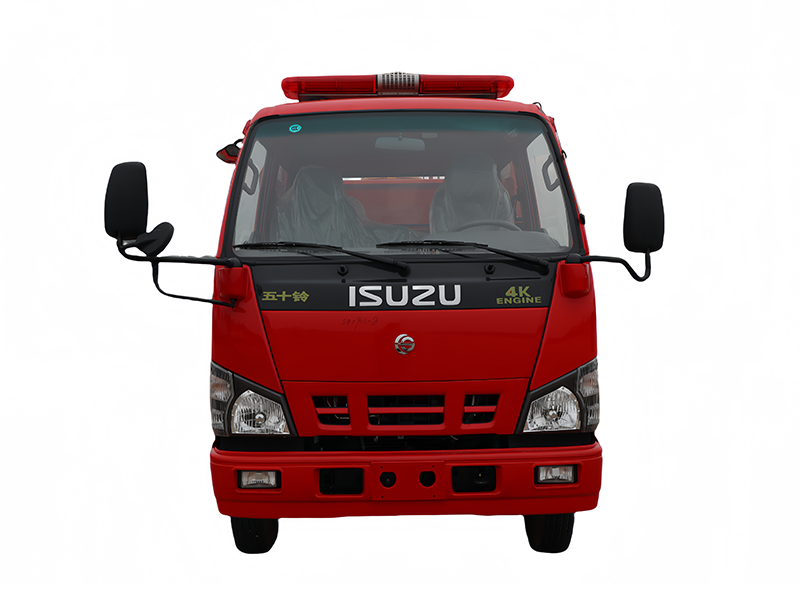

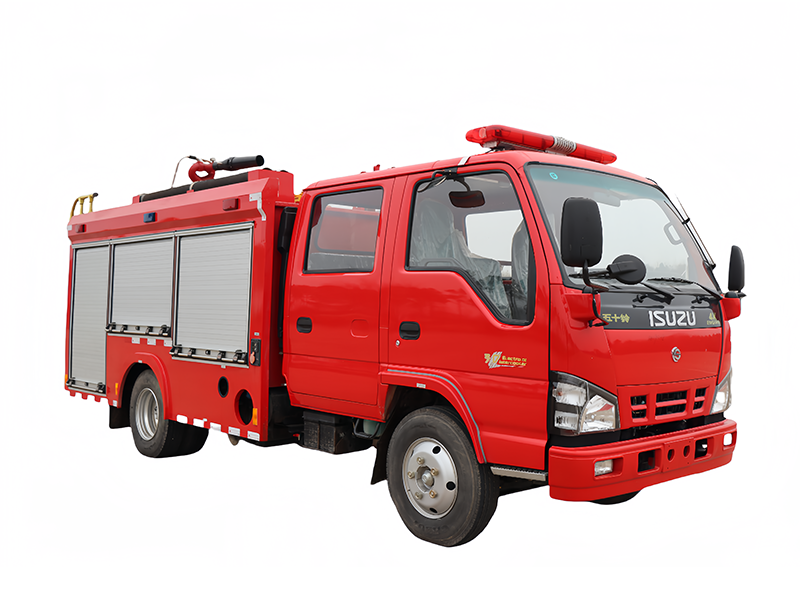

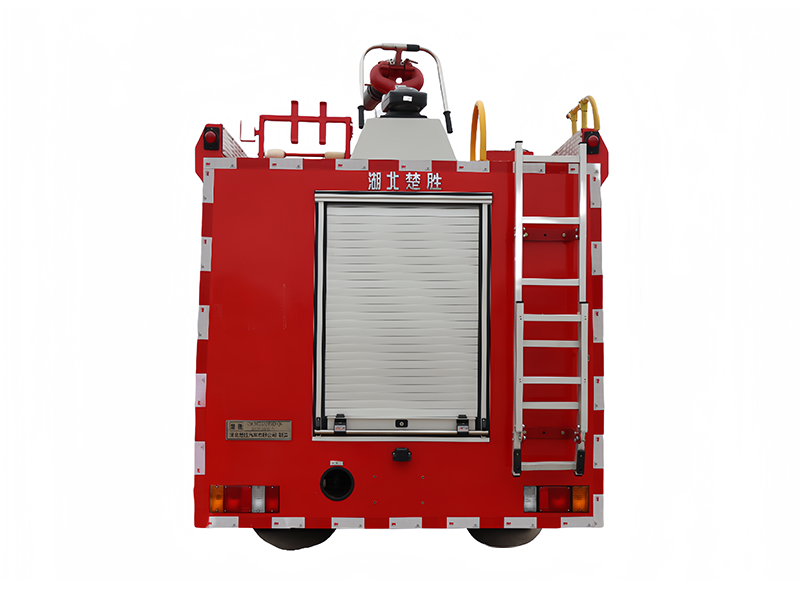

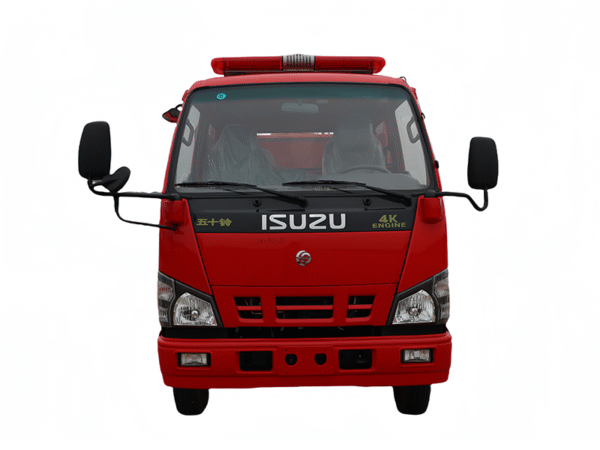

5072GXFSG/PM20/Q6 Water Tank/Foam Fire Truck is built on a specially designed chassis from Qingling, compliant with the National V emission standard, and equipped with an engine power of 88 kW. It features a CB10/30 low-pressure vehicle fire pump. On the roof, it is equipped with a PS8/30 fire monitor produced by Chengdu West Fire Machinery Co., Ltd. This fire truck is reliable in performance, practical in functionality, and user-friendly in operation. The vehicle\’s control system adopts an electrical control system, with an operation control panel installed in the pump room. The buttons and switches are ergonomically designed for convenient and intuitive operation.
Parameter Configuration :
| No. | Name | Parameters: 5072GXFSG20/06 Water Tank Fire Truck | Parameters: 5072GXFPM20/06 Foam Fire Truck |
| 1 | Overall Dimensions (mm) | 6220x1960x2840 | 6220x1960x2840 |
| 2 | Chassis Model | Qingling | Qingling |
| 3 | Wheelbase (mm) | 3360 | 3360 |
| 4 | Engine Model | Isuzu | Isuzu |
| 5 | Engine Power / Horsepower | 88kw / 120 HP | 88kw / 120 HP |
| 6 | Crew (including driver) (persons) | Original double row 2+3 persons | Original double row 2+3 persons |
| 7 | Fire Extinguishing Agent Capacity (kg) | Water >1900Kg | Water >1200Kg, Foam >686Kg |
| 8 | Fire Pump Flow Rate | Normal pressure pump 30L/s @ 1.0MPa | Normal pressure pump 30L/s @ 1.0MPa |
| 9 | Fire Monitor Flow Rate, Range | 30L/s @ 1.0MPa, Water >60m | 24L/s @ 0.8MPa, Water >55m, Foam >45m |
