Product Details Introduction

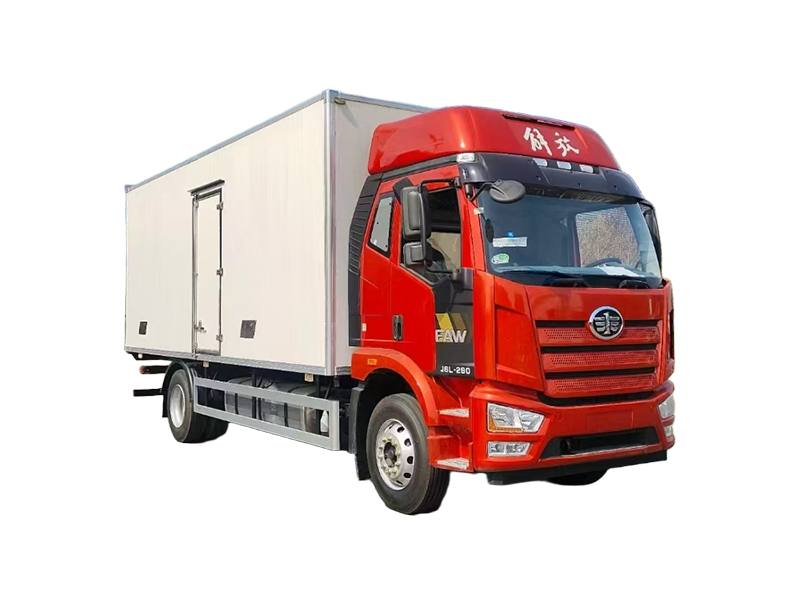

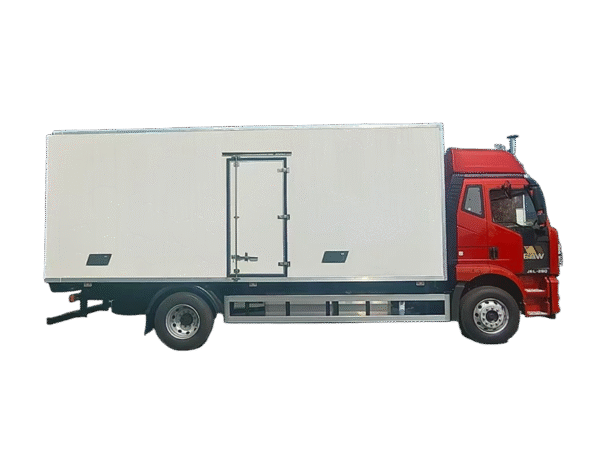

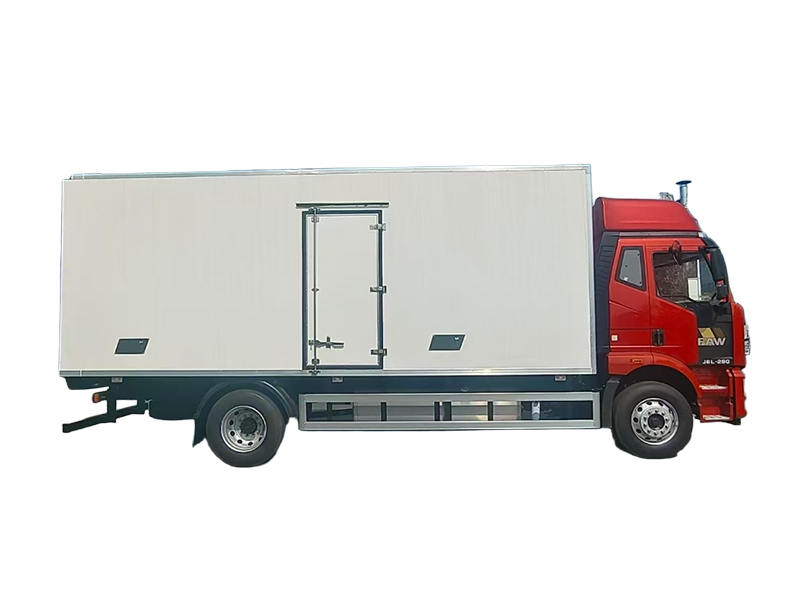

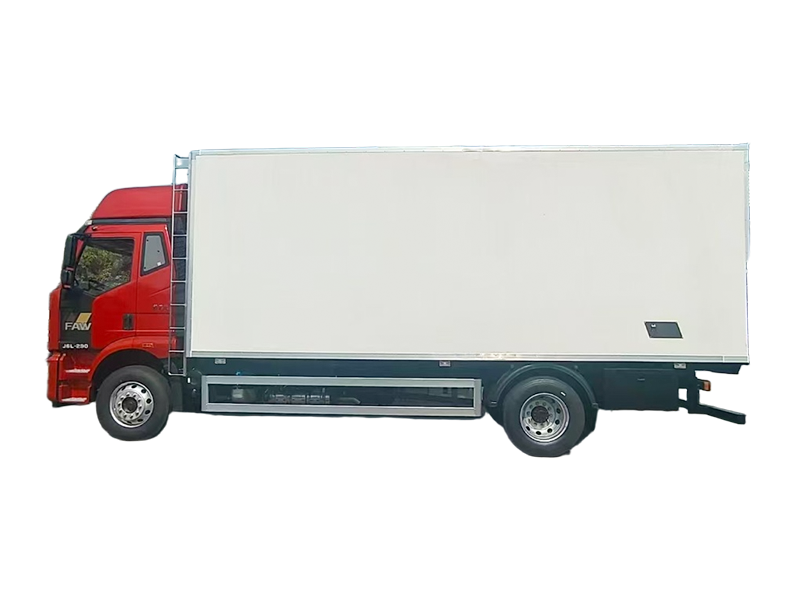

FAW J6L 290HP Refrigerated Truck

Chassis Configuration

2025 J6L Elite Edition Manual Transmission

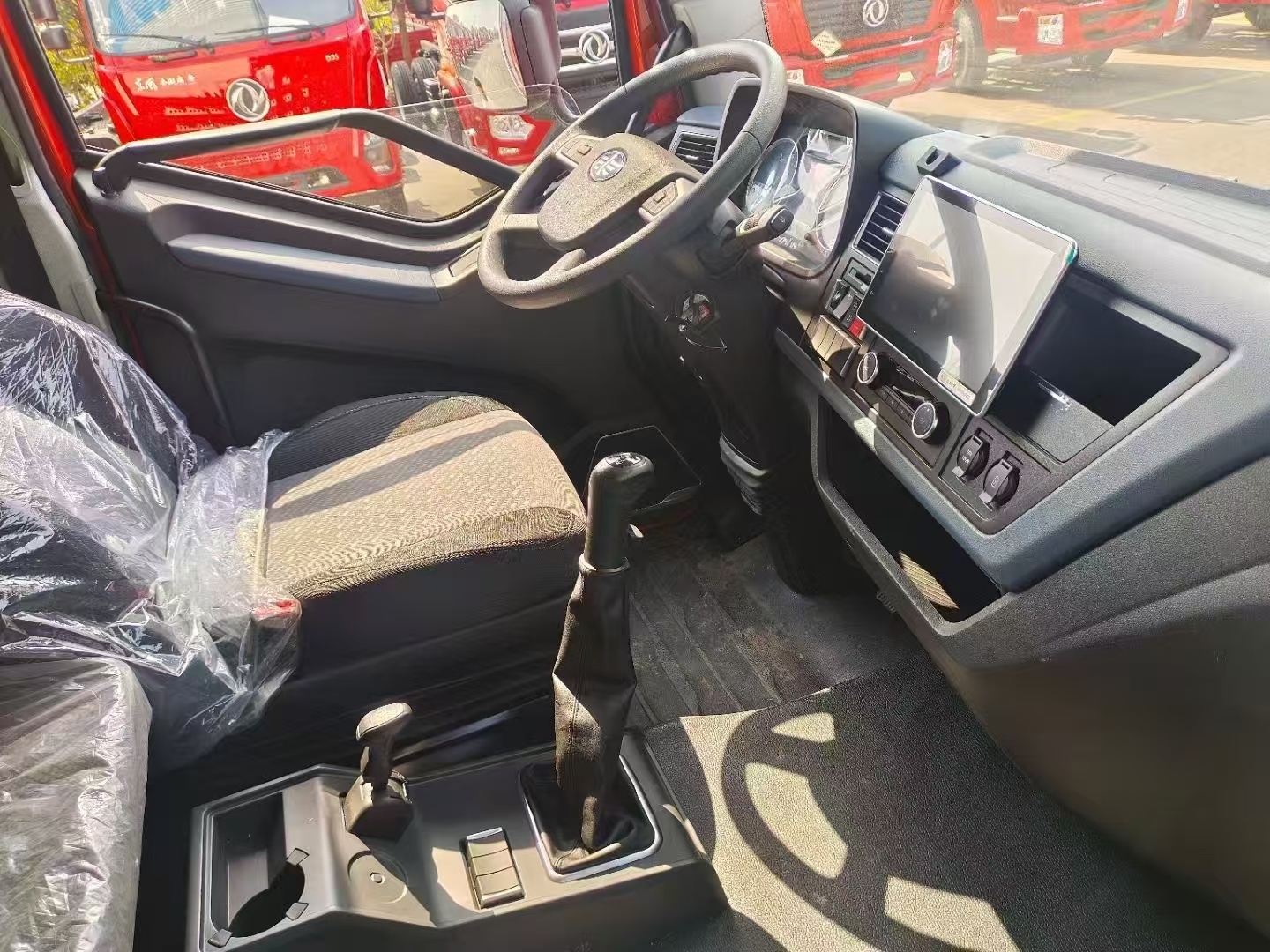

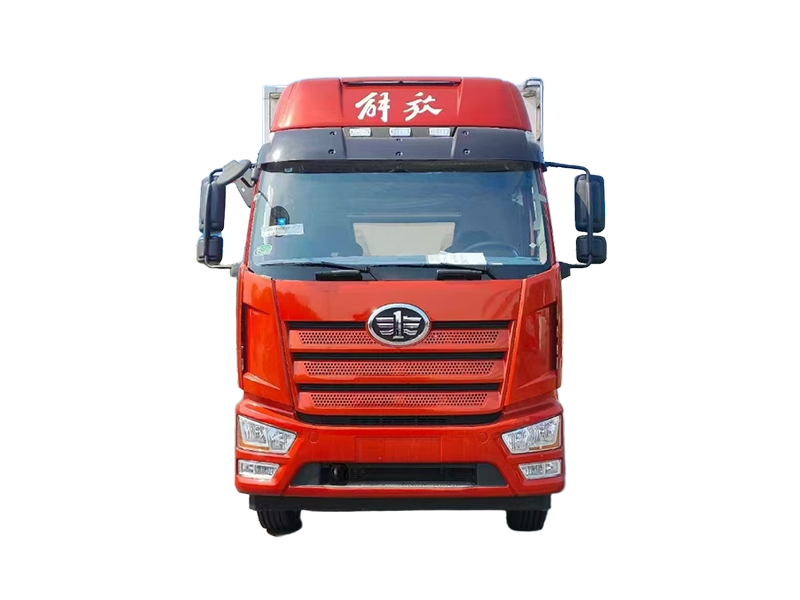

Cab: Full-floating high-roof sleeper cab with flat floor, FAW Red metallic paint

Digital Dashboard + Power windows + Electrically heated mirrors

Ventilated Driver’s Seat (Air-adjustable lumbar support, dual armrests)

Infotainment: 10-inch touchscreen with 360° camera + USB + Phone mount

Comfort: 760mm integrated sleeper berth + Automatic AC + Central locking

Engine: Deutz CA6DH1A29E65, 290HP, Euro VI compliant

Transmission: CA8TAX110FS1 8-speed gearbox, 4.111 axle ratio

Suspension: 7/7+3 parabolic leaf springs, 4-point cab suspension

Wheels: 275/80R22.5 tubeless tires (18-ply rating)

Fuel System: 600L aluminum tank + Long-life fuel filter

Safety: ABS + Cruise control + Speed limiter (89km/h)

Extended Maintenance: Engine/gearbox/axle 100,000km oil change intervals

Others: 50L urea tank, 120Ah battery, 75A alternator, e-controlled fan

Body Configuration

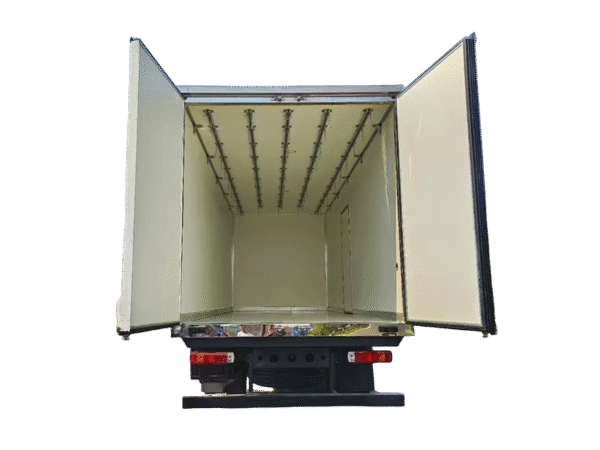

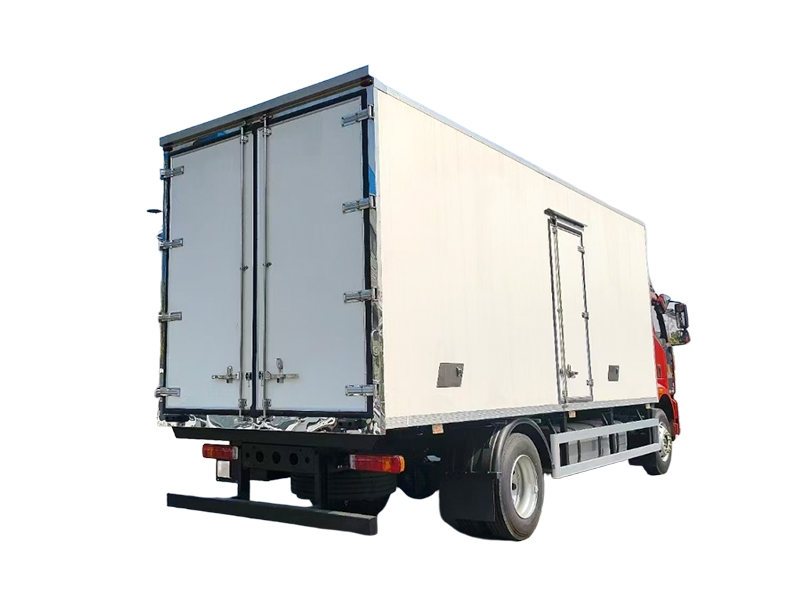

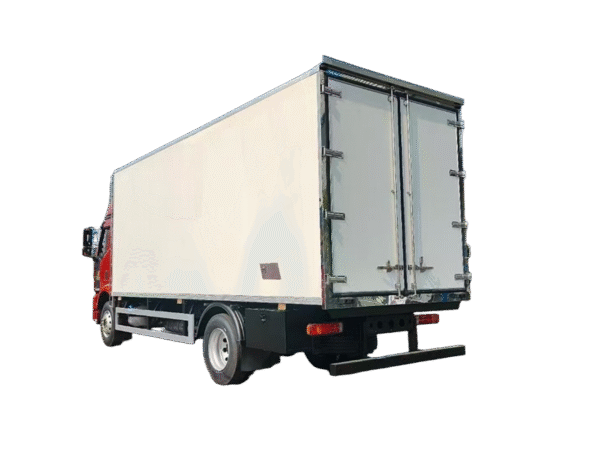

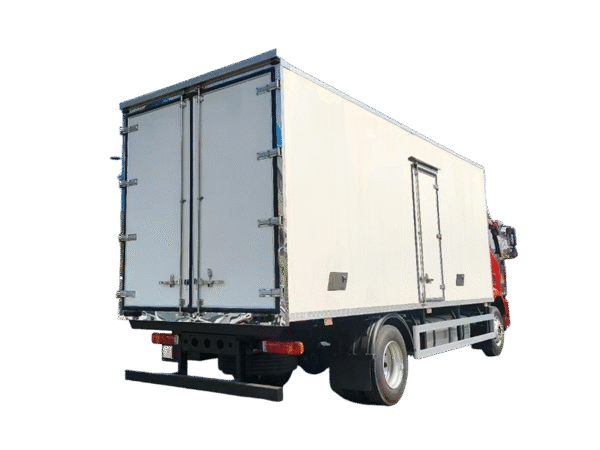

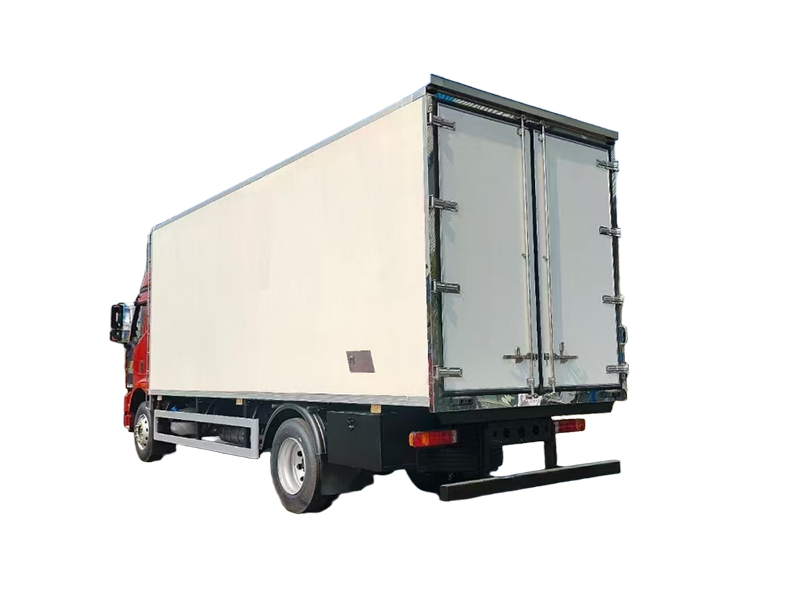

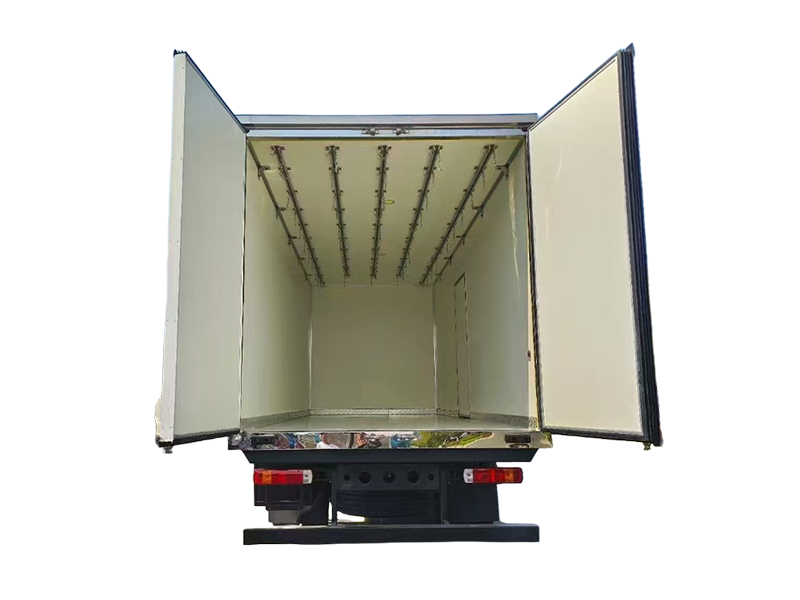

Premium Refrigerated Box:

Material: 3.0mm fiberglass reinforced plastic (FRP) inner/outer walls

Insulation: 8cm thick polyurethane foam core (A-grade cold chain standard)

Structure: \”Z\”-shaped high-strength manganese steel subframe

Doors: 304 stainless steel hinges/locks + 5-layer EPDM rubber seals

Finishing: Aluminum alloy corner guards + LED interior/courtesy lights

Ventilation: Floor-mounted air channels + Right-side access door + Rear double doors

Optional Refrigeration Units

Brands: Kaixue (Domestic), Carrier, Thermo King (International)

Temperature Range: Customizable from -20°C to +20°C

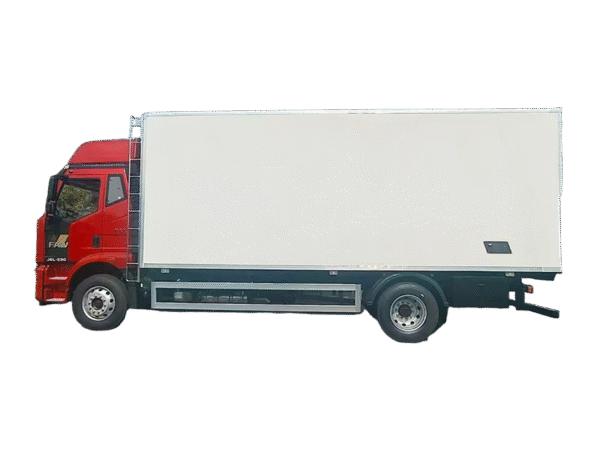

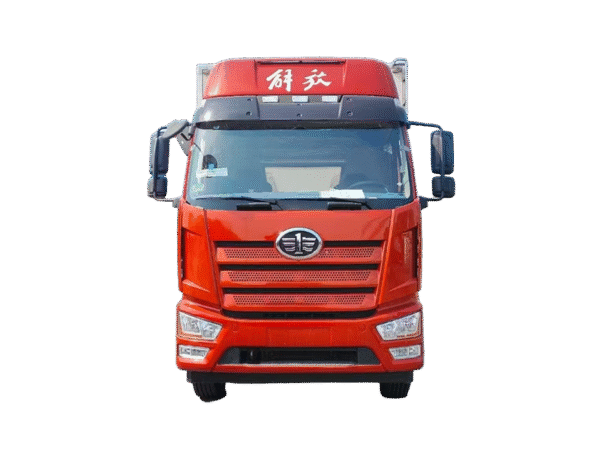

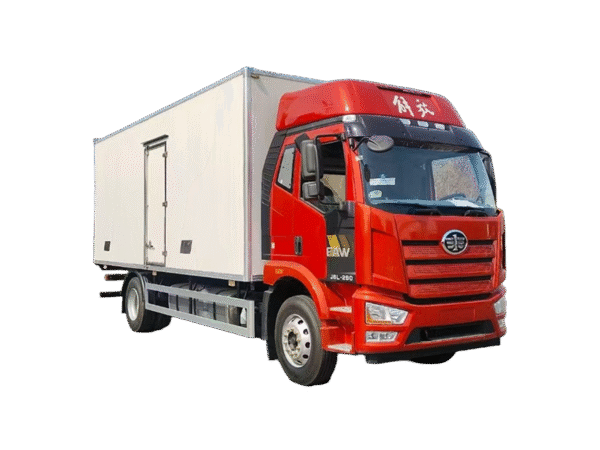

Product Details Display
