Description
Product Details Introduction
Dongfeng V3 Water Sprinkler Truck:
Optional cast aluminum pipe fittings: aluminum alloy elbow tee, aluminum alloy flange tee, aluminum alloy pump outlet cross, aluminum alloy pump inlet straight. These fittings are formed by one-time mold die-casting, with no welds to avoid water leakage. The standardized design ensures good interchangeability, making maintenance and part replacement convenient. The aluminum alloy material is lightweight, aesthetically pleasing, and practical, enhancing the product\’s overall quality and grade.
Parameter Configuration ：
| Category | Details |
| Product Name | Dongfeng V3 5-cubic Water Sprinkler Truck |
| Vehicle Model | CLW5070GPSEDP |
| Chassis Announcement | EQ1070GL6DJ |
| Chassis Configuration | – Wheelbase: 3300mm |
| – Engine: Yunnei 126 horsepower | |
| – Transmission: Wanliyang 5-speed gearbox | |
| – Tires: 7.00R16 | |
| – Fuel Tank: 70L iron | |
| Cab | Dongfeng V3 classic white cab |
| Additional Features | – Electric windows |
| – Remote control key | |
| – Factory-installed air conditioning | |
| – Air brake | |
| – Front axle: 2T, Rear axle: 3.5T | |
| – Cruise control | |
| Upper Configuration | – New 3.0 version coating |
| – Tank actual volume: 5 cubic meters | |
| – Tank material: Q235 | |
| – Partition thickness: 3mm | |
| – Tank carbon steel thickness: 4mm | |
| – Head thickness: 5mm | |
| – Large-diameter straight-through ball valve | |
| – Optional: Aluminum alloy tee | |
| – Thickened main pipeline (76) | |
| – Standard: 40/50 self-priming sprinkler pump | |
| Sprinkler Functions | – Front flushing |
| – Rear sprinkling | |
| – Side spraying | |
| – High-position shower | |
| – Rear green cannon |

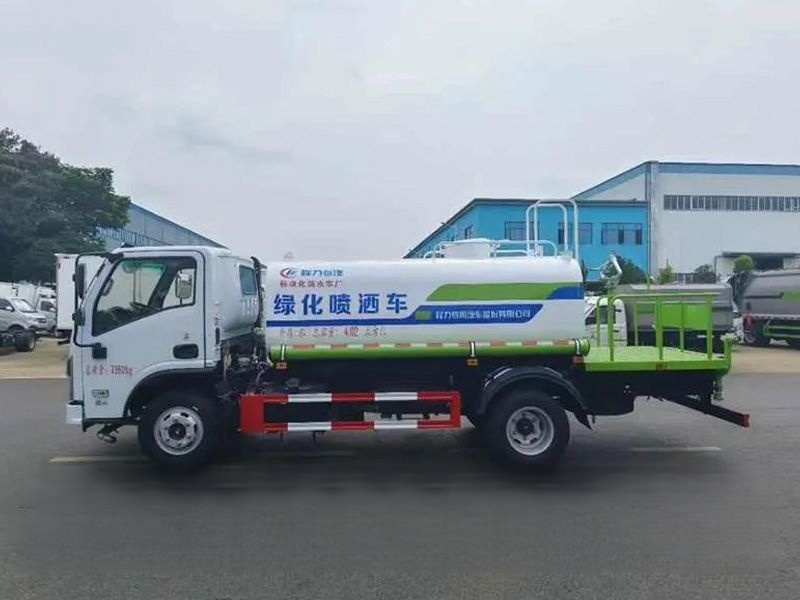

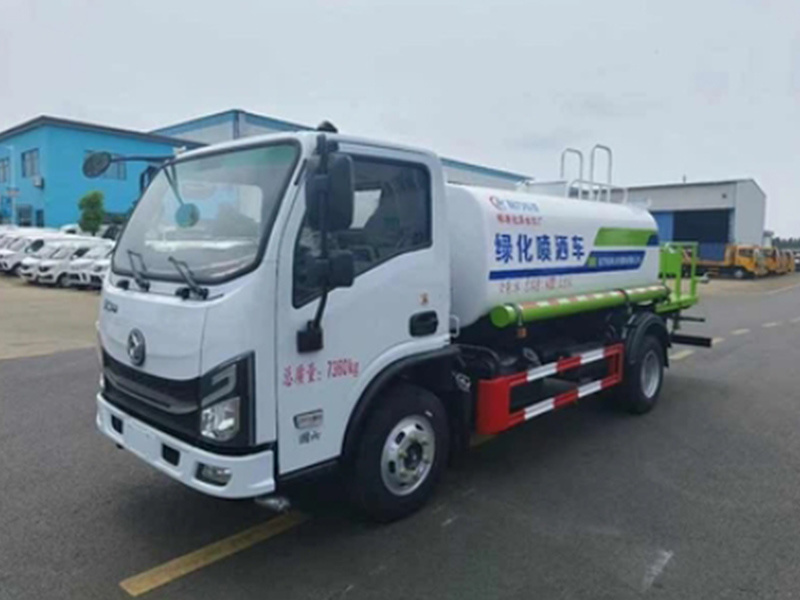

Product Details Display
