Product Details Introduction
Vehicle Introduction and Specific Parameters：
| Dongfeng 8-10 Cubic Meter Mixer Truck Chassis Parameters | |||
| Vehicle Name: | Dongfeng 8-10 Cubic Meter Mixer Truck | Chinese Brand: | Dongfeng 8-10 Cubic Meter Mixer Truck |
| Engine: | Yuchai 280 Horsepower – National IV | Displacement (ml): | 11950 |
| Dimensions: | 10380×2496×3980 | Mixing Volume: | 8-10 Cubic Meters (8-10 Cubic Meter Mixer Truck) |
| Total Weight: | 16000 (Kg) | Spring Leaf Number: | 9/11+8.8/10+8.8/11+8.9/10+8 |
| Curb Weight: | 8255 (Kg) | Rated Weight: | 7560, 7615 (Kg) |
| Axle Load: | 6000/10000 | Wheelbase: | 3800+1350 |
| Number of Axles: | 2 (Two Axles) (4×2) | Maximum Speed: | 83 km/h |
| Transmission: | Fast 9-Speed | Front and Rear Axles: | 5-ton Front Axle, 11.5-ton Dual Rear Axles |
| Number of Tires: | 10 | Tire Specification: | 9.00R20 Original Steel Wire Tires |
| Front Wheel Track: | 3800 | Rear Wheel Track: | 1,350 |
| Chassis Emission Standard: | (King Standard – Worry-Free Licensing) | ||
Mixer Truck Tank Parameters：
| Tank Material: | Alloy Steel (Special Wear-Resistant Material – Increases Tank Life by More Than 3 Times) | Cylinder Material: | 16Mn Steel 6mm Alloy Steel |
| Blade Material: | Baosteel 620 5mm Alloy Steel (Wear-Resistant Strips Added to Increase Service Life) |
Head Material: |
8mm Alloy Steel |
| Reducer: | German ZF Reducer/Italian Bonfiglioli PMP (Pure Import) | Hydraulic System: | German Rexroth, American Eaton, American Sauer, Italian PMP (Pure Import) |
| Water Supply System: | 400L Water Tank Pneumatic Water Supply | Cooling System: | Kaitong Radiator/Xinxiang Radiator |
| Feeding Speed: | Feeding Speed m³/min ≥ 3 | Discharge Speed: | Discharge Speed m³/min ≥ 2 |
| Discharge Residual Rate: | Discharge Residual Rate (%) ≤ 0.5 | Operation Method: | Three-Way Operation from Both Sides and Cab |
| Discharge Range: | 180° Up, Down, Left, and Right Height Adjustment | Safety Device: | Added Leakage Receiving Device |
Advantages of the Mixing Tank Body：
| Reducer: | Internationally imported brands, such as German Rexroth, Italian PMP, and Italian Bonfiglioli, with strong load-bearing capacity and low failure rate. |
| Hydraulic System: | All equipped with internationally renowned hydraulic systems, including German Rexroth, American Eaton, American Sauer, and Italian PMP, ensuring more stable tank operation, faster discharge speed, and lower residual rate! |
| Supporting Facilities: | The vehicle is designed for convenient and fast loading and unloading, with multi-functional operation methods, saving time, effort, and worry! |
| After-Sales Service: | The tank reducer comes with a one-year or 30,000-kilometer warranty. |

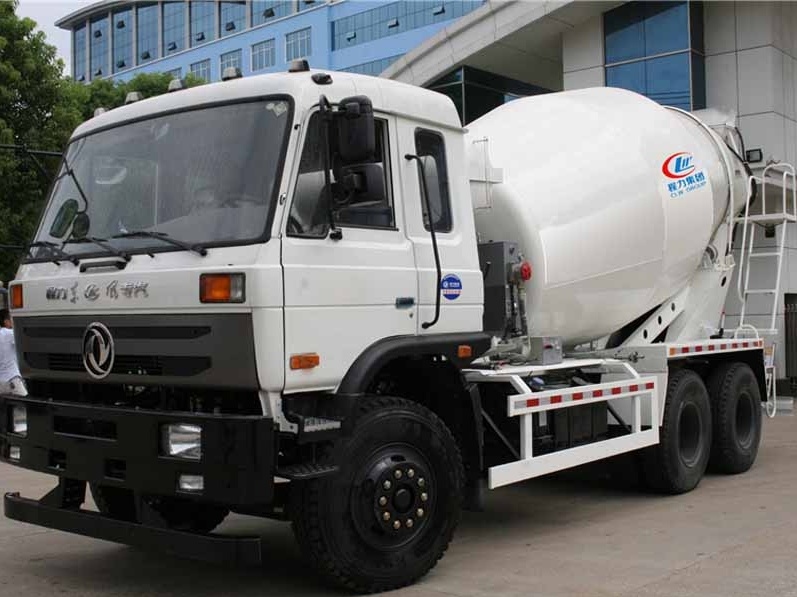

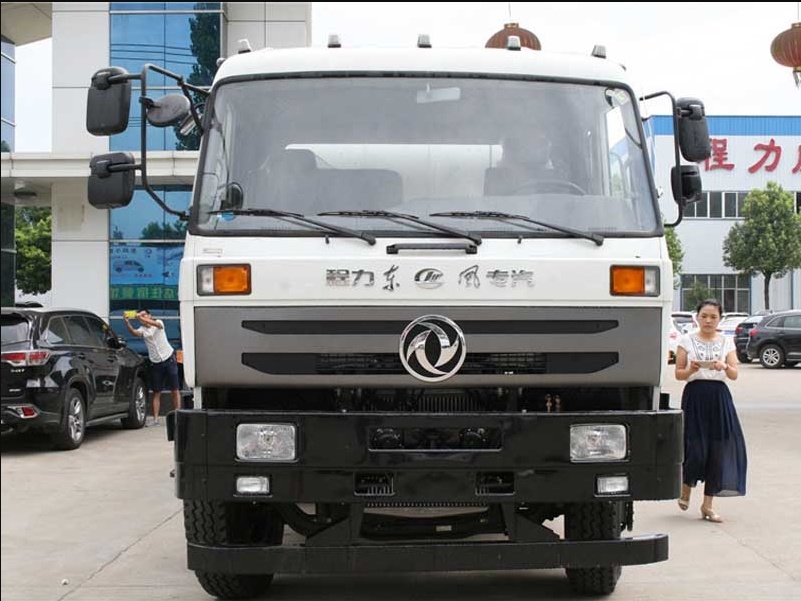

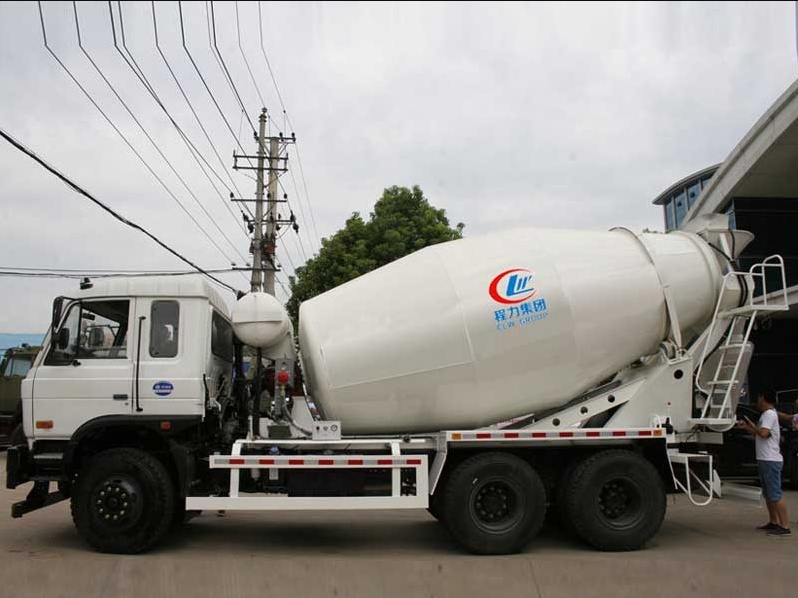

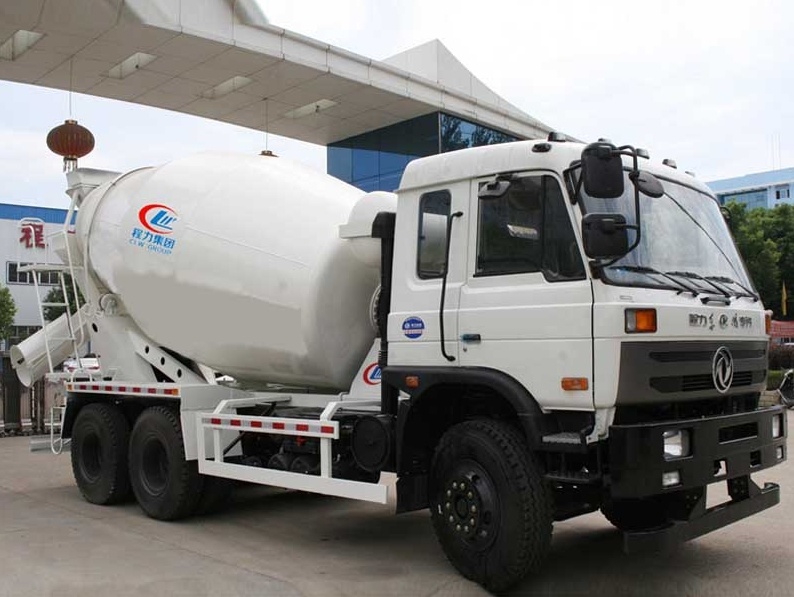

Product Details Display
