Description
Product Details Introduction

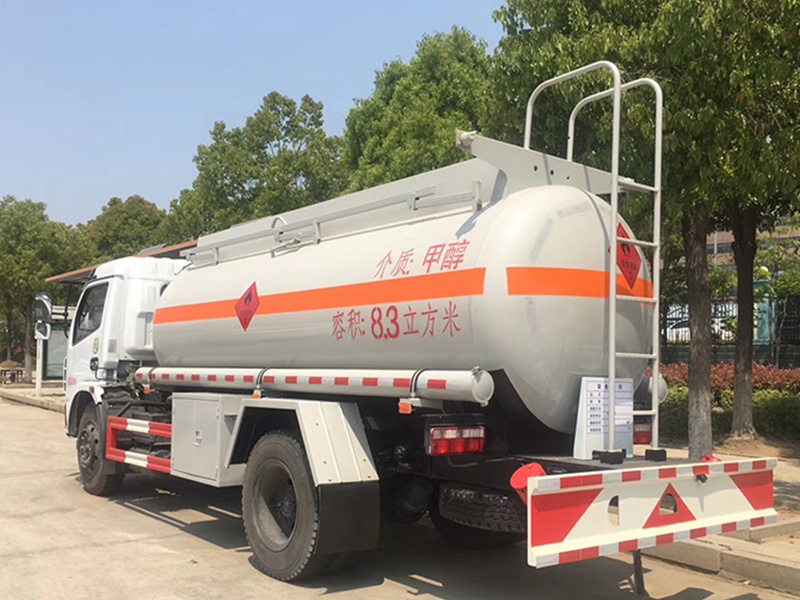

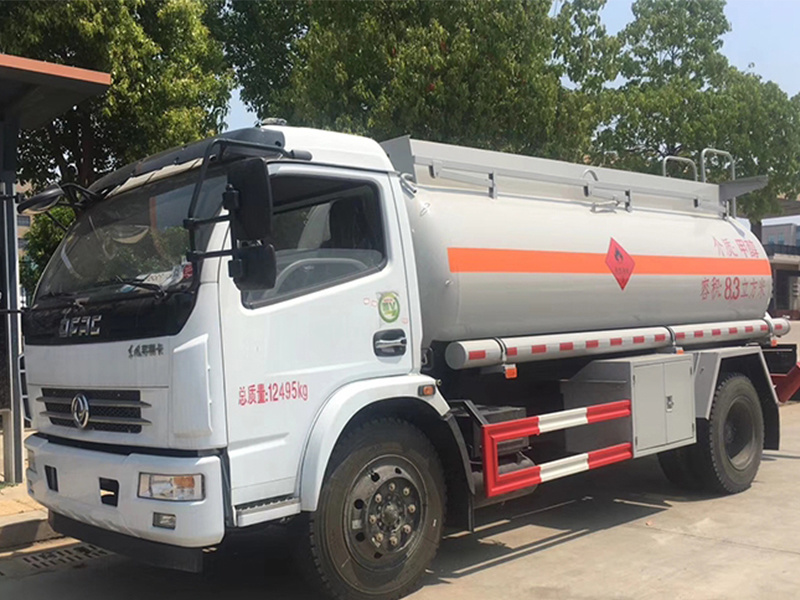

Dongfeng Dolika 8.3 Cubic Meter Methanol Tanker:
This vehicle is suitable for transporting hazardous materials. Transport media include methanol (density 790 kg/m³), ethanol (density 790 kg/m³), acetone (density 790 kg/m³), isopropanol (density 776 kg/m³), and alcohol (density 790 kg/m³), with hazard class number 3. The tank has an effective volume of 8.3 cubic meters, with external dimensions (length x diameter) of 5000 x 1500 mm.
Vehicle Introduction and Specific Parameters：
| Product Name | HQG5120GRY5EQ Flammable Liquid Tanker | Product Number | ZMXHUSYD02C |
| Total Mass (Kg) | 12495 | Tank Volume (m³) | 8.3 |
| Rated Load Mass (Kg) | 6560 | External Dimensions (mm) | 7200×2250×3100 |
| Curb Weight (Kg) | 5740 | Cargo Compartment Dimensions (mm) | — |
| Rated Passenger Capacity (Persons) | — | Total Mass of Towed Trailer (Kg) | — |
| Cab/Non-passenger Capacity (Persons) | 3 | Load Mass Utilization Coefficient | — |
| Approach/Departure Angle (°) | 20/14 | Front/Rear Overhang (mm) | 1130/2270 |
| Number of Axles | 2 | Wheelbase (mm) | 3300, 3650, 3800 |
| Axle Load (Kg) | 4480/8015 | Maximum Speed (Km/h) | 80 |
Chassis Technical Parameters：
| Chassis Model | EQ1127SJ8GDC | Chassis Name | Cargo Vehicle Chassis (Category 2) |
| Brand Name | Dongfeng | Manufacturer | Dongfeng Motor Corporation |
| External Dimensions (mm) | 5895, 6410, 6740 × 2100 × 2390 | Number of Tires | 6 |
| Approach/Departure Angle (°) | 20/14 | Tire Specifications | 8.25R20 14PR, 8.25-20 16PR |
| Number of Leaf Springs | 8/10+7 | Front Wheel Track (mm) | 1740 |
| Fuel Type | Diesel | Rear Wheel Track (mm) | 1640 |
| Emission Standard | GB17691-2005 China V, GB3847-2005 | ||
| Engine Model | Engine Manufacturer | Displacement (ml) | Power (Kw) |
