Product Details Introduction

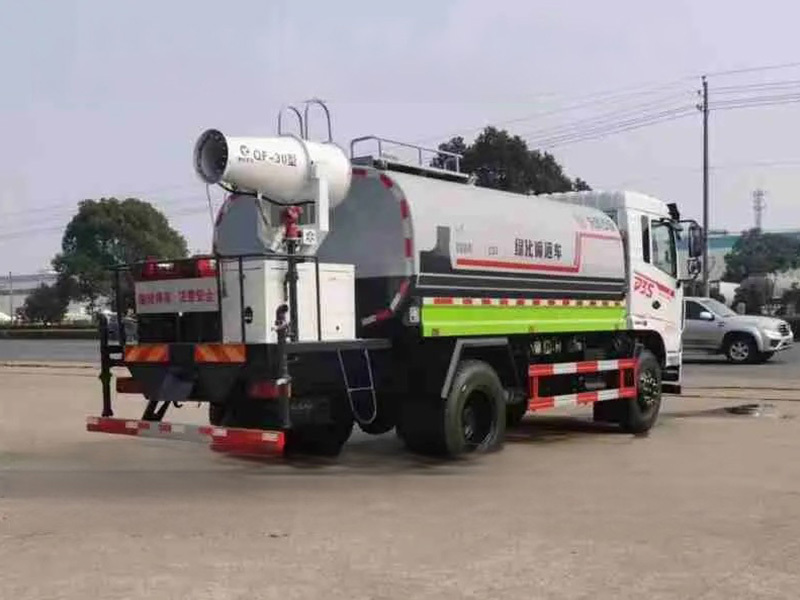

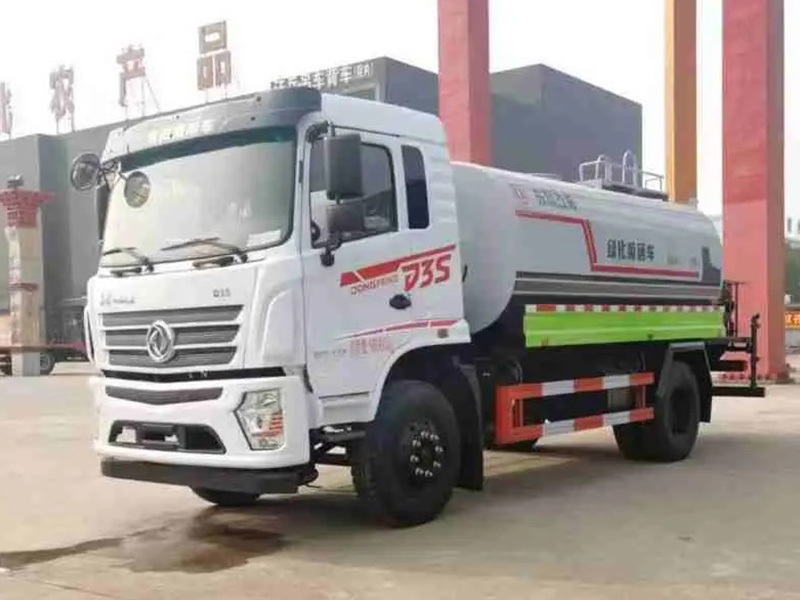

Dongfeng D3S Water Sprinkler Truck (15 cubic meters)：
DFV1183GP6DJ / DFV1183GDP6DJ1, equipped with the new Dongfeng D3S cab and a Yuchai 200 horsepower engine.
Upper Configuration:Tank Capacity: Announcement volume 12 cubic meters (actual volume 15 cubic meters) Pump: Equipped with a dedicated sprinkler pump (self-priming and self-discharging) Functions: Front flushing, rear sprinkling, side spraying, rear work platform, and adjustable water cannon Optional: Spraying unit can be installed on the rear platform Standard Features: Standard sprinkler truck configuration.
Parameter Configuration ：
| Category | Details |
| Product Name | Greening Sprinkler Truck |
| Chassis Model | DFV1183GP6DJ |
| Total Mass (Kg) | 18000 |
| Rated Load Capacity (Kg) | 10285, 10350 |
| Curb Weight (Kg) | 7520 |
| Number of Axles | 2 |
| Dimensions (mm) | 8390, 7840, 2550, 3200 |
| Wheelbase (mm) | 3950, 4200, 4500, 4700, 5100 |
| Tire Specifications | 10.00R20 18PR, 275/80R22.5 18PR |
| Number of Tires | 6 |
| Fuel Type | Diesel |
| Emission Standard | GB17691-2018 China VI |
| Maximum Speed (Km/h) | 89 |
Product Details Display
