Product Details Introduction

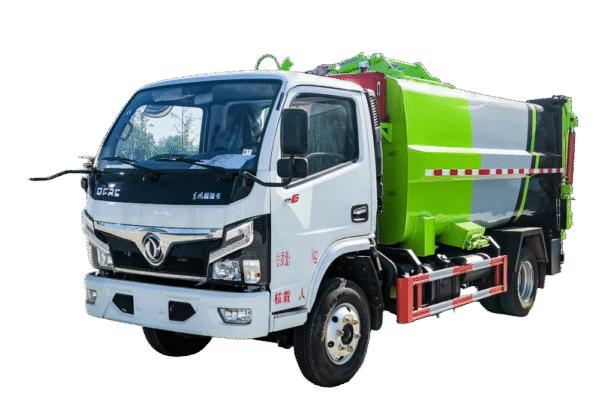

Dongfeng 7.5 cubic side-mounted compression garbage truck comprehensive parameters and configuration
I. Basic parameters

Volume and loading capacity

The volume of the compartment is 7.5 cubic meters, and the loading capacity of domestic garbage can reach about 5 tons.

The curb weight is about 4800kg.

2 types of compression push plate modes are available

Dimensions and chassis

Vehicle size: 5995×2250×2700mm (length×width×height).

Wheelbase 3308mm, axle load 2640/4720, fuel type is diesel.

Blue license plate models are suitable for C license driving and meet urban sanitation needs.

Performance indicators

The maximum speed is 110km/h, the fuel consumption is about 16.3L/100km, and it is equipped with an anti-lock braking system.

The tire specification is 7.00 copper wire tire, and the number of tires is 6.
2. Core configuration

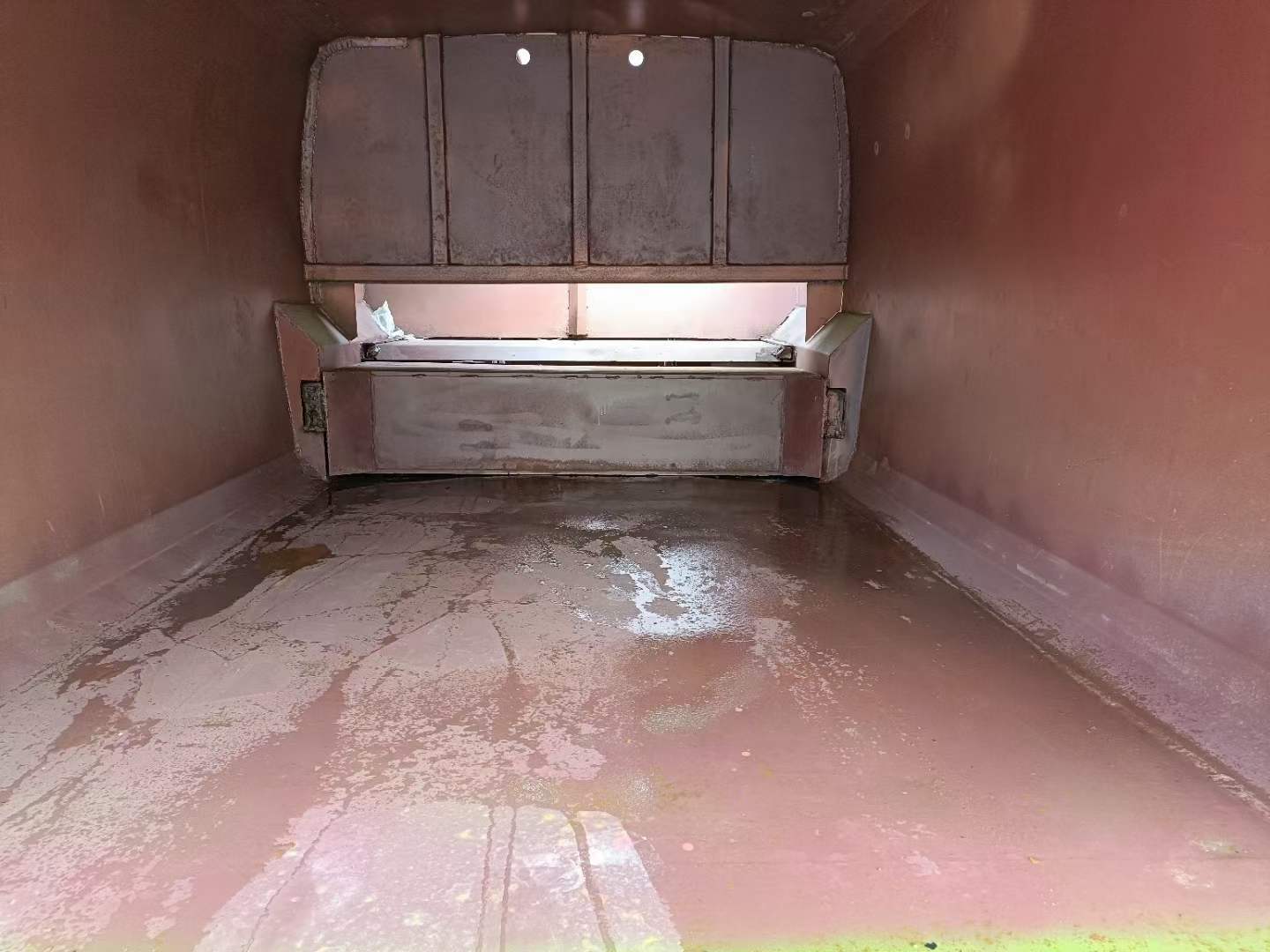

Box and structure

Material: WISCO Q235 carbon steel plate, side plate thickness 3mm, bottom plate 4mm.
The height and size of the filling port are adapted to the side-mounted design, with high compression efficiency.

Hydraulic system

Configured with Zhongmei multi-way valve, Hypreus cylinder, Changyuan gear pump and other components.
Tail hydraulic opening method, convenient maintenance.

Power and transmission

Engine model YCY24140-60, power 93kW, gearbox optional 5th or 6th gear.

3. Applicable scenarios and advantages
Urban sanitation: Side-mounted design saves manpower, compression function improves garbage disposal efficiency, suitable for scenes such as streets and communities.

Economic efficiency: Some models are exempt from purchase tax, reducing procurement costs.

4. Typical model examples
Dongfeng D6 side-mounted compression garbage truck
Box 7.5 cubic meters, wheelbase 3308mm, fuel type diesel.
Dongfeng Furika National VI Model
New regulations for C-certificate blue license plate, high material durability, stable hydraulic system
Dongfeng Xiaoduolika side loading
Rated load capacity 2380kg, box thickness 4mm, suitable for high-intensity operations .

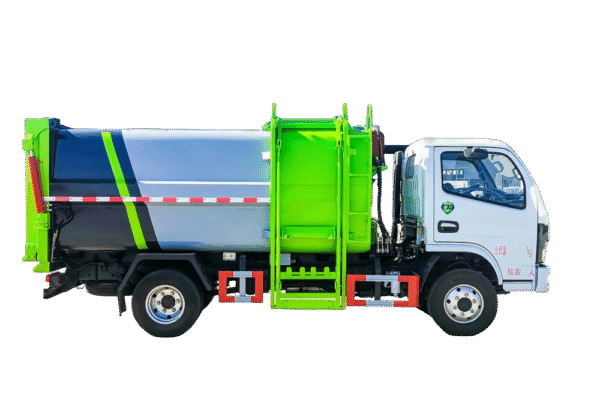

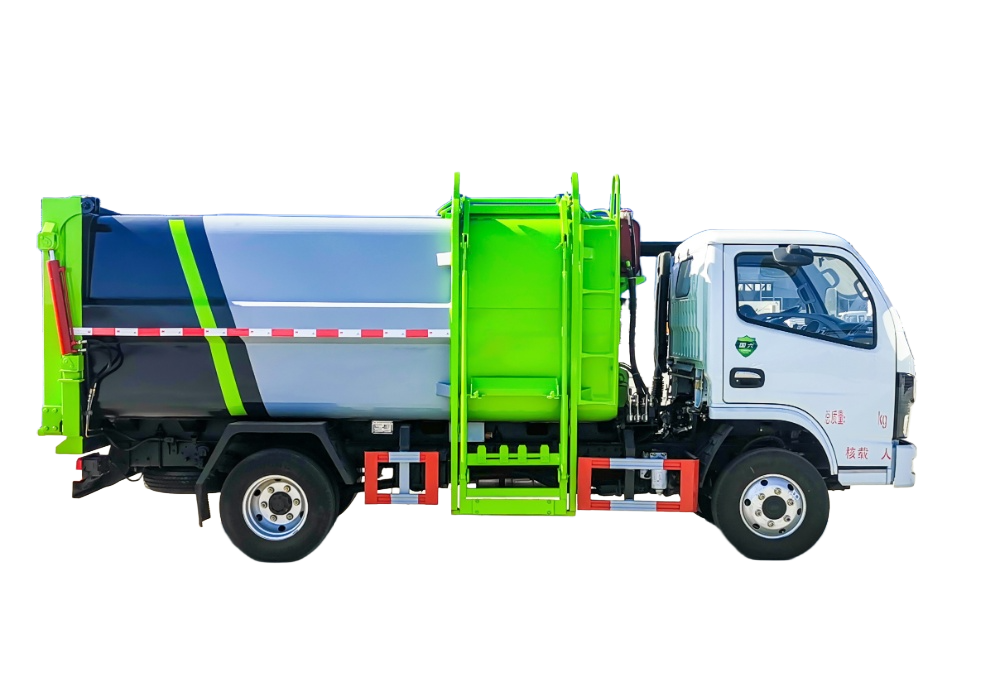

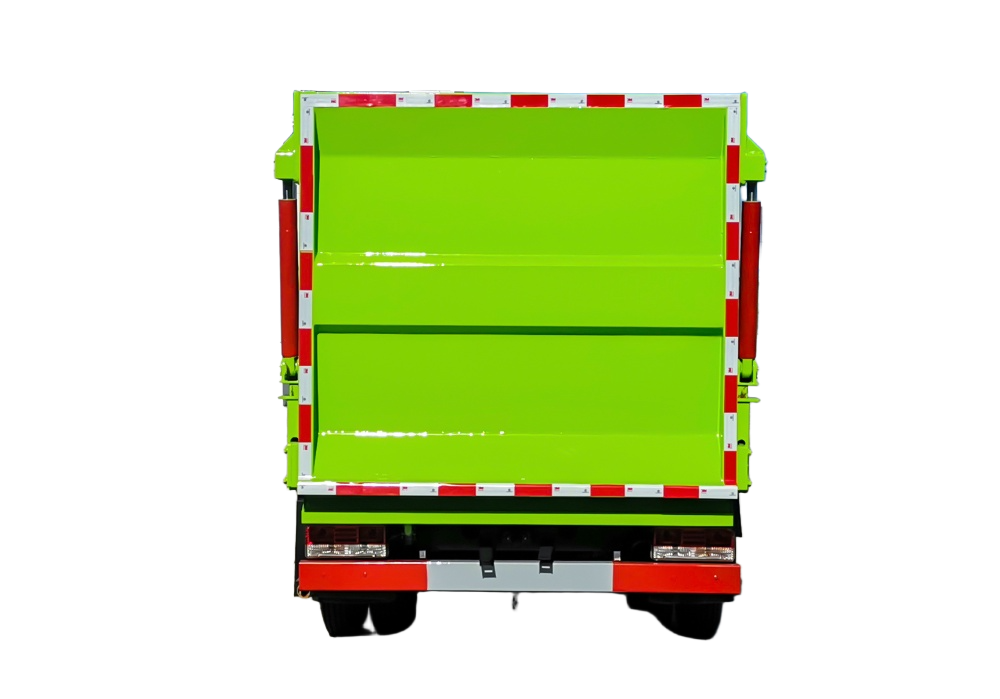

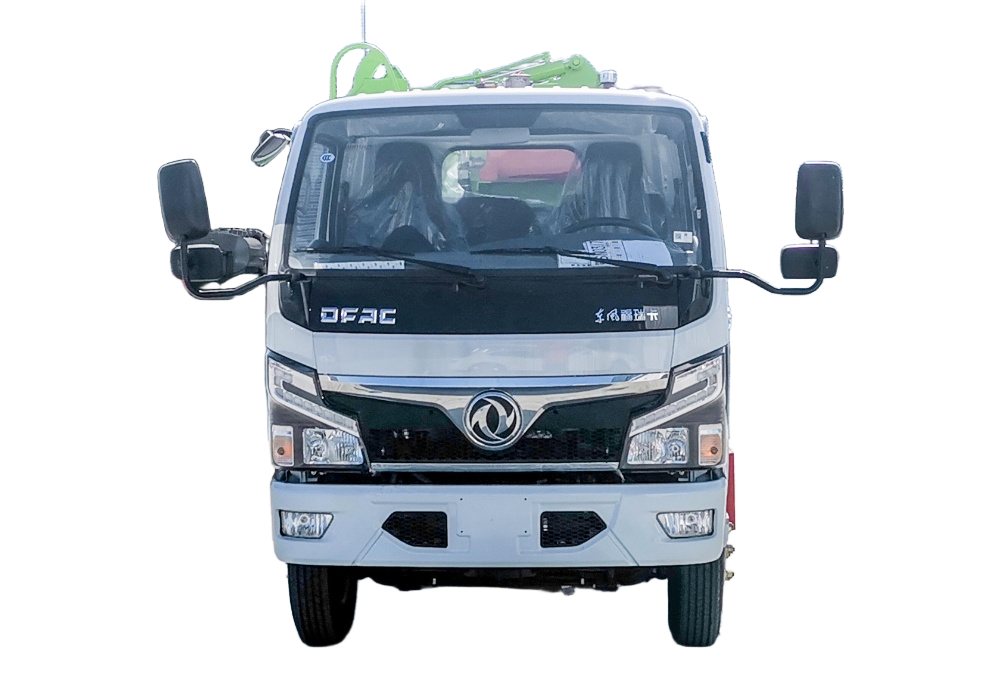

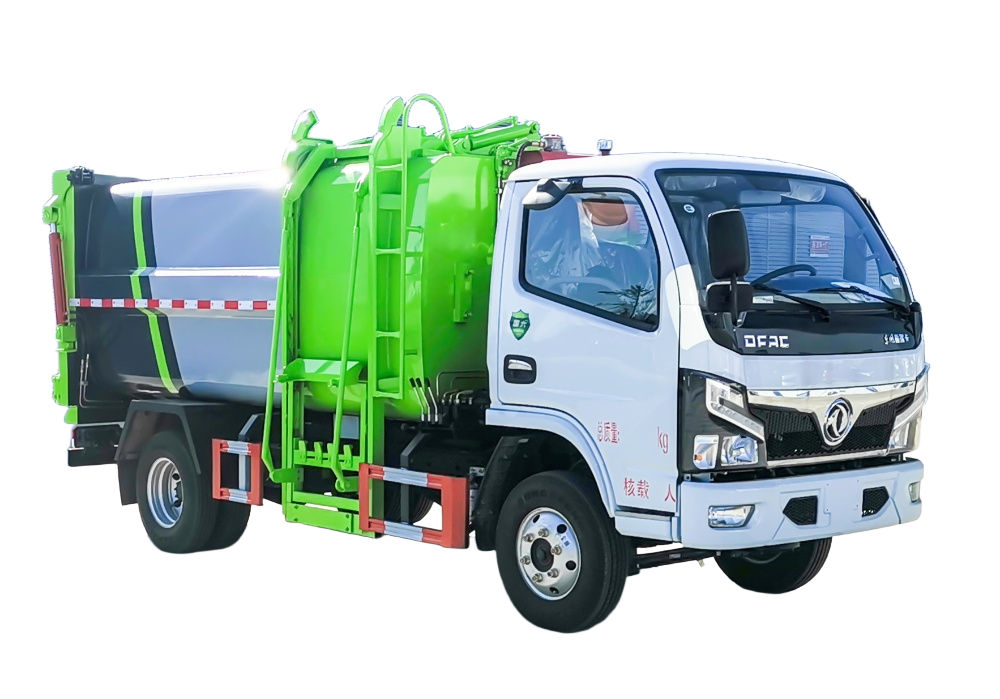

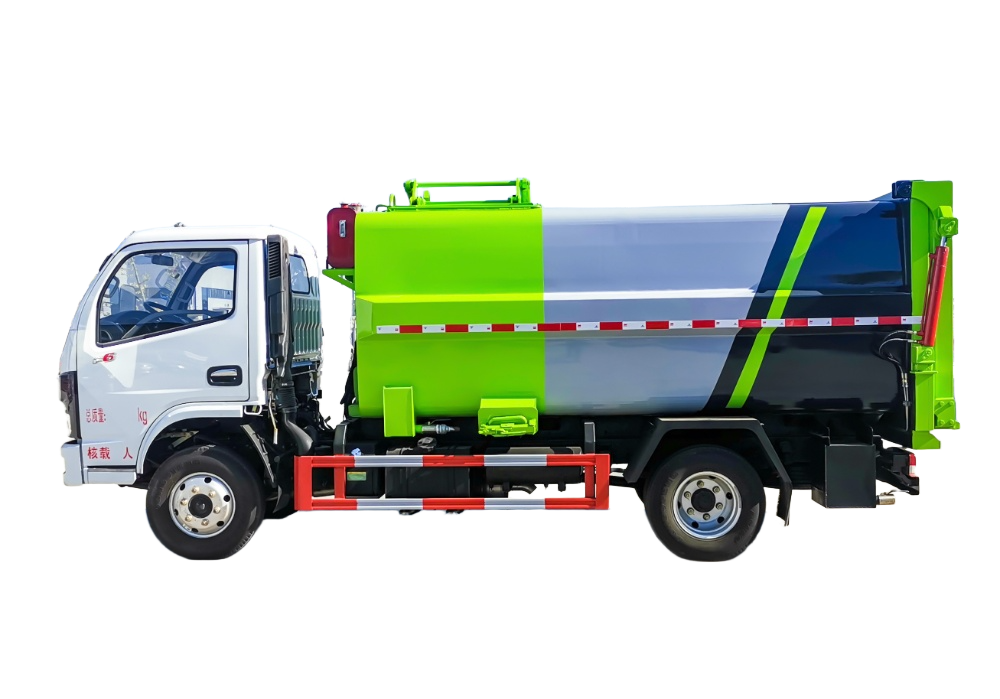

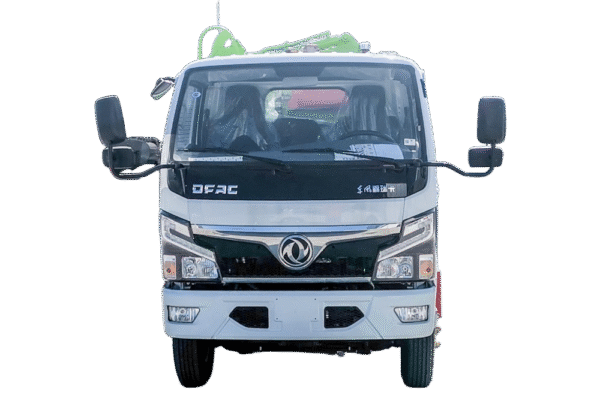

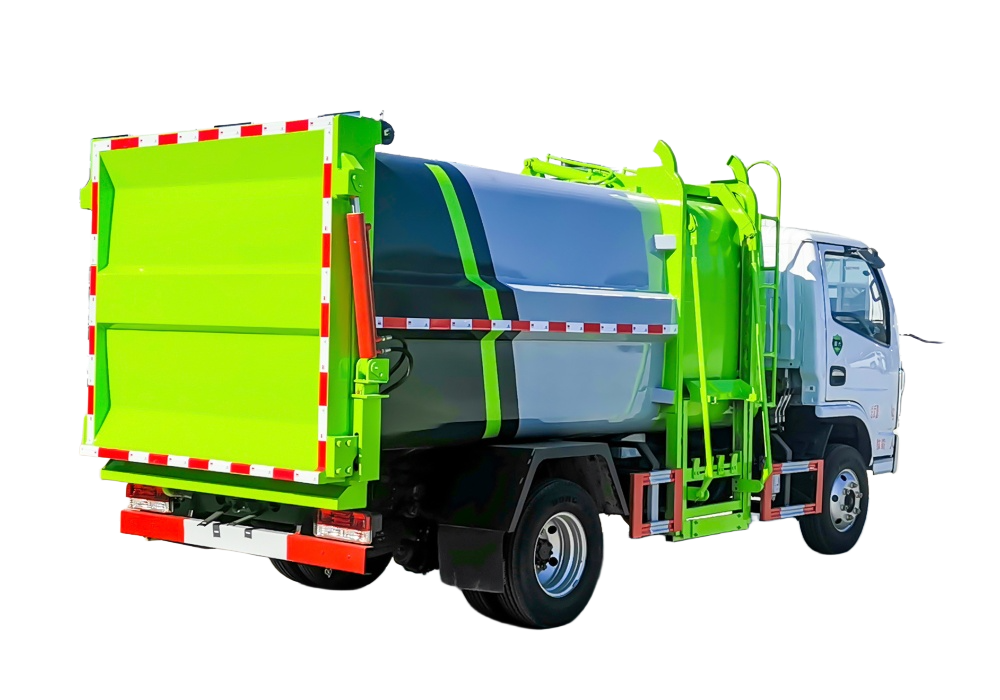

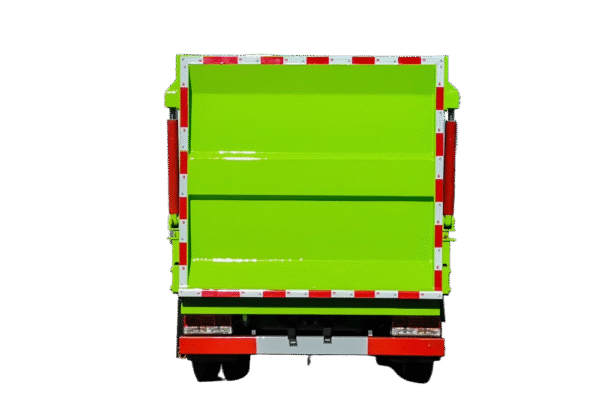

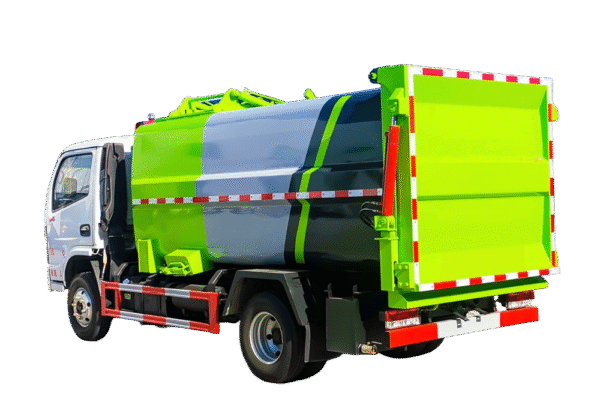

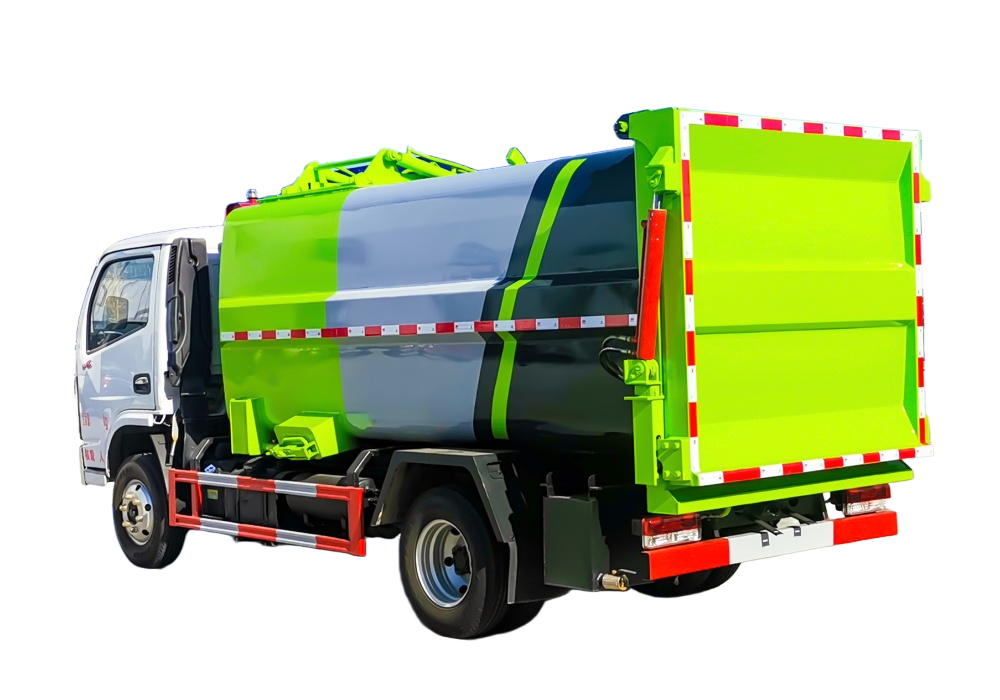

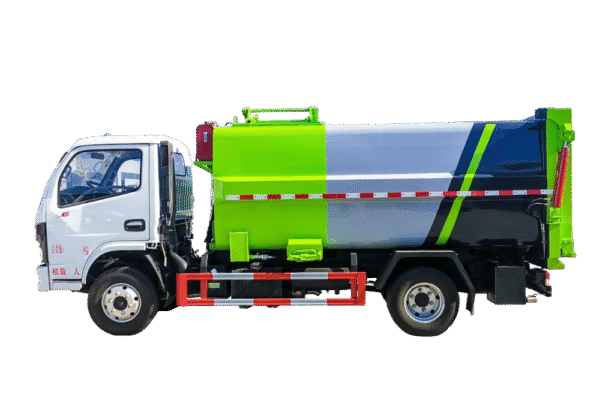

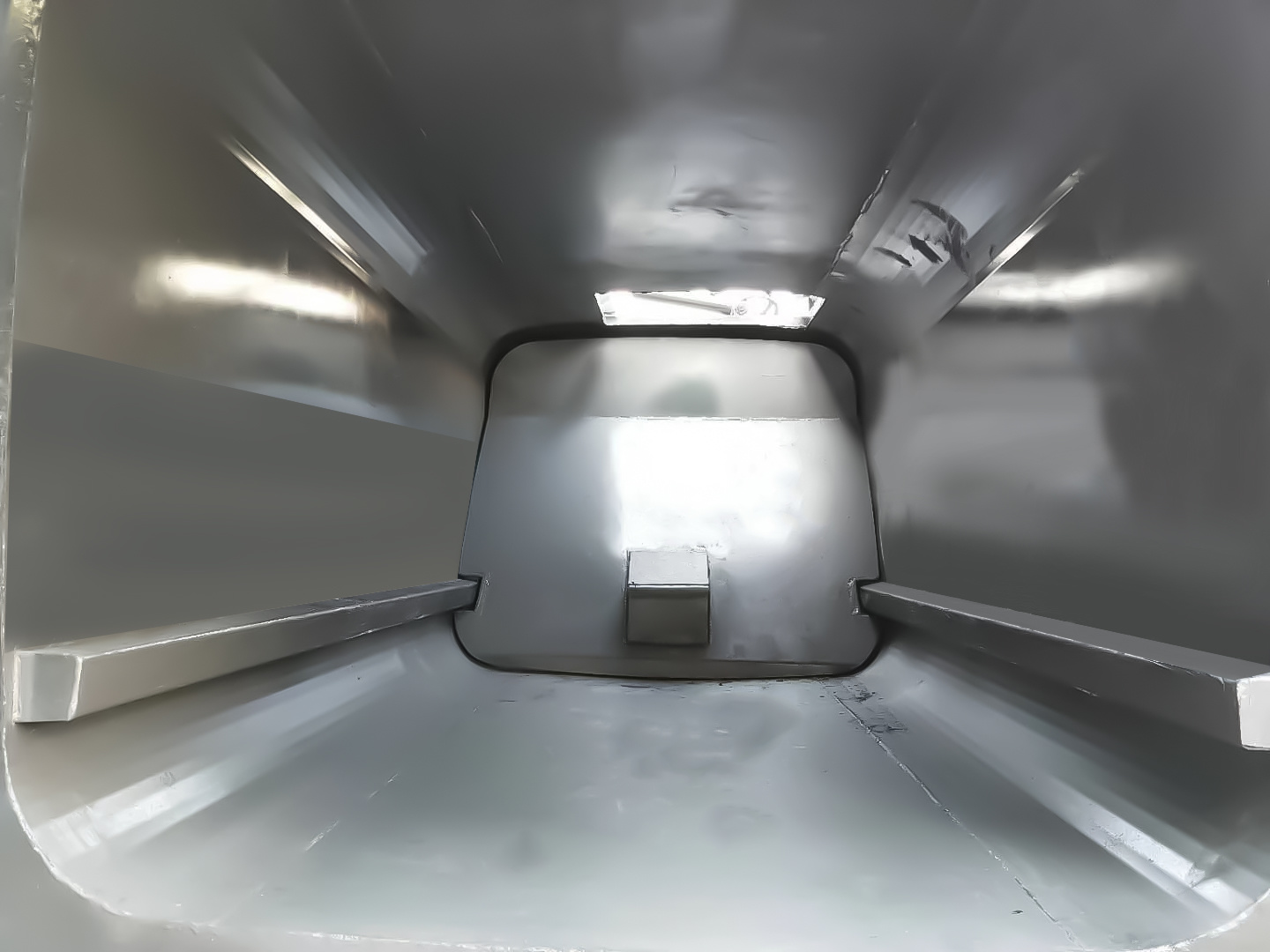

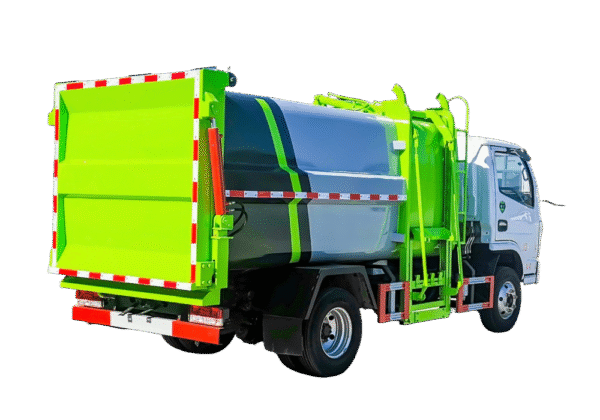

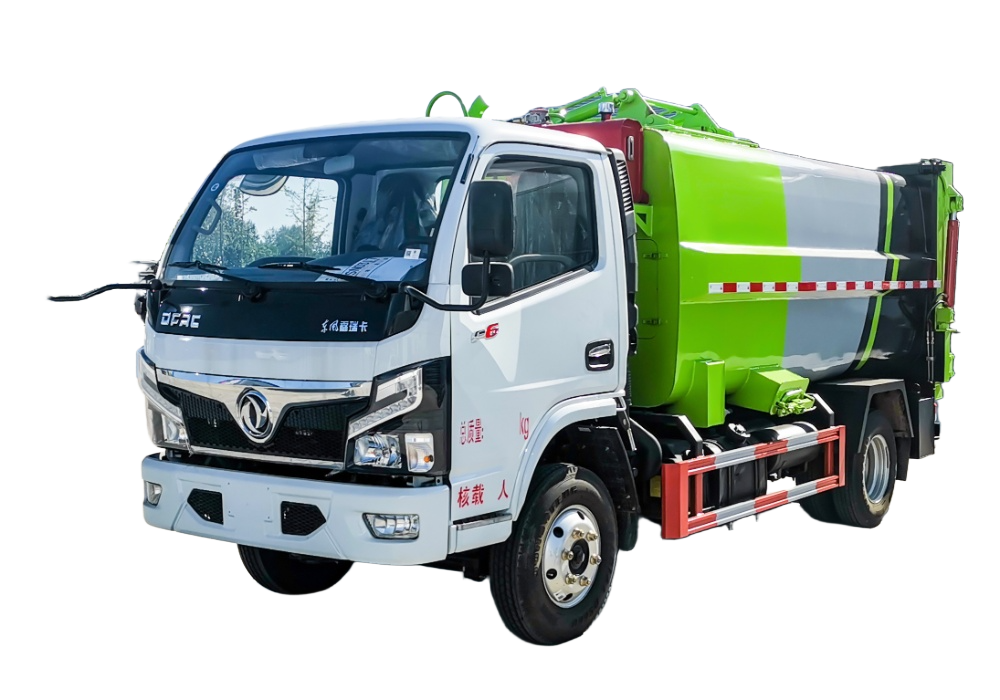

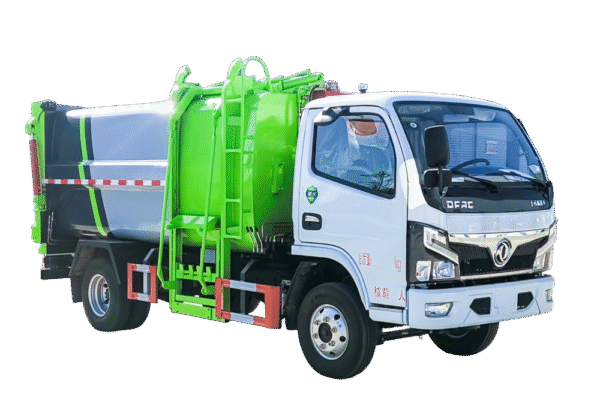

Product Details Display
