Description
Product Details Introduction
Vehicle Introduction and Specific Parameters:
|
Dayun Fengchi 8-10 Cubic Meter Mixer Truck Chassis Parameters |
|||
| Vehicle Name: | Dalian 8-10 Cubic Meter Mixer Truck | Chinese Brand: | Dayun 6 Cubic Meter Mixer Truck |
| Engine: | Wangrong 185/290 horsepower | Displacement (ml): | 4730/7520 |
| Dimensions: | 8270×2650×3760 mm | Mixing Volume: | 8-10 cubic meters |
| Total Weight: | 24500 kg | Spring Leaf Number: | 9/11+8,8/10+8,8/11+8,9/10+8 |
| Curb Weight: | 11950 kg | Rated Weight: | 12355 kg |
| Axle Load: | 6000/10000 kg | Wheelbase: | 3400/3800+1350 mm |
| Number of Axles: | 2 (two axles) | Maximum Speed: | 83(km/h) |
| Transmission: | Fastr Large Eight-Gear | Front and Rear Axles: | 5-ton front axle, 10-ton rear axle |
| Number of Tires: | 10 | Tire Specification: | 10.00R20 original steel wire tires |
| Chassis Emission Standard: | GB17691-2005 China V, GB3847-2005 (China V Standard – Hassle-Free Licensing) | ||
Mixer Truck Tank Parameters：
|
Wall Material:
|
Alloy Steel (Special Wear-Resistant Material – Increases Wall Life by More Than 3 Times) |
Cylinder Material: |
16Mn Steel, 6mm Alloy Steel |
| Blade Material: | Baosteel 520, 5mm Alloy Steel (Wear-Resistant Strips Added to Extend Service Life) | Head Material: | 8mm Alloy Steel |
| Reducer: | German ZF Reducer / Italian Bonfiglioli PMP (Pure Import) | Hydraulic System: | German Rexroth, American Eaton / American Sauer / Italian PMP (Pure Import) |
| Water Supply System: | 400L Water Tank, Pneumatic Water Supply | Cooling System: | Kaidi Radiator / Xinxiang Radiator |
| Feeding Speed: | Feeding Speed m³/min ≥ 3 | Discharge Speed: | Discharge Speed m³/min ≥ 2 |
| Residual Discharge Rate: | Residual Discharge Rate (%) ≤ 0.5 | Operation Method: | Three-Way Operation (Left, Right, and Cab) |
| Discharge Range: | 180° Up, Down, Left, and Right Height Adjustment | Safety Device: | Leakage Receiving Device Installed |
Advantages of the Mixing Tank Body：
| Reducer: | Internationally imported brands, such as German Rexroth, Italian PMP, and Italian Bonfiglioli, with strong load-bearing capacity and low failure rate. |
|
Hydraulic System: |
All equipped with internationally renowned hydraulic systems, including German Rexroth, American Eaton, American Sauer, and Italian PMP, ensuring more stable tank operation, faster discharge speed, and lower residual rate! |
| Supporting Facilities: | The vehicle is designed for convenient and fast loading and unloading, with multi-functional operation methods, saving time, effort, and worry! |
| After-Sales Service: | The tank reducer comes with a one-year or 30,000-kilometer warranty. |

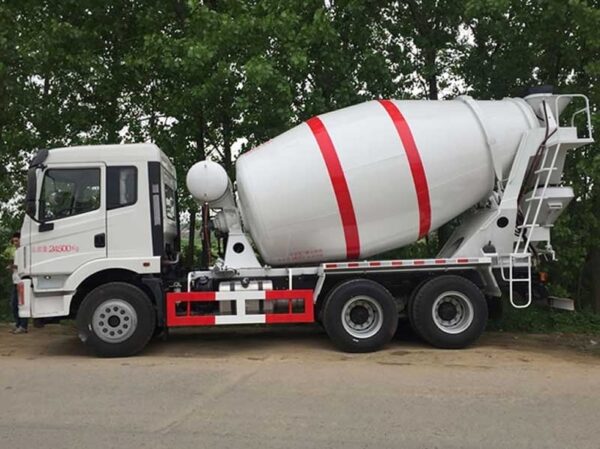

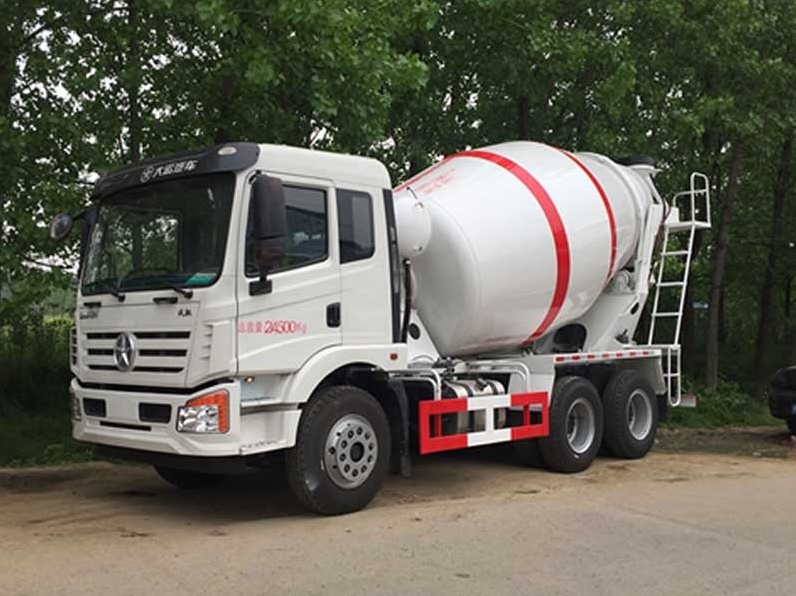

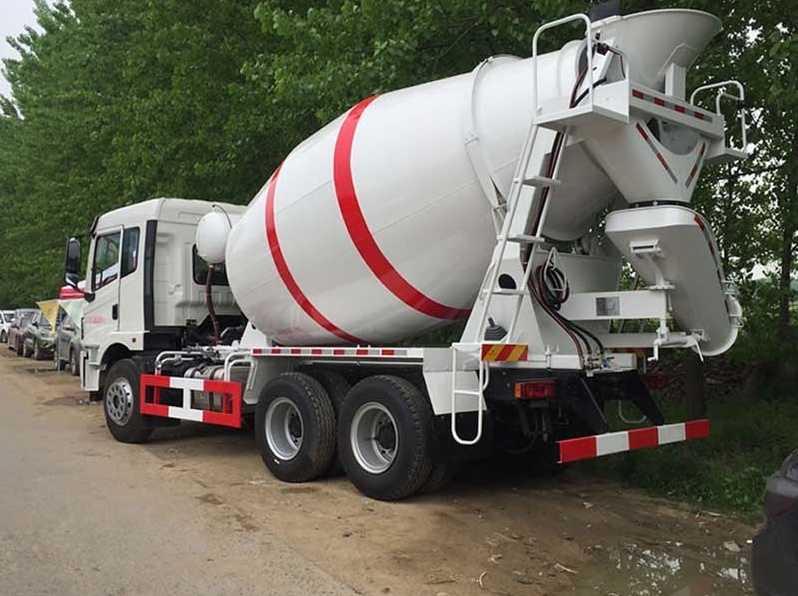

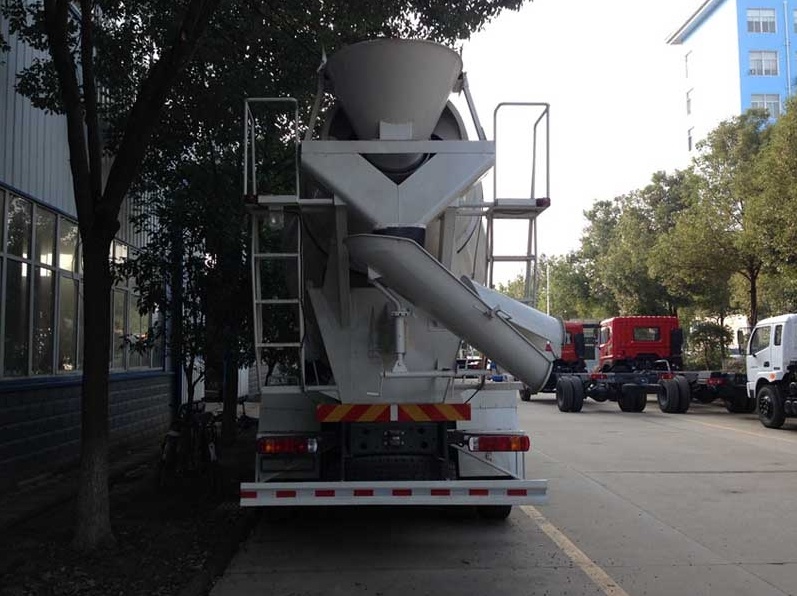

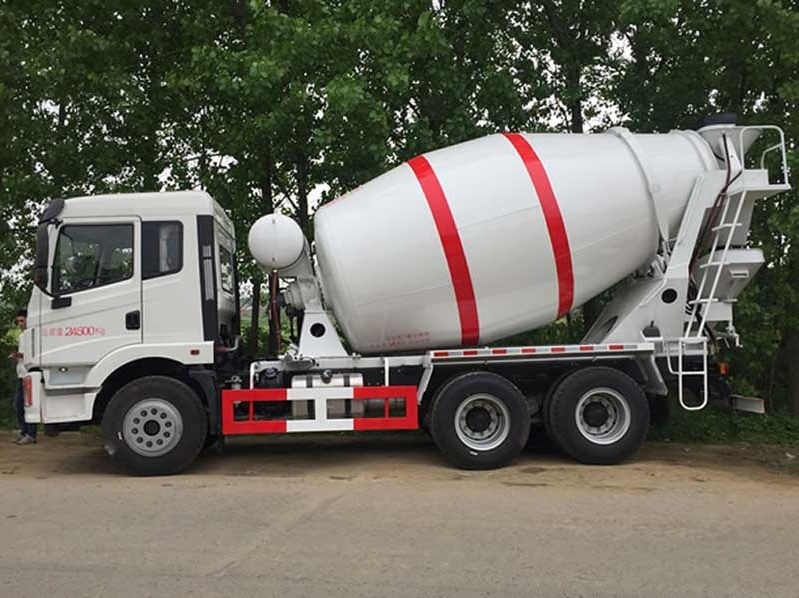

Product Details Display
