Description
Product Details Introduction
China VI FAW J6L 8×4 Aluminum Alloy Fuel Tanker:
Changchun 8×4 Hazardous Material Chassis (China VI)
Chassis Model: CA5320GYYP62K1L6T4E6
The new J6L features a full-floating high-roof sleeper cab with a liquid crystal display, electric windows, electric mirrors, side mesh pockets, rear curtain rails, panoramic curtain rails, and an air-suspension driver\’s seat. It includes a single-DIN Beidou-compatible vehicle system and a master power switch control.
Vehicle Introduction and Specific Parameters：
| Product Trademark | Chusheng Brand | Announcement Batch | 346 |
| Product Name | CSC5321GYYLC6 Aluminum Alloy Fuel Truck | Product Number | ART0X6X202W |
| Total Mass (Kg) | 32000 | Tank Capacity (m³) | 31.1 |
| Rated Load Mass (Kg) | 20800, 20735 | Dimensions (mm) | 11750×2550×3500 |
| Curb Weight (Kg) | 11070 | Cargo Compartment Dimensions (mm) | ×× |
| Rated Passengers (People) | Total Mass of Towed Vehicle (Kg) | ||
| Number of People in Cabin | 2, 3 | Load Carrying Efficiency | |
| Approach/Departure Angle (°) | 14/13 | Front/Rear Overhang (mm) | 1400/2600 |
| Number of Axles | 4 | Wheelbase (mm) | 1900+4500+1350, 1900+4200+1350 |
| Axle Load (Kg) | 6500/6500/19000 (dual axle set) | Maximum Speed (Km/h) | 79 |
Chassis Technical Parameters：
| Chassis Model Number | CA5320GYYP62K1L6T4E6 | Chassis Name | Oil Tanker Chassis (Type II) |
| Trademark Name | Jiefang Brand | Manufacturer | FAW Group Corporation Limited |
| Dimensions (mm) | 11650, 11350 × 2550 × 3520 | Number of Tires | 12 |
| Approach/Departure Angle (°) | 14/13 | Tire Specifications | 12R22.5 18PR, 295/80R22.5 18PR |
| Spring Leaf Count | 3/3/- | Front Wheelbase (mm) | 1950/1950, 1974/1974 |
| Fuel Type | Diesel | Rear Wheelbase (mm) | 1878/1878, 1900/1900 |
| Emission Standard | GB17691-2018 China VI | ||
| Engine Model Number | Engine Manufacturer | Displacement (ml) | Power (Kw) |

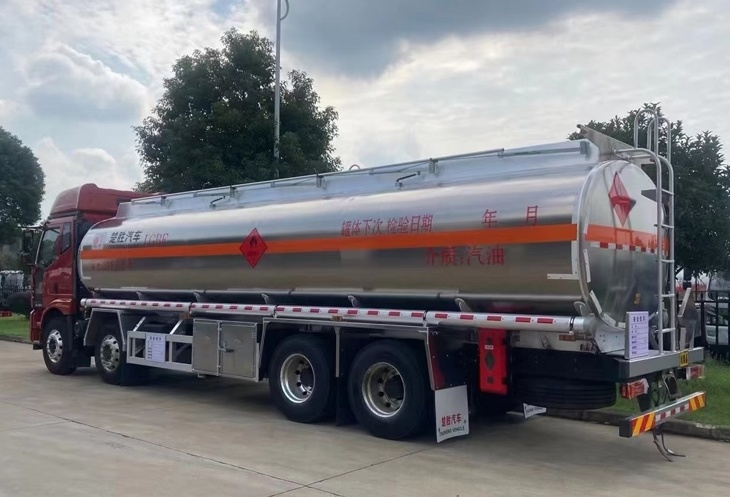

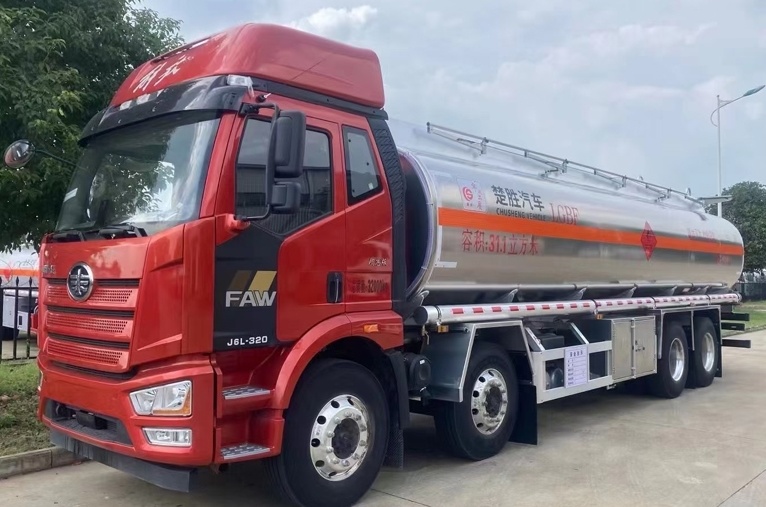

Product Details Display
